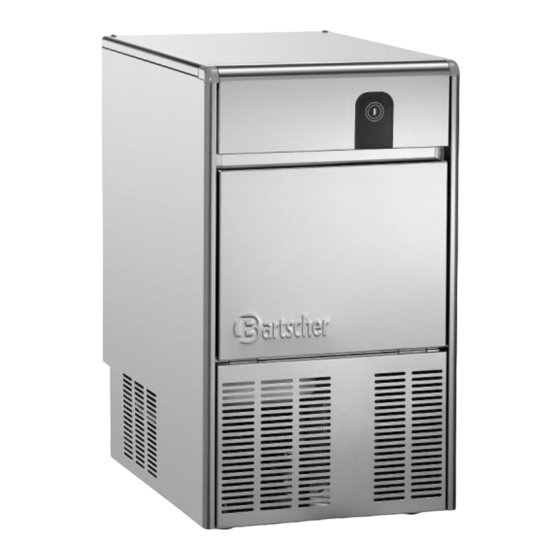

Bartscher Q 25 Manual

Hide thumbs Also See for Q 25:
Table of Contents

Advertisement

Quick Links

Download this manual
Q 25 - Q 45
104304 - 104306

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q 25 and is the answer not in the manual?

Questions and answers

Related Manuals for Bartscher Q 25

Summary of Contents for Bartscher Q 25

  • Page 1 Q 25 - Q 45 104304 - 104306...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-12-06...
  • Page 3 Bes chr eibung...
  • Page 5 Quick Start Guide TOUCH Operation status LED indicator status every 30” Standby Storage container full every 10” Production cycle start every 0.5” Ice production ON 5” + OFF Alarm blackout ON 3” + OFF Cleaning cycle ATTENTION! Should subsequent alarms appear, contact the service company.

  • Page 7: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 5 Unintended Use ..................5 General information ..................6 Liability and Warranty ................6 Copyright Protection ................6 Declaration of Conformity ................ 6 Transport, Packaging and Storage ..............

  • Page 8: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sich ere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.

  • Page 9: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 10 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.

  • Page 11: Intended Use

    Safety • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force.

  • Page 12: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.

  • Page 13: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.

  • Page 14: Technical Data

    Technical Data Technical Data Technical Specifications Ice-cube maker Q 25 Name: 104304 Art. No.: Material: CNS 18/10 Ice cube design: Tapered form (hollow taper) Number of ice cube sizes: Ice cube size (W x D x H), in mm: 30 x 26 x 40...
  • Page 15 Technical Data Ice-cube maker Q 45 Name: 104306 Art. No.: Material: CNS 18/10 Ice cube design: Tapered form (hollow taper) Number of ice cube sizes: Ice cube size (W x D x H), in mm: 30 x 26 x 40 Ice cube weight, in g: Ice cubes output / work cycle: Max.

  • Page 16: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance 1. Housing 2. Control key 3. Ice shovel holder 4. Water drain opening 5. Temperature probe 6. Water pan 7. Storage container 8. Storage container door 9. Power cord with mains plug 10.

  • Page 17: Operation

    Technical Data Operation • The production of ice takes place at the terminations (fingers) of the evaporator, which are plunged in the tank filled with water. Water is constantly stirred by rotating paddles. • Water level in the tank is kept at a constant level by the float, which is connected to a micro-switch.

  • Page 18: Installation And Operation

    Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law.
  • Page 19 Installation and operation – sufficiently large, and thus enabling usage of the appliance with no problems; – easily accessible; – well ventilated. • The appliance may be loaded and unloaded with a forklift truck or a pallet truck, with the length of over half of the length of the appliance. •...
  • Page 20 Installation and operation • Level the appliance (Fig. 3). If the appliance is not levelled, it may negatively affect its functionality, as well as water supply. Remove Transport Safeguards 1. Remove screws fixing the upper cover. 2. Remove the upper cover. 3.

  • Page 21: Operation

    Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •...
  • Page 22 Installation and operation Indications for User • If the appliance is installed in an area, where potable water features high salt content, follow the instruction to avoid possible malfunctions. • For the ice not to take up unpleasant scent nor taste, do not store food, bottles nor anything else in the storage container.
  • Page 23 Installation and operation 8. Check the ice production cycle by verifying whether ice cubes are unload to the storage container. 9. Check the storage container probe for operation: place an ice cube on a cooled probe inside the storage container; the appliance should stop within 1 minute and automatically re-start shortly after the ice cube is removed.
  • Page 24 Installation and operation Too long a defrosting process alarm blinks 6x ON 3" Condenser cleaning alarm blinks 7x ON 3" Start phase 2 Hz lamp Ice production Ice dumping Storage container full blinks 10 s Standby blinks 30 s Washing cycle phase alarm (optionally) ON 3"...

  • Page 25: Cleaning

    Cleaning Malfunctions ATTENTION! In the case of incorrect operation, disconnect the appliance from power and water supply. Contact an authorised service, check the appliance and have it repaired. • Check if the water supply tap is open. • Check if the appliance is powered electrically: if the plug is properly connected, and the disconnecting device is switched on.

  • Page 26: Cleaning

    Cleaning Cleaning User Cleaning 1. At the end of each working day, as well as after a long period without operating the appliance, clean the appliance thoroughly. 2. Clean the housing with a soft cloth, moistened with a chlorine-free stainless steel cleaning agent.

  • Page 27: Possible Malfunctions

    Possible Malfunctions Water Inlet Filter The water inlet filter must be regularly cleaned, observing the blow indications: – close the water shut-off valve; – unscrew water supply tube; – use tweezers to pull the water inlet filter from the socket at the inlet of the solenoid valve;...
  • Page 28 Possible Malfunctions Malfunction Appliance Condition Solution Alarm No water alarm Appliance stops or waits Check water supply for another attempt of Check water circulation for water automatic start-up leaks Check water inlet valve for operation, clean if necessary Check sensor position Deposit probe Appliance stops Check probe connection to PCB...
  • Page 29 Possible Malfunctions Malfunction Appliance Condition Solution Alarm Power supply Appliance stops Check electric connections and power supply malfunction alarm or no electric Disconnection of alarm signal: supply – touch the control key once to silence the buzzer – touch the control key once to silence the buzzer if it is the first minute of operation –...

  • Page 30: Disposal

    Disposal Malfunction Appliance Condition Solution Alarm Evaporator high Appliance stops Check evaporator probe location temperature alarm and insulation Check the appliance for loss of the coolant Evaporator low Appliance stops Check the appliance for loss of temperature alarm the coolant Check evaporator probe location Disposal Electrical Appliance...
