Summary of Contents for Bartscher Compact Ice K

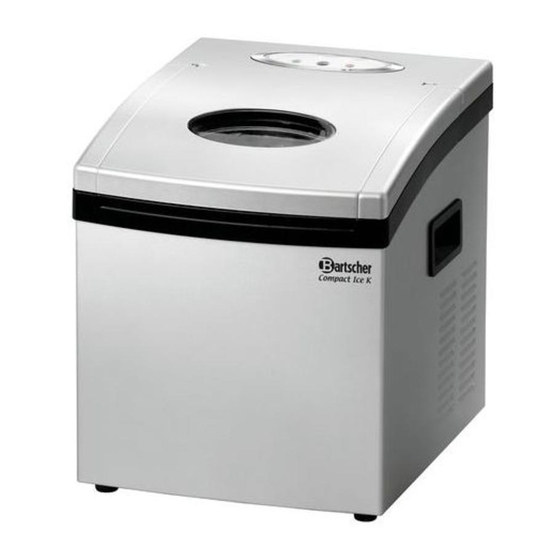

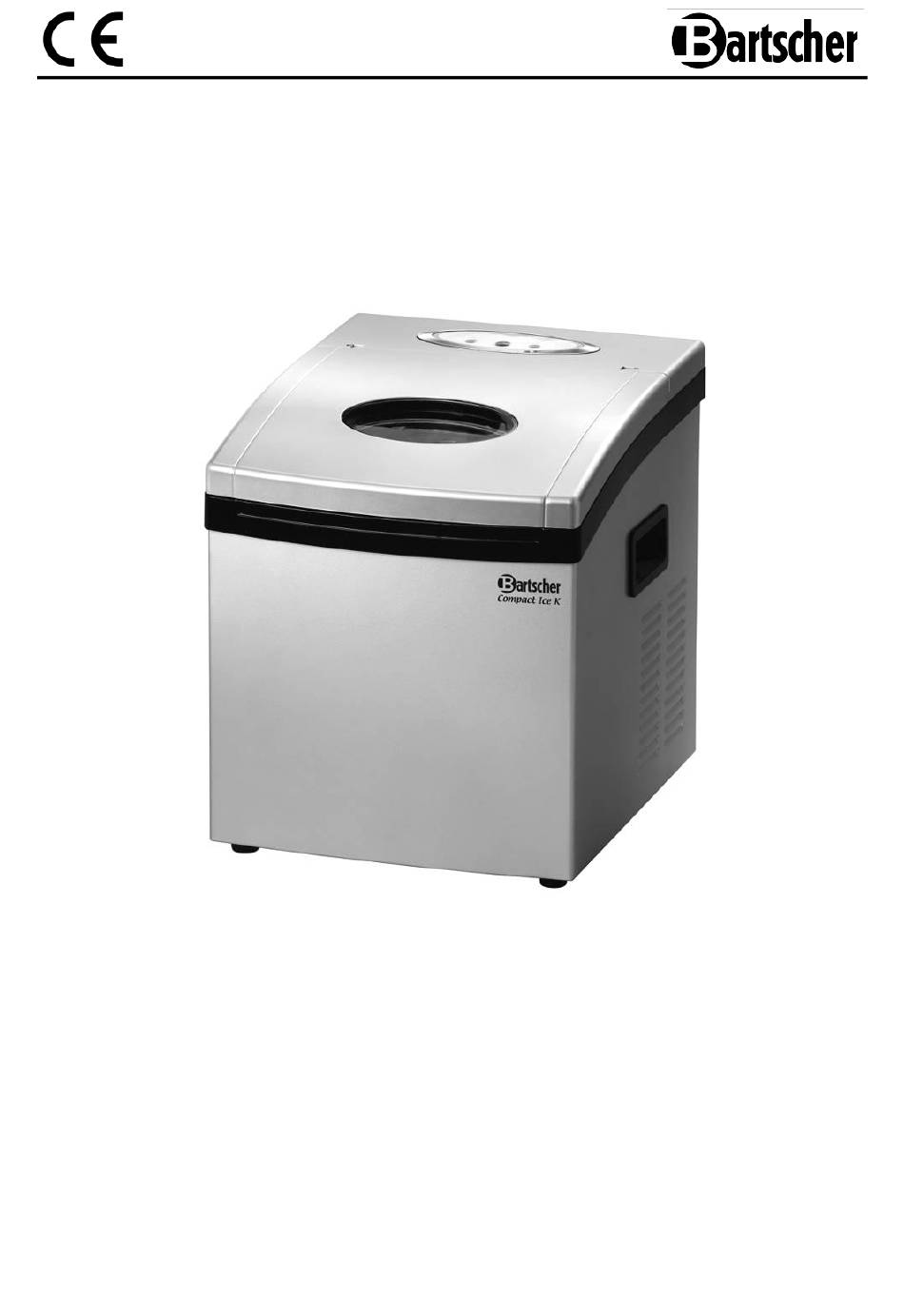

- Page 1 „Compact Ice K“ 100073 Original-Gebrauchsanleitung V4/0517...
-
Page 2: Table Of Contents
5. Installation and operation ..................26 5.1 Installation ......................26 5.2 Operation ......................27 6. Cleaning and descaling ..................30 7. Possible Malfunctions .................... 31 8. Waste disposal ......................32 Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. 1.2 Safety instructions The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/ knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers. - Page 5 Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. Do not use any accessory or spare parts that have not been recommended by the manufacturer.
- Page 6 The supply cable must be disconnected from the socket only by pulling the plug. Never carry or lift the device by the supply cable. In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
-
Page 7: Proper Use
by guests of hotels, motels and other typical places of accomodation; in Bed and Breakfast facilities. The ice-cube maker „Compact Ice K“ may only be used to make ice cubes. CAUTION! Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional. -
Page 8: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 9: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 10: Technical Data
4. Technical data 4.1 Overview of parts Lid with a window allowing a view of the inside Vertical evaporator system Handle Ice spoon Housing Water container Ice cube basket Control panel Red indicator „The ice cube basket is full“ Green indicator „Small ice cubes“ Green indicator „Large ice cubes“... -
Page 11: Technical Specification
4.2 Technical specification Ice cube maker „Compact Ice K“ Description 100073 Code-No.: steel-grey – plastic Body: Cooling agent: R600a (30 g) Capacity of tank: 1.5 litres Spare tank: ca. 1 kg Capacity: 24 ice cubes per cycle Performance: max. 10 kg / 24 hours... -
Page 12: Operation
Locate the device so that sufficient air circulation is ensured. Keep a distance of at least 10 cm at the sides and rear from walls and other objects. Never place the device in locations with high ambient humidity. Too much moisture may damage the device. - Page 13 Ice cube making process NOTE! Remember that during the first cycle it can take up to one hour for ice cubes to be made. Open the lid and pour ca. 1,5 litres fresh drinking water into the container. Close the lid. CAUTION! Fill the container only with fresh drinking water! Pour water into the water container to just below the mark!
- Page 14 Keep checking the water level throughout the process. If the water pump cannot inject water, the ice cube maker stops automatically, the sound signal is sent out „Add water“ lights up. Press the „Stop“ button and the indicator switch the device off. ...
-
Page 15: Cleaning And Descaling
6. Cleaning and descaling WARNING! Before cleaning disconnect the device from the power supply (pull the plug!). Do not use pressurized water jest for cleaning! Protect the device from the water penetration. Cleaning o Clean the device regularly. o Before beginning with cleaning works disconnect it from its power supply (pull the power plug!). -
Page 16: Possible Malfunctions
7. Possible Malfunctions In case of malfunction, disconnect the device from its power source. Before contacting the service or sales agent, verify - based on the table below - whether it is possible to eliminate disruption in operation. PROBLEM POSSIBLE CAUSES SOLUTION No water or not enough Press the „Stop“... -
Page 17: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
