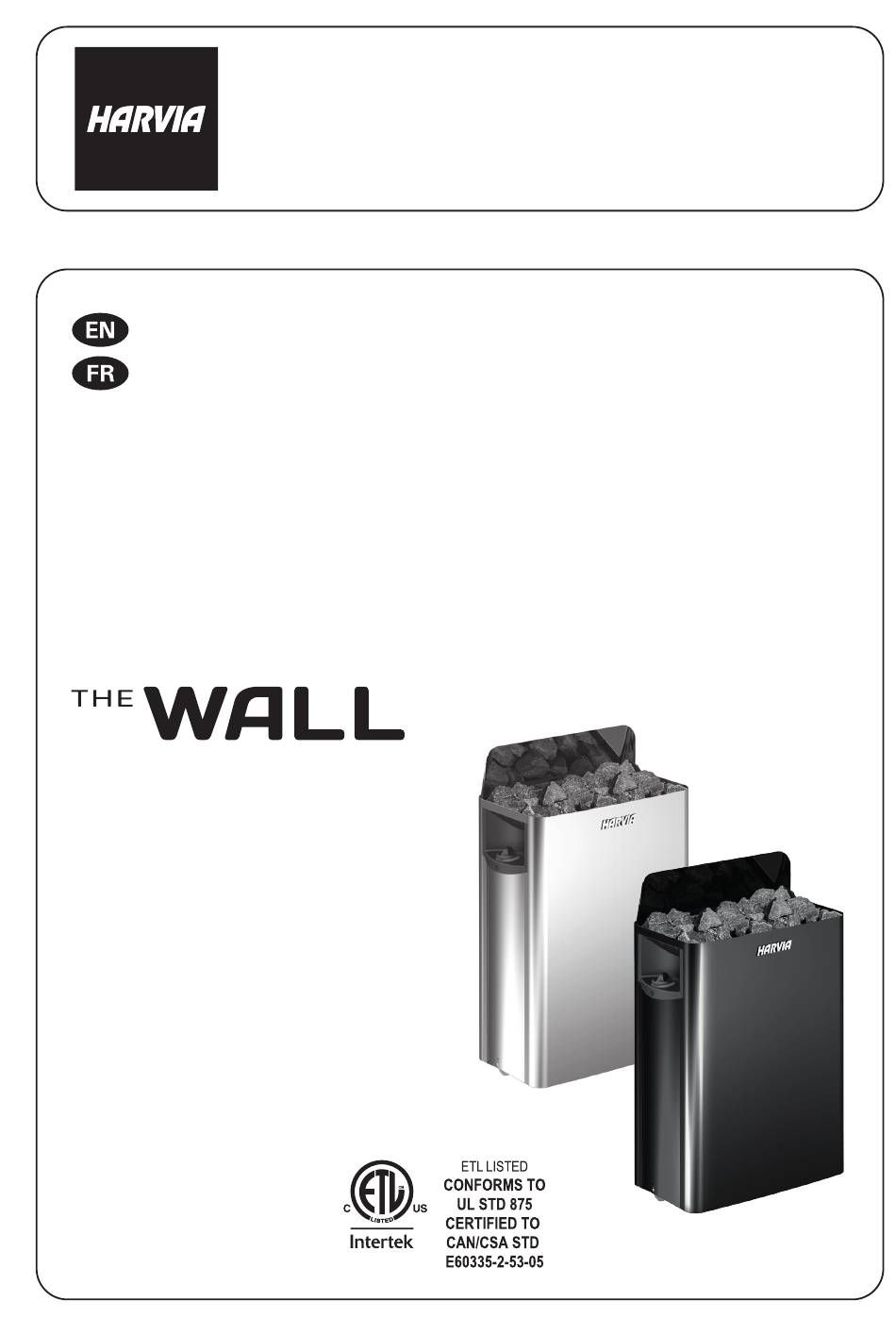

Owner's/Operator's Manual
Manuel de l'utilisateur/opérateur
Sauna heater installation, wiring,
operating instructions, troubleshooting,
maintenance and guarantee.
IMPORTANT! This manual must
be left with owner, manager, or
operator of Sauna after it is used by
electrician!
MODEL
HSWS6U1B
HSWS8U1B
HSWS6U3B
HSWS8U3B
HSW6U1B
HSW8U1B
HSW6U3B
HSW8U3B
Harvia US Inc.
32282 Seneca Trail, Renick,
WV 24966
+1 304-497-3991
Sauna Specialiste Inc.
Dessere Nord Autoroute 440 O
Laval, Quebec, H7L 3W3
Toll free: 1 855-689-2422
03122021 / Y05-0859
Instructions d'installation, de câblage
et d'utilisation, dépannage, entretien
et garantie du poêle de sauna.
IMPORTANT ! Ce manuel doit être
remis au propriétaire, au gérant ou à
l'opérateur du sauna après avoir été
utilisé par l'électricien !
6.0 kW
8.0 kW
6.0 kW
8.0 kW
6.0 kW
8.0 kW
6.0 kW
8.0 kW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSWS6U1B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Harvia HSWS6U1B

  • Page 1 HSW6U1B 6.0 kW HSW8U1B 8.0 kW HSW6U3B 6.0 kW HSW8U3B 8.0 kW Harvia US Inc. 32282 Seneca Trail, Renick, WV 24966 +1 304-497-3991 Sauna Specialiste Inc. Dessere Nord Autoroute 440 O Laval, Quebec, H7L 3W3 Toll free: 1 855-689-2422 03122021 / Y05-0859...
  • Page 2: Table Of Contents

    CONTENTS TABLE DES MATIÉRS WARNINGS .............3 AVERTISSEMENTS ..........16 1. INSTRUCTIONS FOR USE ...........4 1. MODE D’EMPLOI ............. 17 1.1. Piling of the Sauna Stones ........4 1.1. Mise en place des pierres du poêle ....17 1.1.1. Maintenance ..........4 1.1.1. Maintenance ..........17 1.2.
  • Page 3: Warnings

    PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY BEFORE USING THE HEATER. WARNINGS Keep away from the heater when it is hot. The stones and outer surface of the heater may burn your • skin. Do not throw too much water on the stones. The evaporating water is boiling hot. •...
  • Page 4: Instructions For Use

    1. INSTRUCTIONS FOR USE 1.1. Piling of the Sauna Stones that could change the amount or direction of The piling of the sauna stones has a great effect the air flowing through the heater. on both the safety and the heating capability of the heater.
  • Page 5: Using The Heater

    Water properties Effect Recommendation Humus concentration Colour, taste, precipitates <12 mg/l Iron concentration Colour, odour, taste, precipitates <0,2 mg/l Manganese (Mn) concentration Colour, odour, taste, precipitates <0,10 mg/l Hardness: most important substances are Precipitates Mg: <100 mg/l magnesium (Mg) and lime, i.e. calcium (Ca) Ca: <100 mg/l Chloride-containing water Corrosion...
  • Page 6: Instructions For Bathing

    The maximum volume of the ladle is 0,05 gal The sauna room heats slowly. The water thrown on the sauna stones cools down the stones (0.2 litres). If an excessive amount of water is poured on the stones, only part of it will evaporate and quickly.
  • Page 7: The Sauna Room

    2. THE SAUNA ROOM DOOR 2.1. Insulation and Wall Materials of the Must open out and should not have locking or latch- Sauna Room ing system. Types of door fastenings that may be In an electrically heated sauna, all the massive wall used are magnetic catches, friction catches, spring- surfaces which store plenty of heat (such as bricks, loaded or gravity loaded door closers, and the like.
  • Page 8: Hygienic Conditions Of The Sauna Room

    2.5. Hygienic Conditions of the Sauna Room The sauna room should be thoroughly washed at Good hygienic standards of the sauna room will least every six months. Brush the walls, platforms make bathing a pleasant experience. and floor by using a scrubbing-brush and sauna The use of sauna seat towels is recommended to cleanser.
  • Page 9: Instructions For Installation

    2.3.! min. inch max. min. max. inch/ lb/kg lb/kg CuFt/m³ CuFt/m³ sqft sqft HSWS6U1B 17 / 10,2 / 27,6 32 / 44 / 177 / 294 / 75 / HSWS6U3B HSW6U1B 430 / 260 / 700 14,3 1900 HSW6U3B HSWS8U1B...
  • Page 10: Heater Fence

    RCD (residual current device)/GFI (Ground Fault Interrupter)! 240 V 1 PHASE HEATER / MONOPHASÉ 208 V 3 PHASE HEATER HSWS6U1B / HSW6U1B / HSWS8U1B / HSW8U1B HSWS6U3B / HSW6U3B / HSWS8U3B / HSW8U3B TIMER / MINUTEUR TIMER / MINUTEUR...
  • Page 11 Input Min.90ºC Copper supply wire AWG Heater model Voltage Frequenzy Rated amperage 1-Group 2-Group 1-Group 2-Group connection connection connection connection HSWS6U1B 16.7 HSWS6U3B 16.7 6.0 kW 60 Hz HSW6U1B 16.7 HSW6U3B 16.7 HSWS8U1B 33.4 22.3 HSWS8U3B 22.2 8.0 kW 60 Hz HSW8U1B 33.4...
  • Page 12 Installation example Parts not supplied >3.2” 80 mm...
  • Page 13 1.1. Piling of the Sauna Stones Figure 7. Installing the wall-mounting device (2.) and the heater (3.-5.)
  • Page 14: Installing The Heater

    3.6. Installing the Heater 3.7. Resetting the Overheat Protectors See figure 6-7. If the temperature of the sauna room becomes 1. Connect the supply cable (fig. 7:1) to the heater. dangerously high, the overheat protector will 2. Install the wall mount horizontally to the wall permanently cut off the supply of the heater.
  • Page 15: Spare Parts

    4. SPARE PARTS HSWS6U1B Heating element 2000 W / 240 V WXY10-0021 HSW6U1B HSWS8U1B HSW8U1B Heating element 2650 W / 240 V; 2000 W / 208 V WXY10-0020 HSWS6U3B HSW6U3B HSWS8U3B Heating element 2650 W / 208 V WXY10-0022 HSW8U3B...
  • Page 16 LIRE ATTENTIVEMENT LES CONSIGNES D’UTILISATION AVANT LA MISE EN SERVICE DE L’APPAREIL. Avertissements Ne pas utiliser le sauna pour y faire sécher du linge sous peine de provoquer un incendie ou d’en- • dommager les pièces électriques en raison de l’humidité excessive. Se tenir éloigné...
  • Page 17: Mode D'emploi

    1. MODE D’EMPLOI 1.1. Mise en place des pierres du poêle ne doit être placé à l’intérieur du compartiment L’empilement des pierres du poêle a un impact im- à pierres du poêle ni à proximité de ce dernier. portant sur le fonctionnement du poêle. Recouvrir entièrement les résistances de Informations importantes concernant les pierres du pierres.
  • Page 18: Utilisation Du Poêle

    Propriétés de l’eau Effets Recommandations Concentration d’humus Couleur, goût, précipités < 12 mg/l Concentration en fer Couleur, odeur, goût, précipités < 0,2 mg/l Concentration de manganèse (Mn) Couleur, goût, précipités <0,10 mg/l Dureté : les substances les plus importantes sont Précipité...
  • Page 19: Projection De L'eau Sur Les Pierres

    1.4. Projection de l’eau sur les pierres La cabine de sauna chauffe doucement. L’eau versée sur les pierres du poêle refroidit trop L’air du sauna devient sec en chauffant. Pour ob- tenir une humidité convenable, il faut projeter de rapidement. Vérifier que les fusibles du poêle sont en bon l’eau sur les pierres brûlantes du poêle.
  • Page 20: Le Sauna

    2. LE SAUNA 2.1. Isolation du sauna et matériaux muraux REVÊTEMENT MURAL Dans un sauna chauffé électriquement, les surfaces Utilisez du bois séché au séchoir (avec une teneur en humidité inférieure à 11 %). murales massives qui accumulent la chaleur (brique, émail, crépi ou équivalent) doivent être suffisamment isolées pour permettre l’utilisation d’un poêle de puis- BANCS...
  • Page 21: Ventilation De La Cabine De Sauna

    2.4. Ventilation de la cabine de sauna sur les bancs. Les serviettes doivent être lavées après Doit être assurée par une bouche d’aération basse chaque utilisation. Il est conseillé de donner aux invités située près du poêle à 4” (100 mm) du plancher leurs propres serviettes.
  • Page 22: Instructions D'installation

    2.3.! min. inch max. min. max. inch/ lb/kg lb/kg CuFt/m³ CuFt/m³ sqft sqft HSWS6U1B 17 / 10,2 / 27,6 32 / 44 / 177 / 294 / 75 / HSWS6U3B HSW6U1B 430 / 260 / 700 14,3 1900 HSW6U3B HSWS8U1B...
  • Page 23: Raccordement Électrique

    Utilisez les bornes de terre prévues sur 240 V 1 PHASE HEATER / MONOPHASÉ 208 V 3 PHASE HEATER / TRIPHASÉ HSWS6U1B / HSW6U1B / HSWS8U1B / HSW8U1B HSWS6U3B / HSW6U3B / HSWS8U3B / HSW8U3B TIMER / MINUTEUR...
  • Page 24 Min. 90ºC Câble d’alimentation en Modéle Tension Intensité de courant en kW fréquence cuivre de calibre AWG no 1-Group 2-Group 1-Group 2-Group connexion connexion connexion connexion HSWS6U1B 16.7 HSWS6U3B 16.7 6.0 kW 60 Hz HSW6U1B 16.7 HSW6U3B 16.7 HSWS8U1B 33.4 22.3 HSWS8U3B 22.2 8.0 kW...
  • Page 25 Exemple d’installation, pièces non fournies >3.2” 80 mm...
  • Page 26 1.1. Mise en place des pierres du poêle Figure 7. Installation du supprt mural. (2.) and the heater (3.-5.).
  • Page 27: Installation Du Poêle

    3.6. Installation du poêle 3.7. Réinitialisation de la sécurité surchauffe See figure 6-7. Si la température de la cabine de sauna devient 1. Raccorder le câble d’alimentation (fig. 7:1) au dangereusement élevée, la sécurité-surchauffe poêle. coupe définitivement l’alimentation du poêle. Il est 2.
  • Page 28: Pièces Détachées

    4. PIÈCES DÉTACHÉES HSWS6U1B Résistance 2000 W / 240 V WXY10-0021 HSW6U1B HSWS8U1B HSW8U1B Résistance 2650 W / 240 V; 2000 W / 208 V WXY10-0020 HSWS6U3B HSW6U3B HSWS8U3B Résistance 2650 W / 208 V WXY10-0022 HSW8U3B Protecteur de surchauffe...
  • Page 29: Guarantee

    15 jours suivant l’achat. La garantie s’applique uniquement à la première ins- tallation du produit et à l’acheteur d’origine. Harvia heater model / Modèle de poêle Harvia Serial number / Numéro de modèle Date of purchase / Date d’achat Original purchaser / Acheteur d’origine...
  • Page 30: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS INSTRUCTIONS D’ENTRETIEN 1. Use only clean water on sauna stones. Do not 1. Utilisez uniquement de l’eau propre sur les use spa or pool water as it will destroy your pierres du sauna. N’utilisez pas d’eau de spa heater.
