RYZ012
Multi-Standard Wireless Communication Module
for Bluetooth 5 Low Energy and 802.15.4

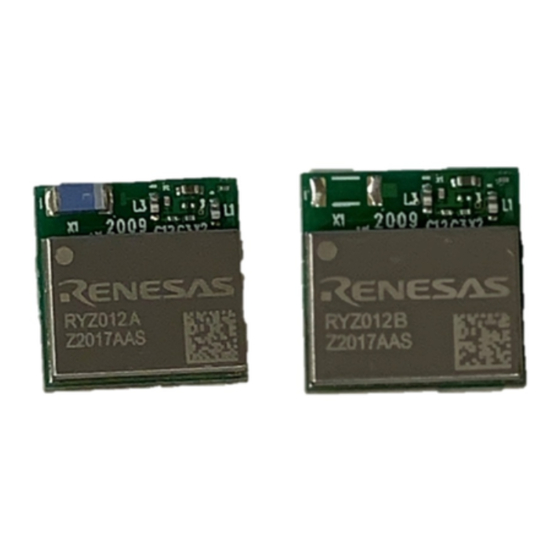

Description
The RYZ012 is a highly integrated multi-standard wireless
communication module that provides a qualified solution for
Bluetooth™ 5 Low Energy (LE) and several IEEE 802.15.4 based
communication standards. The integrated RISC processor runs the
network stack and can execute the user application.
The integrated Bluetooth 5 Low Energy chipset, a multi-standard
wireless SoC solution with internal Flash and audio support,
combines the features and functions needed for 2.4GHz IoT
standards into a single SoC. The RYZ012 supports concurrent
multi-standards, and for some use cases, the RYZ012 can
concurrently run two standards. For example, stacks such as
Bluetooth Low Energy and 802.15.4 can run concurrently with one
application state but with dual radio communication channels that
are used to interact with different devices. Working in this mode,
the end product can maintain active connections to smart phones
or other Bluetooth Low Energy devices while controlling and
communicating with 802.15.4 or other 2.4GHz devices. In this case,
the end product complies with the Bluetooth standard, supports
Bluetooth Low Energy specification up to Bluetooth 5 and allows
simple connectivity with Bluetooth Low Energy mobile phones,
tablets and laptops. The Bluetooth Low Energy stack supports
Bluetooth Low Energy slave and master mode operation, including
broadcast, encryption, connection updates, and channel map
updates. Combining Bluetooth Low Energy with IEEE 802.15.4
based standards such as ZigBee or Thread, creates an
interoperable solution for use within the home.
The RYZ012 integrates hardware acceleration to support the
complicated security operations required by HomeKit, Thread, and
other standards without the requirement for an external DSP,
resulting in a significant reduction in the product eBOM. The
RYZ012 also supports single or dual analog microphones or a
digital microphone along with stereo audio output with enhanced
voice performance for voice search and similar applications.
Including a full range of on-chip peripherals, the RYZ012 interfaces
with external components such as LEDs, sensors, touch controllers,
keyboards, external processors, and motors.
Typical Applications
Portable devices and equipment
Smart lighting, smart home devices
Remote equipment
Building automation
R15UH0002EU0103 Rev.1.03
Apr.21.21
Smart grid
Intelligent logistics, transportation, and tracking
Industrial control
Health care
Supported Standards
Bluetooth 5 Low Energy
ZigBee
6LoWPAN / Thread
RF4CE
Concurrent operation
Bluetooth™ is a trademark of the Bluetooth SIG, Inc.
The use of Bluetooth™ in this product is under license from the
Bluetooth SIG, Inc.

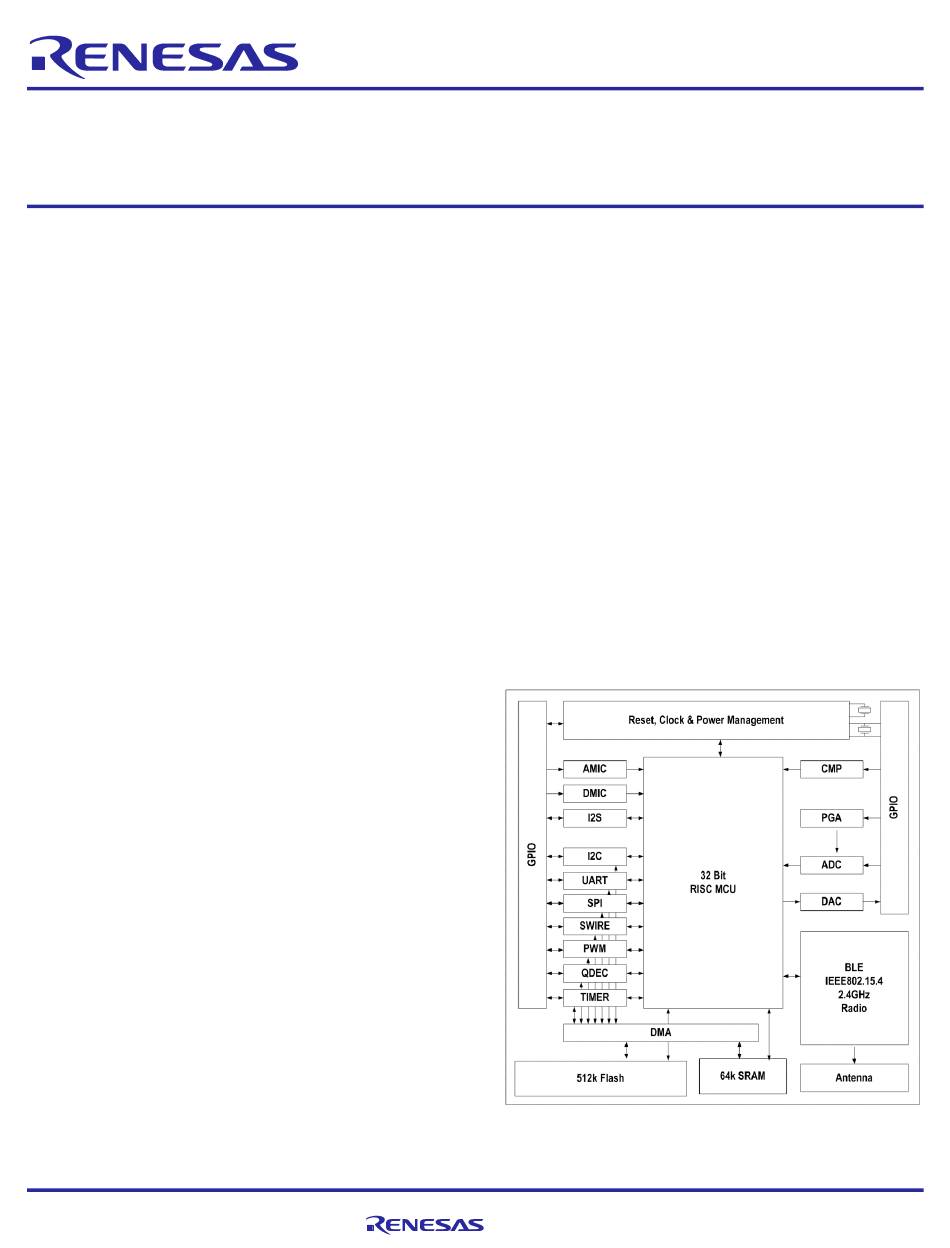

Block Diagram
User's Manual
Page 1 of 206
