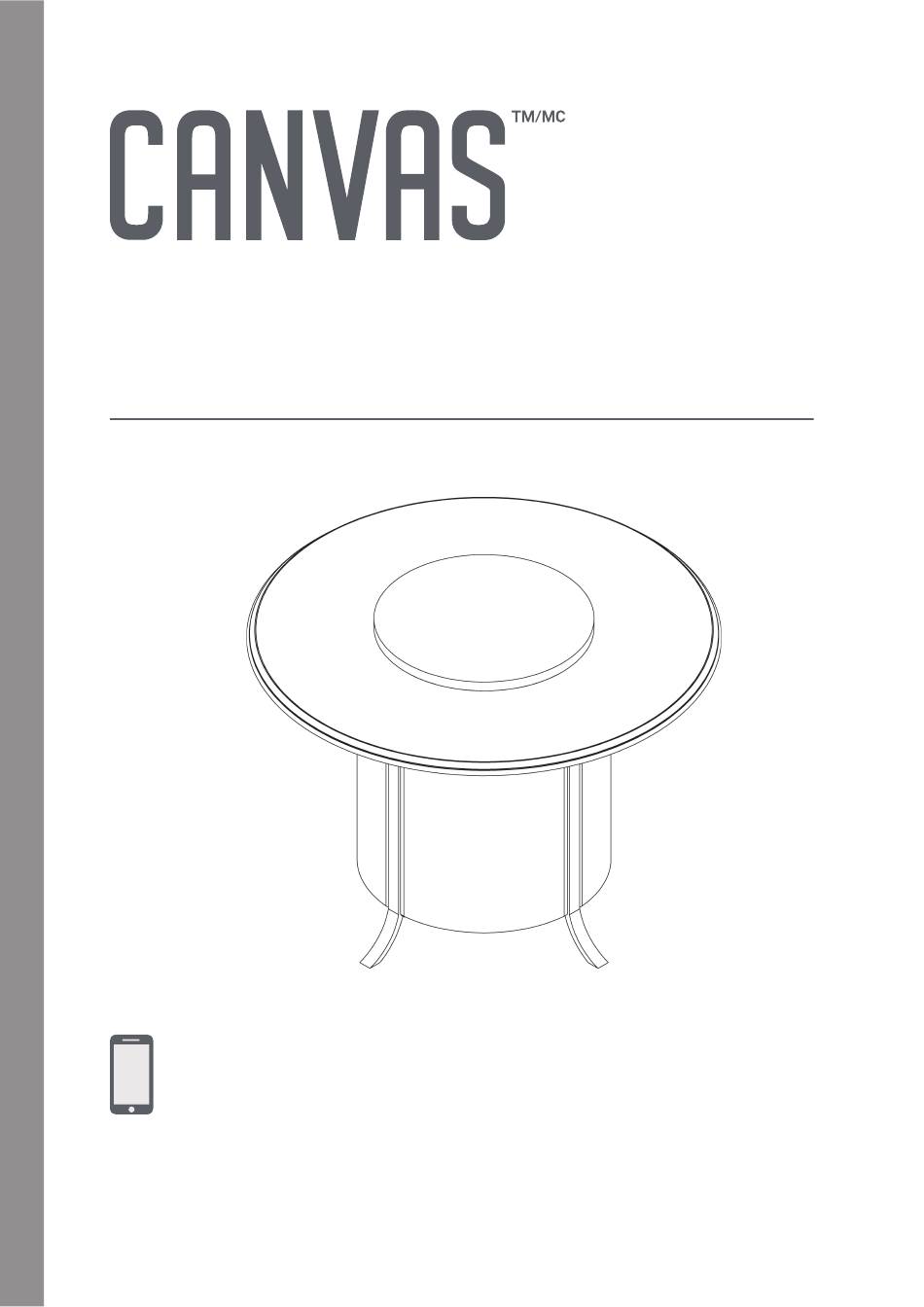

- Page 1 FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET MODEL NO. 088-0538-4 ASSEMBLY INSTRUCTIONS HAVING TROUBLE? TOLL-FREE: 1-888-670-6684 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Production Number : xxxxxxxx Keep this manual for future reference.
- Page 2 From on-trend furniture pieces to holiday décor and all your outdoor living essentials, CANVAS™ makes it easy to refresh your space your unique style and the way you live every day. We would love to hear from you and welcome your thoughtful feedback.
- Page 3 Fire Table of Rideau 5-pc Fire Dining Set WARNING: For Outdoor Use Only. DANGER If you smell gas: 2. Extinguish any open flame. odour Propane cylinder required (not included) 1 AA 1.5V battery required (not included) CAUTION: Rechargeable batteries contain nickel-metal hydride and must be recycled or disposed of properly.
-
Page 4: Table Of Contents
TABLE OF CONTENTS General information Tools required Specifications Important safety information and precautions Parts list Expanded view Before you begin assembly Step-by-step guide Location Setup Gas connection Leak test Lighting Storage and maintenance Technical data Troubleshooting Limited warranty WARNING: Failure to position the parts in accordance with these diagrams or to use only parts specifically approved with this appliance may result in property damage or personal injury. -
Page 5: Specifications
SPECIFICATIONS Product name Fire Table of Rideau 5-pc Fire Dining Set Model No. 088-0538-4 (A208041010) 38,000 BTU/HR Rated Heat Output Fuel Propane—LP Gas Supply 20 lb (9 kg) LP-Gas cylinder Manifold Pressure 11" W.C. 1.9 mm Orifice Size (diameter) Gas Supply Pressure... -
Page 6: Important Safety Information And Precautions
IMPORTANT SAFETY INFORMATION AND PRECAUTIONS Open the door and inspect the hose assembly and burner prior to each use. If there is evidence of excessive abrasion or wear or if the hose or burner is damaged, it must be replaced by an appropriate part from the manufacturer. Inspect the gas connections of the appliance prior to each use. -
Page 7: Parts List
PARTS LIST Metal Mesh Lid P00310010301 P00210053001 Table Top P00410018401 Door P00400037201 Rear Door Panel 1 P00380065401 P00380065501 Panel 2 P00670006801 Cylinder Rack Fire Bowl P002500130 Glass Rocks P006600026 P00210053101 Turning Tray P00540065001 FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET... - Page 8 PARTS LIST Bolt M6*15 26+4 Spare H010010003 26+4 Spare H050030001 Flat Washer M6 H090010017 Wrench M6 If you want to replace the parts listed, please contact Customer Service Centre: 1-888-670-6684 FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET...
-
Page 9: Expanded View
EXPANDED VIEW FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET... -
Page 10: Before You Begin Assembly
BEFORE YOU BEGIN ASSEMBLY MAKE SURE ALL PARTS ARE PRESENT ASSEMBLE IN A CLEARED AREA REMOVE PACKAGING MATERIALS READ EACH STEP CAREFULLY FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET... -
Page 11: Step-By-Step Guide
STEP-BY-STEP GUIDE STEP 1 Place Rear Door D face down on a non-abrasive surface. Attach Legs M using Bolts H1 and Flat Washers H2. Do not tighten completely. FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET... - Page 12 STEP 2 Attach Panel 2 F to the Rear Door assembly using Bolts H1 and Flat washers H2. FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET...
- Page 13 STEP-BY-STEP GUIDE STEP 3 Attach Panel 1 E to the Rear Door assembly using Bolts H1 and Flat washers H2. FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET...
- Page 14 STEP 4 Turn assembly upside down and attach Cylinder Rack G using Bolts H1 and Flat Washers H2. FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET...
- Page 15 STEP-BY-STEP GUIDE STEP 5 Attach Door C to base assembly using Bolts H1 and Flat Washers H2. FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET...
- Page 16 STEP 6 Place Table Top B upside down on a non-abrasive surface. Install Fire Bowl J to centre using Bolts H1 and Flat Washers H2. FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET...
- Page 17 STEP-BY-STEP GUIDE STEP 7 Place base assembly upside down onto Table Top assembly as shown below and fasten using Bolts H1 and Flat Washers FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET...
- Page 18 STEP 8 Turn Fire Table assembly upright. Pour Glass Rocks K into centre of Fire Table and place on top. FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET...
- Page 19 STEP-BY-STEP GUIDE STEP 9 Place Turning Tray L over centre of Table Top to cover fire pit as desired. FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET...
-
Page 20: Location
LOCATION Your gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SETUP Your gas appliance comes assembled, ready for a gas connection. 1-Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. -
Page 21: Leak Test
LEAK TEST WARNING: Do not use an open flame to check for leaks. Do not smoke during testing. Do not test indoors. A leak test must be performed whenever the gas cylinder is replaced. 1. Make sure the control knob is in the “OFF” position. 2. -
Page 22: Storage And Maintenance
STORAGE AND MAINTENANCE To obtain the best performance from your fire table, you must perform the following storage and maintenance activities on a regular basis: Allow at least 35 minutes for the fire table to cool down after use, before disconnecting and removing the gas cylinder. Store the gas cylinder in a dry, well-ventilated and sheltered area protected from inclement weather and dust, out of the reach of children, and not in a building, garage or... -
Page 23: Technical Data
TECHNICAL DATA 51 7/8" (132 cm) 36" (91.5 cm) 5 7/8" (15 cm) SPECIFICATIONS ASSEMBLED DIMENSIONS (W x D x H) 51 7/8" x 51 7/8 x 36" 132 x 132 x 91.5 cm ASSEMBLED WEIGHT 121 lb 3 oz 55 kg FIRE TABLE OF RIDEAU 5-PC FIRE DINING SET... -
Page 24: Troubleshooting
TROUBLESHOOTING HAVING TROUBLE? LET US HELP YOU! TOLL-FREE: 1-888-670-6684 BEFORE RETURNING CALL US, YOUR PRODUCT WE CAN HELP If you have questions regarding your product or require warranty assistance, please call our customer service helpline. POSSIBLE CAUSE CORRECTIVE MEASURES PROBLEM OBSERVED See “If you smell gas:”... -
Page 25: Limited Warranty
LIMITED WARRANTY This CANVAS™ product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
