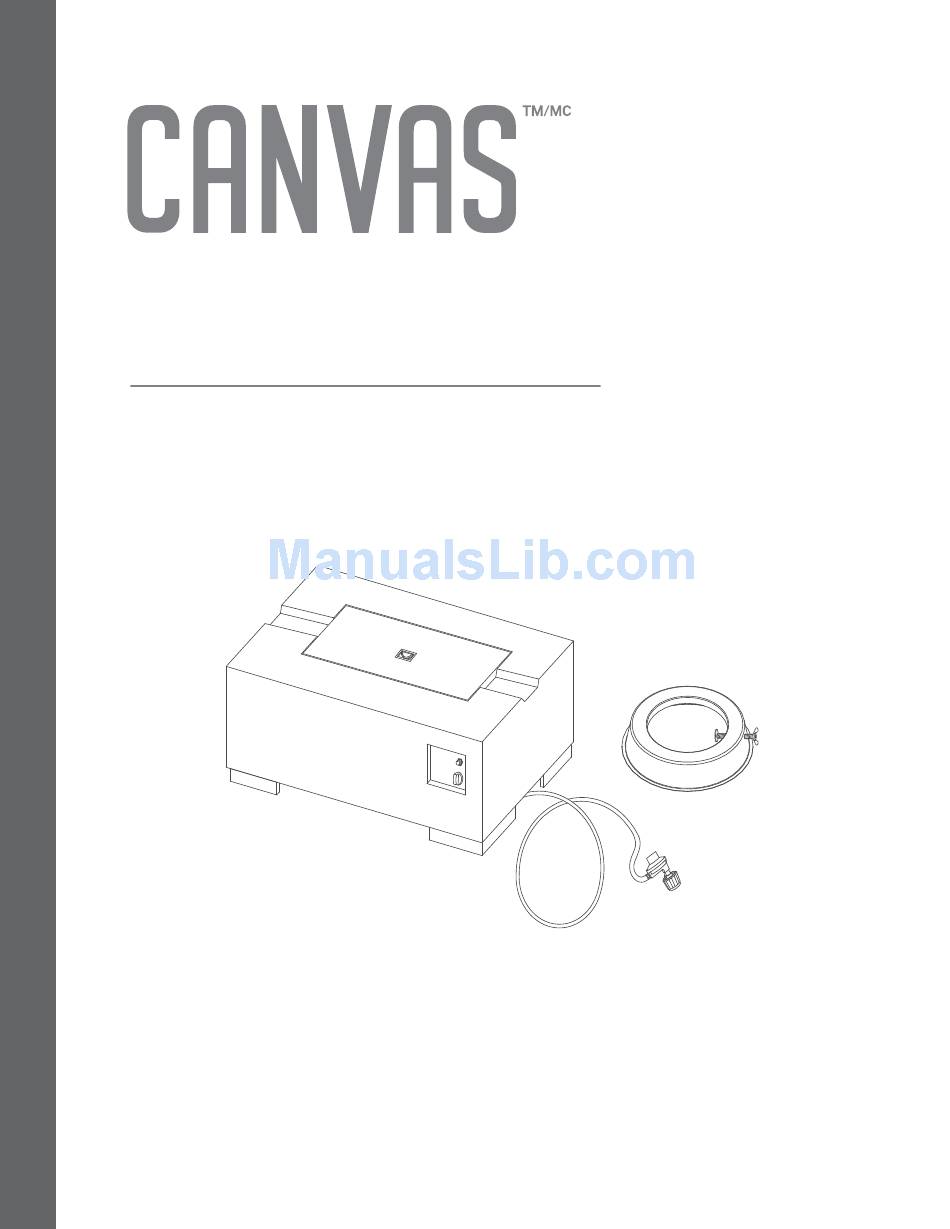

- Page 1 York Outdoor Fire Table MODEL N0. 085-1558-6 L-FT1109PST-B ASSEMBLY INSTRUCTIONS Toll-free 1-844-786-5691 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference.
- Page 2 York Outdoor Fire Table Instructions WARNING: For Outdoor Use Only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odour continues, keep away from the appliance and immediately call your gas supplier or fire department.
-
Page 3: Table Of Contents
MODEL NO. 085-1558-6 L-FT1109PST-B General information Specifications Important safety information and precautions Expanded view Parts list Assembly Location Setup Gas connection Operation Leak test Lighting Storage and maintenance Troubleshooting Limited warranty IMPORTANT Please take time to read these instructions thoroughly and follow each step carefully for safe and easy... -
Page 4: Specifications
Product name York Outdoor Fire Table Model No. 085-1558-6 Rated Heat Output 30,000 BTU/HR Fuel Propane-LP Gas Supply 20 lb (9 kg) LP-Gas cylinder Manifold Pressure 11" W.C. 1.74 mm Orifice Size (diameter) Gas Supply Pressure Max 250 PSI When the appliance is for connection to a fixed piping system, the installation must conform with local codes, or in the absence of local codes with the National Fuel Gas Code, ANSI Z223.1/NFPA54;... -
Page 5: Assembly
MODEL NO. 085-1558-6 L-FT1109PST-B Product size:W40"XD28"XH17",When in use, keep cylin- der at least 30 in / 76.2 cm side clearance from fire pit table, DO NOT trip over the gas pipe between fire pit and cylinder when passing through, to prevent cylinder from tipping over. - Page 7 MODEL NO. 085-1558-6 L-FT1109PST-B Description FT1109XXB01 Main body FT1109XXB02 Tank rack FT1109XXB03 Lava rock 9 lb (4 kg) LPHSS23X1H Fibre rock 1 (0.6KG) LPXWQ06SHX Two or more adults are required to assemble this item. Step 1 Put the lid ( ) onto the table top ( 30"/76.2 cm...
-
Page 8: Gas Connection
Your gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. Your gas appliance comes assembled, ready for a gas connection. 1-Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. -
Page 9: Leak Test
MODEL NO. 085-1558-6 L-FT1109PST-B LEAK TEST !!!WARNING!!! Do not use an open flame to check for leaks. Do not smoke during testing. Do not test indoors. A leak test must be performed whenever the gas cylinder is replaced. 1. Make sure the control knob is in the “OFF” position. -
Page 10: Storage And Maintenance
To obtain the best performance from your fire table, you must perform the following storage and maintenance activities on a regular basis: Allow at least 35 minutes for the fire table to cool down after use, before disconnecting and removing the gas cylinder. Store the gas cylinder in a dry, well-ventilated and sheltered area protected from inclement weather and dust, out of the reach of children, and not in a building, garage or... - Page 11 MODEL NO. 085-1558-6 L-FT1109PST-B Subject to the conditions set out below, this product is warranted to the original purchaser to be free from defects in workmanship and materials for one (1) year from the date of pur- chase. Satisfactory proof of the purchase date must be furnished at the time of notification of the defect for any claim under the warranty to be enforceable.
