Canvas 088-0538-4 Assembly Instructions Manual

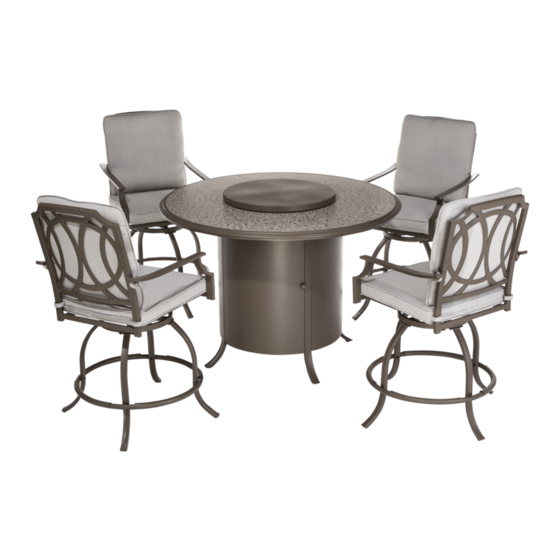

Rideau 5-pc fire dining set chair
Hide thumbs Also See for 088-0538-4:

Advertisement

Quick Links

Download this manual
RIDEAU 5-PC FIRE DINING
SET CHAIR
MODEL NO. 088-0538-4
ASSEMBLY INSTRUCTIONS
HAVING TROUBLE?
TOLL-FREE:
1-888-670-6684
IMPORTANT: Please read this manual carefully
before beginning assembly of this product.
Keep this manual for future reference.
Production Number : xxxxxxxx

Advertisement

loading
Need help?

Need help?

Do you have a question about the 088-0538-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Canvas 088-0538-4

Summary of Contents for Canvas 088-0538-4

  • Page 1 RIDEAU 5-PC FIRE DINING SET CHAIR MODEL NO. 088-0538-4 ASSEMBLY INSTRUCTIONS HAVING TROUBLE? TOLL-FREE: 1-888-670-6684 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Production Number : xxxxxxxx...
  • Page 2 From on-trend furniture pieces to holiday décor and all your outdoor living essentials, CANVAS™ makes it easy to refresh your space your unique style and the way you live every day. We would love to hear from you and welcome your thoughtful feedback.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions Parts List Before You Begin Assembly Step-by-step Guide Technical Data Troubleshooting Cleaning and Maintenance Limited Warranty IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of serious injury, read the following safety instructions before assembly and use of the chair. This product is intended for domestic, outdoor use only.

  • Page 4: Parts List

    PARTS LIST Seat P00770004401 P00740002901 Rotary Plate P00540065101 Chair Leg P00050175301 Footrest P00180021301 Seat Cushion P00170014101 Back Cushion P005300082 Foot Pad Pre-assembled P005300047 Foot Pad Pre-assembled P005300054 Plastic Plug Pre-assembled P005300038 Plastic Plug Pre-assembled RIDEAU 5-PC FIRE DINING SET CHAIR...
  • Page 5 PARTS LIST 12+2 Spare H010030030 Bolt (M6*15) 4+1 Spare H010030063 Bolt (M6*28) H010030023 Bolt (M6*35) 4+1 Spare 20+2 Spare H050020017 Spring Washer (M6) 24+3 Spare Spring Washer (M6) H050010025 4+1 Spare H040070002 Nut M6 H090030002 Hex Key Size 4 H090010017 Wrench (M6) RIDEAU 5-PC FIRE DINING SET CHAIR...
  • Page 6 EXPANDED VIEW Pre-assembled Pre-assembled Pre-assembled RIDEAU 5-PC FIRE DINING SET CHAIR...

  • Page 7: Before You Begin Assembly

    BEFORE YOU BEGIN ASSEMBLY MAKE SURE ALL PARTS ARE PRESENT ASSEMBLE IN A CLEARED AREA REMOVE PACKAGING MATERIALS READ EACH STEP CAREFULLY RIDEAU 5-PC FIRE DINING SET CHAIR...

  • Page 8: Step-By-Step Guide

    STEP 1 Place the rotary plate B face down on a non-abrasive surface. Connect the chair legs C to the rotary plate B using bolts AA, spring washers DD and spring washers EE. Do not tighten all the way until chair assembly is complete.
  • Page 9 STEP 2 Place the seat A upside down on a non-abrasive surface. Place the footrest D onto the underside of the seat as shown below, with footrest caps facing down. Fasten rotary plate assembly to underside of seat using bolts BB, nuts FF, spring washers EE and spring washers DD.
  • Page 10 STEP 3 Move footrest D up into position around the legs and fasten in place using bolts CC, spring washers DD and spring washers EE. NOTE: Do not tighten screws all the way until you have DD EE assembled the footrest. Once assembly is complete, tighten each screw.
  • Page 11 STEP 4 Turn chair assembly upright and put seat cushion E and back cushion F in place. Fasten to frame with ties and tighten all hardware completely. RIDEAU 5-PC FIRE DINING SET CHAIR...

  • Page 12: Technical Data

    TECHNICAL DATA SPECIFICATIONS ASSEMBLED DIMENSIONS (W x D x H) 29 1/8 x 23 1/4 x 46 1/2" 74.0 x 59.0 x 118.0 cm ASSEMBLED WEIGHT 26 lb 2 oz 11.88 kg RIDEAU 5-PC FIRE DINING SET CHAIR...

  • Page 13: Troubleshooting

    TROUBLESHOOTING HAVING TROUBLE? LET US HELP YOU! TOLL-FREE: 1-888-670-6684 BEFORE RETURNING CALL US, YOUR PRODUCT WE CAN HELP If you have questions regarding your product or require warranty assistance, please call our customer service helpline. CLEANING AND MAINTENANCE Caution! Check all screws and nuts periodically for tightness, tightening them again as required.

  • Page 14: Limited Warranty

    LIMITED WARRANTY This CANVAS™ product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
