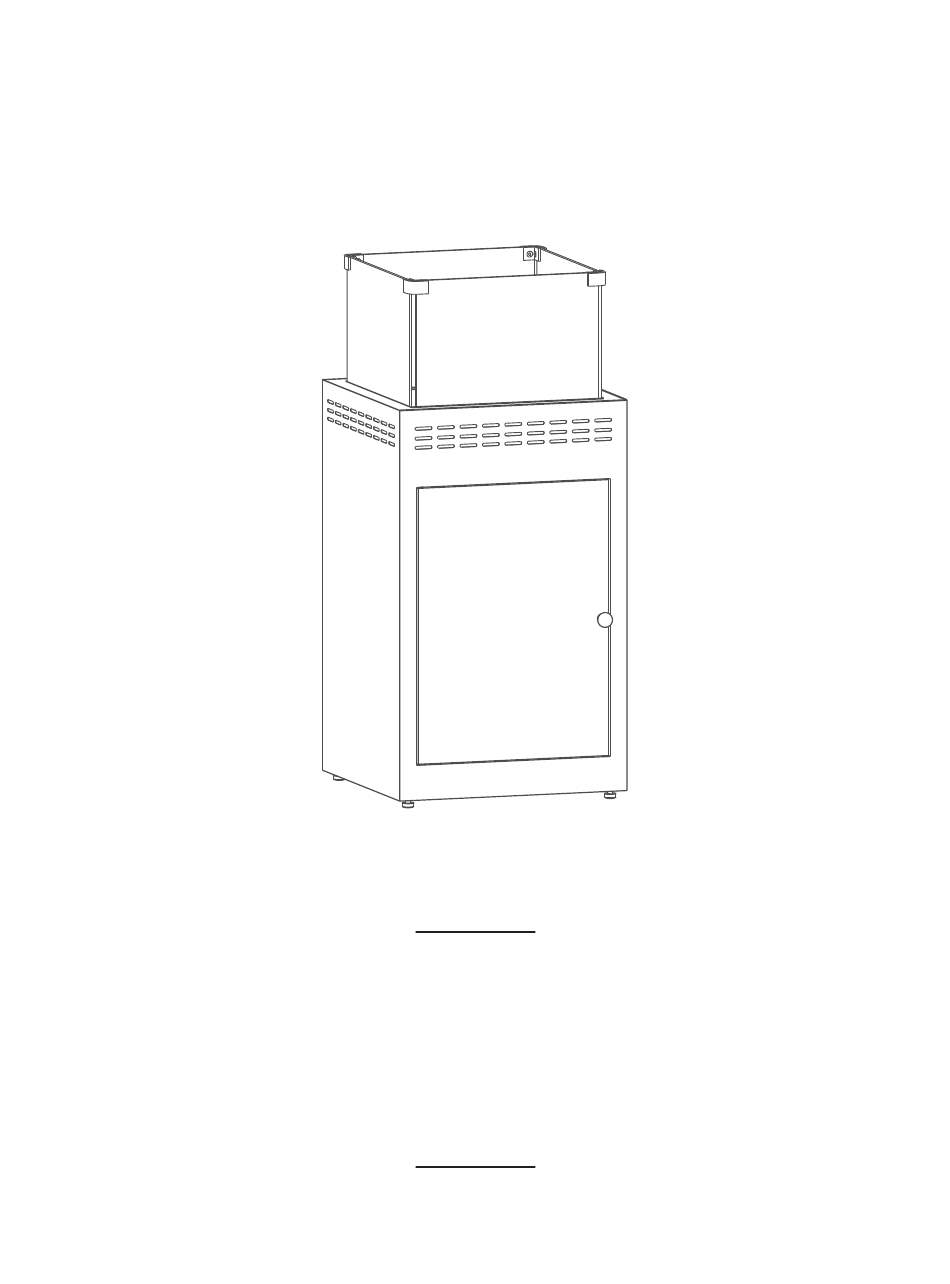

- Page 1 Assembly Instructions FHTS80048C Outdoor Fireplace Questions, problems, or missing parts? Before returning to the store, call Customer Service. 1-866-988-3300 8 a.m. - 5 p.m., PST Monday - Friday ContactUs@Hanover-Products.com Retain this manual for future use.
- Page 2 Contents Safety Instructions Parts List Assembly Operation Cleaning & Maintenance Troubleshooting Warranty Specifications This appliance complies with “ANSI Z21.97-2017/CSA 2.41-2017, Outdoor Decorative Gas Appliances.” IMPORTANT: RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY. FHTS80048C...
- Page 3 DANGER • Using it in an enclosed space can kill you. Do NOT leave this appliance unattended • Never use this appliance in an enclosed space while it is in operation. such as camper, tent, car or home. FHTS80048C...
- Page 4 • NEVER LEAVE this gas fire table unattended when in use. • This unit is to be used with propane gas only! (sold separately) • Do not attach a remote gas supply to this unit. FHTS80048C...
- Page 5 • DO NOT attempt to disconnect the gas regulator from the tank or any gas fitting while the outdoor fire table is in use. • Always shut off the supply at the tank valve and disconnect regulator from the tank when the FHTS80048C...
- Page 6 American National Standards Institute (ANSI) and the Canadian Standards Steering Committee. • Only tanks marked “propane” may be used. • The installation of this unit must adhere to local codes or either the National Fuel Gas Code, FHTS80048C...
- Page 7 1. This fire table comes equipped with a standard LP gas hose and regulator including the appliance side connection for a CGA No 791 Cylinder Connection Device. The LP gas hose and regulator supplied with this fire table must be used. Only a hose and regulator specified by manufacturer can be used for replacement. FHTS80048C...
- Page 8 6. “Leak Test” should always be performed after attaching the connection to the LP gas cylinder service valve. (See “Checking for Leaks” section of this manual on Step 7, page 17). 7. For the connection of the hose and regulator to the LP tank, refer to Step 5 on page 15. FHTS80048C...
- Page 9 Should any rocks pop out, discard them. 6. Always ensure that lava rocks/pumice stones/glass shards/glass beads are completely dry before use. Failure to do so will cause them to crack or pop. FHTS80048C...
- Page 10 Lava Rock - 1 Bag Burner Bowl - 1 (pre-assembled) Burner Ring - 1 (pre-assembled) Pilot Housing - 1 (pre-assembled) Flame Igniter - 1 (pre-assembled) Switch Knob - 1 (pre-assembled) Regulator Hose - 1 (pre-assembled) AAA Battery - 1 FHTS80048C...
- Page 11 Assembly STEP 1 Required Pieces: A, D, E, F Install handle (D) to frame (A), and tighten by hand. Place the lava rocks (E) into the burner bowl (F). Igniter Box Burner Tube Do not block opening CORRECT INCORRECT FHTS80048C...
- Page 12 Assembly STEP 2 Required Pieces: A, B, C Carefully place the glass (B) into the top of the frame (A). Insert the glass fastener (C) to the corners of the glass and tighten using a screwdriver (not included). FHTS80048C...
- Page 13 Insert the included battery (L) and knob (J) into the electric igniter (I) and twist the button cover onto igniter housing. Do not overtighten. WARNING: Batteries may contain mercury. Do not put batteries into the fire or trash. Please treat batteries as hazardous waste and recycle properly. FHTS80048C...
- Page 14 1. Loosen LP gas tank retainer bolt by turning counter-clockwise. 2. Place precision-filled LP gas tank upright into hole in outdoor fireplace base so the tank valve is facing the gas line connection. 3. Secure tank by turning LP gas tank retainer bolt clockwise until tight. FHTS80048C...
- Page 15 1. Before connecting, be sure there is no debris caught head of the LP gas tank, head of the regulator valve or in the head of the burner or burner ports. 2. Connect the propane hose assembly to tank by turning knob clockwise until it stops. FHTS80048C...
- Page 16 3. Place the protective cap cover on LP tank and store the tank outdoors in a well-ventilated area out of direct sunlight. CAUTION: LP gas tank must be properly disconnected and removed prior to moving this table. FHTS80048C...
- Page 17 3. Make sure the burner/venturi tube fits over the orifice. 4. Please refer to diagram (figure 1 and 2) for proper installation. 5. If the burner/venturi tube does not rest flush to the orifice, as shown (figure 1 and 2), please contact 1-866-988-3300 for assistance. FHTS80048C...
- Page 18 If no bubbles appear after one minute, turn LP gas tank valve to “CLOSED”, wipe away solution proceed. WARNING: Failure to inspect this connection or not follow these instructions could cause death, serious bodily injury or damage to property. Figure 1 Figure 2 FHTS80048C...
- Page 19 Assembly STEP 9 Once your propane tank is properly installed close the door on the fire pit. FHTS80048C...
- Page 20 Assembly STEP 10 Now the firepit is complete and ready to use. FHTS80048C...
- Page 21 9. After 20 seconds, release and turn control knob counter-clockwise to adjust flame to desired height. 10. If ignition does not occur in 20 seconds turn burner switch knob to “OFF”, wait five minutes, fan with a newspaper or magazine, and repeat lighting procedure. FHTS80048C...
- Page 22 8. Check for obstructions of airflow to the burner. Spiders, insects and webs can clog the burner/venturi tube. A clogged burner/venturi tube can lead to a fire. 9. If damage to any component is detected, do NOT operate until repairs are completed. FHTS80048C...
- Page 23 We recommend that your fire table be stored indoors during the winter months. It will protect it from cracking in extreme cold. If it must be stored outside, it should ALWAYS be covered. Replacement Parts For replacement parts, call our service center at 1-866-988-3300. FHTS80048C...
- Page 24 1. Clear burner/venturi tube 2. Check for bent or kinked hose Disengagement of burner to valve Re-engage burner and valve Spider webs or insect nest in Clean burner/venturi tube burner/venturi tube Burner ports clogged or blocked Clean burner ports FHTS80048C...
- Page 25 3. Reconnect LP gas tank per “Installing LP Gas vaporization process is too slow in cold weather Tank” section - temperature 4. Follow “Checking for Leaks” section below 50°F (10°C) 5. Light outdoor fireplace per “Lighting” section FHTS80048C...
- Page 26 After cleaning cushions tip on end and allow to drip dry. (Never use a commercial or home dryer to tumble dry fabric goods). Do not use bleach or solvents to clean any product! This will void the warranty. FHTS80048C...
- Page 27 OF THE POSSIBILITY OF SUCH DAMAGES. EXCEPT AS OTHERWISE MAY BE REQUIRED BY LAW, THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OTHER THAN THE WARRANTY DESCRIBED HEREIN, AND ALL OTHER WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED. Contact Customer Service 1-866-988-3300 FHTS80048C...
