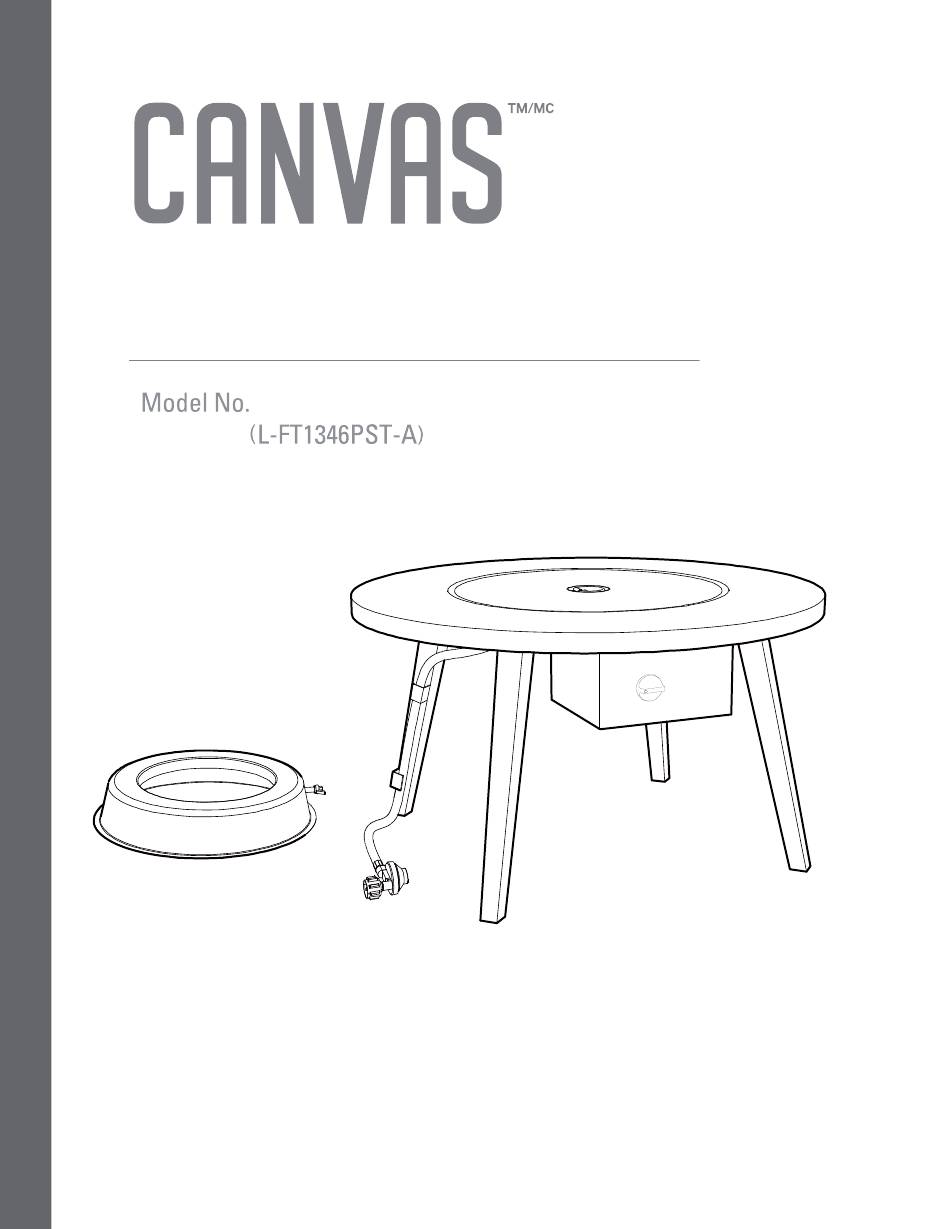

- Page 1 BLACKCOMB OUTDOOR FIRE TABLE 085-1569-0 ASSEMBLY INSTRUCTIONS Toll-free: 1-888-670-6684 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Production Number: xxxxxxxx...
- Page 2 BLACKCOMB OUTDOOR FIRE TABLE WARNING: For Outdoor Use Only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. odour property Propane tank not included WARNING: flammable vapours DANGER odour.
-
Page 3: Table Of Contents
085-1569-0 MODEL N0. General information Specifications Important safety information and precautions Expanded view Parts list Assembly Location Setup Gas connection Leak test Lighting Storage and maintenance Troubleshooting Limited warranty IMPORTANT Please take time to read these instructions thoroughly and follow each step carefully for safe and easy operation. -
Page 4: Specifications
Product name Blackcomb Outdoor Fire Table Model No. 085-1569-0 L-FT1346PST-A 26,000 Rated Heat Output BTU/HR Fuel Propane—LP Gas Supply 20 lb (9 kg) LP-Gas cylinder Manifold Pressure 11" W.C. 1.57 mm Orifice Size (diameter) Gas Supply Pressure 25 PSI (minimum) to 250 PSI (maximum) The installation must comply with local codes, or in the absences of local codes with the National Fuel Gas Code, ANSI Z223.1/NF-PA54;... - Page 5 MODEL N0. 085-1569-0 The minimum distance between the brazier and the 30" cylinder is 30" (76.2 cm). (76.2 cm) WARNING: The cylinder poses a tripping hazard. Open the door and inspect the hose assembly and burner prior to each use. If there is evidence of excessive abrasion or wear or if the hose or burner is damaged, it must be replaced by an appropriate part from the manufacturer.
-
Page 6: Expanded View
EXPANDED VIEW... -
Page 7: Parts List
MODEL N0. 085-1569-0 L-FT1346PST-A Parts List Label Part Number Description Qty. Part Image 2 kg Hardware Pack Label Part Number Description Qty. Add Part Image Bolt M6*15 H02015C11 Flat washer H19001C11 Wrench M6 H00001C12 If you want to replace the parts listed, please contact Customer Service Centre: 1-888-670-6684... - Page 9 085-1569-0 MODEL N0. L-FT1346PST-A...
-
Page 10: Location
Your gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. 1-Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. NOTE: Do not place this appliance on grass or dirt area. This may prevent proper safety venting. -
Page 11: Leak Test
MODEL N0.085-1569-0 (L-FT1346PST-A) LEAK TEST WARNING!!! Do not use an open flame to check for leaks. Do not smoke during testing. Do not test indoors. A leak test must be performed whenever the gas cylinder is replaced. 1. Make sure the control knob is in the “OFF” position. 2. -
Page 12: Storage And Maintenance
To obtain the best performance from your fire table, you must perform the following storage and maintenance activities on a regular basis: Allow at least 35 minutes for the fire table to cool down after use, before disconnecting and removing the gas cylinder. Store the gas cylinder in a dry, well-ventilated and sheltered area protected from inclement weather and dust, out of the reach of children, and not in a building, garage or... -
Page 13: Limited Warranty
MODEL N0. 085-1569-0 L-FT1346PST-A Subject to the conditions set out below, this product is warranted to the original purchaser to be free from defects in workmanship and materials for one (1) year from the date of pur- chase. Satisfactory proof of the purchase date must be furnished at the time of notification of the defect for any claim under the warranty to be enforceable.
