Page 1: Lighting

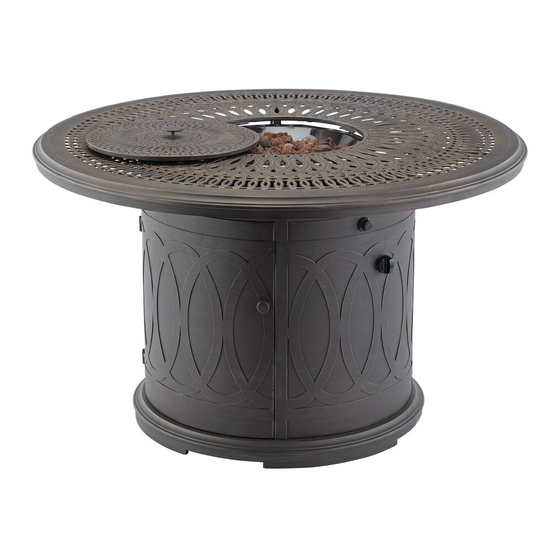

INSTRUCTION MANUAL BANGARI FIRE TABLE MODEL NO. 088-0733-8 Propane tank not included. AA battery needed; not included. ASSEMBLY INSTRUCTIONS IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. - Page 2 MODEL NO. 088-0733-8 WARNING: For outdoor use only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odour continues, keep away from the appliance and immediately call your gas supplier or fire department.
-
Page 3: Table Of Contents
Table of Contents Specifications Safety Warnings Exploded View Parts list Installation Location Set Up Gas Connection Operation Leak Check Lighting Storage and Maintenance Troubleshooting Cleaning and Maintenance Technical Specifications Warranty IMPORTANT Please take time to read these instructions thoroughly and follow each step carefully for safe and easy operation. -
Page 4: Specifications
MODEL NO. 088-0733-8 SPECIFICATIONS Product Name Bangari fire table Model No. 088-0733-8 Rated Heat Input 50,000BTU/hr Gas Supply 20 lb LP gas cylinder Manifold Pressure 11" wc Orifice Size (diameter) 2.18 mm Gas Supply Pressure Max. 250 PSI SAFETY WARNINGS •... - Page 5 • The pressure regulator and hose assembly provided with the appliance must be used. The replacement part must be the same as the part specified by manufacturer. • To attach the LP gas cylinder please refer to the Gas Connection section on page 9 and perform the leak test on page 10.
-
Page 6: Exploded View
MODEL NO. 088-0733-8... -
Page 7: Parts List
Parts List Lid- 1 Battery box - 1 Table top - Control knob - 1 Main body - 1 Control valve - 1 Base - 1 Pressure regulator - 1 Tempered glass - 1 (3.5KG) Nozzle subassembly - 1 Armor plate screen Thermocouple - 1 Windshield 1 - 1 Nozzle support bar - 1... -
Page 8: Installation
MODEL NO. 088-0733-8 Installation will be much easier with two or more people. Fig. 1 Fig. 1: Put table top (B) on main body (C), then secure them using bolt (AA), spring washer (CC) and flat washer (BB). Fig. 2 Fig. -
Page 9: Location
Your gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. Your gas appliance comes assembled, ready for a gas connection. 1. Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. -
Page 10: Operation
8 10 MODEL NO. 088-0733-8 Fig. 9 Fig. 8 OPERATION LEAK TEST !!!WARNING!!! Do not use an open flame to check for leaks. Do not smoke during testing. Do not test indoors. A leak check must be performed whenever the gas cylinder is replaced. -
Page 11: Storage And Maintenance
NOTE: While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. The flame can be identified by the following figure. Y E LLO W T IP H IG H Correct Flame LO W B LU E BLUE Incorrect Flame... -
Page 12: Troubleshooting
MODEL NO. 088-0733-8 PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURES Gas odour —Gas leak. —See “If you smell gas ” on second page of manual. —Check all gas connections. Delayed ignition —Low gas pressure. —Check gas supply pressure. —Clogged or dirty burner —Clean burner ports. -
Page 13: Warranty
122 X 122 X 72 cm 48 X 48 X 28 3/8" 83 lb 12 oz Subject to the conditions set out below, this product is warranted to the original purchaser to be free from defects in workmanship and materials for five ( 5 ) years from the date of purchase. •...
