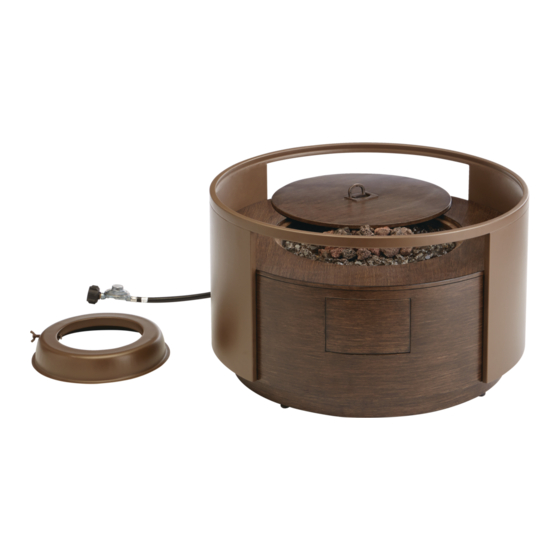

GRANVILLE OUTDOOR
FIRE TABLE
MODEL N0. 085-1562
LFT1224PST-A
ASSEMBLY INSTRUCTIONS
Toll-free 1-888-670-6684
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
Production Number: XXXXXXXX
Advertisement
Related Manuals for Canvas LFT1224PST-A
Summary of Contents for Canvas LFT1224PST-A
- Page 1 GRANVILLE OUTDOOR FIRE TABLE MODEL N0. 085-1562 LFT1224PST-A ASSEMBLY INSTRUCTIONS Toll-free 1-888-670-6684 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Production Number: XXXXXXXX...
-
Page 2: Carbon Monoxide Hazard
GRANVILLE OUTDOOR FIRE TABLE WARNING: For Outdoor Use Only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odour continues, keep away from the appliance and immediately call your gas supplier or fire department. - Page 3 MODEL N0. 085-1562 LFT1224PST-A General Information Specifications Important Safety Information and Precautions Expanded View Parts List Installation Location Setup Gas Connection Operation Leak Test Lighting the Burners Storage and Maintenance Trouble Shooting Limited Warranty IMPORTANT please take time to read these instructions thoroughly and follow each step carefully for safe and easy...
- Page 4 Product name GRANVILLE OUTDOOR FIRE TABLE Model No. 085-1562/LFT1224PST-A Rated Heat Output 26,000 BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-gas cylinder Manifold Pressure 11 Inches W.C. 1.57 mm Orifice Size (diameter) Gas Supply Pressure Max. 250 PSI When the appliance is connected to a fixed piping system, the installation must comply with local codes, or in the absence of local codes with the National Fuel Gas Code, ANSI Z223.1/NF-...
- Page 5 MODEL N0. 085-1562 LFT1224PST-A The minimum distance between the brazier and the cylinder is 30 in / 76.2 cm, which prevents the hosepipe from falling between the cylinder and the brazier. WARNING: The cylinder poses a risk of tripping. nspect the hose assembly and burner prior to each use.
- Page 7 MODEL N0. 085-1562 LFT1224PST-A Description Outer ring （pre-assembled） P22404A01144 Main body （pre-assembled ） P21125A01145 P20709A01145 Cylinder ring P20803A01144 Tempered glass 1 (5 kg) P99960A02003 If you want to replace the parts listed, please contact the Customer Service Centre 1(888) 670-6684.
- Page 8 Your gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. Your gas appliance comes assembled, ready for a gas connection. 1- Remove the appliance from the box and place it on any level, outdoor, non-combustible surface.
- Page 9 MODEL N0. 085-1562 LFT1224PST-A LEAK TEST !!!WARNING!!! Do not use an open flame to check for leaks. Do not smoke during testing. Do not test indoors. A leak test must be performed whenever the gas cylinder is replaced. 1. Make sure the control knob is in the “OFF” position.
- Page 10 To obtain the best performance from your fire table, you must perform the following storage and maintenance activities on a regular basis: Allow at least 35 minutes for the fire table to cool down after use, before disconnecting and removing the gas cylinder. Store the gas cylinder in a dry, well-ventilated and sheltered area protected from inclement weather and dust, out of the reach of children, and not in a building, garage or...
- Page 11 MODEL N0. 085-1562 LFT1224PST-A Subject to the conditions set out below, this product is guaranteed against defects in materials and workmanship for one (1) year from the date of purchase！ Satisfactory proof of the purchase date must be provided at the time of notification of the defect for any claim under the warranty to be enforceable.
