7. WiFi version

7.1. Configure the WiFi module

For the first time you connect the RFXtrxLAN using a laptop.
Power the RFXtrxLAN and connect the WiFi network with SSID HF-A11x_AP
When the wireless connection is OK, open a web browser and access
Connect with username / password: admin / admin

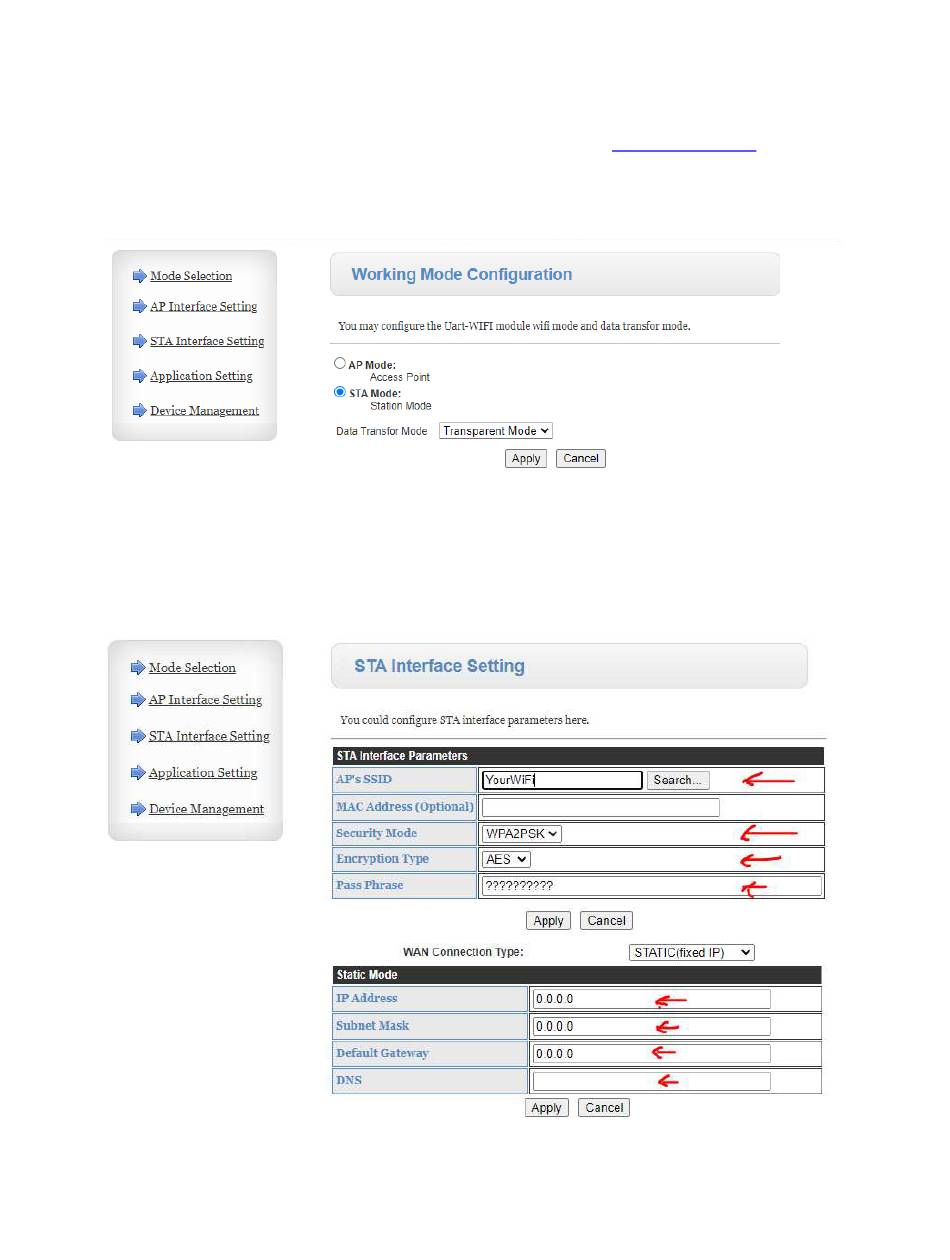

7.2. Set STA (station) mode

7.3. Configure the STA settings

Configure the AP to be used, click on Search and select your WiFi network.
Set the fixed IP address for the TCP server, for example
192.168.1.100
255.255.255.0
192.168.1.255
8.8.8.8
Copyright, RFXCOM 2021
RFXtrxLAN Rev. 2.0
http://10.10.100.254
page 9 / 14
