Page 1: User Guide

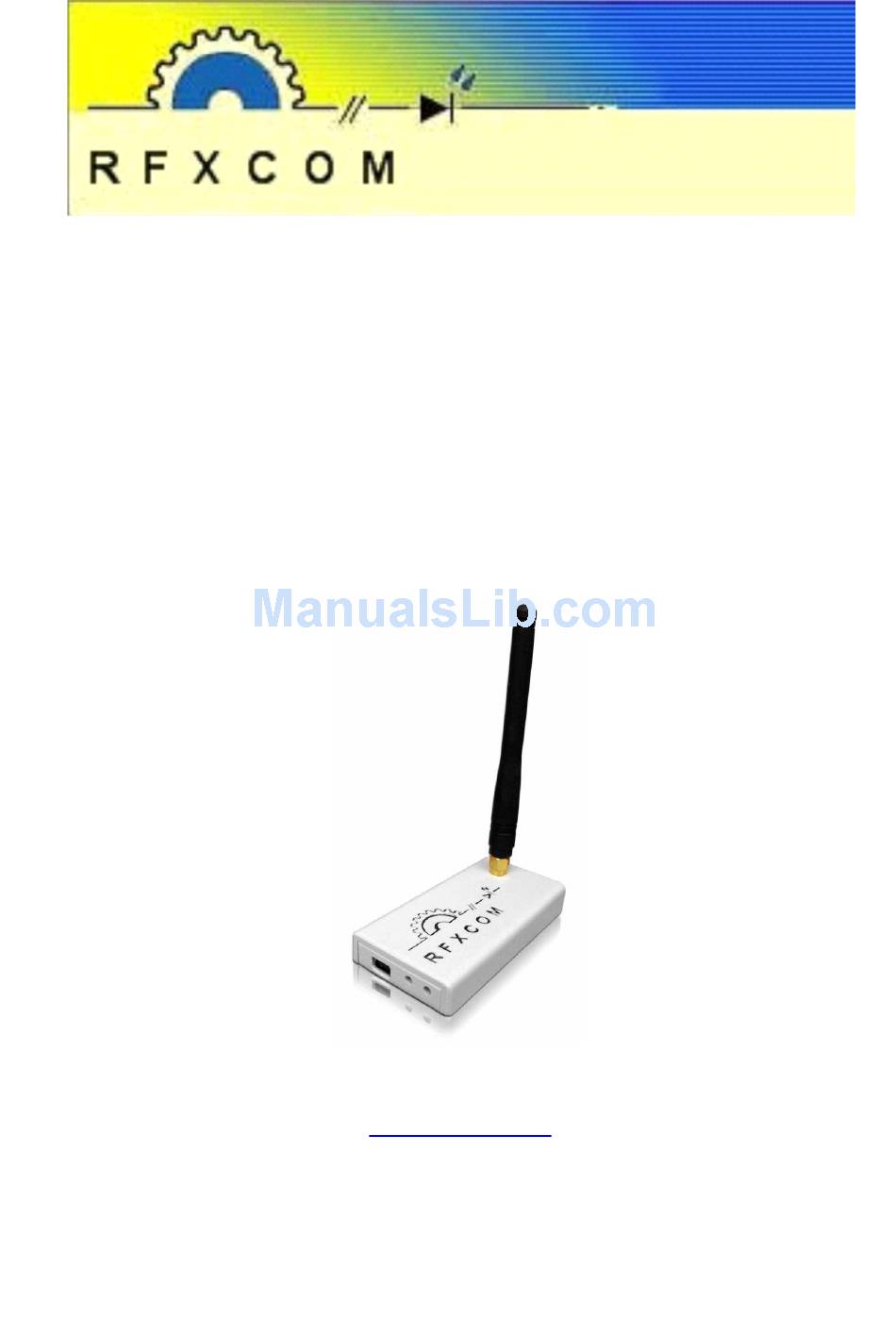

RFXtrx433 USB RF transceiver User guide www.rfxcom.com RFXtrx Version 2.12 page 1 / 20 Copyright 2011-2012, RFXCOM... -
Page 2: Table Of Contents
Transmitter ........................8 Flash update of the RFXtrx433 .................... 9 7.1. Update firmware in the RFXtrx433 ................9 7.2. Update firmware in the RFXtrx433 step by step ............10 Code tables ........................12 8.1. Remote commands ....................12 8.1.1. X10 RF Remote ....................12 8.1.2. -
Page 3: Rfxtrx433 Rf Transceiver General Information
2. RFXtrx433 RF transceiver general information The RFXtrx433 transceiver is communicating over one USB port with the application. The RFXtrx433 enters for 2 seconds the boot loader and after this it starts the receive/transmit firmware. For developers, the communication protocols over USB are described in the SDK. -
Page 4: Home Automation Software
Note: sudo must be entered without brackets [ ]. sudo is required if not running as super user. Launch the RFXflash.exe program. [sudo] mono RFXflash.exe Launch the RFXmngr.exe program. [sudo] mono RFXmngr.exe RFXtrx Version 2.12 page 4 / 20 Copyright 2011-2012, RFXCOM... -
Page 5: Run Rfxmngr Or Rfxflash On Mac Os Under Mono
Download the Mono Windows version and run it while WinOnX is running. • Restart WinOnX after it has installed the runtime. • Now you can run RFXFlash from the WinOnX application. RFXtrx Version 2.12 page 5 / 20 Copyright 2011-2012, RFXCOM... -
Page 6: Rfxmngr Test Program
So select only the protocols to be used, click Set mode and on the Receiver tab click Save Settings. Note that these settings are lost after a firmware update and need to be set again. RFXtrx Version 2.12 page 6 / 20 Copyright 2011-2012, RFXCOM... -
Page 7: Receiver
Note that these settings are lost after a firmware update and need to be set again. The received RF data is decoded and displayed in the yellow window. RFXtrx Version 2.12 page 7 / 20 Copyright 2011-2012, RFXCOM... -
Page 8: Transmitter
See the SDK which protocols are supported on the different tabs. The transmitted commands are displayed in the yellow window including the acknowledge send by the RFXtrx, in the example below the 030000200 = ACK, data correct transmitted. RFXtrx Version 2.12 page 8 / 20 Copyright 2011-2012, RFXCOM... -
Page 9: Flash Update Of The Rfxtrx433
1. Download the latest RFXtrx433_yy.hex firmware file. 2. Connect the RFXtrx to a Windows system or Linux under MONO 3. Stop any program that is connected to the RFXtrx433 4. Start the RFXflash program (version 3.0.0.0 or higher) 5. Select the USB RFXtrx COM port and click the CONNECT button, (the red LED should switch on now) 6. -
Page 10: Update Firmware In The Rfxtrx433 Step By Step
Update firmware in the RFXtrx433 step by step • Click the Connect to Device button. The RFXtrx433 will automatically switch from normal mode to the bootloader now. If the bootloader is not entered see the next chapter “Force bootload”. •... - Page 11 Click the Write device button and the RFXtrx433 is flashed. • Click on the Normal Execution Mode button to set the RFXtrx433 to running mode. Note: Receiver Settings are lost after a firmware update and have to be set again.
-
Page 12: Code Tables
Cursor-up-right Cursor-down-right Cursor-down-left left mouse left mouse-End Drag right mouse right mouse-End MUTE Play Menu Fast Forward CHAN- Exit PC / Shift-4 Shift-5 Shift-Ent Shift-Teletext Text Shift-Text VOL- Teletext Record RFXtrx Version 2.12 page 12 / 20 Copyright 2011-2012, RFXCOM... -
Page 13: Ati Remote Wonder
MUTE Cursor-down-right CHAN+ Cursor-down-left CHAN- V-End X-End snapshot ESC TV/RADIO < > <- Rewind Play Fast forward Record Stop Pause RADIO TV Preview Channel list Video Desktop green yellow blue RFXtrx Version 2.12 page 13 / 20 Copyright 2011-2012, RFXCOM... -
Page 14: Ati Remote Wonder Plus
Acquire image edit image Full screen DVD Audio Cursor-left Open Setup Menu Cursor-right Cursor-up Cursor-down Cursor-up-left Cursor-up-right < Cursor-down-right Cursor-down-left > Left Mouse Button Max/Restore Window V-End Right Mouse Button X-End RFXtrx Version 2.12 page 14 / 20 Copyright 2011-2012, RFXCOM... -
Page 15: Medion Remote
Cursor-down-left CHAN- V-End X-End snapshot ESC DVD MENU Setup TV/RADIO < > <- Rewind Play Fast forward Record Stop Pause RADIO TV Preview Channel list Video Desktop green yellow blue RFXtrx Version 2.12 page 15 / 20 Copyright 2011-2012, RFXCOM... -
Page 16: Harrison Address Conversion To Switch Settings
2=down, 3=down, 4=down, 5=down, 6=up, 7=up, 8=down If you assign the address A2 (0110 0001) to the curtain motor then set the switches to: 1=down, 2=up, 3=up, 4=down, 5=down, 6=down, 7=down, 8=up RFXtrx Version 2.12 page 16 / 20 Copyright 2011-2012, RFXCOM... -
Page 17: Flamingo, Ab400, Impuls Switch Settings
0 0 0 0 1 1 1 0 0 0 1 1 0 1 0 0 0 1 0 0 1 1 0 1 1 0 1 0 0 0 0 = switch off 1 = switch on RFXtrx Version 2.12 page 17 / 20 Copyright 2011-2012, RFXCOM... -
Page 18: Phenix, Idk Yc-4000S Switch Settings
1 0 1 0 1 1 0 1 1 1 1 1 0 0 1 1 1 0 1 1 1 1 1 0 1 1 1 1 1 1 RFXtrx Version 2.12 page 18 / 20 Copyright 2011-2012, RFXCOM... -
Page 19: Ec Declaration Of Conformity
9. EC Declaration of Conformity EC Declaration of Conformity RFSmartLink declares that the product: RFXtrx Brand: RFXCOM Type: RFXtrx433 conforms with the essential requirements and other relevant provisions of the following directives and complies with the following standards applied: R&TTE Directive 99/5/EC EN 300 220-1 V2.3.1 (2010-02) -
Page 20: Warning
11. Copyright notice It is forbidden to use any RFXCOM device, software or protocol as part of an exclusive or patented product without the express prior written permission of RFXCOM. All materials contained in this document are protected by copyright laws, and may not be reproduced, republished, distributed, transmitted, displayed, broadcast or otherwise exploited in any manner without the express prior written permission of RFXCOM.
