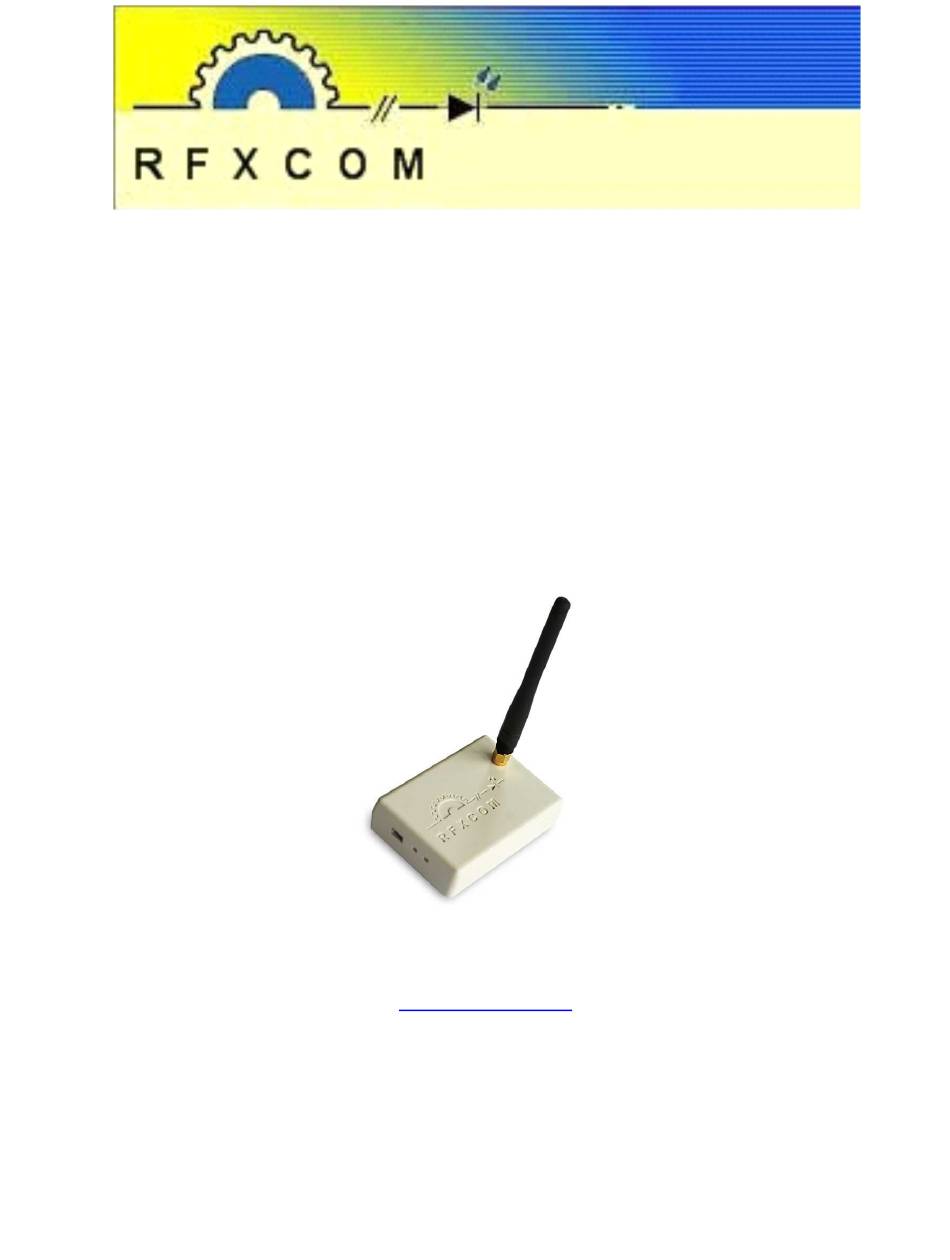

  • Page 1 RFXtrx USB RF transceiver User Guide www.rfxcom.com RFXtrx Version 5.68 page 1 / 70 Copyright 2011-2020, RFXCOM...

  • Page 2: Table Of Contents

    ID switches Casafan and Lucci Air fans ................. 45 Transmit Funkbus (Insta, Gira, Jung, Berker) ..............46 Transmit undecoded ARC commands................47 MCZ pellet stove......................48 Lighting4 devices ......................49 15.1. Proluxx projection screen ..................49 RFXtrx Version 5.68 page 2 / 70 Copyright 2011-2020, RFXCOM...
  • Page 3 The wall plug is switched by the remote, the remote is received but the RFXtrx does not switch the module......................61 EC Declaration of Conformity ..................62 Warning: ........................63 License .......................... 63 Copyright notice ......................63 Revision history ......................64 RFXtrx Version 5.68 page 3 / 70 Copyright 2011-2020, RFXCOM...

  • Page 4: Rfxtrx General Information

    Davis ISS data” and madscientistlabs.blogspot.com Important: it is only possible to enable one protocol for receive in the RFXtrx868X and RFXtrx868XL because of the used transmission techniques at 868MHz. RFXtrx Version 5.68 page 4 / 70 Copyright 2011-2020, RFXCOM...

  • Page 5: Rfxrec433, Rfxtrx433, Rfxtrx433E, Rfxtrx433Xl Supported Protocols

    (RFXtrx433E and RFXtrx433XL only) – http://www.simu.com/ Siro https://shop.siro-antrieb.de/shop-kategorie/elektrische-antriebe-fuer-innensonnenschutz/ Somfy (RFXtrx433E and RFXtrx433XL only) – http://www.somfy.co.uk/ Sunflower brand KT52E motorized Curtain track,Single track, DOOYA motor https://nl.aliexpress.com/item/motorized-Curtain-track-1m-3-3m-wide-Single-track-DOOYA-motor-the-top-motor-brand-in/1939622604.html Sunpery blind motors YOODA blind motors – http://www.sukcesgroup.pl RFXtrx Version 5.68 page 5 / 70 Copyright 2011-2020, RFXCOM...
  • Page 6 RFXtrx Version 5.68 page 6 / 70 Copyright 2011-2020, RFXCOM...
  • Page 7 Sunvic TLX1206 Sunvic TLX7506 TechnoLine/Proficell http://www.elv.de/output/controller.aspx?cid=74&detail=10&detail2=27621 - TX95-TH, WS9180-TX104 Telldus Thermo/Hygro sensors 313159 and 313160 https://www.lohelectronics.se/hemautomation/433mhz/sensorer-1110/smart-inne-och-utetermometer-med-hygrometer-10396 UPM/Esic (very short receiving range) Ventus – WS155 Viking WT0122 pool thermometer Xiron –EN6 RFXtrx Version 5.68 page 7 / 70 Copyright 2011-2020, RFXCOM...
  • Page 8 Flamingo FA500D FA500DSS Flamingo Smartwares SF501 FunkBus (Gira, Jung, Insta, Berker) Home Confort – http://www.home-confort.net/en HomeEasy EU – http://www.elro.eu/en/products/cat/home-automation/ HomeEasy UK (including HE105 relay) – http://www.homeeasy.eu/ HQ COCO-20 Ikea Koppla RFXtrx Version 5.68 page 8 / 70 Copyright 2011-2020, RFXCOM...
  • Page 9 1byOne Easy Chime Alfawise https://www.gearbest.com/ip-cameras/pp_1693842.html?wid=1214279 Byron SX and BY chime http://www.chbyron.eu/Byron/ByronSXRange/68/89/ Byron MP001 Chacon dBell https://www.webstore4ipcameras.nl/dbell_DB-HD-LIVE-B-W Envivo – ENV1348 HomeEasy KlikAanKlikUit Monaco https://www.airam.fi/en/product/v8305-2988/7020500/monaco-wireless-doorbell-230v/140/1 Profiles PAC-326R Belcanto SelectPlus200689101 & SelectPlus200689103 (Action NL) RFXtrx Version 5.68 page 9 / 70 Copyright 2011-2020, RFXCOM...
  • Page 10 – BWR101, BWR102, GR101 Prego P-8426 – sauna temperature sensor http://www.sunmarket.fi/tuote.asp?TID=11990 Smartwares radiator valve http://www.homewizard.nl/smartwares-draadloze-radiatorkraan.html Siemens SF01 - LF959RA50/LF259RB50/LF959RB50 extractor hood Wave Design extractor hood X10 Ninja/Robocam – camera motor RFXtrx Version 5.68 page 10 / 70 Copyright 2011-2020, RFXCOM...

  • Page 11: Alphabetic List

    Atlantic security Meiantech Auriol H13726 Rubicson Auriol Z31055B-TX Rubicson Avantek Lighting5 *Lighting4 * receive Lighting4 Banggood Rubicson – SKU174397 Banggood DANIU Rubicson Blyss lighting http://www.castorama.fr/store/Prise- telecommandee-et-telecommande-BLYSS--- Interieur-prod4470026.html Blyss temperature/humidity 630467 RFXtrx Version 5.68 page 11 / 70 Copyright 2011-2020, RFXCOM...
  • Page 12 Lighting1 COCO GDR2 54660) Confexx CNF24-2435 BlindsT12 Conrad RSL2 http://www.conrad.com/ce/en/product/640466 /FUNK-STECKDOSENSCHALTER-RSLR2 Conrad RSL sensors Conrad RSL2 motion/door- window sensors Cotech Smarthome Lighting4 + AC Cotech weather sensor https://www.clasohlson.com/no/Ekstra- Rubicson temperaturgiver-hygrometer/36-6726 RFXtrx Version 5.68 page 12 / 70 Copyright 2011-2020, RFXCOM...
  • Page 13 ESMO blind motors BlindsT6 Etekcity – http://etekcity.com/p-300-5- Lighting1 pack-wireless-remote-control-outlet-switch- Energenie5 set-with-2-remote-controls-zap-5lx.aspx Lighting1 - ARC Eurodomest (NL – Action) * ARC only Lighting5 Eurodomest Everflourish EMW100 Lighting5 EMW100 Falmec fan Fan Falmec RFXtrx Version 5.68 page 13 / 70 Copyright 2011-2020, RFXCOM...
  • Page 14 Lighting3 Lighting1 Impuls (NL – Action) Impuls inblindz BlindsT13 https://www.inblindz.nl/ Inovalley SM80 with plant probes Rubicson http://www.inovalley.com/detail.php?item_id= Intertechno (learning mode) http://www.intertechno.at/ Intertechno (with address code wheels) JVS screens BlindsT6 http://www.screen-discount.nl/ RFXtrx Version 5.68 page 14 / 70 Copyright 2011-2020, RFXCOM...
  • Page 15 MCZ pellet stove Thermostat4 MDremote LED dimmer Lighting5 V106 MDRemote V106 www.ultraleds.co.uk MDremote LED dimmer Lighting5 V107 MDRemote V107 www.ultraleds.co.uk MDremote LED dimmer V108, Lighting5 EKAB-10KRF MDRemote V108 http://www.ledstripkoning.nl/accessoires/dim mers-wit/draadloze-dimmer-10-knops-rf/ RFXtrx Version 5.68 page 15 / 70 Copyright 2011-2020, RFXCOM...
  • Page 16 Pro = Fineoffset Moisture-Sensor- /251380900939 ?pt=UK_Home_Garden_Gar den_Plants_Fertiliser_CV&hash=item3a8778 244b ORNO Oregon Scientific / Huger BBQ and weather sensors Oregon - AW129, AW131, BTHGN129, BTHR918, BTHR918N, BTHR968, EW109, PCR800, RGR126, RGR682, RGR918, RGR928, RFXtrx Version 5.68 page 16 / 70 Copyright 2011-2020, RFXCOM...
  • Page 17 YRL2016 controlled) RAW data undec on Renkforce RF101 smoke always on detector Revolt NC5461 http://www.pearl.de/a-NC5462-5452.shtml RFXSensor RFXMeter RGB LED strip driver dx.com http://www.dx.com/ order nbr: 130913, (new TRC02 NOT supported) RFXtrx Version 5.68 page 17 / 70 Copyright 2011-2020, RFXCOM...
  • Page 18 - TS15C, TS34C,external temperature Hideki sensor 30.3133, anemometer 30.3149, UV sensor, rain sensor 30.3148, pool sensor 30.3160 Oregon - pool sensor 30.3056.10, 30.3216.20 external temperature sensor Hideki 30.3208.02 Hideki - rain sensor 30.3233 RFXtrx Version 5.68 page 18 / 70 Copyright 2011-2020, RFXCOM...

  • Page 19: Undec On

    For this reason, we have added the option to enable receive of undecoded messages. This function is only to enable RFXCOM to add this new sensor type in the firmware if possible. If “undec on” is enabled in normal use the application will receive a lot of undecoded messages mostly as a result of RF noise or disturbed RF packets.

  • Page 20: Sensitivity Influenced By Enabled Protocols

    All other protocols are disabled if BlindsT0 is enabled in Type1, Type2, Ext or Ext2 firmware. HomeEasy EU Meiantech/Atlantic Oregon Visonic/Keeloq Mertik AD (LWRF) Hideki/UPM La Crosse FS20 ProGuard BlindsT0 BlindsT1/T2/T3 AE (Blyss) Rubicson FineOffset/Viking Lighting4 Byron SX Imagintronix HomeConfort Green = enabled by default RFXtrx Version 5.68 page 20 / 70 Copyright 2011-2020, RFXCOM...

  • Page 21: Rf Range Reduction

    Receive mode: 28 mA (0.14Watt) Transmit mode: 45 mA The RFXtrx Radiated RF power is 10dBm max. 2.9. Environmental conditions Normal operating: 15°C to 35°C Absolute min-max temperature: -10°C to 55°C RFXtrx Version 5.68 page 21 / 70 Copyright 2011-2020, RFXCOM...

  • Page 22: Install The Usb Driver

    Note: sudo must be entered without brackets [ ]. sudo is required if not running as super user. Launch the RFXflash.exe program. [sudo] mono RFXflash.exe Note: RFXmngr does not operate under mono! RFXtrx Version 5.68 page 22 / 70 Copyright 2011-2020, RFXCOM...

  • Page 23: Rfxmngr Test Program

    Select only the protocols to be used for receive, click Set mode and click Save Settings. Note that these settings are lost in Type1 and Type2 firmware after a firmware update and need to be set again. RFXtrx Version 5.68 page 23 / 70 Copyright 2011-2020, RFXCOM...

  • Page 24: Receiver

    Note that these settings are lost after a firmware update in Type1 or Type2 firmware and need to be set again. Note: Protocol enabling is only necessary for receive. Transmit protocols are always enabled. The received RF data is decoded and displayed in the yellow window. RFXtrx Version 5.68 page 24 / 70 Copyright 2011-2020, RFXCOM...

  • Page 25: Transmitter

    Select Type to see which protocols are supported on the different tabs. The transmitted commands are displayed in the yellow window including the acknowledge send by the RFXtrx, in the example above “ACK, data correct transmitted“. RFXtrx Version 5.68 page 25 / 70 Copyright 2011-2020, RFXCOM...

  • Page 26: Flash Update Of The Rfxtrx

    RFXtrx does not enter the flash state. Contact support@rfxcom.com for help. Note: Receiver Settings are lost in Type1 and Type2 firmware after a firmware update and must be set again. RFXtrx Version 5.68 page 26 / 70 Copyright 2011-2020, RFXCOM...

  • Page 27: Update Firmware In The Rfxtrx Step By Step

    Be sure to load the latest firmware file for the RFXtrx. yyy indicates the RFXtrx frequency, so load the RFXtrx433 for an RFXtrx433! ?? this is XL for the RFXtrxXL versions. zz indicates the firmware version. RFXtrx Version 5.68 page 27 / 70 Copyright 2011-2020, RFXCOM...
  • Page 28 Click on the Normal Execution Mode button to set the RFXtrx to running mode. Note: Receiver Settings are lost in Type1 and Type2 firmware after a firmware update and must be set again. RFXtrx Version 5.68 page 28 / 70 Copyright 2011-2020, RFXCOM...

  • Page 29: Rfxtrx433 Special Device Codes

    Cursor-up-right Cursor-down-right Cursor-down-left left mouse left mouse-End Drag right mouse right mouse-End MUTE Play Menu Fast Forward CHAN- Exit PC / Shift-4 Shift-5 Shift-Ent Shift-Teletext Text Shift-Text VOL- Teletext Record RFXtrx Version 5.68 page 29 / 70 Copyright 2011-2020, RFXCOM...

  • Page 30: Ati Remote Wonder

    X-End snapshot ESC TV/RADIO < > <- Rewind Play Fast forward Record Stop Pause RADIO TV Preview Channel list Video Desktop green yellow blue rename TAB Acquire image edit image RFXtrx Version 5.68 page 30 / 70 Copyright 2011-2020, RFXCOM...

  • Page 31: Ati Remote Wonder Plus

    Acquire image edit image Full screen DVD Audio Cursor-left Open Setup Menu Cursor-right Cursor-up Cursor-down Cursor-up-left Cursor-up-right < Cursor-down-right Cursor-down-left > Left Mouse Button Max/Restore Window V-End Right Mouse Button X-End RFXtrx Version 5.68 page 31 / 70 Copyright 2011-2020, RFXCOM...

  • Page 32: Medion Remote

    V-End X-End snapshot ESC DVD MENU Setup TV/RADIO < > <- Rewind Play Fast forward Record Stop Pause RADIO TV Preview Channel list Video Desktop green yellow blue rename TAB RFXtrx Version 5.68 page 32 / 70 Copyright 2011-2020, RFXCOM...

  • Page 33: Harrison Address Conversion To Switch Settings

    2=down, 3=down, 4=down, 5=down, 6=up, 7=up, 8=down If you assign the address A2 (0110 0001) to the curtain motor then set the switches to: 1=down, 2=up, 3=up, 4=down, 5=down, 6=down, 7=down, 8=up RFXtrx Version 5.68 page 33 / 70 Copyright 2011-2020, RFXCOM...

  • Page 34: Flamingo, Ab400, Impuls, Sartano, Brennenstuhl, Silvercrest 91089, Cranenbroek Switch Settings

    0 0 0 0 1 1 1 0 0 0 1 1 0 1 0 0 0 1 0 0 1 1 0 1 1 0 1 0 0 0 0 = switch off 1 = switch on RFXtrx Version 5.68 page 34 / 70 Copyright 2011-2020, RFXCOM...

  • Page 35: Energenie 5-Gang 429.950

    If jumper 5 is open (1) than add 5 to the remote code. Examples: Jumper Button Code 1 2 3 4 5 1 0 0 0 0 1 0 0 0 1 RFXtrx Version 5.68 page 35 / 70 Copyright 2011-2020, RFXCOM...

  • Page 36: Phenix, Idk Yc-4000S Switch Settings

    1 0 1 0 1 1 0 1 1 1 1 1 0 0 1 1 1 0 1 1 1 1 1 0 1 1 1 1 1 1 RFXtrx Version 5.68 page 36 / 70 Copyright 2011-2020, RFXCOM...

  • Page 37: He105 Switch Settings

    1 1 0 1 0 1 1 0 1 1 1 1 1 0 0 1 1 1 0 1 1 1 1 1 0 1 1 1 1 1 RFXtrx Version 5.68 page 37 / 70 Copyright 2011-2020, RFXCOM...

  • Page 38: Hq Coco-20

    0 0 0 0 1 1 1 0 0 0 1 1 0 1 0 0 0 1 0 0 1 1 0 1 1 0 1 0 0 0 0 = switch off 1 = switch on RFXtrx Version 5.68 page 38 / 70 Copyright 2011-2020, RFXCOM...

  • Page 39: Mdremote V106, V107

    The jumper next to the learning button defines to operating mode: Open = momentary 1-2 = toggle mode 2-3 = on/off mode (to be used with the RFXtrx) RFXtrx Version 5.68 page 39 / 70 Copyright 2011-2020, RFXCOM...

  • Page 40: Seav Txs4

    Press a button on the remote and you will receive a message like: ------------------------------------------------ Packettype = Lighting4 subtype = PT2262 Sequence nbr = 12 Code = 6DFE0F The ID is: 6 DF E0 Note: Eurodomest can also be controlled using ARC. RFXtrx Version 5.68 page 40 / 70 Copyright 2011-2020, RFXCOM...

  • Page 41: How To Find The Screenline Id

    Sequence nbr Code = 122336 decimal:1188662 S1- S24 = 0001 0010 0010 0011 0011 0110 Pulse = 280 usec Signal level -64dBm The ID to be used is 1 22 33 RFXtrx Version 5.68 page 41 / 70 Copyright 2011-2020, RFXCOM...

  • Page 42: Blyss Commands

    Blyss remote you need to transmit several commands with the remote before the Blyss device responds. I guess the same behaviour will show if you use multiple Blyss remotes. RFXtrx Version 5.68 page 42 / 70 Copyright 2011-2020, RFXCOM...

  • Page 43: Somfy Rts

    Transmit a Program command with the RFXtrx433E/RFXtrx433XL. The Somfy RTS device should respond indicating the pair command was successful. The RFXCOM RFY remote is registered in the RFXtrx433E/RFXtrx433XL by sending a Program command. Up to 40 RFXCOM RFY remotes can be registered in the RFXtrx433E/RFXtrx433XL.

  • Page 44: How To Move Rfy Devices To Another Rfxtrx433E Or Rfxtrx433Xl

    Transmit a Program command. The values are now programmed in the “new” RFXtrx and the Somfy device can be controlled with this RFXtrx. Transmit an Up and Down command to be sure the motor is no longer in program mode! RFXtrx Version 5.68 page 44 / 70 Copyright 2011-2020, RFXCOM...

  • Page 45: Blindst6

    1 1 0 0 1 1 0 1 1 1 1 0 1 1 1 1 For LucciAir AC fan: 0 = ON For Casafan and LucciAir DC fan: 1 = ON RFXtrx Version 5.68 page 45 / 70 Copyright 2011-2020, RFXCOM...

  • Page 46: Transmit Funkbus (Insta, Gira, Jung, Berker)

    For de groups A, B en C: Unit code 1-8 = channel 1-8 For group Scenes (3) : Unit code 1-5 = scene 1-5. Example Group A - Channel 1 - On Example Group Scenes – Scene 5 - On RFXtrx Version 5.68 page 46 / 70 Copyright 2011-2020, RFXCOM...

  • Page 47: Transmit Undecoded Arc Commands

    For this command UNDECODED ARC:18014430 set on the Lighting4 tab in RFXmngr selection box 1 to 24 to 0 1 4 4 3 0 = 0000 0001 0100 0100 0011 0000 RFXtrx Version 5.68 page 47 / 70 Copyright 2011-2020, RFXCOM...

  • Page 48: Mcz Pellet Stove

    Flash now Type2 or Ext firmware in your RFXtrx433/RFXtrx433E and you can control your MCZ stove using the received ID. Important: remove the batteries from the original remote before you start using the RFXtrx433/E/XL to control the MCZ stove! RFXtrx Version 5.68 page 48 / 70 Copyright 2011-2020, RFXCOM...

  • Page 49: Lighting4 Devices

    00 01 01 01 01 01 01 00 01 01 01 00 1 OFF 00 01 01 01 00 01 01 01 01 01 01 00 1 ON 00 01 01 01 00 01 01 01 01 01 01 01 RFXtrx Version 5.68 page 49 / 70 Copyright 2011-2020, RFXCOM...

  • Page 50: Sonoff

    LockingInterlock-Smart-Home-p-1153324.html 15.6. PT2262 and EV1527 oscillator resistors accepted For the PT2262 use a 3M3 oscillator resistor For the EV1527 a 220K, 270K or 390K oscillator resistor can be used. RFXtrx Version 5.68 page 50 / 70 Copyright 2011-2020, RFXCOM...

  • Page 51: Receive And Transmit Raw Data

    Do not set the repeat count too high to lower the risk to disturb other RF transmissions. 1138 1127 1127 1044 1140 1128 1134 1133 1136 the next values ….. 1135 10000 RFXtrx Version 5.68 page 51 / 70 Copyright 2011-2020, RFXCOM...
  • Page 52 1173 1029 Create a text file to control this device in RFXmngr: 1169 1169 1170 1168 1170 1171 1030 1023 1023 1167 1171 1171 1024 1023 1025 1023 1024 6600 RFXtrx Version 5.68 page 52 / 70 Copyright 2011-2020, RFXCOM...

  • Page 53: Rfxtrx433Xl - P1 Smart Meter Connection

    Power supply (not used by the RFXtrx433XL) Request to Send Data GND Not connected Data output to the RFXtrx433XL GND power Power GND (not used by the RFXtrx433XL) RJ12 and RJ11 connections: RFXtrx Version 5.68 page 53 / 70 Copyright 2011-2020, RFXCOM...

  • Page 54: Diy P1 Connection For Rfxtrx433Xl Batch 3618 And 4018

    5. Cut also at the same position a few plastics from the bottom part. 6. Close the enclosure. First turn the screw left until you hear/feel a soft click, now turn the screw right and fix the screw (not too tight) 3V3 RxD RFXtrx Version 5.68 page 54 / 70 Copyright 2011-2020, RFXCOM...

  • Page 55: P1 Option Pcb Type 1 For Rfxtrx433Xl Batch 3618 And 4018

    4. Cut also at the same position a few plastics from the bottom part. 5. Close the enclosure. First turn the screw counter clockwise until you hear/feel a soft click, now turn the screw clockwise and fix the screw (not too tight). RFXtrx Version 5.68 page 55 / 70 Copyright 2011-2020, RFXCOM...

  • Page 56: P1 Option Pcb Type 2 For Rfxtrx433Xl Batch 4918 And Later

    4. Cut also at the same position a few plastics from the bottom part. 5. Close the enclosure. First turn the screw counter clockwise until you hear/feel a soft click, now turn the screw clockwise and fix the screw (not too tight) RFXtrx Version 5.68 page 56 / 70 Copyright 2011-2020, RFXCOM...

  • Page 57: Rfxtrx433Xl - Teleinfo Connection

    4. Cut also at the same position a few plastics from the raised edge of the bottom part. 5. Close the enclosure. First turn the screw counterclockwise until you hear/feel a soft click, now turn the screw clockwise and fix the screw (not too tight) RFXtrx Version 5.68 page 57 / 70 Copyright 2011-2020, RFXCOM...

  • Page 58: Rfxtrx433Xl - Connection Points For A Serial Interface

    The serial interface is using 38400,N,8,1 • Be sure not to use a serial device that produces RF noise at 433MHz. A bad example of such a device is the USR-TCP232 LAN device. RFXtrx Version 5.68 page 58 / 70 Copyright 2011-2020, RFXCOM...

  • Page 59: Recover From Interrupted Or Wrong Flash

    2. Make a temporary connection (no soldering required) on the backside of the PCB as indicated below by the yellow connection, 3. Connect the USB, 4. Disconnect the temporary connection, 5. Start RFXflash and update the firmware. RFXtrx433XL V5.1 RFXtrx433XL V5.0 RFXtrx433E RFXtrx433 RFXtrx Version 5.68 page 59 / 70 Copyright 2011-2020, RFXCOM...
  • Page 60 RFXtrx868X RFXtrxX V1.0 USB FT232 RFXtrx868X RFXtrxX V1.0 USB MCP2200 RFXtrx868XL RFXtrx V6.1 USB FT230QX RFXtrx Version 5.68 page 60 / 70 Copyright 2011-2020, RFXCOM...

  • Page 61: Faq

    For IT modules FA500/PROmax: Pair the RFXtrx433E with the module using an IT device and select a random ID. The received remote code can be used to know if the module is switched by the remote. RFXtrx Version 5.68 page 61 / 70 Copyright 2011-2020, RFXCOM...

  • Page 62: Ec Declaration Of Conformity

    22. EC Declaration of Conformity EC Declaration of Conformity RFXCOM declares that the product: RFXtrx Brand: RFXCOM Type: RFXtrx433, RFXtrx433E, RFXtrx433XL conforms with the essential requirements and other relevant provisions of the following directives and complies with the following standards applied: R&TTE Directive 99/5/EC...

  • Page 63: Warning

    RFXCOM software or RFXtrx protocols or Written Materials unless expressly authorized in writing by RFXCOM. • You may not use any RFXCOM device, software or protocol as part of an exclusive or patented product without the express prior written permission of RFXCOM. •...

  • Page 64: Revision History

    Version 2.20 – September 28, 2012 RF range reduction guide added Version 2.21 – October 18, 2012 BlindsT2 and BlindsT3 added Version 2.22 – October 24, 2012 Sartano added Version 2.23 – October 31, 2012 RFXtrx Version 5.68 page 64 / 70 Copyright 2011-2020, RFXCOM...
  • Page 65 Version 4.10 – April 7, 2014 BlindsT7 - Forest added Version 4.11 – April 28, 2014 RGB LED – clarified AD is LightwaveRF Version 4.12 – May 21, 2014 Kambrook RF3672 added RFY protocol added RFXtrx Version 5.68 page 65 / 70 Copyright 2011-2020, RFXCOM...
  • Page 66 Version 5.01 – February 27, 2015 Chapter 2.5 Lighting4 receive is reduced with HomeEasy EU enabled. Chamberlain tubular motor added Sunpery blind motors added DEA Systems receivers added Envivo ENV-1348 chime added Alecto WS4500 added RFXtrx Version 5.68 page 66 / 70 Copyright 2011-2020, RFXCOM...
  • Page 67 Version 5.18– Jan 1, 2016 1byone Drive Way alarm added Version 5.19– Feb 6, 2016 Avantek added ASP blinds motors BlindsT11 added Maverick ET-733 added Profiles PAC-326R Belcanto chime added HQ COCO-20 added RFXtrx Version 5.68 page 67 / 70 Copyright 2011-2020, RFXCOM...
  • Page 68 Housegard Origo smoke detector added Pearl NC-7159 added Ambient Weather & Froggit F007TH added TFA 30.3208.02 sensor added Version 5.35– March 20, 2017 Silverline Premium motor added Dooya DT82 instructions added RFXtrx Version 5.68 page 68 / 70 Copyright 2011-2020, RFXCOM...
  • Page 69 P1 smart meter connection updated RFXtrx433XL French Teleinfo connection added Mertik G6R-H3T1 added Version 5.54– Oct 16, 2018 Teleinfo interface circuit added Version 5.55– Oct 17, 2018 Firmware recovery procedure added RFXtrx Version 5.68 page 69 / 70 Copyright 2011-2020, RFXCOM...
  • Page 70 RAIN9 - TFA 30.3233.01 rain sensor added Gaposa QCTR5 Version 5.67a– Feb 5, 2020 The new TFA rain sensor 30.3233 only supported in Pro2 and ProXL1 Version 5.68– Feb 26, 2020 Cherubini added RFXtrx Version 5.68 page 70 / 70 Copyright 2011-2020, RFXCOM...
