RFXtrx
USB RF transceiver
User guide
www.rfxcom.com
RFXtrx Version 5.06
page 1 / 39
Copyright 2011-2015, RFXCOM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RFXtrx and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RFXCOM RFXtrx

Summary of Contents for RFXCOM RFXtrx

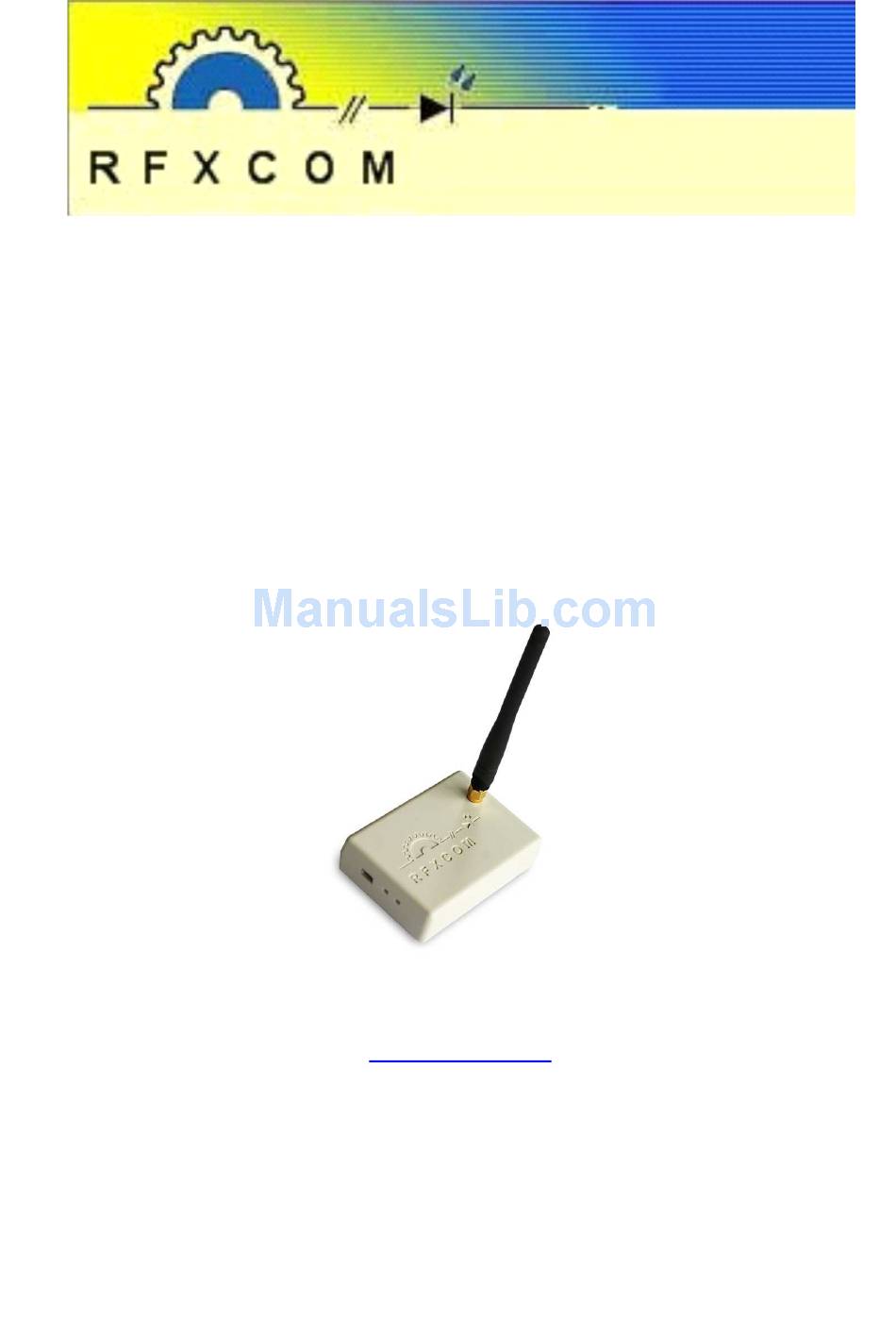

  • Page 1 RFXtrx USB RF transceiver User guide www.rfxcom.com RFXtrx Version 5.06 page 1 / 39 Copyright 2011-2015, RFXCOM...

  • Page 2: Table Of Contents

    Transmitter ......................... 16 Flash update of the RFXtrx ....................17 6.1. Update firmware in the RFXtrx ................... 17 6.2. Update firmware in the RFXtrx step by step ............... 18 RFXtrx433 special device codes ..................20 7.1. Remote commands ....................20 7.1.1.

  • Page 3: Rfxtrx General Information

    Home Automation application. The RFXtrx/rec is powered by the USB port. At startup the RFXtrx enters for 2 seconds the boot loader (red LED is on) and after this it starts the receive/transmit firmware. If valid (decode-able) packets are received the yellow LED will blink.

  • Page 4: Rfxrec433, Rfxtrx433, Rfxtrx433E Supported Protocols

    TSS320 & TSS330 fridge/freezer thermometer & outdoor sensors 311346,311501 RFXSensor RUBiCSON – stektermometer 48659, 48695 Sunvic TLX1206 Sunvic TLX7506 TechnoLine/Proficell http://www.elv.de/output/controller.aspx?cid=74&detail=10&detail2=27621 - TX95-TH UPM/Esic (very short receiving range) Ventus – WS155 Viking WT0122 pool thermometer RFXtrx Version 5.06 page 4 / 39 Copyright 2011-2015, RFXCOM...
  • Page 5 Philips SBC SP370 series Proove http://proove.se/ RGB LED strip driver dx.com http://www.dx.com/ order nbr: 130913, 67412 (NEW VERSIONS NOT SUPPORTED) RisingSun Sartano Siemens (UK) Waveman X10 RTS10 / RFS10 X10 lighting Xdom RFXtrx Version 5.06 page 5 / 39 Copyright 2011-2015, RFXCOM...
  • Page 6 Oregon Scientific Body weight scales – BWR101, BWR102, GR101 Prego P-8426 – sauna temperature sensor http://www.sunmarket.fi/tuote.asp?TID=11990 Smartwares radiator valve http://www.homewizard.nl/smartwares-draadloze-radiatorkraan.html Siemens SF01 - LF959RA50/LF259RB50/LF959RB50 extractor hood X10 Ninja/Robocam – camera motor RFXtrx Version 5.06 page 6 / 39 Copyright 2011-2015, RFXCOM...

  • Page 7: Alphabetic List

    - TX-320, TS34C, anemometer, UV sensor, rain sensor DEA receivers KeeLoq http://www.deasystem.com/en/accessory/7/receivers Digimax DI.O (learning mode) http://www.di-o.be/ DI.O (with address code wheels) Dolat DLM-1 controlled motors (not received) http://www.dolat.com.cn/product1.asp?id=538 DomiaLite (with address code wheels) RFXtrx Version 5.06 page 7 / 39 Copyright 2011-2015, RFXCOM...
  • Page 8 * = receive only in Type2 used to get the remote ID. Maplin http://www.maplin.co.uk/p/remote-controlled-mains-socket-set- (not received) single-n78ka (use Lighting1 - COCO GDR2) Maverick ET-732 BBQ/Smoke temperature Hideki MDremote LED dimmer (not received) www.ultraleds.co.uk Meade Hideki – TS33F-M, TS34C-M RFXtrx Version 5.06 page 8 / 39 Copyright 2011-2015, RFXCOM...
  • Page 9 RollerTrol blind motors BlindsT0* http://rollertrol.com/ * = receive only in Type2 used to get the remote ID. Sartano Lighting4 SelectPlus200689101 & SelectPlus200689103 ByronSX (Action NL) Siemens (not received) SF01 LF959RA50/LF259RB50/LF959RB50 extractor hood RFXtrx Version 5.06 page 9 / 39 Copyright 2011-2015, RFXCOM...

  • Page 10: Undec On

    For this reason we have added the option to enable receive of undecoded messages. This function is only to enable RFXCOM to add this new sensor type in the firmware if possible. If “undec on” is enabled in normal use the application will receive a lot of undecoded messages mostly as a result of RF noise or disturbed RF packets.

  • Page 11: Sensitivity Influenced By Enabled Protocols

    ARC is disabled if Lighting4 is enabled. HomeEasy EU Meiantech/Atlantic Oregon Visonic Mertik AD (LWRF) Hideki/UPM La Crosse FS20 ProGuard BlindsT0 BlindsT1/T2/T3 AE (Blyss) Rubicson FineOffset/Viking Lighting4 Byron SX Imagintronix Green = enabled by default RFXtrx Version 5.06 page 11 / 39 Copyright 2011-2015, RFXCOM...

  • Page 12: Rf Range Reduction

    RF range reduction The RF signals operating distance is reduced when the signal has to pass through walls. 2.6. Home Automation software For the list of Home Automation software that supports the RFXtrx see the web site www.rfxcom.com 2.7. Dimensions The dimensions of the RFXtrx/RFXrec are: 83.5 x 42 x 15 mm...

  • Page 13: Install The Usb Driver

    3. Install the USB driver The RFXtrx has the FTDI FT232R USB interface chip installed. The USB drivers are available at http://www.ftdichip.com/Drivers/VCP.htm 4. Run RFXflash on Linux under Mono Open a Terminal screen in Linux (Ctrl-Alt-T) Execute once: Install Mono:...

  • Page 14: Rfxmngr Test Program

    After the connection the RFXmngr program transmits a Reset and Get Status command so that it will know the RFXtrx type and configuration settings: Transmitter protocols are always enabled but receiver protocols can be disabled. This is very useful because the receiver will become more sensitive when protocols not used are disabled.

  • Page 15: Receiver

    The RF protocols to be received can be configured on the Main tab at Set Mode. Click Save Settings to save the selected protocols in non-volatile memory of the RFXtrx. This configuration is now restored every time after a power up.

  • Page 16: Transmitter

    Select Type to see which protocols are supported on the different tabs. The transmitted commands are displayed in the yellow window including the acknowledge send by the RFXtrx, in the example above “ACK, data correct transmitted“. RFXtrx Version 5.06 page 16 / 39...

  • Page 17: Flash Update Of The Rfxtrx

    1. Do not interrupt the flash procedure when started. 2. It can happen that the flash procedure ends with a pop-up screen indicating errors. Just disconnect the RFXtrx and start again at step 5 until the flash procedure if finished without errors.

  • Page 18: Update Firmware In The Rfxtrx Step By Step

    Update firmware in the RFXtrx step by step • Click the Connect to Device button. The RFXtrx will automatically switch from normal mode to the bootloader now. • Click the Open HEX file button and load the RFXtrxyyy_xx.hex file Be sure to load the latest firmware file for the RFXtrx.
  • Page 19 Click the Write device button and the RFXtrx is flashed. • Click on the Normal Execution Mode button to set the RFXtrx to running mode. Note: Receiver Settings are lost after a firmware update and have to be set again.

  • Page 20: Rfxtrx433 Special Device Codes

    Cursor-up-right Cursor-down-right Cursor-down-left left mouse left mouse-End Drag right mouse right mouse-End MUTE Play Menu Fast Forward CHAN- Exit PC / Shift-4 Shift-5 Shift-Ent Shift-Teletext Text Shift-Text VOL- Teletext Record RFXtrx Version 5.06 page 20 / 39 Copyright 2011-2015, RFXCOM...

  • Page 21: Ati Remote Wonder

    MUTE Cursor-down-right CHAN+ Cursor-down-left CHAN- V-End X-End snapshot ESC TV/RADIO < > <- Rewind Play Fast forward Record Stop Pause RADIO TV Preview Channel list Video Desktop green yellow blue RFXtrx Version 5.06 page 21 / 39 Copyright 2011-2015, RFXCOM...

  • Page 22: Ati Remote Wonder Plus

    Acquire image edit image Full screen DVD Audio Cursor-left Open Setup Menu Cursor-right Cursor-up Cursor-down Cursor-up-left Cursor-up-right < Cursor-down-right Cursor-down-left > Left Mouse Button Max/Restore Window V-End Right Mouse Button X-End RFXtrx Version 5.06 page 22 / 39 Copyright 2011-2015, RFXCOM...

  • Page 23: Medion Remote

    Cursor-down-left CHAN- V-End X-End snapshot ESC DVD MENU Setup TV/RADIO < > <- Rewind Play Fast forward Record Stop Pause RADIO TV Preview Channel list Video Desktop green yellow blue RFXtrx Version 5.06 page 23 / 39 Copyright 2011-2015, RFXCOM...

  • Page 24: Harrison Address Conversion To Switch Settings

    2=down, 3=down, 4=down, 5=down, 6=up, 7=up, 8=down If you assign the address A2 (0110 0001) to the curtain motor then set the switches to: 1=down, 2=up, 3=up, 4=down, 5=down, 6=down, 7=down, 8=up RFXtrx Version 5.06 page 24 / 39 Copyright 2011-2015, RFXCOM...

  • Page 25: Flamingo, Ab400, Impuls, Sartano, Brennenstuhl Switch Settings

    0 0 0 0 1 1 1 0 0 0 1 1 0 1 0 0 0 1 0 0 1 1 0 1 1 0 1 0 0 0 0 = switch off 1 = switch on RFXtrx Version 5.06 page 25 / 39 Copyright 2011-2015, RFXCOM...

  • Page 26: Energenie 5-Gang 429.950

    If jumper 5 is open (1) than add 5 to the remote code. Examples: Jumper Button Code 1 2 3 4 5 1 0 0 0 0 1 0 0 0 1 RFXtrx Version 5.06 page 26 / 39 Copyright 2011-2015, RFXCOM...

  • Page 27: Phenix, Idk Yc-4000S Switch Settings

    1 0 1 0 1 1 0 1 1 1 1 1 0 0 1 1 1 0 1 1 1 1 1 0 1 1 1 1 1 1 RFXtrx Version 5.06 page 27 / 39 Copyright 2011-2015, RFXCOM...

  • Page 28: He105 Switch Settings

    1 1 0 1 0 1 1 0 1 1 1 1 1 0 0 1 1 1 0 1 1 1 1 1 0 1 1 1 1 1 RFXtrx Version 5.06 page 28 / 39 Copyright 2011-2015, RFXCOM...

  • Page 29: Mdremote

    The jumper next to the learning button defines to operating mode: Open = momentary 1-2 = toggle mode 2-3 = on/off mode (to be used with the RFXtrx) RFXtrx Version 5.06 page 29 / 39 Copyright 2011-2015, RFXCOM...

  • Page 30: Blyss Commands

    Press a button on the remote and you will receive a message like: ------------------------------------------------ Packettype = Lighting4 subtype = PT2262 Sequence nbr = 12 Code = 6DFE0F The ID is: 6 DF E0 RFXtrx Version 5.06 page 30 / 39 Copyright 2011-2015, RFXCOM...

  • Page 31: Somfy Rts

    Transmit a Program command with the RFXtrx433E. The Somfy RTS device should respond indicating the pair command was successful. The RFXCOM RFY remote is registered in the RFXtrx433E by sending a Program command. Up to 30 RFXCOM RFY remotes can be registered in the RFXtrx433E.

  • Page 32: Transmit Undecoded Arc Commands

    For this command UNDECODED ARC:18014430 set on the Lighting4 tab in RFXmngr selection box 1 to 24 to 0 1 4 4 3 0 = 0000 0001 0100 0100 0011 0000 RFXtrx Version 5.06 page 32 / 39 Copyright 2011-2015, RFXCOM...

  • Page 33: Known Lighting4 Devices

    00 01 01 01 01 01 01 00 01 01 01 00 1 OFF 00 01 01 01 00 01 01 01 01 01 01 00 1 ON 00 01 01 01 00 01 01 01 01 01 01 01 RFXtrx Version 5.06 page 33 / 39 Copyright 2011-2015, RFXCOM...

  • Page 34: Ec Declaration Of Conformity

    15. EC Declaration of Conformity EC Declaration of Conformity RFXCOM declares that the product: RFXtrx Brand: RFXCOM Type: RFXtrx433E conforms with the essential requirements and other relevant provisions of the following directives and complies with the following standards applied: R&TTE Directive 99/5/EC EN 300 220-1 V2.3.1 (2010-02)

  • Page 35: Warning

    RFXCOM software or RFXtrx protocols or Written Materials unless expressly authorized in writing by RFXCOM. • You may not use any RFXCOM device, software or protocol as part of an exclusive or patented product without the express prior written permission of RFXCOM. •...

  • Page 36: Revision History

    Version 2.20 – September 28, 2012 RF range reduction guide added Version 2.21 – October 18, 2012 BlindsT2 and BlindsT3 added Version 2.22 – October 24, 2012 Sartano added Version 2.23 – October 31, 2012 RFXtrx Version 5.06 page 36 / 39 Copyright 2011-2015, RFXCOM...
  • Page 37 Version 4.10 – April 7, 2014 BlindsT7 - Forest added Version 4.11 – April 28, 2014 RGB LED – clarified AD is LightwaveRF Version 4.12 – May 21, 2014 Kambrook RF3672 added RFY protocol added RFXtrx Version 5.06 page 37 / 39 Copyright 2011-2015, RFXCOM...
  • Page 38 Version 5.01 – February 27, 2015 Chapter 2.5 Lighting4 receive is reduced with HomeEasy EU enabled. Chamberlain tubular motor added Sunpery blind motors added DEA Systems receivers added Envivo ENV-1348 chime added Alecto WS4500 added RFXtrx Version 5.06 page 38 / 39 Copyright 2011-2015, RFXCOM...
  • Page 39 Dooya blind motors added Louvolite one touch motorised blinds added Alecto WS3500 added Version 5.06 – May 4, 2015 Current dx.com RGB LED drivers have a different protocol and are not supported. RFXtrx Version 5.06 page 39 / 39 Copyright 2011-2015, RFXCOM...

This manual is also suitable for:

Rfxtrx315Rfxtrx433Rfxtrx433eRfxrec433
