3. Install the RFXtrx433XL or RFXtrx868XL in the
RFXtrxLAN.
Important:

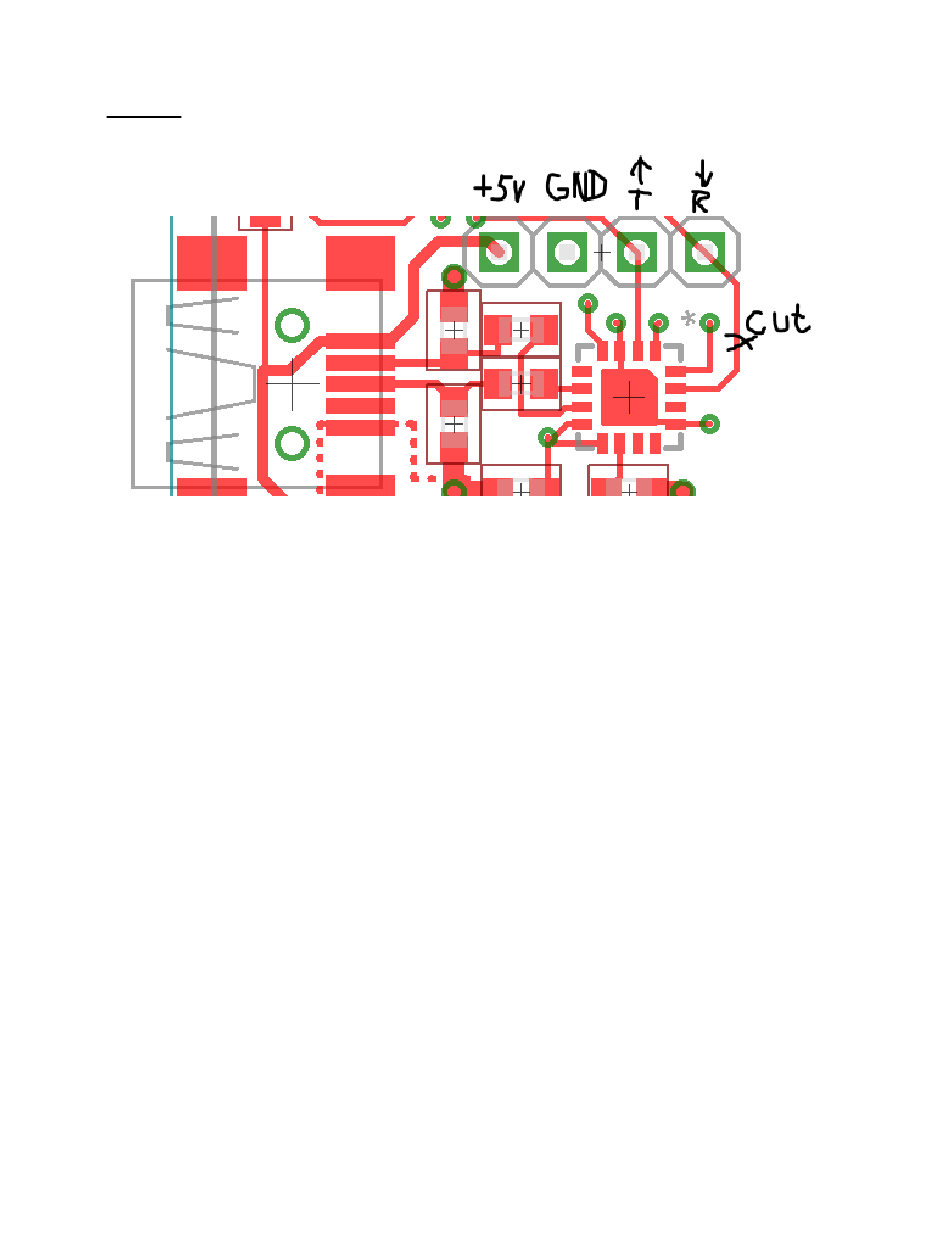

First thing to do is cut the PCB trace between the connection point R and the FT230X pin 15.
With a PTF (PressToFit) connector in the RFXtrxLAN:
- Press the RFXtrx on the PTF with the antenna connector upwards.
With a solder header in the RFXtrxLAN:
- Solder the RFXtrx on the header with the antenna connector upwards.
