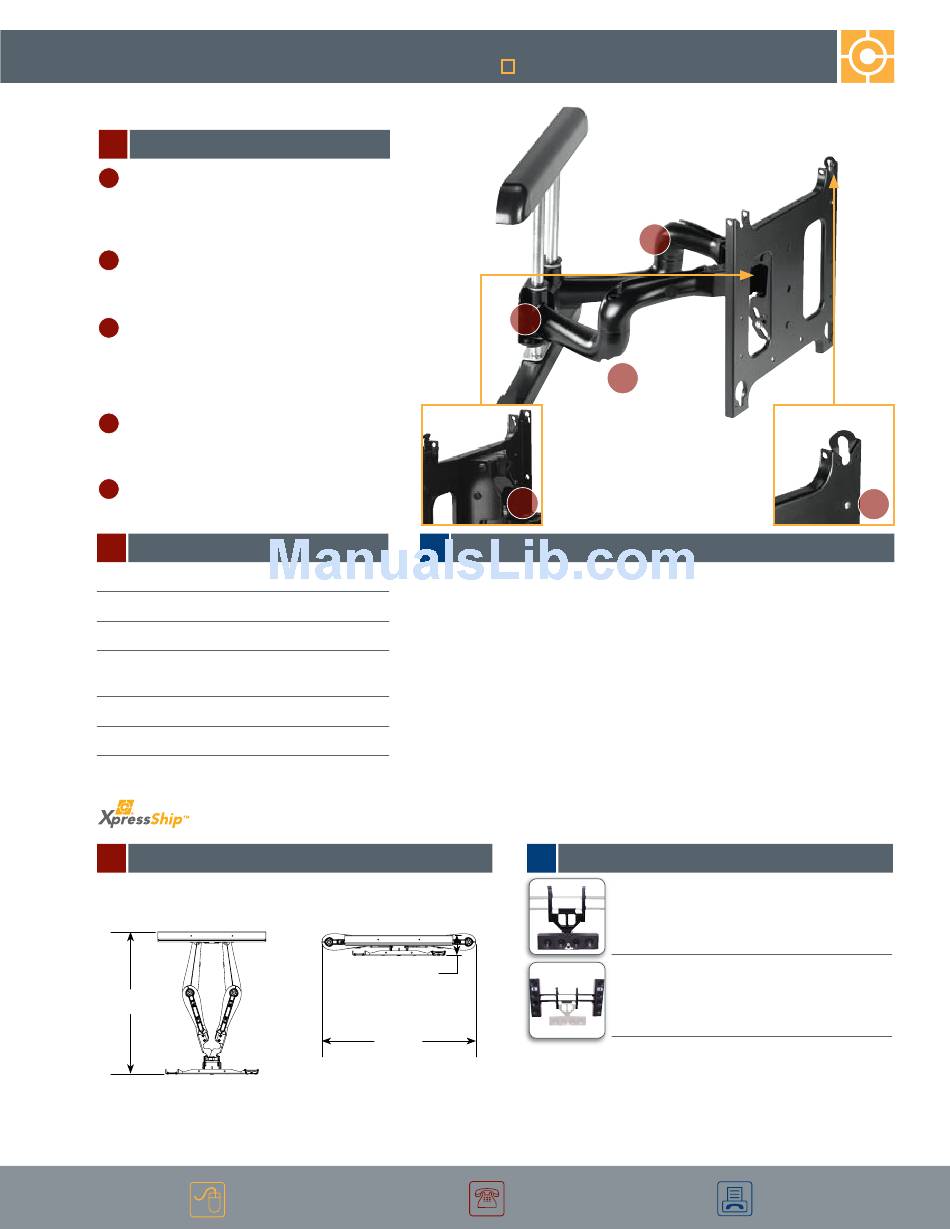

CHIEF Swing Arm Mounts Specification Sheet

featuRes
CEntris™ FingErtip tilt
1
Select the perfect tension for your screen's center
of gravity to achieve smooth fingertip tilt . Screen
angle stays set until you decide to re-adjust .
post-instAllAtion HEigHt AdjustMEnt
2
adjust height up to 1" (25 mm) after mount is
installed for ultimate flexibility .
CliCkConnECt™ tECHnologY
3
PatEnt-PEnDInG
an audible click confirms flat panels are locked
in place . Easy to connect/disconnect - no tools
needed! Protect display by adding a padlock .
EXtEnds up to 25"
4
Extends over 25" (635 mm) for viewing from
any angle!s
CAblEtrAC™ sYstEM
5
Channeled cable management provides quick
and easy routing of cables .
speCIfICatIons
extension 25" (635 mm)
tilt*/Roll +5˚, -17˚/ ±2.5˚
Height adjustment 1" (25 mm)
Dimensions** 22.04" x 27.06" x 3.25"
(HxWxD) (560 x 687 x 83 mm)
Color Black, silver
Weight Capacity 200 lbs (90.7 kg)
* The range of adjustment will vary with different size screens
** Dimensions don't include interface bracket
teCHnICal DRaWInGs
25"
(635 mm)
CliCk
www.chiefmfg.com
pnR 42 - 71" wall mount
™
2
1
WHat You neeD to KnoW
oRDeRInG optIons
available in custom and universal.
• pnRu = universal 42 - 63"
• pnR-XXXX = Custom (see mountfinder at www.chiefmfg.com)
3 .25"
(83 mm)
27 .06"
(687 mm)
for a complete list of flat panel mount accessories see page 69.
