I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation

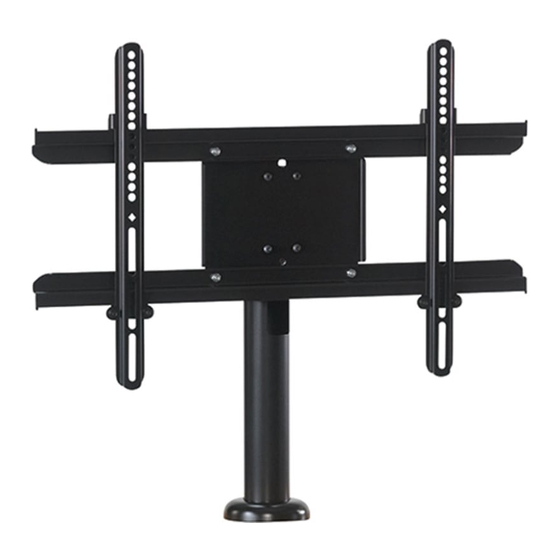

Large Hospitality Table Stand
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
STLU
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF STLU
Summary of Contents for CHIEF STLU

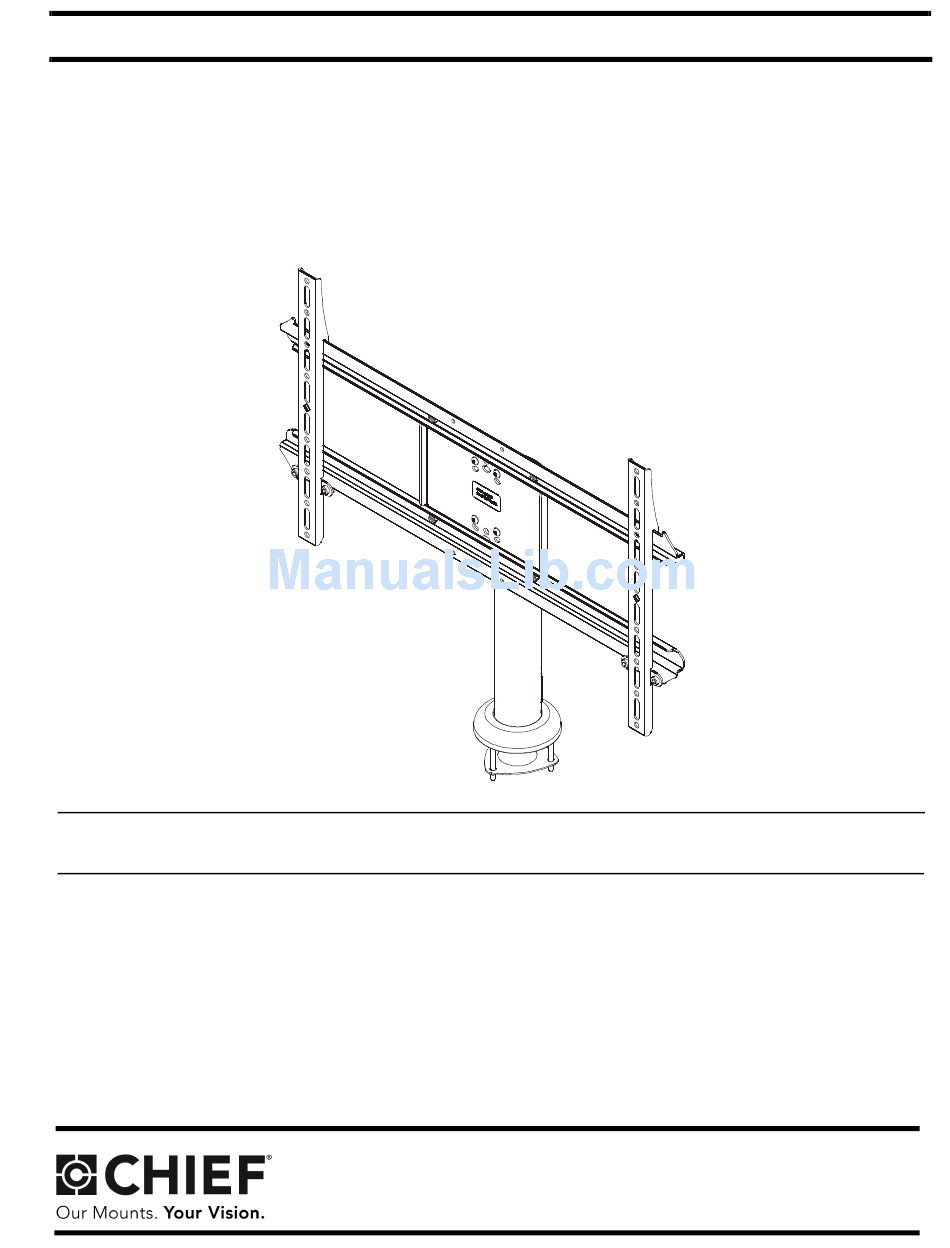

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Large Hospitality Table Stand Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description STLU...
-
Page 2: Important Safety Instructions
3/4" in depth for medium-density fibreboard or particle board. If mounting to another type of surface, make sure surface can hold up to four times the combined weight of all equipment prior to mounting the STLU to surface! WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of... -
Page 3: Installation Instructions
Installation Instructions STLU DIMENSIONS ADJUSTABLE ROTATION STOPS AT 15 , 30 , 45 AND 90 600mm .33in 23.62in MAX WIDTH 2.00deg ROLL ADJUST ON OFFSET SLOTS 400mm 15.75in MAX HEIGHT 397mm 15.61in .50 [13mm] OFFSET MOUNTING HOLES 113mm 4.47in 140mm... - Page 4 STLU Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
-
Page 5: Tools Required For Installation
Installation Instructions STLU TOOLS REQUIRED FOR INSTALLATION 5/16" 7/16" (11.1mm) 3/16" (security)(included) 5/32" (security)(included) PARTS C (1) B (1) A (1) [table stand interface] [table stand] [clamping plate] D (2) [vertical interface bracket] E (2) L (3) K (1) [interface clamp bracket]... - Page 6 Secure lower cover to table stand (B) using #10-24 x 1/2" all equipment prior to mounting the STLU to surface! security screw (K). (See Figure 4) Drill three 5/16" holes at locations marked in Step 3. (See...
-
Page 7: Display Installation
Installation Instructions STLU NOTE: Prior to installing display, the rotation radius should be adjusted. Once the display is connected, it will no CAUTION: Using screws of improper diameter may longer be possible to adjust the rotational stop without damage your display! Proper screws will easily thread into removing the display from the mount. -
Page 8: Cable Management
Cable Management Place vertical interface brackets (D) on display, ensuring: (See Figure 6) The STLU can be set up for two types of Cable Management. • Upper hooks are towards top of display. One calls for the cables to be routed strictly through the pole •... - Page 9 Installation Instructions STLU...
- Page 10 STLU Installation Instructions...
- Page 11 Installation Instructions STLU...
- Page 12 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
