Installation Instructions
Side Plates

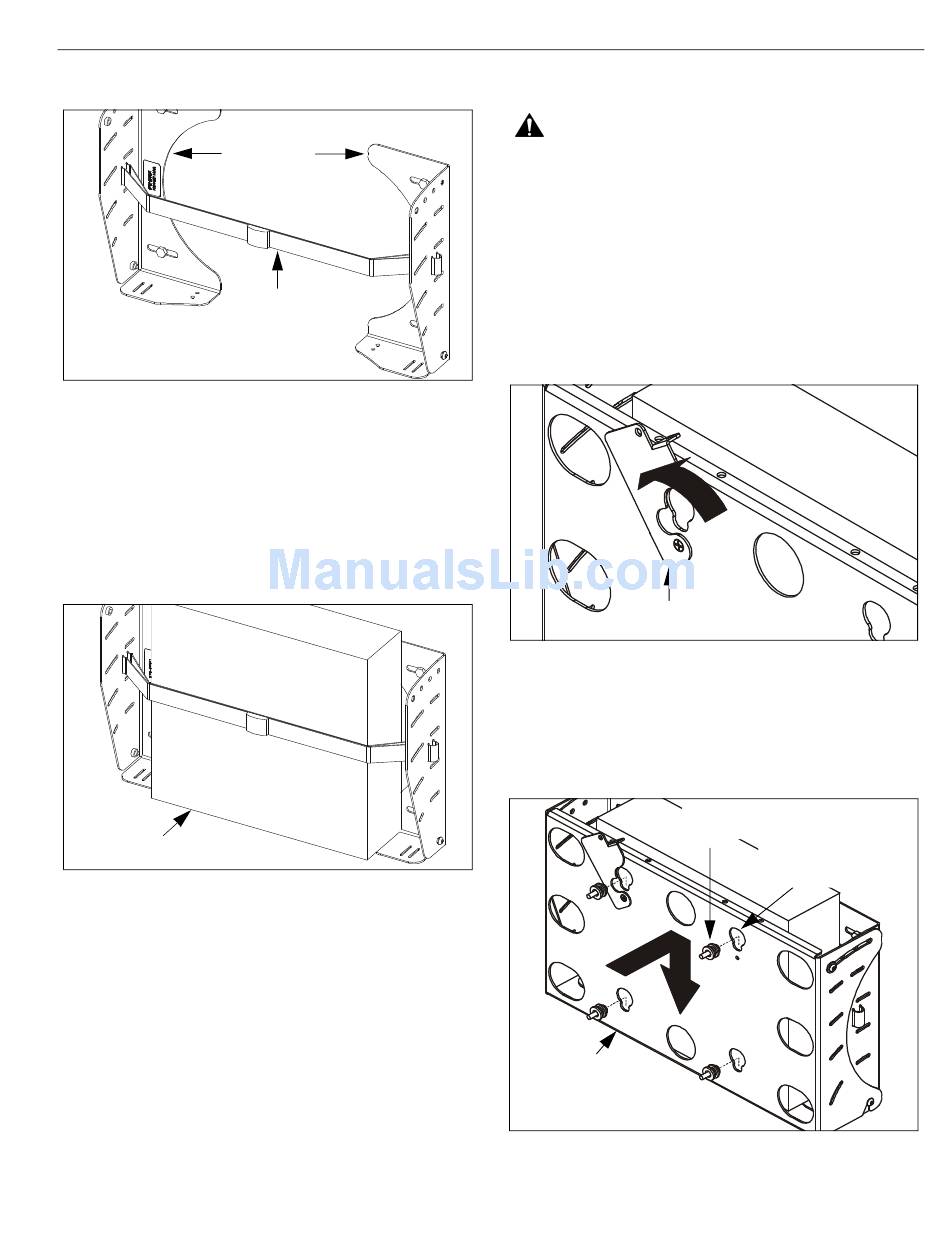

Figure 5: Install Strap
4. Carefully slide CPU between strap (20) and rear
surface of side plates (See Figure 6). Ensure the
following:
• Both loops of strap (20) are in front of the CPU; do
not wrap strap (20) around back of CPU.
• CPU is positioned so that cooling vents are not
obstructed.
CPU
Figure 6: Insert CPU
5. Tighten strap (20) securely.
6. Re-install front plate by reversing the procedure in
Step 2:
• Tilt the top of the front plate towards you.
• Lower the front plate onto the lower attach
screws.
• Tilt the top of the front plate away from you
(towards the wall).
7. Using key (60), re-install the retained upper front plate
attach screws and washers removed in Step 1.
NOTE: If desired, security screws (30) may be
substituted for non-security screws at both upper
and lower attach points.
20

DISPLAY INSTALLATION

WARNING: Exceeding the weight capacity can result
in serious personal injury or damage to equipment! It is
the installer's responsibility to make sure the combined
weight of all components attached to the MWC Series
Wall Mount, including the CPU and display, does not
exceed 100 lbs (45 kg).
1. Install interface (providing 200x200mm mounting
button pattern) to display. See instructions supplied
with interface.
2. Rotate Q-Latch to the OPEN position (See Figure 7).
OPEN
Q-Latch
Figure 7: Open Q-Latch
3. Lift and maneuver display so that all four mounting
buttons fit into button openings on front plate. Lower
display firmly into place. Ensure each button has fully
seated in its button opening (See Figure 8).
Mounting buttons
(4 places)
Front Plate
NOTE: Display and
interface not shown for clarity.
Figure 8: Align and Lower Display
4. Rotate Q-Latch to the CLOSED position (See Figure
9).
Model: MWC Series
Button Openings
(4 places)
