Summary of Contents for KROHNE H250 M40

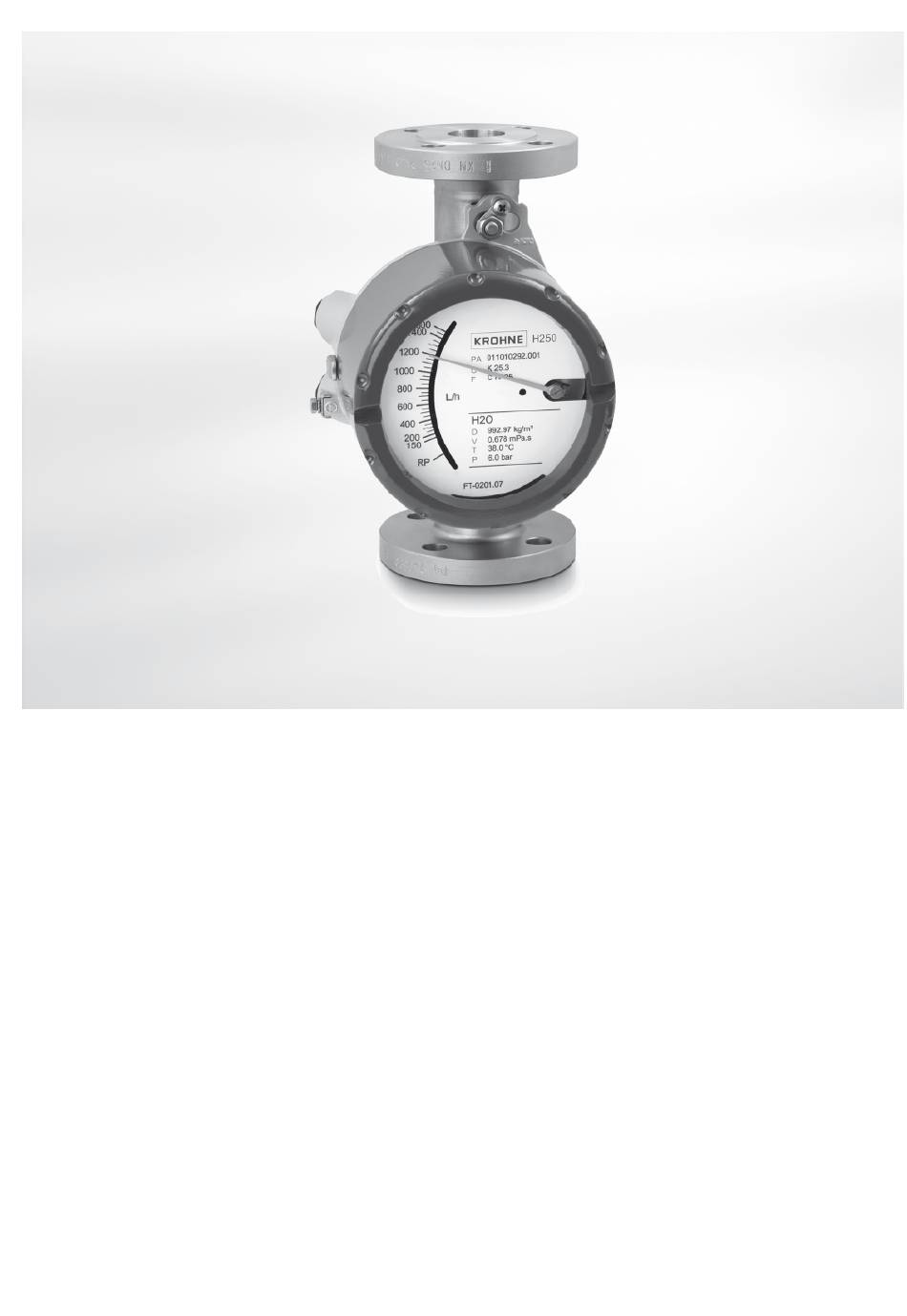

  • Page 1 H250 M40 Service Manual 4003602201 H250-M40-Service-R01-en/de...
  • Page 2: Table Of Contents

    Content / Inhalt Safety instructions / Sicherheitshinweise ..................3 Pay attention to temperature limits / Temperaturgrenzen beachten ........3 Wiring diagrams / Elektrische Anschlussbilder ............... 3 Technical data of modules / Technische Daten der Module ........... 3 Device description / Gerätebeschreibung ..................4 Modularity / Modularität ......................
  • Page 3: Safety Instructions / Sicherheitshinweise

    1.3 Technical data of modules / Technische Daten der Module Refer to the standard handbook MA Technische Daten jedes elektrischen H250 M40 to see the technical data of Moduls siehe Standardhandbuch MA H250 each electrical module and refer to M40 und sicherheitstechnische Daten siehe related H250 M40 ATEX additional H250 M40 ATEX Zusatzanleitung.
  • Page 4: Device Description / Gerätebeschreibung

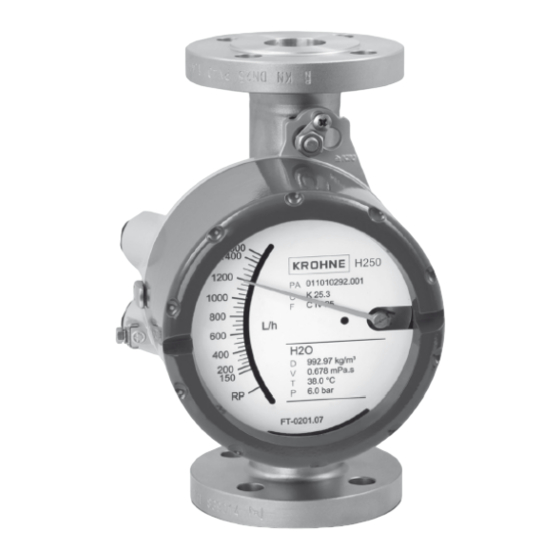

    2 Device description / Gerätebeschreibung 2.1 Modularity / Modularität The variable area flowmeter H250 M40 has a Das Schwebekörper-Durchflussmessgerät H250 modular design. It is easily possible to change or M40 verfügt über eine modulare Bauweise. Es add electronic modules. können einfach Module getauscht oder nachgerüstet werden.
  • Page 5: Components Overview / Bauteilübersicht

    2.2 Components overview / Bauteilübersicht Limit switch board K1min Kontaktmodul K1min Limit switch board K1max Kontaktmodul K1max Limit switch board K1minmax Kontaktmodul K2minmax Standard scale Standardskala Scale with cutout for LCD Skala mit Ausschnitt für Display Sensor module ESK4 with 4…20mA Sensormodul ESK4 mit 4…20mA I/O LCD module I/O LCD Modul...
  • Page 6: Installation Of Modules / Montage Von Modulen

    3 Installation of modules / Montage von Modulen 3.1 ESK4 Sensor module 4…20mA / ESK4 Sensormodul 4…20mA Required components: Benötigte Komponenten: Calibrated ESK4 sensor module Kalibriertes ESK4 Sensormodul • • Terminal connector 11/12 Steckverbinder 11/12 • • Assembly: Montage: Place the plug-in tongues of the ESK4 Die Laschen des ESK4 Gehäuses (1) •...
  • Page 7: I/O-Lcd Module For Esk4-T / I/O-Lcd Modul Für Esk4-T

    3.2 I/O-LCD module for ESK4-T / I/O-LCD Modul für ESK4-T Required components: Benötigte Komponenten: Installed ESK4 sensor module Installiertes ESK4 Sensormodul I/O-LCD module I/O-LCD Modul Module cover Modulabdeckung Ribbon cable Flachbandkabel Terminal connectors 1/2/3, 4/5/6, 7/8 Steckverbinder 1/2/3, 4/5/6, 7/8 Scale with LCD cutout Skala mit Ausschnitt für LCD Assembly:...
  • Page 8: Ff/Pa Module For Esk4-Ff/Pa / Ff/Pa Modul Für Esk4-Ff/Pa

    FF/PA module for ESK4-FF/PA / FF/PA Modul für ESK4-FF/PA Required components: Benötigte Komponenten: Installed ESK4 sensor module Installiertes ESK4 Sensormodul • • FF or PA module FF oder PA Modul • • Module cover Modulabdeckung • • Ribbon cable Flachbandkabel •...
  • Page 9: Marking Of Devices / Kennzeichnung Der Geräte

    Use the included label stickers to add information Die beigelegten Aufkleber sind auf dem Typschild about build-in components to the outside name des Gesamtgerätes H250 M40 aufzubringen, um plate of the complete device H250 M40. Informationen zu den eingebauten, elektrischen Betriebsmitteln zu ergänzen.
  • Page 10 Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.:+49 (0)203 301 0 Fax:+49 (0)203 301 10389 info@krohne.de...
