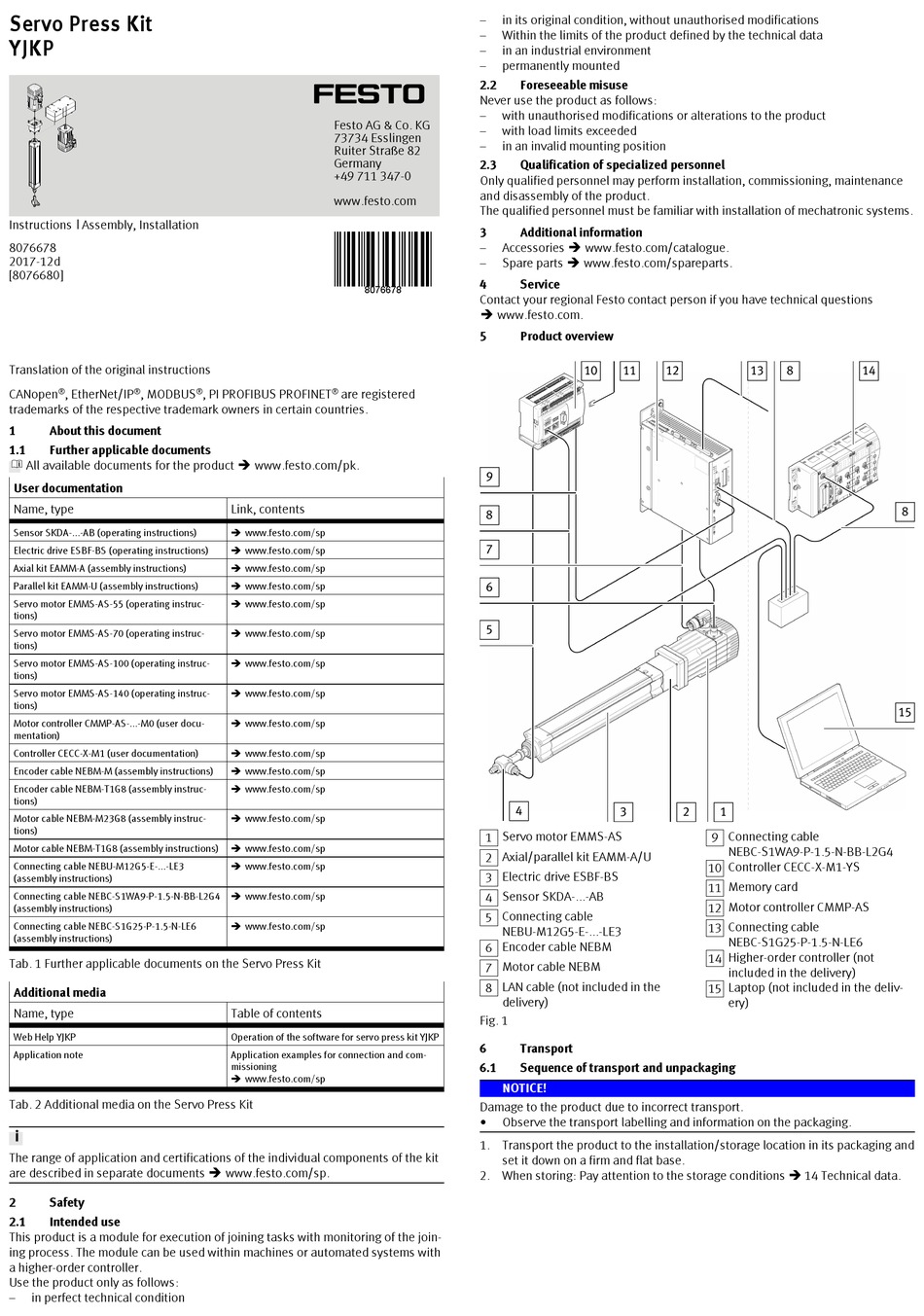

Servo Press Kit
YJKP
Instructions | Assembly, Installation
8076678
2017-12d
[8076680]
Translation of the original instructions
CANopen
®
, EtherNet/IP
®
, MODBUS
trademarks of the respective trademark owners in certain countries.
1
About this document
1.1
Further applicable documents
All available documents for the product è www.festo.com/pk.
User documentation
Name, type
Sensor SKDA-...-AB (operating instructions)
Electric drive ESBF-BS (operating instructions)
Axial kit EAMM-A (assembly instructions)
Parallel kit EAMM-U (assembly instructions)
Servo motor EMMS-AS-55 (operating instruc-
tions)
Servo motor EMMS-AS-70 (operating instruc-
tions)
Servo motor EMMS-AS-100 (operating instruc-
tions)
Servo motor EMMS-AS-140 (operating instruc-
tions)
Motor controller CMMP-AS-...-M0 (user docu-
mentation)
Controller CECC-X-M1 (user documentation)
Encoder cable NEBM-M (assembly instructions)
Encoder cable NEBM-T1G8 (assembly instruc-
tions)
Motor cable NEBM-M23G8 (assembly instruc-
tions)
Motor cable NEBM-T1G8 (assembly instructions)
Connecting cable NEBU-M12G5-E-...-LE3
(assembly instructions)
Connecting cable NEBC-S1WA9-P-1.5-N-BB-L2G4
(assembly instructions)
Connecting cable NEBC-S1G25-P-1.5-N-LE6
(assembly instructions)
Tab. 1 Further applicable documents on the Servo Press Kit
Additional media
Name, type
Web Help YJKP
Application note
Tab. 2 Additional media on the Servo Press Kit
The range of application and certifications of the individual components of the kit
are described in separate documents è www.festo.com/sp.
2
2.1
Intended use
This product is a module for execution of joining tasks with monitoring of the join-
ing process. The module can be used within machines or automated systems with
a higher-order controller.
Use the product only as follows:
–
in perfect technical condition
Festo AG & Co. KG
73734 Esslingen
Ruiter Straße 82
Germany
+49 711 347-0
www.festo.com
8076678
®
, PI PROFIBUS PROFINET
®
are registered
Link, contents
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
è www.festo.com/sp
Table of contents
Operation of the software for servo press kit YJKP
Application examples for connection and com-
missioning
è www.festo.com/sp
–
in its original condition, without unauthorised modifications
–
Within the limits of the product defined by the technical data
–
in an industrial environment
–
permanently mounted
2.2
Foreseeable misuse
Never use the product as follows:
–
with unauthorised modifications or alterations to the product
–
with load limits exceeded
–
in an invalid mounting position
2.3
Qualification of specialized personnel
Only qualified personnel may perform installation, commissioning, maintenance
and disassembly of the product.
The qualified personnel must be familiar with installation of mechatronic systems.
3
Additional information
–
Accessories è www.festo.com/catalogue.
–
Spare parts è www.festo.com/spareparts.
4
Service
Contact your regional Festo contact person if you have technical questions
è www.festo.com.
5
Product overview
1 Servo motor EMMS-AS
2 Axial/parallel kit EAMM-A/U
3 Electric drive ESBF-BS
4 Sensor SKDA-...-AB
5 Connecting cable
NEBU-M12G5-E-...-LE3
6 Encoder cable NEBM
7 Motor cable NEBM
8 LAN cable (not included in the
delivery)
Fig. 1
6
Transport
6.1
Sequence of transport and unpackaging
NOTICE!
Damage to the product due to incorrect transport.
•
Observe the transport labelling and information on the packaging.
1. Transport the product to the installation/storage location in its packaging and
set it down on a firm and flat base.
2. When storing: Pay attention to the storage conditions è 14 Technical data.
9 Connecting cable
NEBC-S1WA9-P-1.5-N-BB-L2G4
10 Controller CECC-X-M1-YS
11 Memory card
12 Motor controller CMMP-AS
13 Connecting cable
NEBC-S1G25-P-1.5-N-LE6
14 Higher-order controller (not
included in the delivery)
15 Laptop (not included in the deliv-
ery)
