Controller Installation - Lippert Ground Control 3.0 Installation And Owner's Manual

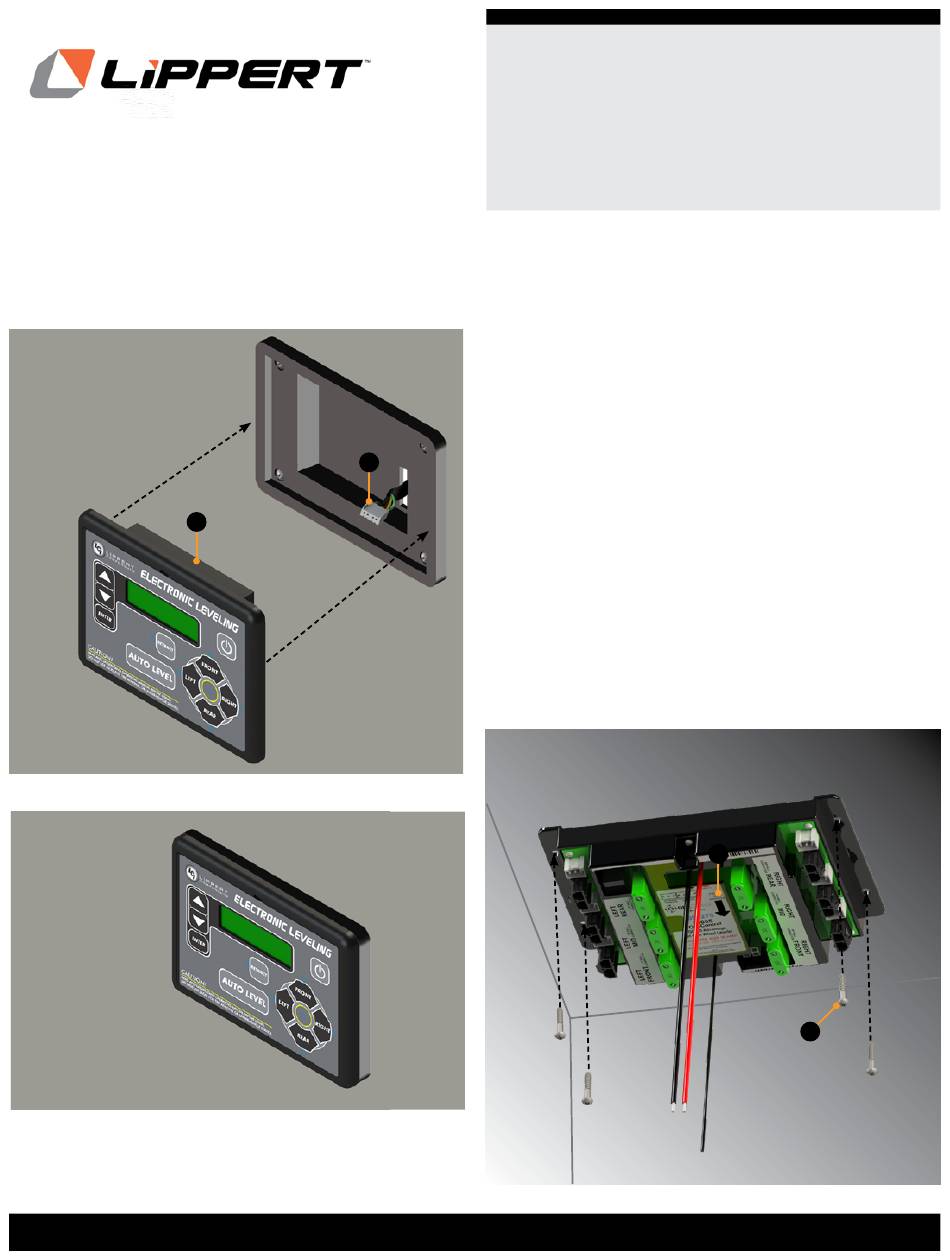

4. Plug the touch pad harness (Fig.19A) into the connector
on the back of the touch pad face plate (Fig.19B) and snap
the face plate into the bezel (Fig.20).
Fig.19
Fig.20
lippert.com 432-LIPPERT (432-547-7378)
A
B
Ground Control
5th Wheel Leveling Prepped Unit
to Full Automatic Leveling
Installation and Owner's Manual
(For Aftermarket Applications)

Controller Installation

NOTE: The controller will be installed in the same
compartment as the LCD touchpad and should be as far
forward on the trailer as is possible. The controller must
be installed in compliance with RVIA Gas Codes, as the
controller connections are not spark-proof.
NOTE: For optimal performance, the controller should be
positioned directly in the center of the trailer, but may be
offset if necessary (Fig.21). The arrow on the label of the
controller must point to the front of the trailer (Fig.21A).
NOTE: Two different types of fasteners are included in the
kit for the controller installation. Use four of the self-tapping
screws for metal installation, or four of the wood screws for
wood/fiberglass installation.
1. Measure to the center of the trailer from inside the
compartment where the controller will be placed, and
mark the center point on the ceiling. The controller must
be positioned directly in the center of the trailer with the
arrow on the label of the controller facing the front of the
trailer. (Fig.21).
compartment ceiling
Fig.21
9
CCD-0004397
®
3.0
A
B
front of trailer
Rev: 10.14.21
