Preparation

1. Remove all loose items from the front storage
compartments of the trailer.
2. Support the trailer at all four corners with jack stands
(or other adequate supports).

Mounting Position of Components

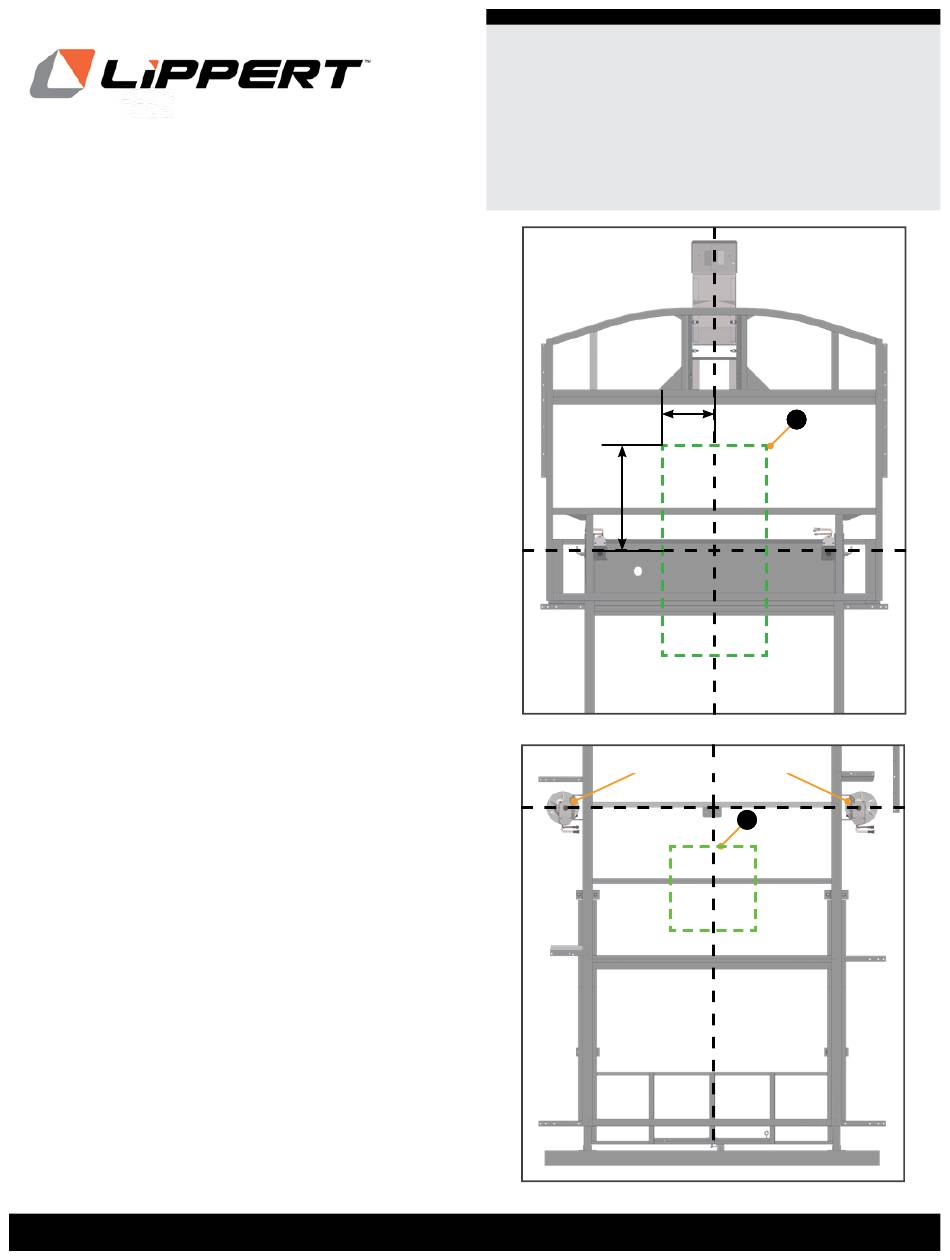

1. Controller: should be mounted to the ceiling of the
front-most storage compartment in the center of the trailer,
within reach of OEM prepped harness. The controller has
a limited mounting area for proper performance. At the
center of the frame (side to side) and at the center of the
landing gear (front jacks) is a center point. From this center
point, the controller can be mounted 12" out on either side
and up to 3' in front of or behind the center point. This area
is outlined in a green dotted box (Fig. 1A).
NOTE: The controller MUST stay mounted inside a
compartment that is protected from the elements and
in compliance with RVIA Gas Codes, as the controller
connections are not spark-proof.
2. Touch Pad: will be mounted where the existing rocker
switches are located for the front landing gear. The touch
pad must also be protected from the elements.
3. Rear Sensor: has a limited mounting area for proper
performance, and must be installed within reach of the
OEM prepped harness. The rear sensor must be in line
with or behind the rear leveling jacks (Fig.2), as well as
in line with the center of the frame. This area is outlined
in a green dotted line (Fig. 2A).
4. Make sure coach is on a solid level surface and is level
from front to back before proceeding with installation.
