LCD Touchpad Installation

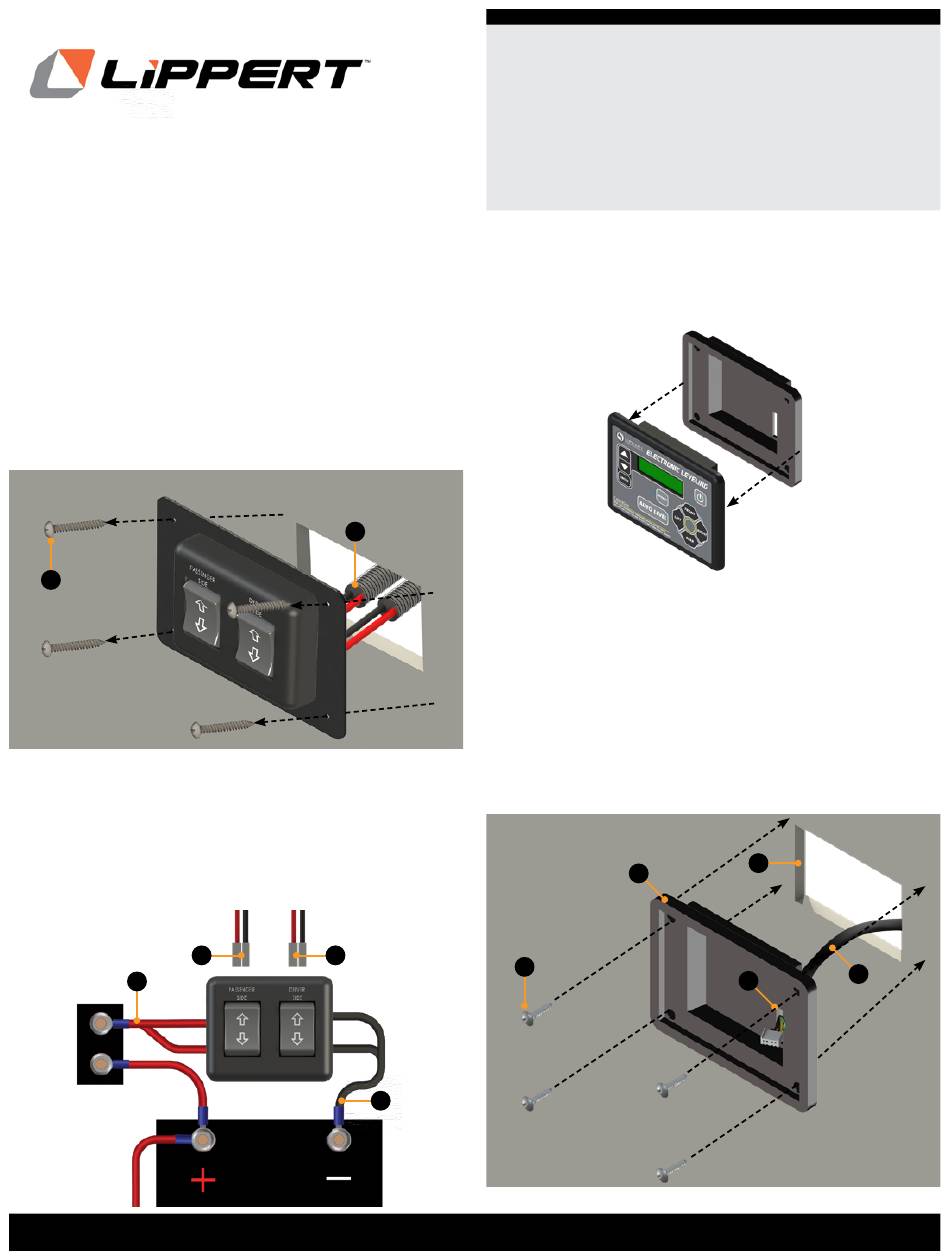

Removal of Switch Panel
Prior to the touchpad installation the old switch panel for
the front jacks and wiring will need to be removed and the
LCD touchpad installed in its place.
NOTE: Save the screws from the switch panel to reinstall
for the LCD touchpad.
1. Remove the screws (Fig.15A) holding the switch panel to
the trailer wall.
A
Fig.15
2. Remove the switch panel and all wiring:
A. Unplug all harnesses from the back of the switch
(Fig.15B or 16A).
B. Disconnect the switch panel's power wires from the
30 amp circuit breaker (Fig.16B) and ground from the
grounding source (Fig.16C).
B
Fig.16
lippert.com 432-LIPPERT (432-547-7378)
B
A A
C
Ground Control
5th Wheel Leveling Prepped Unit
to Full Automatic Leveling
Installation and Owner's Manual
(For Aftermarket Applications)
Installation of LCD Touchpad
1. Remove the face plate of the touch pad from the
mounting bezel (Fig. 17).
Fig.17
2. Feed the touch pad harness (Fig.18C) through the same
cutout in the wall where the switch panel was located
(Fig.18B) and into the cutout in the touchpad bezel (Fig.18D).
Run the opposite end of the touchpad harness to the
location where the controller will be mounted.
3. Insert the touch pad bezel (Fig.18A) into the same cutout
in the wall where the switch panel was installed (Fig.18B).
Attach the bezel to the wall with the same four #8 x 1"
screws (Fig.18E) used in the switch panel removal or screws
with sufficient length to thread into the compartment wall.
A
E
Fig.18
8
CCD-0004397
®
3.0
B
C
D
Rev: 10.14.21
