Lippert Ground Control 3.0 Installation And Owner's Manual page 7

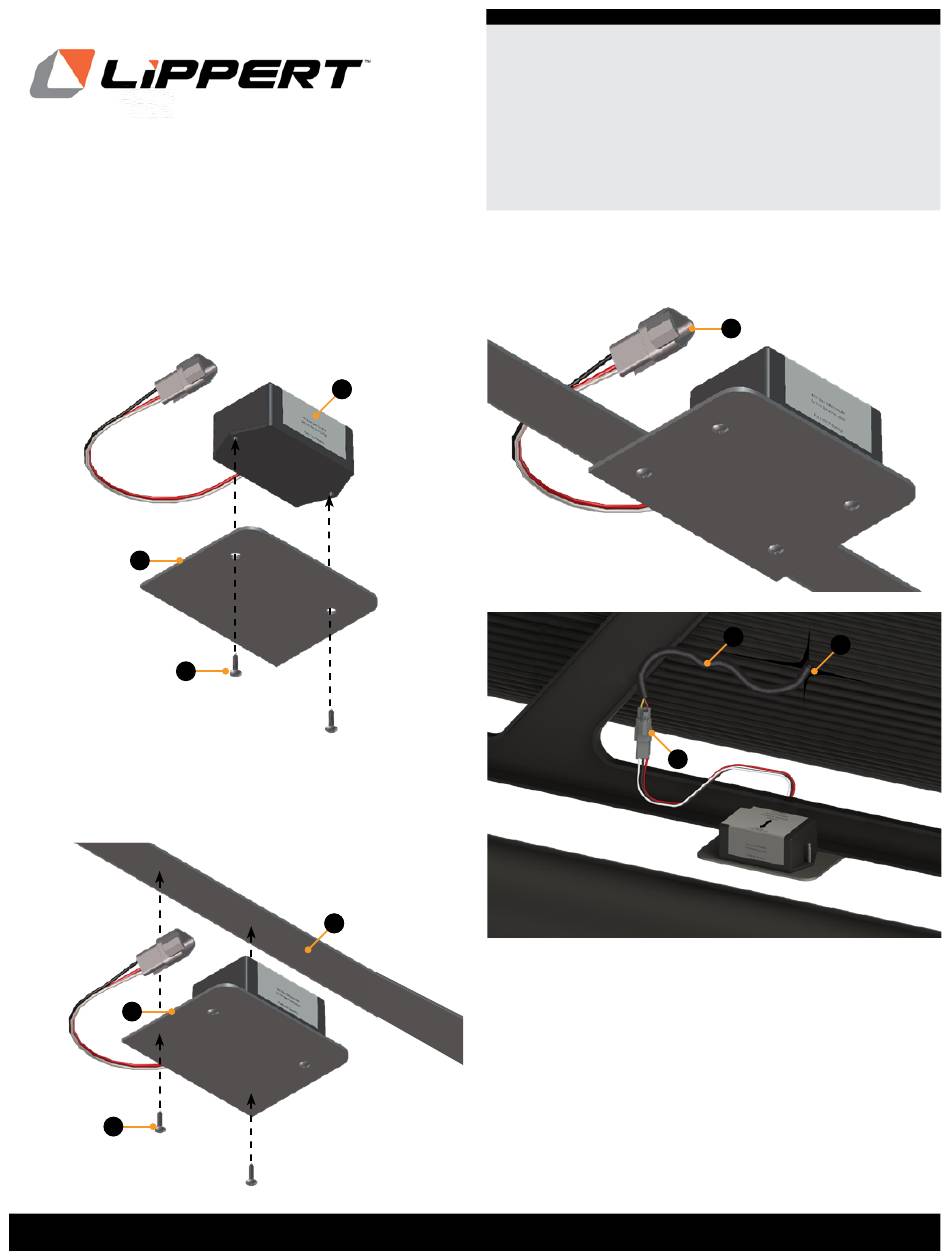

4. Attach the rear sensor (Fig.11A) to the mounting plate
(Fig.11B) using two #8 - 18 x 1" self-drilling screws (Fig.11C).
Orientation of the rear sensor is imperative for the correct
operation of the leveling system.
B
C
Fig.11
5. Attach the rear sensor and the mounting plate (Fig.12B)
to the crossmember (Fig.12A) using two #8 - 18 x 1"
self-drilling screws (Fig.12C). Orientation is imperative for
the correct operation of the leveling system.
B
C
Fig.12
lippert.com 432-LIPPERT (432-547-7378)
Ground Control
5th Wheel Leveling Prepped Unit
to Full Automatic Leveling
Installation and Owner's Manual
(For Aftermarket Applications)
6. Connect the rear sensor (Fig.13A) to the connector on the
rear sensor harness (Fig.14A).
A
Fig.13
A
Fig.14
7. Push any slack in the rear sensor harness (Fig.14B) and
connection of the rear sensor (Fig.14A) back through the slit
in the underbelly (Fig.14C).
7
®
3.0
A
B
A
CCD-0004397
C
Rev: 10.14.21
