Instructions for use
K-Control TLC 4955, 4956, 4957

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-Control TLC 4955 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KaVo K-Control TLC 4955

Summary of Contents for KaVo K-Control TLC 4955

  • Page 1 Instructions for use K-Control TLC 4955, 4956, 4957...
  • Page 2 Distributed by: Manufacturer: KaVo Dental GmbH Kaltenbach & Voigt GmbH Bismarckring 39 Bismarckring 39 D-88400 Biberach D-88400 Biberach Phone +49 (0) 7351 56-0 www.kavo.com Fax +49 (0) 7351 56-1488...

  • Page 3: Table Of Contents

    Instructions for use K-Control TLC 4955, 4956, 4957 Contents Contents 1 User instructions............................... 5 1.1 User guide .............................. 5 1.1.1 Abbreviations .......................... 5 1.1.2 Symbols ............................ 5 1.1.3 Target group .......................... 5 1.2 Service.............................. 6 1.3 Warranty terms and conditions ......................... 6 1.4 Transportation and storage........................ 6 1.4.1...
  • Page 4 Instructions for use K-Control TLC 4955, 4956, 4957 Contents 5.2.2 Turn on the control........................ 27 5.2.3 Setting the speed ........................ 28 5.2.4 Setting the torque........................ 28 5.2.5 Activating CCW rotation...................... 28 5.2.6 Calling up programs........................ 28 5.3 Operation in KaVo suction systems...................... 28 6 Maintenance .............................. 30...

  • Page 5: User Instructions

    Instructions for use K-Control TLC 4955, 4956, 4957 1 User instructions | 1.1 User guide 1 User instructions 1.1 User guide Requirement Read these instructions prior to first use to avoid misuse and prevent damage. 1.1.1 Abbreviations Abbre- Explanation viation...

  • Page 6: Service

    12 months from the date of purchase as confirmed by the salesperson. In case of justified complaints, KaVo will honour its warranty with a free replacement or repair.

  • Page 7: Information On The Packaging: Storage And Transportation

    Art. 28). Outside Germany Note KaVo shall not be held liable for damage arising from transportation. The shipment must be checked on arrival. If the packaging is visibly damaged on delivery, please proceed as follows: 1. The recipient of the package must record the loss or damage on the delivery re- ceipt.
  • Page 8 Instructions for use K-Control TLC 4955, 4956, 4957 1 User instructions | 1.4 Transportation and storage Transport upright with the arrows pointing upwards! Fragile - protect against impact! Protect from moisture! Permissible stacking load Temperature range Humidity Air pressure 8 / 36...

  • Page 9: Safety

    Each time before using the device, the qualified user shall ensure that the device is functionally safe and in a proper condition. DANGER Explosion hazard. Risk of fatal injury. ▶ Do not use KaVo product in areas subject an explosion hazard. 9 / 36...

  • Page 10: Product-Specific

    Any waste which is generated must be recycled or disposed of in strict compliance with all applicable national regulations in a manner which is safe both for people and the environment. If you have any questions regarding proper disposal of the KaVo product, please contact the KaVo branch. 2.2.2 Product-specific WARNING Injury or damage from damaged functional parts.
  • Page 11 Instructions for use K-Control TLC 4955, 4956, 4957 2 Safety | 2.2 Safety instructions CAUTION Unsuitable speed. Damage to the product. Problems processing selected material. ▶ Check the speed setting each time you turn on the unit! CAUTION Premature wear and malfunctions from improper care.

  • Page 12: Product Description

    Only competent and trained personnel may use the product! This product has only been approved for use indoors. This KaVo product is suitable for controlling KaVo motorised handpieces (low voltage motors) used for processing materials in dentistry, industry and trade applications by means of rotating tools.

  • Page 13: Knee Control K-Control Tlc 4955

    Instructions for use K-Control TLC 4955, 4956, 4957 3 Product description | 3.2 Knee control K-Control TLC 4955 3.2 Knee control K-Control TLC 4955 Knee control K-Control TLC 4955 ① Speed, torque and program selection ② Speed preset button (rotary switch and pushbutton) ③...

  • Page 14: Foot Control K-Control Tlc 4956

    Instructions for use K-Control TLC 4955, 4956, 4957 3 Product description | 3.3 Foot control K-Control TLC 4956 3.3 Foot control K-Control TLC 4956 Foot control K-Control TLC 4956 ① Display with LEDs and bar indicators ② Program selection/speed selection button ③...

  • Page 15: Rating Plates

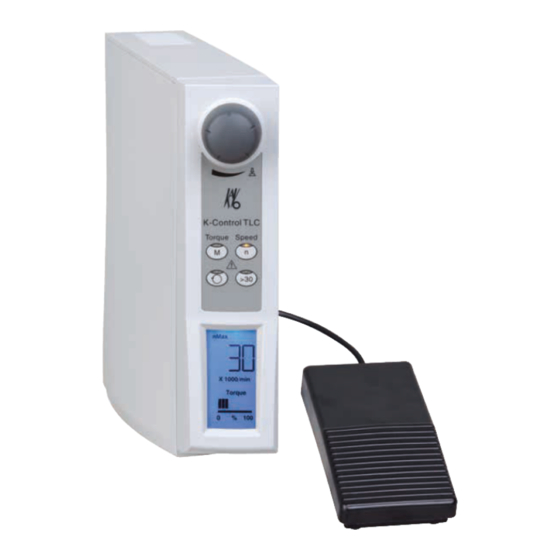

    Instructions for use K-Control TLC 4955, 4956, 4957 3 Product description | 3.4 Table-top control K-Control TLC 4957 3.4 Table-top control K-Control TLC 4957 Table-top control K-Control TLC 4957 ① Speed, torque and program selection ② Speed preset button (rotary switch and pushbutton) ③...

  • Page 16: Technical Data

    Instructions for use K-Control TLC 4955, 4956, 4957 3 Product description | 3.6 Technical Data Rating plate for foot control K-Control TLC 4956 Rating plate for table-top control K-Control TLC 4957 Type Device type Year of manufacture – serial number...
  • Page 17 Instructions for use K-Control TLC 4955, 4956, 4957 3 Product description | 3.6 Technical Data Table-top control K-Control TLC 4957 Width 95 mm Depth 280 mm Height 235 mm Weight 3,000 g Nominal voltages Voltage range 100 to 240 V AC, 50 to 60 Hz Rated power max.

  • Page 18: Scope Of Delivery

    Instructions for use K-Control TLC 4955, 4956, 4957 3 Product description | 3.7 Scope of delivery Transportation and storage conditions Temperature range: -20 C to +70 Relative humidity: 5% to 95% (non-condensing) Air pressure: 700 hPa to 1060 hPa Note...

  • Page 19: First Use

    Do not switch the handpiece on while the chuck is open! Note Do not cover the air vent. 4.1 Combined control/handpiece The following handpieces can be used in conjunction with the K-Control TLC 4955, 4956 and 4957 controls: ▪ K-POWERgrip 4941 ▪ K5plus 4911 ▪...

  • Page 20: Nominal Voltage - Nominal Frequency

    4.3 Location Note This KaVo product must be set up on a level, stable, horizontal surface and its se- cure footing must be ensured. Do not set up right next to the edge of the table. Con- necting cables, connections to motorised handpieces and foot control must be routed safely.
  • Page 21 Instructions for use K-Control TLC 4955, 4956, 4957 4 First use | 4.3 Location ▶ Plug the connecting cable to the handpiece into the control unit and screw it tight. ▶ Insert the mains plug into an appropriate, easily accessible and properly installed and grounded mains socket outlet.

  • Page 22: Foot Control K-Control Tlc 4956

    Instructions for use K-Control TLC 4955, 4956, 4957 4 First use | 4.3 Location 4.3.2 Foot control K-Control TLC 4956 ▶ Set the foot control unit down on the floor. ▶ Plug the connecting cable to the handpiece into the control unit and screw it tight.
  • Page 23 Instructions for use K-Control TLC 4955, 4956, 4957 4 First use | 4.3 Location ▶ Plug in the connecting cable to the handpiece and 4620 pedal switch and screw it tight. ▶ Insert the mains plug into an appropriate, easily accessible and properly installed and grounded mains socket outlet.

  • Page 24: Operation

    Instructions for use K-Control TLC 4955, 4956, 4957 5 Operation | 5.1 Operating the knee control and tabletop control 5 Operation Note Note the safety instructions before each use. Note The device should be set up so that the power disconnection device can be easily accessed.

  • Page 25: Controls On The Knee Control And Table-Top Control

    Instructions for use K-Control TLC 4955, 4956, 4957 5 Operation | 5.1 Operating the knee control and tabletop control 5.1.1 Controls on the knee control and table-top control Controls on the knee control and table-top control ① Speed, torque and program selection ②...

  • Page 26: Setting The Speed

    Instructions for use K-Control TLC 4955, 4956, 4957 5 Operation | 5.1 Operating the knee control and tabletop control ▶ Press the knee switching plate or foot pedal. Press the knee switching plate to start the motor and adjust the speed in the range between the motor's min. speed and the max.

  • Page 27: Operating The Foot Control

    Instructions for use K-Control TLC 4955, 4956, 4957 5 Operation | 5.2 Operating the foot control Note The speed and torque settings can be modified in the usual way. See also: 2 5.1.3 Setting the speed, Page 26 2 5.1.4 Setting the torque, Page 26 ▶...

  • Page 28: Setting The Speed

    Instructions for use K-Control TLC 4955, 4956, 4957 5 Operation | 5.3 Operation in KaVo suction systems 5.2.3 Setting the speed ▶ Press the speed selection button briefly several times in succession to set the speed. ð The set speed is indicated in increments of 20% on the right-hand bar indicator re- lative to the maximum speed of the connected motor.
  • Page 29 Instructions for use K-Control TLC 4955, 4956, 4957 5 Operation | 5.3 Operation in KaVo suction systems Note The dust extraction system and the K-Control TLC controllers must be connected to different power sockets. Use the control line (Mat. no. 10007198) to connect the K-Control TLC to SMARTair...

  • Page 30: Maintenance

    ▪ the applicable accident prevention regulations. The overarching guidelines and/or national laws, national regulations and the rules of technology applicable to the startup and use of the KaVo product for the intended pur- pose are to be applied and complied with.

  • Page 31: Eliminating Disturbances

    Instructions for use K-Control TLC 4955, 4956, 4957 7 Eliminating disturbances 7 Eliminating disturbances Note On the knee control and table top control, the error display is shown on the display together with the word "ERROR". The speed and torque displays will be hidden by this text.

  • Page 32: Accessories

    Instructions for use K-Control TLC 4955, 4956, 4957 8 Accessories 8 Accessories Presentation Material summary Material number Pedal switch 0.617.0460 Handpiece tray 1.005.3460 Control cable 1.000.7198 32 / 36...

  • Page 33: Declaration Of Conformity

    Instructions for use K-Control TLC 4955, 4956, 4957 9 Declaration of conformity | 6.2 Safety checks in accordance with IEC 62638 (VDE 0701 / 0702) 9 Declaration of conformity 33 / 36...
