VIESMANN
Installation instructions
for contractors

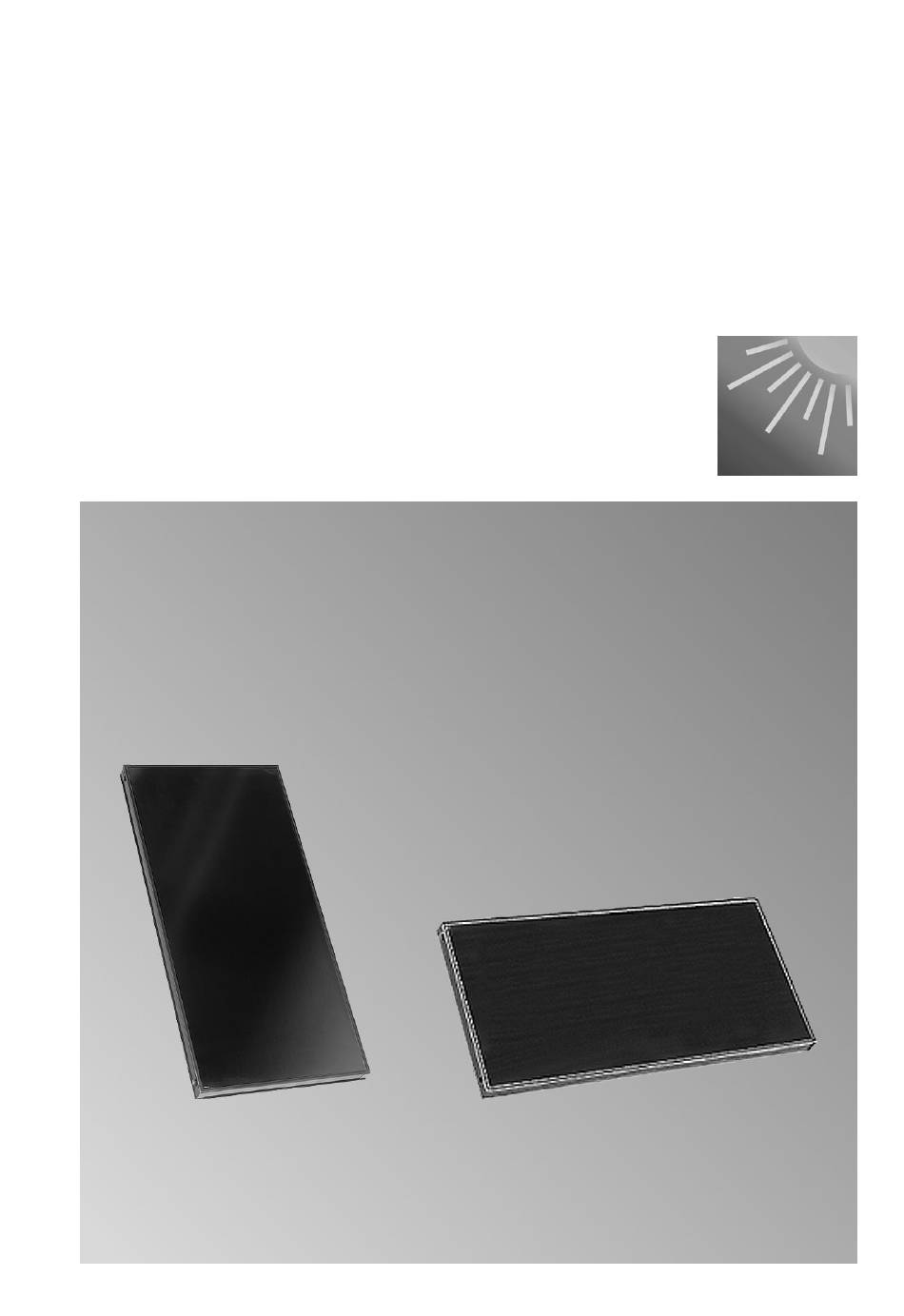

Vitosol-F
Type SV and SH
Flat-plate collector for sloping roofs and above roof installation with
rafter anchors
VITOSOL-F
Dispose after installation.
5414 220 GB
7/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VITOSOL-F and is the answer not in the manual?

Questions and answers

Summary of Contents for Viessmann VITOSOL-F

  • Page 1 VIESMANN Installation instructions for contractors Vitosol-F Type SV and SH Flat-plate collector for sloping roofs and above roof installation with rafter anchors VITOSOL-F Dispose after installation. 5414 220 GB 7/2013...
  • Page 2 Safety instructions Please follow these safety instructions closely to prevent accidents and mate- rial losses. Safety instructions explained Working on the system Please note ■ Isolate the system from the power sup- This symbol warns against the ply (e.g. by removing the separate fuse risk of material losses and envi- or by means of a mains isolator) and ronmental pollution.
  • Page 3: Table Of Contents

    Index Intended use....................... Preparing for installation Observe prior to installation.................. ■ Type SV (vertical collectors)................■ Type SH (horizontal collectors)................. Installation sequence Installation with rafter anchors................11 ■ Components...................... 11 ■ Installation......................12 Installation with mounting brackets..............20 ■ Components...................... 21 ■...
  • Page 4: Intended Use

    Intended use The appliance is only intended to be installed and operated in sealed unven- ted systems that comply with EN 12828 / DIN 1988, or solar thermal systems that comply with EN 12977, with due atten- tion paid to the associated installation, service and operating instructions.
  • Page 5: Observe Prior To Installation

    Observe prior to installation For each number of collectors, there is a Of the 4 rafters, the following are used: specific allocated number of rafter Rafters 1 and 4 anchors or mounting brackets (for use on sheet steel roofs). The spacing between rafters and the potential snow loads dictates how many rafters need to be used for fitting the raf- ter hooks.
  • Page 6 Observe prior to installation (cont.) 4 collectors Rafter spac- Snow load in kN/m ing in mm ≤ 0.75 > 0.75 ≤ 1.25 > 1.25 ≤ 2.55 > 2.55 ≤ 4.80 ≤ 600 1, 4, 5, 8 1, 3, 4, 5, 6, 8 ≤...
  • Page 7: Type Sh (Horizontal Collectors)

    Observe prior to installation (cont.) 10 collectors Rafter spac- Snow load in kN/m ing in mm ≤ 0.75 > 0.75/ ≤ 1.25 > 1.25/ ≤ 2.55 > 2.55/ ≤ 4.80 ≤ 600 1, 3, 5, 6, 7, 8, 10, 11, 12, 14, 15, 16, 17, 19 ≤...
  • Page 8 Observe prior to installation (cont.) 3 collectors Rafter spac- Mounting Snow load in kN/m ing in mm rail ≤ 1.25 > 1.25/ ≤ 2.55 ≤ 600 1, 5, 9, 13 ≤ 700 bottom 1, 4, 5, 7, 8, 11 1, 4, 8, 11 1, 4, 8, 11 ≤...
  • Page 9 Observe prior to installation (cont.) 6 collectors Rafter spac- Mounting Snow load in kN/m ing in mm rail ≤ 1.25 > 1.25/ ≤ 2.55 ≤ 600 1, 5, 9, 13, 17, 21, 25 ≤ 700 1, 4, 7, 8, 11, 14, 15, 18, 21 ≤...
  • Page 10 Observe prior to installation (cont.) 10 collectors Rafter spac- Mounting Snow load in kN/m ing in mm rail ≤ 1.25 > 1.25/ ≤ 2.55 ≤ 600 1, 5, 9, 13, 17, 21, 25, 29, 33, 37, 41 ≤ 700 bottom 1, 4, 8, 11, 15, 18, 21, 25, 1, 4, 5, 8, 11, 14, 15, 18, 28, 32, 35...
  • Page 11: Installation With Rafter Anchors

    Installation with rafter anchors Components Ø 8.4 M8x25 A Plastic replacement tile, if the exist- ing tiles are not to be cut. Use only on roofs with a slope of at least 12°. B Supporting rails: For type SV with snow loads of 4.80 kN/m...
  • Page 12: Installation

    Installation with rafter anchors (cont.) Installation...
  • Page 13 Installation with rafter anchors (cont.) Type a in mm 1650 – 1900 600 – 700...
  • Page 14 Installation with rafter anchors (cont.) Only for type SV with snow loads of 4.80 kN/m Fit 3 rafter anchors one above the other; average out dimension b.
  • Page 15 Installation with rafter anchors (cont.)
  • Page 16 Installation with rafter anchors (cont.) Installation involving tile trimming Continue with step 16 on page 18.
  • Page 17 Installation with rafter anchors (cont.) Installation with plastic replacement tiles...
  • Page 18 Installation with rafter anchors (cont.)
  • Page 19 Installation with rafter anchors (cont.) 90 ° Number of col- lectors c in mm Type SV Type SH Continue with "Installing the collectors" (see page 24).
  • Page 20: Installation With Mounting Brackets

    Installation with rafter anchors (cont.) For type SV please note For snow loads of 4.80 kN/m supporting rails must be fitted; see illustration below. Ø 8.5 90 ° Continue with "Installing the collectors" (see page 24). Installation with mounting brackets E.g. installation on sheet steel roofs.
  • Page 21: Components

    Installation with mounting brackets (cont.) Components M8x25 Ø8,4 B Supporting rails: For type SV with snow loads of 4.80 kN/m Installation On-site fixing elements A are required The installation of the mounting bracket for securing the mounting brackets (see is shown using box profiles as an exam- ple.
  • Page 22 Installation with mounting brackets (cont.) 90 ° Information on step 1: The horizontal arrangement of the Screws to be supplied on site mounting brackets depends on the rafter spacing (see from page 5). Type a in mm All mounting brackets between the first and last bracket must be in alignment 1650 –...
  • Page 23 Installation with mounting brackets (cont.) For type SV please note For snow loads of 4.80 kN/m install 3 mounting brackets above each other; see illustration on page 14. 90° Number of col- lectors c in mm Type SV Type SH...
  • Page 24: Installing The Collectors

    Installation with mounting brackets (cont.) For type SV please note For snow loads of 4.80 kN/m supporting rails must be fitted; see illustration below. Ø 8.5 90 ° Installing the collectors...
  • Page 25 Installing the collectors (cont.) Installation information Please note ■ The first and last collector must be The connection pipes must be positioned with the type plate facing free of any signs of damage. outwards (observe label). Only use the special grease pro- ■...
  • Page 26: Connecting The Collectors

    Installing the collectors (cont.) Connecting the collectors Installation information ■ Initially turn the union nut by hand, ■ All pipes must be cut at a right angle then tighten with an open ended span- and deburred. ner by a further ¾ turn. ■...
  • Page 27 Connecting the collectors (cont.)
  • Page 28: Installation

    120 °C, with a maximum pressure occur there. Metal seal connections, of 6 bar which carry the "S" (Solar) locking ring fittings or Viessmann plug- designation. in connections with double O-rings are the most suitable.
  • Page 29: Commissioning

    N Drip pan E Air separator O Collector F Shut-off valve (adjusting screw P Solar control unit above flow indicator H) R DHW cylinder G Drain valve S Cylinder temperature sensor H Flow indicator T Collector temperature sensor Commissioning "Vitosol-F" service instructions.
