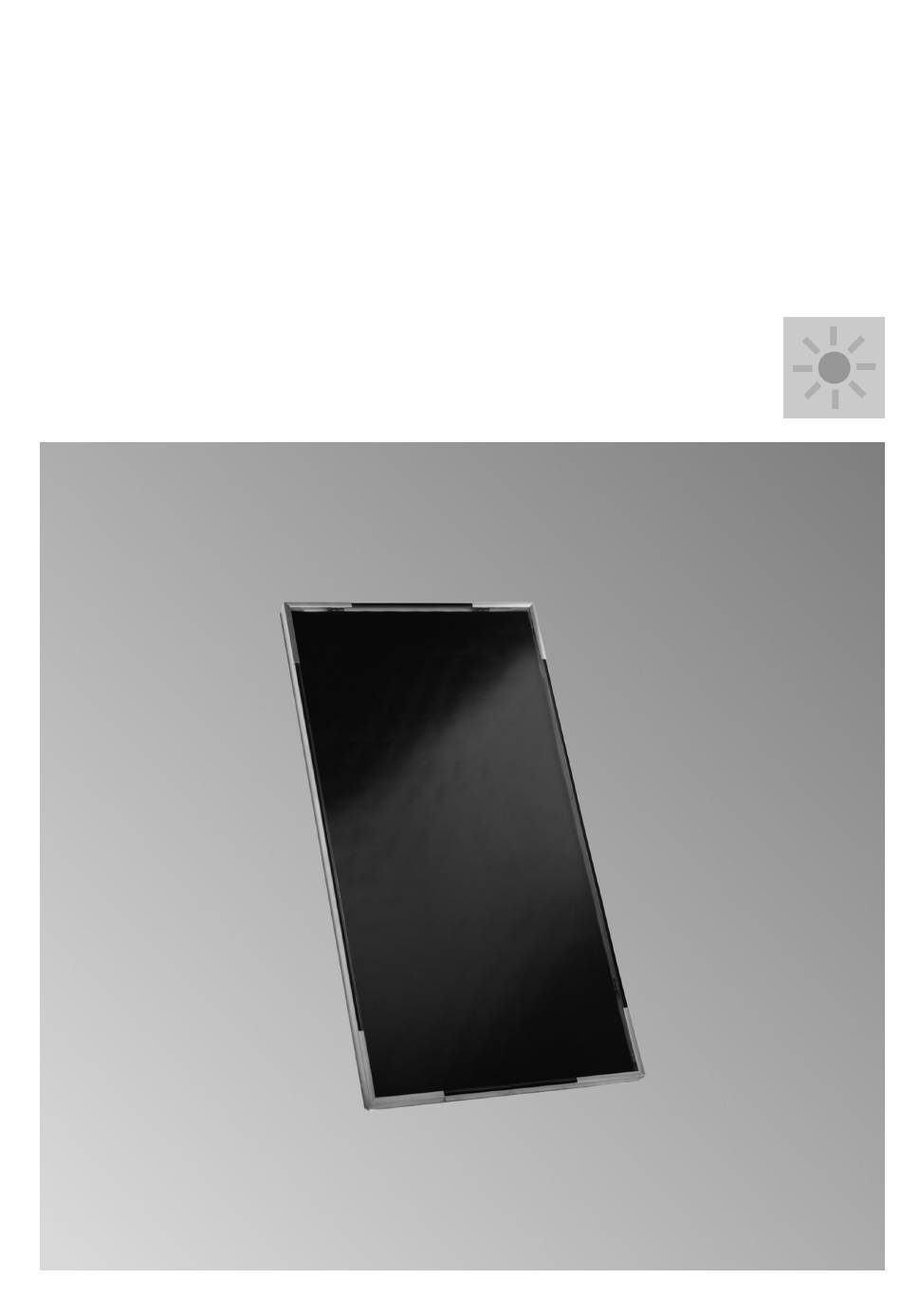

VIESMANN Installation instructions for contractors Vitosol-F/-FM Type SVKA, SVKG Flat-plate collector for pitched roofs, roof integration for 1 collector VITOSOL-F/-FM Dispose after installation. 5698367 GB 1/2018...
Page 2
Safety instructions Please follow these safety instructions closely to prevent accidents and material losses. Safety instructions explained Please note Note This symbol warns against the risk of material Details identified by the word "Note" contain additional losses and environmental pollution. information.
Index Information Disposal of packaging ................Symbols ....................Intended use ..................Installation sequence Components ..................Tiled roof cover and barrel roof tile cover ........... ■ Plain tile and slate roof cover ............. ■ Uncovering the roof ................Fitting the timbers .................. Fitting the front panel ................
Disposal of packaging Disposal of packaging DE: Use the disposal system organised by Viessmann. Please dispose of packaging waste in line with statu- AT: Use the ARA statutory disposal system (Altstoff tory regulations. Recycling Austria AG, licence number 5766). CH: Packaging waste is disposed of by the HVAC contractor.
Intended use The appliance is only intended to be installed and Any usage beyond this must be approved by the man- operated in sealed unvented systems that comply with ufacturer for the individual case. EN 12828 / DIN 1988, or solar thermal systems that comply with EN 12977, with due attention paid to the Incorrect usage or operation of the appliance (e.g.
Components Tiled roof cover and barrel roof tile cover 120 x 40 8 x 120 60 x 40 6 x 30 Fig. 1 Timber Fixing clamp with butyl strip 120 x 30 x 1600 mm Retaining bracket Screws 8 x 120 mm Lower casing Timber Right casing with sealing strip...
Components (cont.) Plain tile and slate roof cover 120 x 40 8 x 120 6 x 30 60 x 40 6 x 30 Fig. 2 Timber Lower casing 120 x 30 x 1600 mm Right casing Screws 8 x 120 mm Left casing Timber Upper casing...
Fitting the timbers (cont.) Fig. 3 On-site batten to support protruding timbers It may be necessary for existing battens to be ■ removed in the area taken up by the timbers. Support the joint between the batten and the timber. ■...
Fitting the front panel (cont.) 6 x 30 Fig. 4 Installing the collector Components: Zinc-plated chipboard screw (Spax-s) 6 x 30 mm Fixing clamp with butyl strip...
Installing the collector (cont.) 6 x 30 Fig. 5 Fitting the lower casing and hydraulic connections Please note The connection pipes must not show any signs of damage. Lubricate O-rings only with the special valve grease provided.
Page 11
Fitting the lower casing and hydraulic… (cont.) Ø6 Fig. 6 Connection, tee with sensor well for collector tem- perature sensor (flow) Connection, tee (return)
Fitting the lower casing and hydraulic… (cont.) Fig. 7 Fitting the collector temperature sensor The collector temperature sensor is part of the stand- ard delivery of the connection set. Fig. 8...
Page 13
Fitting the lower casing and hydraulic… (cont.) Fig. 9 Fig. 10 Fig. 11...
Fitting the right and left casing Components Retaining bracket Right casing with sealing strip Nail Fig. 12 Push side casings to the edge of the collec- tor. Fitting the upper casing Components Retaining bracket Upper casing with sealing strip Nail...
Page 15
Fitting the upper casing (cont.) Fig. 13 Push upper casing to the edge of the collec- tors.
Covering the roof Tiled roof cover Fig. 14 Trim the tiles to size or use half-sized tiles, as required. Please note Remove tile head which rests on the side panel. The diagonal sealing strip must be completely hidden. It may be necessary to trim the height of the diagonal sealing strip with a knife.
Covering the roof (cont.) Note The last Nocky panel in the top right is a left-hand one (see page 7). The last Nocky panel in the top left is a right-hand one (see page 7). Covering the collector array Commission the solar thermal system as quickly as Note possible once the collectors have been installed.
Soft solder could be weakened, particularly near the collectors, due to the high temperatures that occur there. Metal seal connections, locking ring fittings or Viessmann plug-in connections with double O-rings are the most suitable. If other seals such as flat gaskets are used, ade- quate glycol, pressure and temperature stability must be guaranteed by the manufacturer.
Page 20
Installation (cont.) Fig. 17 Solar-Divicon Fill valve Shut-off valves Stagnation heat sink Non-return valves Expansion vessel Solar circuit pump Drip pan Air separator Collector Shut-off valve (adjusting screw above flow indica- DHW cylinder Cylinder temperature sensor Drain valve Collector temperature sensor Flow indicator Solar control unit...
