Crestron DM-TX-4KZ-202-C Do Manual

DO

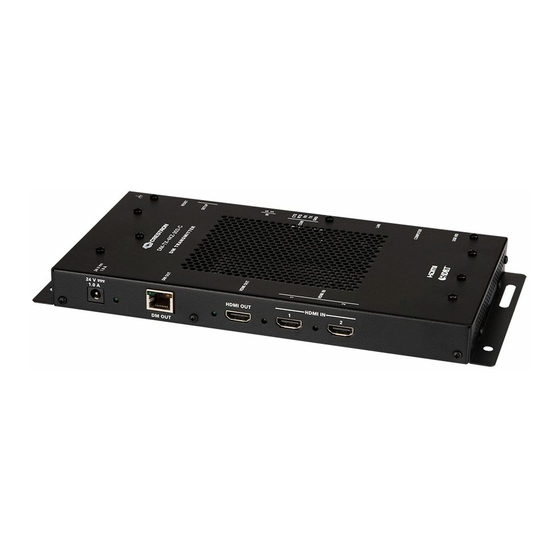

DM-TX-4KZ-202-C/DM-TX-4KZ-302-C
DigitalMedia 8G+ 4K60 4:4:4 HDR Transmitters
®
DO

Install the Device

The Crestron ® DM-TX-4KZ-202-C and DM-TX-4KZ-302-C can be mounted onto a flat surface or onto
a rack rail.
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat surface such as a wall or a
ceiling.
Mounting onto a Wall
Mounting onto a Rack Rail
The DM-TX-4KZ-202-C and DM-TX-4KZ-302-C mount onto the front or rear rail of a rack. Position
either the left or right mounting flange of the device so that the holes align with the holes in the rack.
Then, secure the device to the rack using two rack mounting screws (not included).
Mounting onto a Rack Rail
GUIDE
DO

Check the Box

QTY PRODUCT
1 Connector, 2-Pin
1 Connector, 5-Pin
1 Power Pack, 24 Vdc 1.25 A, 100-240 Vac
DO

Connect the Device

Connect the device as required for the application.
Connections, Left Side (DM-TX-4KZ-302-C Shown)
DM OUT:
24 V
To DM ® switcher,
1.0 A:
receiver, or other
From included
DM device or to
power pack
HDBaseT ® device
*DISPLAY PORT IN is available on the DM-TX-4KZ-302-C only.
Connections, Right Side
LAN:
COMPUTER: 10BASE-T/
100BASE-TX
To computer
or other USB Ethernet to
HID compliant local network
host device
USB HID:
To mouse/
keyboard or
other USB HID
compliant device
PART NUM.
2003574
2003577
2045870
HDMI IN 1–2:
From HDMI ®
audio/video
sources
HDMI OUT: DISPLAY
To HDMI PORT IN:
display DisplayPort digital
video/audio input*
COM: IR:
To To IR
RS-232 controllable
device device
Ground
