Summary of Contents for MDC JACKSON 2021

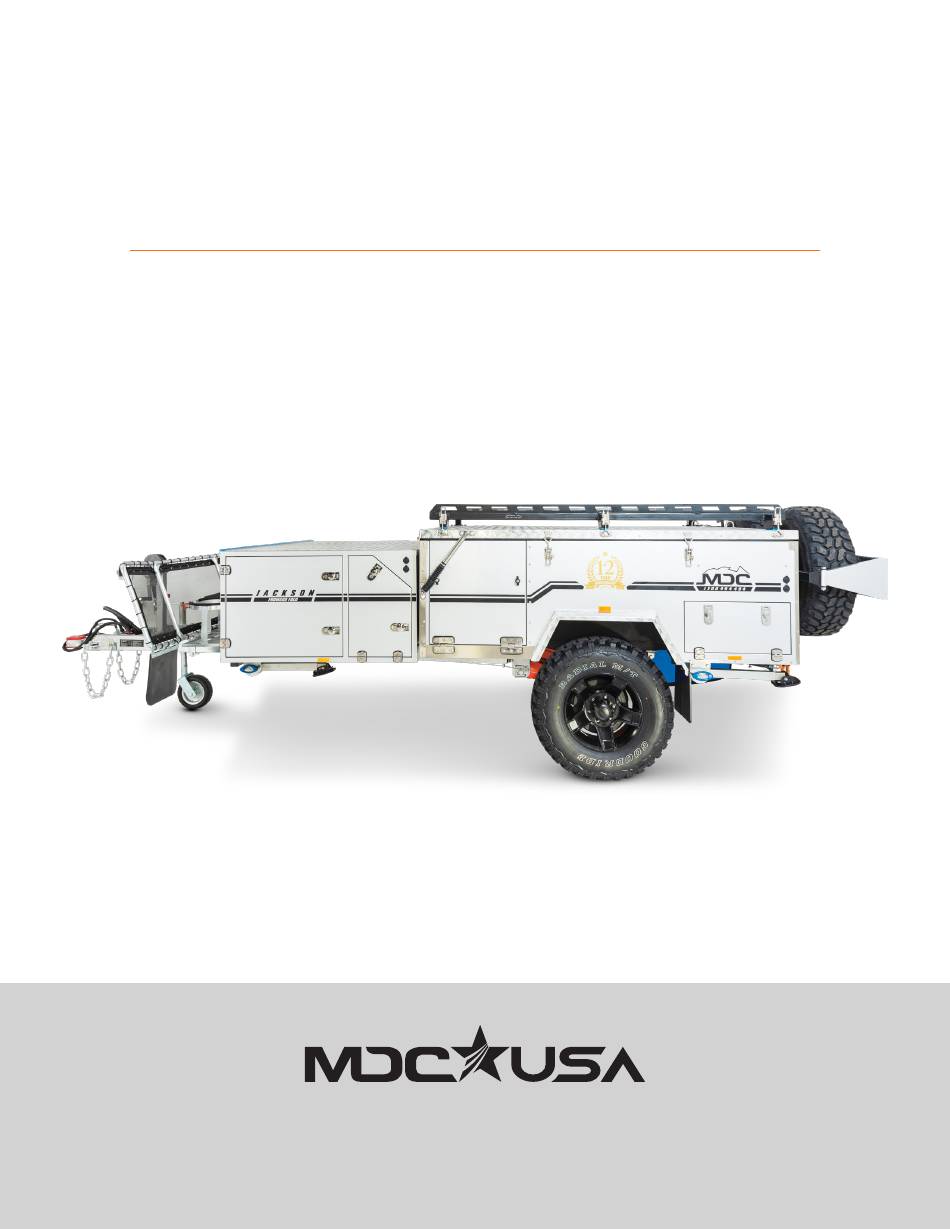

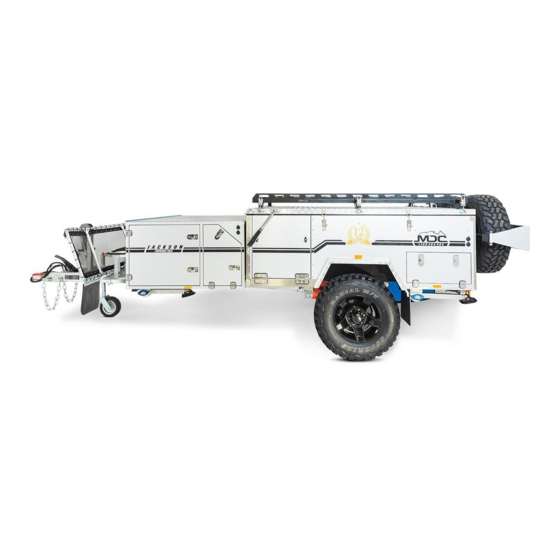

- Page 1 JACKSON FORWARD FOLD OVERLAND CAMPER TRAILER OWNER’S MANUAL U.S.A. EDITION: 2021 - Version 1 www.mdcusa.com * January 2020 AU Model shown. Phone: 833 632 8721 Copyright © MDC Caravans and Campers INC 2021 All Rights Reserved...
- Page 2 Your use of this Owner’s Manual does not constitute any right or license for you to use MDC’s or any other party’s service marks or trademarks, without the prior written permission of MDC or the applicable party.
- Page 3 TIRE SIZE: DEALER PH: DISCLAIMER: By receiving this handbook, you confirm there you have read and agree to all the terms and conditions and understood the use and maintenance care of MDC Campers and Caravans Inc. www.mdcusa.com Ph: 833 632 8721...
-
Page 4: Table Of Contents
Dangerous Gases ..............20 Terminology & Abbreviations ...........8 Trailer Specifications ............. 21 Tire Safety Information ............10 MDC Contact Details and Stores ......... 21 Steps for Determining Correct Load Limit - Using Your Trailer ..............22 Trailer ..................10 Instructional Videos ............22 Trailers 10,000 Pounds GVWR or less .... - Page 5 Wheels and Tires ..............37 Brakes ..................37 Brake Adjustment ............... 37 Brake Cleaning and Inspection ........37 Magnets .................. 38 Shoes and Linings ..............38 Bearings and Seals ............39 Suspension ................. 39 Handbrake ................. 39 Hitch ..................41 Ball Bearing Slides ............
-
Page 6: General Safety Information
MDC trailers are manufactured using many third party supplied products which have separate manuals. These manual must be read in conjunction with this document and all instructions followed. If your trailer does not have additional... -
Page 7: Reporting Safety Defects
If you believe that your vehicle has a defect that could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying MDC Caravans and Campers INC. -
Page 8: Terminology & Abbreviations
Terminology & Abbreviations Dry Weight: The total weight of the trailer (load on tires plus coupling load) with all options and fittings as supplied by the manufacturer, with empty water tanks, excluding fluids not essential for operation on public roads, and without luggage or personal effects. - Page 9 Toe can be measured in linear units, at the front or rear of the tire, or as an angular deflection. In the case of MDC products, the “toe in”...
-
Page 10: Tire Safety Information
Tire Safety Information This section of the User Manual contains tire safety information as required by 49 CFR 575.6. “Steps for Determining Correct Load Limit – Trailer” “Steps for Determining Correct Load Limit – Tow Vehicle” Section 2.3 has information from the NHTSA brochure titled “Tire Safety – Everything Rides On It” The following brochure information is contained: •... -
Page 11: Steps For Determining Correct Load Limit - Tow Vehicle
Steps for Determining Load Limit - TOW VEHICLE Locate the statement, “The combined weight of occupants and cargo should never exceed XXX lbs., ” on your vehicle’s placard. Determine the combined weight of the driver and passengers who will be riding in your vehicle. Subtract the combined weight of the driver and passengers from XXX kilograms or XXX pounds. -
Page 12: Understanding Tire Pressure And Load Limits
Understanding Tire Pressure and Load Limits Tire inflation pressure is the level of air in the tire that provides it with load-carrying capacity and affects the overall performance of the vehicle. The tire inflation pressure is a number that indicates the amount of air pressure–... -
Page 13: Tire Tread
Tire Tread The tire tread provides the gripping action and traction that prevent your vehicle from slipping or sliding, especially when the road is wet or icy. In general, tires are not safe and should be replaced when the tread is worn down to 1/16 of an inch. -
Page 14: Treadwear Number Utqgs Information
Next number This two-digit number, known as the aspect ratio, gives the tire’s ratio of height to width. Numbers of 70 or lower indicate a short sidewall for improved steering response and better overall handling on dry pavement. The “R” stands for radial. Radial ply construction of tires has been the industry standard for the past 20 years. Next number This two-digit number is the wheel or rim diameter in inches. -
Page 15: Additional Information On Light Truck Tires
Additional Information on Light Truck Tires Please refer to the following diagram. Tires for light trucks have other markings besides those found on the sidewalls of passenger tires. The “LT” indicates the tire is for light trucks or trailers. An “ST” is an indication the tire is for trailer use only. Max. -
Page 16: Tire Pressure Table
Tire Pressure Table Trailer Weight Pressure PSI Pressure KPA 3400lb/1550kg 37psi 256Kpa 3750lb/1700kg 39psi 272Kpa 3970lb/1800kg 42psi 288Kpa 4190lb/1900kg 44psi 304Kpa 4409lb/2000kg 46psi 320Kpa Propane Safety Appliances in your trailer are fueled with propane. Propane is heavier than air which will allow it to pool in some areas creating an explosion risk. -
Page 17: Propane Cylinder Safety
Propane Cylinder Safety • Propane Gas cylinders have a 12-year lifespan between inspection and re-certification. Always use gas cylinders that are within their compliance date. • For drawbar mounted cylinders (if applicable), orient the cylinder relief valves of both cylinders discharge away from both the trailer and towing vehicle as shown. -
Page 18: Electrical Safety
Electrical Safety WARNING Failure To Follow These Instructions May Result In Death Or Serious Injury! • When working with electrical equipment or lead acid batteries, have someone nearby in case of an emergency. • Study and follow all the manufacturer’s specific precautions when using and servicing the battery and connected appliances. -
Page 19: General Safety
General Safety Brakes WARNING Your trailer brakes must be maintained and adjusted to operate correctly at all times. Failure to maintain and adjust brakes as outlined in the maintenance schedule may result in a failure causing death or serious injury. Brake Controller Your trailer is fitted with drum type electric brakes. -
Page 20: Jacking Your Trailer
Jacking Your Trailer Your trailer is fitted with purpose built jacking points and from January 2021 supplied with a suitable jack. An appropriately rated bottle jack is an acceptable alternative, however when using the jacking point beneath the trailing arm ensure the jack is of a retracted height that will fit under the jacking point when the tire is deflated. A suitably rated “High Lift”... -
Page 21: Trailer Specifications
16oz Sherpa Close weave canvas with double stitching WINDOWS Zipper with Mosquito netting MATTRESS Queen Size POLES Galvanized steel pole MDC Contact Details and Stores CALIFORNIA ARIZONA Los Angeles 3908 East Broadway Rd. 8420 Kass Dr. Suite 100 Phoenix, AZ 85040... -
Page 22: Using Your Trailer
Using Your Trailer NOTICE Instructions below are for your safety and the avoidance of accidental damage to the trailer through misuse. Follow all directions given in this manual and the manuals for third party products installed. The manufacturer has produced product specific video content for tutorial purposes, to assist in the correct setup and use. -
Page 23: Connecting To The Tow Vehicle
Connecting to the Tow Vehicle WARNING WARNING – Your coupler MUST be rated for the Gross Vehicle Weight and be in serviceable condition. • The hitch MUST be correctly load rated. • Hitch and pin MUST be compatible. • All bolts and fittings must be correctly tightened and serviceable condition. -
Page 24: Trailers Fitted With Do35
Trailers Fitted with DO35 Connecting the Hitch Here is a short guide on how to safely use your coupling to couple and uncouple the trailer from the towing vehicle. Make sure the handbrake is applied prior to coupling and uncoupling. www.mdcusa.com Ph: 833 632 8721... - Page 25 Make sure the dust cap is securely connected to the bump cover. This is done by locating the rear lip on the dust cap onto the groove of the bump cover and then pushing it in a downward motion until the dust cover is secure (there should be a slight click when it has been assembled correctly) Test if the dust cover is connected to the bump cover by applying a slight upward force to the dust cover, it shouldn’t separate.
- Page 26 Coupling STEP 1 Push down the button (1) and push the locking mechanism back (2). When the locking mechanism (2) is all the way back, release the button (1) locking the plate in place STEP 2 Offer up the tow pin to the coupling making sure the tow pin cover is removed and there is no visible debris on it. Locking plate should be in unlocked position as shown.
- Page 27 STEP 3 Make sure the tow pin is seated inside the universal and the tow pin top is sticking out of the locking mechanism (see below). Press the button (1) to release the locking mechanism there will be an audible locking noise at which point the mechanism will return to the initial position as shown in step 1.
- Page 28 Uncoupling STEP 1 Push down the button 1 and push the locking mechanism back 2. When the locking mechanism is all the way back release the button while holding the mechanism to ensure it does not spring back to the locked position. STEP 2 Lift the coupling up off the tow pin.
-
Page 29: Connecting The Wiring
Connecting Wiring When connecting ensure the electric cables to your tow vehicle cannot drag on the road or foul the coupling. If necessary, use zip ties or like keep them neat and safe from damage. Connecting the Safety Chains Chains should be crossed over and connected with suitable rated shackles. Ensure they are connected in a way to prevent them dragging on the road but not too tight as to restrict the articulation of the vehicle and trailer combination. -
Page 30: Loading Your Trailer
Loading Your Trailer Loading your trailer can have an effect on the overall handling of the trailer and tow vehicle combination. Loading affects ball mass and balance which must be taken into consideration. • DO NOT exceed the Gross Vehicle Weight Rating (GVWR) •... -
Page 31: Operating Trailer Features
Operating Trailer Features This sections covers details on using the common features on your trailer correctly. Stabilizer Legs The stabilizer legs are fitted to make the trailer stable when occupied. Important things to not are: • Always try to set the stabilizers up in a vertical position, 90 degrees to the chassis as shown in figure below. -
Page 32: 12 Volt Electrical System
12 Volt Electrical System Control Panel Connecting Shore Power Main Rotary Switch: This is used to switch on or isolate the entire 12 volt system. Circuit Breakers: The round rubber capped Circuit breakers are resettable. To reset the circuit push in the rubber cap. Each circuit breaker is marked with applicable circuit. -
Page 33: Towing Your Trailer
Towing Your Trailer Driving dynamics change considerably when towing a trailer. Many facets of driving need to be modified when towing for your safety and that of other road users. Important points you must know, understand, and adhere to are: •... -
Page 34: Correct Wiring Of Tow Vehicle
Correct Wiring of Tow Vehicle Vehicle with or without smart alternator: The Anderson plug can be connected to the tow vehicle start battery on the vehicle and should include the following to protect the start battery. 50 amp relay to stop power supply when vehicle is not running. 50 amp fuse or circuit breaker at the battery www.mdcusa.com Ph: 833 632 8721... -
Page 35: Choosing A Camp Site
Choosing a Camp Site When choosing a campsite always consider the following: • Choose a flat even area when possible. • Never camp under trees with a risk of branches falling. • Camping in shade will reduce the performance of solar power charging. •... -
Page 36: Care And Maintenance Of The Trailer
Care and Maintenance of the Trailer Protection of Finishes Paint The paint coatings on your trailer are no different to that of your car in that they need regular care and maintenance. Rubber seals and applied sealants on trailers can shed polymers and pigments that can stain paint finishes if your trailer isn’t washed regularly. -
Page 37: Trailer Body Maintenance
Trailer Body Maintenance Locks and Latches Locks need regular maintenance to ensure they operate correctly and stay free from corrosion. Diligent use of WD40 or Inox will help in this regard. Both locks and latches need to be checked for adjustment to ensure correct seal compression. -
Page 38: Magnets
It is important to replace both shoes on each brake and both brakes of the same axle. This is necessary to retain the “balance” of your brakes. Be sure to replace your shoes only with genuine MDC parts available from our outlets. -
Page 39: Bearings And Seals
Bearings and Seals The Timken bearings in your trailer are protected with a rubber seal on the rear of the drum and a friction fit bearing cap on the front. Under normal use without encountering water crossings these should be services every 3000 miles. Suspension Suspension maintenance should be done as per the schedule contained in this booklet. -
Page 40: Hitch
Adjuster Early Models To adjust the handbrake cable tension release locknuts A, B and C in the diagram Handbrake Adjuster 1 below. To tighten the handbrake cable, turn the adjuster wheel D in a clockwise direction. Once adjusted re-tighten lock nuts and test. -
Page 41: Ball Bearing Slides
Waste Holding Tank: The recommended product for the waste holding tank on Thetford toilet systems is Aqua Kem Blue or Aqua Kem Green for better environmental performance. Flush Water Tank: Only suitable for MDC models that have a toilet flush tank. Thetford recommend “Aqua Rinse”... -
Page 42: Schematics & Part Numbers
14mm Wheels Stud YHJL110 14mm Wheel Nut YZCQ029 M38 Castle Nut M38 Metric LGPJ002 90mm Bearing Dust Cap (3 ”) MDC Specific CSWH001 Wheel Bearing (Timken) 25590 Bearing Race (Timken) 25520 Bearing Seal Metric 55 x 85 x 12mm 2 ¹¹/ ”... -
Page 43: Electrical Diagram
Electrical Diagram www.mdcusa.com Ph: 833 632 8721... -
Page 44: Hub Assembly
Hub Assembly www.mdcusa.com Ph: 833 632 8721... -
Page 45: Trailing Arms And Bushes
Trailing Arms and Bushes www.mdcusa.com Ph: 833 632 8721... -
Page 46: Service Record And Schedule
Service Record and Schedule 300 miles FIRST SERVICE CHECKED Hitch Check hitch bolts to 90Nm/66ft lb Lubricate Handbrake Inspect and adjust handbrake. Inspect and adjust brakes. Check bearings are greased, and crown nut is Brakes & Bearings correctly tightened Wheel nuts Inspect condition and torque to (125Nm/92ft lb ½”... - Page 47 Every 6 MONTHS / 3000 miles SERVICE CHECKED Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Handbrake Check cable and adjust if necessary Hand winch Check brake function and webbing Torque bolts to 190Nm/140ft lb Grease bushes and check for play. Check retaining chain shackles tight.
- Page 48 12 MONTHS / 6000 miles SERVICE CHECKED Chassis and Suspension Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Jockey Wheel Inspect for condition and operation Check for correct operation. Breakaway Inspect lanyard and clip. Drawbar Inspect wiring grommets and general condition Torque bolts to 190Nm/140ft lb Grease bushes and check for play.
- Page 49 110 volt Electrical GFI Unit Check operation of GFI Safety Switch via test button Mains Input Inspect 110v input plug and cover are free of damage Earthing Carry out resistance check Trailer Body Hatches & Doors Check and lubricate locks Check condition and correct latch/ lock adjustment for correct 30-50% Seals compression.
- Page 50 18 MONTHS / 9000 miles SERVICE CHECKED Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Handbrake Check cable and adjust if necessary Hand winch Check brake function and webbing Torque bolts to 190Nm/140ft lb Grease bushes and check for play. Check retaining chain shackles tight.
- Page 51 24 MONTHS / 12,000 miles SERVICE CHECKED Chassis and Suspension Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Jockey Wheel Inspect for condition and operation Check for correct operation. Breakaway Inspect lanyard and clip. Drawbar Inspect wiring grommets and general condition Torque bolts to 190Nm/140ft lb Grease bushes and check for play.
- Page 52 110 volt Electrical GFI Unit Check operation of GFI Safety Switch via test button Mains Input Inspect 110v input plug and cover are free of damage Earthing Carry out resistance check Trailer Body Hatches & Doors Check and lubricate locks Check condition and correct latch/ lock adjustment for correct 30-50% Seals compression.
- Page 53 30 MONTHS / 15,000 miles SERVICE CHECKED Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Handbrake Check cable and adjust if necessary Hand winch Check brake function and webbing Torque bolts to 190Nm/140ft lb Grease bushes and check for play. Check retaining chain shackles tight.
- Page 54 36 MONTHS / 18,000 miles SERVICE CHECKED Chassis and Suspension Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Jockey Wheel Inspect for condition and operation Check for correct operation. Breakaway Inspect lanyard and clip. Drawbar Inspect wiring grommets and general condition Torque bolts to 190Nm/140ft lb Grease bushes and check for play.
- Page 55 110 volt Electrical GFI Unit Check operation of GFI Safety Switch via test button Mains Input Inspect 110v input plug and cover are free of damage Earthing Carry out resistance check Trailer Body Hatches & Doors Check and lubricate locks Check condition and correct latch/ lock adjustment for correct 30-50% Seals compression.
- Page 56 42 MONTHS / 21,000 miles SERVICE CHECKED Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Handbrake Check cable and adjust if necessary Hand winch Check brake function and webbing Torque bolts to 190Nm/140ft lb Grease bushes and check for play. Check retaining chain shackles tight.
- Page 57 48 MONTHS / 24,000 miles SERVICE CHECKED Chassis and Suspension Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Jockey Wheel Inspect for condition and operation Check for correct operation. Breakaway Inspect lanyard and clip. Drawbar Inspect wiring grommets and general condition Torque bolts to 190Nm/140ft lb Grease bushes and check for play.
- Page 58 110 volt Electrical GFI Unit Check operation of GFI Safety Switch via test button Mains Input Inspect 110v input plug and cover are free of damage Earthing Carry out resistance check Trailer Body Hatches & Doors Check and lubricate locks Check condition and correct latch/ lock adjustment for correct 30-50% Seals compression.
- Page 59 54 MONTHS / 27,000 miles SERVICE CHECKED Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Handbrake Check cable and adjust if necessary Hand winch Check brake function and webbing Torque bolts to 190Nm/140ft lb Grease bushes and check for play. Check retaining chain shackles tight.
- Page 60 60 MONTHS / 30,000 miles SERVICE CHECKED Chassis and Suspension Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Jockey Wheel Inspect for condition and operation Check for correct operation. Breakaway Inspect lanyard and clip. Drawbar Inspect wiring grommets and general condition Torque bolts to 190Nm/140ft lb Grease bushes and check for play.
- Page 61 110 volt Electrical GFI Unit Check operation of GFI Safety Switch via test button Mains Input Inspect 110v input plug and cover are free of damage Earthing Carry out resistance check Trailer Body Hatches & Doors Check and lubricate locks Check condition and correct latch/ lock adjustment for correct 30-50% Seals compression.
- Page 62 66 MONTHS / 33,000 miles SERVICE CHECKED Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Handbrake Check cable and adjust if necessary Hand winch Check brake function and webbing Torque bolts to 190Nm/140ft lb Grease bushes and check for play. Check retaining chain shackles tight.
- Page 63 72 MONTHS / 36,000 miles SERVICE CHECKED Chassis and Suspension Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Jockey Wheel Inspect for condition and operation Check for correct operation. Breakaway Inspect lanyard and clip. Drawbar Inspect wiring grommets and general condition Torque bolts to 190Nm/140ft lb Grease bushes and check for play.
- Page 64 110 volt Electrical GFI Unit Check operation of GFI Safety Switch via test button Mains Input Inspect 110v input plug and cover are free of damage Earthing Carry out resistance check Trailer Body Hatches & Doors Check and lubricate locks Check condition and correct latch/ lock adjustment for correct 30-50% Seals compression.
- Page 65 78 MONTHS / 39,000 miles SERVICE CHECKED Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Handbrake Check cable and adjust if necessary Hand winch Check brake function and webbing Torque bolts to 190Nm/140ft lb Grease bushes and check for play. Check retaining chain shackles tight.
- Page 66 84 MONTHS / 42,000 miles SERVICE CHECKED Chassis and Suspension Check hitch bolts to 90Nm/66ft lb Hitch Lubricate Jockey Wheel Inspect for condition and operation Check for correct operation. Breakaway Inspect lanyard and clip. Drawbar Inspect wiring grommets and general condition Torque bolts to 190Nm/140ft lb Grease bushes and check for play.
- Page 67 110 volt Electrical GFI Unit Check operation of GFI Safety Switch via test button Mains Input Inspect 110v input plug and cover are free of damage Earthing Carry out resistance check Trailer Body Hatches & Doors Check and lubricate locks Check condition and correct latch/ lock adjustment for correct 30-50% Seals compression.
-
Page 68: Travel Record
Travel Record Your camper trailer service record booklet and logbook will help you keep track of miles travels and service records. Trip Name Date Miles Start Miles Finish Cumulative Miles www.mdcusa.com Ph: 833 632 8721... - Page 69 Trip Name Date Miles Start Miles Finish Cumulative Miles www.mdcusa.com Ph: 833 632 8721...
-
Page 70: Warranty Policy
Notwithstanding the foregoing or anything herein to the contrary, you are advised that certain states may provide you with different or additional rights OR REMEDIES with respect to your purchase of any Product from MDC. As such, these Limited Warranties, and any disclaimer or limitation stated herein, are subject to ANY APPLICABLE STATE OR FEDERAL LAW AND SHALL APPLY ONLY TO the maximum extent permitted by applicable law. - Page 71 LIMITED WARRANTY FOR TENTS Tents are guaranteed by MDC to be in new condition and without flaws or defects at the time of purchase by you, general wear and tear excepted and excluding any other Limited Warranty exclusion as set forth herein.
- Page 72 FACTORY SECONDS, EX-DEMONSTRATION AND DAMAGED GOODS From time to time, MDC may offer for sale items deemed to be “factory seconds”, “ex-demonstration”, “used” or “damaged”. Products sold as “factory seconds”, “ex-demonstration” or “damaged” items are sold on an “as is” basis without any warranty of any kind.
- Page 73 To the maximum extent permitted by applicable law and unless specifically stated in writing at the time of auction, any Products sold at auction by or on behalf of MDC shall carry no warranty, whether express, implied or statutory, and shall be sold “as is.”...
