T2CVK33F10 and T2CVK33F10Q: Configuration of CDVI A22K/A22NB/ADH10 Boards
1. Fasten spacers (supplied with A22K/A22NB/ADH10) to CDVI A22K/A22NB/ADH10 board (Fig. 4b, pg. 5).
2. Mount CDVI A22K/A22NB/ADH10 boards into the correct positions (Fig. 4, pg. 5) by postioning spacers over appropriate holes
on the backplane and depressing down on board to secure spacer to the backplane (Fig. 4a, 4b, pg. 5).
Note: CDVI A22K/A22NB/ADH10 boards have one (1) RJ45 jack each.
Please make sure that they are mounted correctly, as shown in Fig. 4 below.
3. Fasten backplane to Trove2 enclosure utilizing pan head screws (provided).

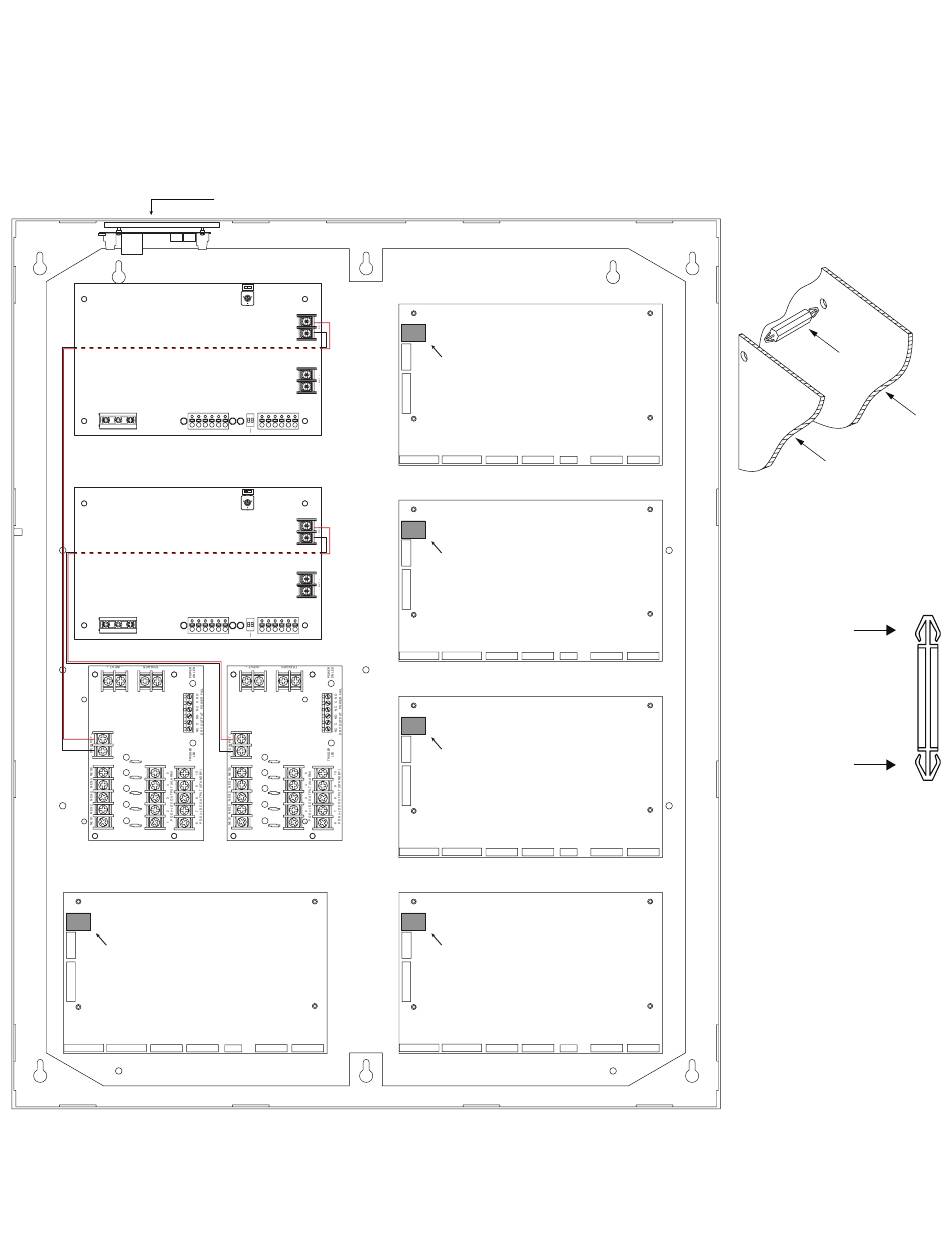

Fig. 4
Altronix - eFlow6NB
AC1
L G N
Altronix - eFlow6NB
AC1
L G N
Altronix
MOM5
RJ45 Jack
CDVI - A22K/A22NB/ADH10
Trove CDVI Kits Installation Guide
LINQ2 Module (T2CVK33F10Q)
OFF - 24V
ON - 12V
AC DC
NC C NO NC C NO
TRIGGER EOL NO GND +AUX-
AC FAIL BAT FAIL SUPERVISED RESET
OFF - 24V
ON - 12V
AC DC
NC C NO NC C NO TRIGGER EOL NO GND
+AUX-
AC FAIL BAT FAIL SUPERVISED RESET
Altronix
MOM5
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
Fig. 4a
Spacer
Backplane
CDVI - A22K/A22NB/ADH10
Access Controller
Fig. 4b
Plastic Spacer
pre-mounted into
CDVI Atrium modules
Insert into
TCV2 backplane
