Insertion-Type Electromagnetic Probe Flowmeter
AquaProbe 2
2.3.2 Transmitter
170mm
(6.7in)
Allowance for cable
bend
130mm (Standard)
200mm (Armoured)

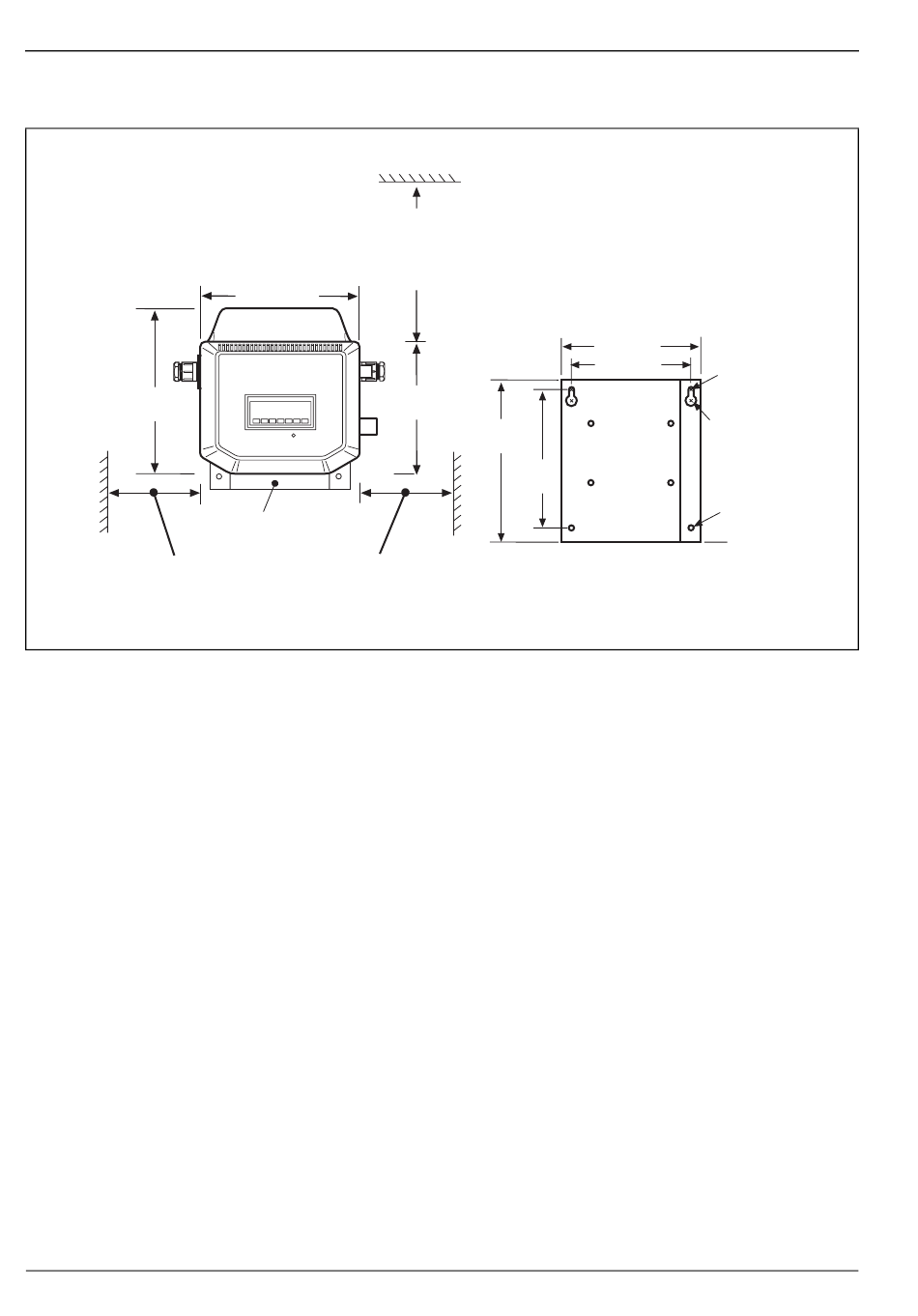

Fig. 2.8 Clearance Dimensions – Transmitter
10
Installation and
wiring access
300mm min.
170mm
(6.7in)
AquaMaster
Transmitter Mounting
Plate
Allowance for cable
bend
130mm (Standard)
200mm (Armoured)
450mm
preferred
140mm
(5.5in)
170
mm
150
mm
Transmitter Mounting Plate
2 Mechanical Installation
146.0mm
125.0mm
ø6.0mm
ø12mm
ø6.0mm
Details
IM/AP
Issue 9
