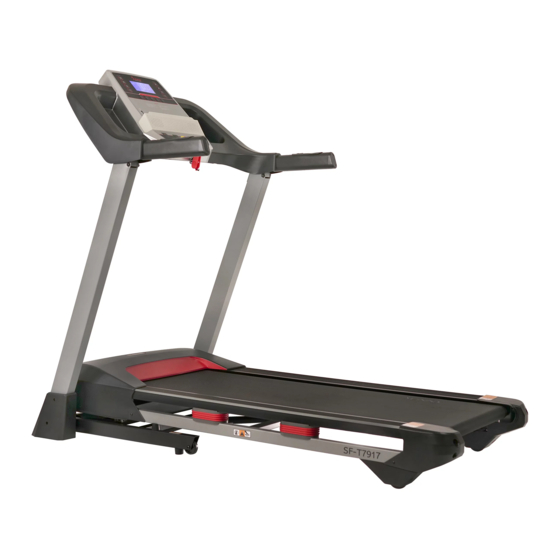

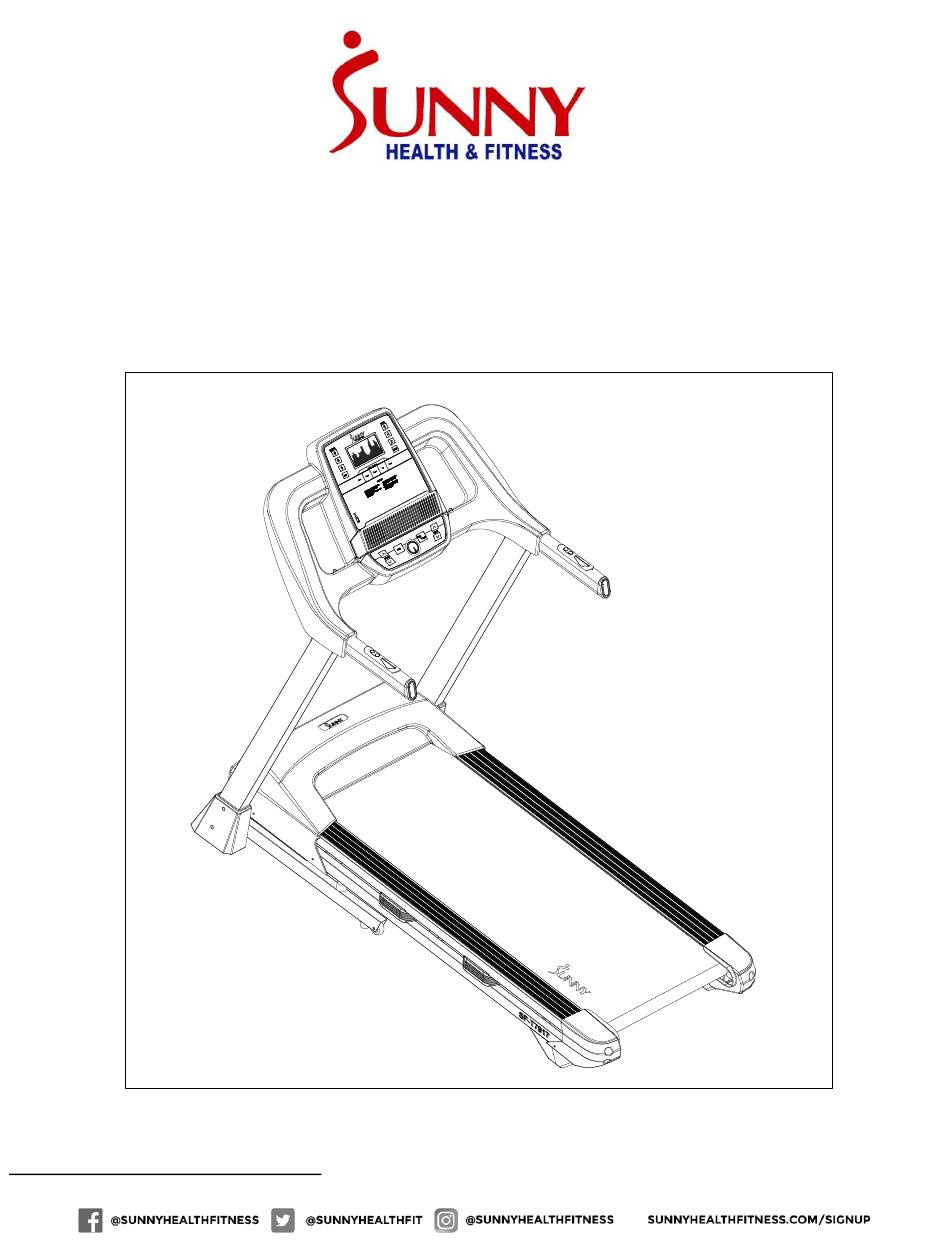

- Page 1 PERFORMANCE TREADMILL SF-T7917 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. DANGER – To reduce the risk of electrical shock: 1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING –... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 4: Important Note
IMPORTANT OPERATING INSTRUCTION 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the main console. The speed will increase gradually. 4. -
Page 5: Exploded Diagram
EXPLODED DIAGRAM... -
Page 6: Parts List
PARTS LIST Description Specification Description Specification Φ7*Φ10.5*350 Main Frame Pipe Base Frame Switch Φ30*Φ20*t10 Incline Frame Reed Switch Left Upright Tube Model Decal 100*38*1.0 Right Upright Tube Screen Ornament Decal Computer Bracket Keyboard Ornament Decal Front Roller Adhesive Tape 23*32*t1.0 Rear Roller Cured End Cap 30*60*15... -
Page 7: Hardware Package
Description Specification Description Specification Communication Middle Φ8.4*Φ16*t1.6 Washer 450mm Wire Communication Lower Φ6.4*Φ12*t1.6 Washer 1700mm Wire Φ8.1*Φ12.3*t2.1 Spring Washer Single Branch Wire 300mm Φ8.4*Φ15*t0.8 Internal Tooth Lock Washer Single Branch Wire 300mm Φ4.3*Φ8*t0.5 Internal Tooth Lock Washer Ground Lead Wire 600mm Washer M4*25... - Page 8 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1: Move out the treadmill and put it on the ground gently. As indicated by the arrow, put up the Left &...
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 3: #77 ST4.2*10 4PCS Attach the Left & Right Post #112 13*16 1PC Covers (No. 63 & No. 64) to the Left &...
-
Page 10: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the treadmill clean and maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No. 9) to prevent dust from accumulating underneath the Running Belt (No. 9). Keep your running shoes clean so that dirt from your shoes do not wear out the Running Board (No. - Page 11 LUBRICATING THE TREADMILL IMPORTANT NOTE: This treadmill does come pre-lubricated, but it is recommended to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the Running Board (No. 10) and Running Belt (No. 9) is essential as the friction between the two affects the life span and function of the treadmill, therefore it is suggested that the Running Board (No.
-
Page 12: Folding Instructions
FOLDING INSTRUCTIONS FOLDING: Before folding the treadmill, ensure that the incline is zero. Place your hand at position ―D‖ and lift the Main Frame (No. 1) up until the Air Pressure Cylinder (No. 31) ―C‖ locks into the tube. When Pressure Cylinder (No. - Page 13 HOW TO MOVE THE TREADMILL Before attempting to move the treadmill, please make sure that it has been properly folded. Unplug the power cord. To tilt, start by placing your hands at the handlebars of Computer Bracket (No. 6) to support the top end of the treadmill. Next, place one foot at position ―B‖...
-
Page 14: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the treadmill. Any power source above or below this level could cause significant damage to the equipment and or user. -
Page 15: The Display Console
THE DISPLAY CONSOLE INCLINE SPEED CAUTION Do not touch any moving part of this If you feel uncomfortable at any time treadmill. Use as directed in the during exercise, stop using the manual. treadmill immediately. Minors, and patients with heart or Keep children away from the treadmill lung disease are prohibited from during operation. -
Page 16: Button Function
BUTTON FUNCTION START: Press this button to start the treadmill at an initial speed. STOP/PAUSE: This button has functions of PAUSE and STOP. When in use, press this button once to PAUSE your workout and the current workout data will still be shown. Press STOP again to end your workout session and all data will be deleted and reset to the initial setting. - Page 17 INTERVAL PROGRAMS (P1-P15): Press the ―PRG‖ button to select between program 1-15. The ―time‖ will flash. Press ―SPEED ∧/∨‖ or ―INCLINE ∧/∨‖ to set the workout time. Press ―START‖ button to start the program. Press ―SPEED ∧/∨‖ to change the speed during each section. Press ―INCLINE ∧/∨‖...
-
Page 18: Body Mass Index
CUSTOMIZED PROGRAM (U1-U3): The 3 customized programs allow the user to set their own program that can be used immediately. Setting of customized program: In standby mode, press PRG to the required customized program (U1~ U3); The ―time‖ will flash, press SPEED ∧/∨, INCLINE ∧/∨... -
Page 19: Bluetooth Audio Function
PULSE MEASUREMENT FUNCTION: While the treadmill is on, hold the pulse sensor for 5 seconds and the heart rate value will be displayed. The initial value is the actually measured heart rate, and the display range is 50-200 BPM. In the heartbeat measurement process, there will be a heart shaped icon flashing. -
Page 20: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Put the safety key back. Change the safety key switch or ----------- The safety key falls off. sensor. If it still doesn’t work, change the computer. Change communication wire. Inverter communication error. Change inverter\transformer. Check if motor wire was inserted well.
