Viessmann VITOCELL 100-B Service Instructions Manual

Vitocell 100-b type cvba dual mode dhw cylinder with solar-divicon vitocell 100-w type cvba dual mode dhw cylinder with solar-divicon
Hide thumbs Also See for VITOCELL 100-B:
Table of Contents

Advertisement

Quick Links

See also: Technical Manual , Instruction and Service Manual

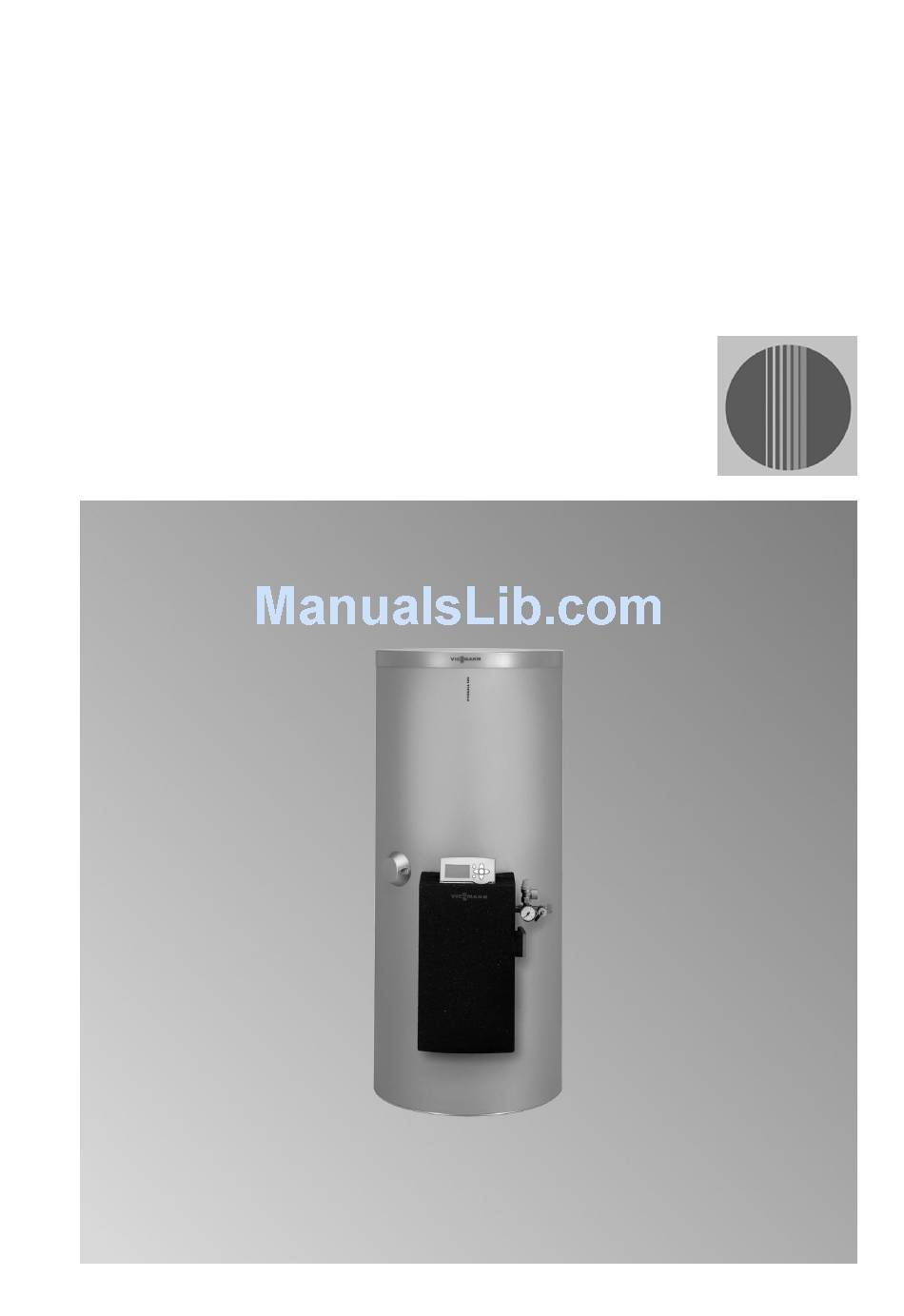

VIESMANN
Service instructions
for contractors
Vitocell 100-B
Type CVBA
Dual mode DHW cylinder with Solar-Divicon
Vitocell 100-W
Type CVBA
Dual mode DHW cylinder with Solar-Divicon
For applicability, see the last page
VITOCELL 100-B
VITOCELL 100-W
Please keep safe.
5671 666 GB
9/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VITOCELL 100-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viessmann VITOCELL 100-B

Summary of Contents for Viessmann VITOCELL 100-B

  • Page 1 VIESMANN Service instructions for contractors Vitocell 100-B Type CVBA Dual mode DHW cylinder with Solar-Divicon Vitocell 100-W Type CVBA Dual mode DHW cylinder with Solar-Divicon For applicability, see the last page VITOCELL 100-B VITOCELL 100-W Please keep safe. 5671 666 GB...

  • Page 2: Safety Instructions

    Safety instructions Safety instructions Please follow these safety instructions closely to prevent accidents and mate- rial losses. Safety instructions explained ■ all current safety regulations as defined by DIN, EN, DVGW, TRGI, Danger TRF, VDE and all locally applicable This symbol warns against the standards, risk of injury.
  • Page 3 ■ When using gas as fuel, also close the For replacements, use only orig- main gas shut-off valve and safeguard inal spare parts from Viessmann against unauthorised reopening. or those which are approved by ■ Isolate the system from the power sup- Viessmann.

  • Page 4: Table Of Contents

    Index Index Commissioning, inspection, maintenance Steps - commissioning, inspection and maintenance.......... Further details regarding the individual steps............Parts lists With solar control module, type SM1..............12 With Vitosolic 100, type SD1................13 Commissioning/service reports................ 16 Specification....................... 17 Certificates Declaration of conformity..................19...

  • Page 5: Commissioning, Inspection, Maintenance

    Commissioning, inspection, maintenance Steps - commissioning, inspection and maintenance For further information regarding the individual steps, see the page indicated Commissioning steps Inspection steps Maintenance steps Page • • • 1. Control principles............• 2. Filling the DHW cylinder..........• •...

  • Page 6: Further Details Regarding The Individual Steps

    Commissioning, inspection, maintenance Further details regarding the individual steps Control principles Ball valve positions Setting the flow rate on the solar side Ball valve in the solar heating water flow In the case of a 3-stage circulation pump: and in the solar heating water return Adjustment via the flow meter at the within Solar-Divicon: solar heating water return.

  • Page 7: Inspection And Maintenance

    Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) Inspection and maintenance DIN 1988 requires a visual inspection Note and (if required) cleaning no later than We additionally recommend an annual two years after the cylinder has been visual inspection of the magnesium commissioned and thereafter according anode (see page 9).
  • Page 8 Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) 1. Drain the DHW cylinder from the DHW side. Please note Material losses may result from draining with a vacuum pump when the air vent valve is closed. Open the air vent valve during draining.

  • Page 9: Checking And Replacing The Magnesium Anode (If Required)

    Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) 5. Use a chemical cleaning agent to remove hard deposits that cannot be removed by a high pressure cleaner. Please note Cleaning agents containing hydrochloric acid attack the material of the DHW cylinder. Never use such cleaning agents.

  • Page 10: Returning The Dhw Cylinder Into Use

    Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) Returning the DHW cylinder into use 1. Reconnect the DHW cylinder to the pipework. 2. Insert new gasket G underneath flange lid E. 3. Mount flange lid E with earth cable C and tighten the screws with a maximum torque of 25 Nm.
  • Page 11 Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) 5. Adjust the Vitosolic 100 to suit the respective pump. Vitosolic 100/solar control module installation and serv- ice instructions...

  • Page 12: Parts Lists

    Parts lists With solar control module, type SM1 0001 Adjustable foot 0027 Solar circuit pump connection line 0002 Outer jacket l = 800 mm 0003 Type plate 0028 Power cable l = 4500 mm 0004 Edge profile closure, internal 0029 Collector temperature sensor 0005 Edge profile closure, external 0006 Fixing part 0030 Cylinder temperature sensor NTC...

  • Page 13: With Vitosolic 100, Type Sd1

    Parts lists With solar control module, type SM1 (cont.) 0031 0033 0035 0036 0034 0037 0036 0035 0005 0002 0004 0041 0038 0003 0040 0042 0006 0012 0039 0018 0011 0019 0013 0020 0014 0007 0015 0010 0026 0017 0022 0045 0001 0021...
  • Page 14 Parts lists With Vitosolic 100, type SD1 (cont.) 0021 Gasket R ½ mixer 0035 Cast rod anode 0022 Strain relief 0036 Gasket 0023 Support with fixing part 0037 Sensor retainer 0024 Threaded elbow, solar return 0038 Plug 0025 Vitosolic 100, type SD1 0039 Solar expansion vessel 18 l, 0026 Fixing part 10 bar...
  • Page 15 Parts lists With Vitosolic 100, type SD1 (cont.) 0031 0033 0035 0036 0034 0037 0036 0035 0005 0002 0041 0038 0004 0040 0003 0026 0011 0042 0039 0010 0013 0012 0007 0018 0021 0043 0006 0015 0046 0020 0045 0017 0008 0001 0009...

  • Page 16: Commissioning/Service Reports

    Commissioning/service reports Commissioning/service reports Commissioning Service Service date: Service Service Service date: Service Service Service date: Service Service Service date: Service Service Service date:...

  • Page 17: Specification

    Specification Specification Product characteristics Cylinder capacity kWh/24 h 0.89 Standby heat loss at 45 K temperature differential (volume standby section) (volume solar section) Specification in the case of a 3-stage circulation pump Grundfos circulation pump 15–65 Rated voltage Power consumption at ■...
  • Page 18 Specification Specification (cont.) ■ min. ■ max. Flow indicator l/min 2 to 15 Safety valve (solar) Max. operating temperature °C Max. operating pressure Pump curve, HE circulation pump Pump rate in m³/h A Pressure drop curve D Max. output B Residual head E Output in filling mode C Min.

  • Page 19: Certificates

    Certificates Declaration of conformity We, Viessmann Werke GmbH & Co KG, D-35107 Allendorf, declare as sole respon- sible body, that the following product complies with the standards specified: Vitocell 100-B, type CVBA Vitocell 100-W, type CVBA DIN 4753 AD2000 regulations...
  • Page 20 Serial No.: 7511135 7511136 7511137 7511138 7511139 7511140 7511141 7511142 Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040...
