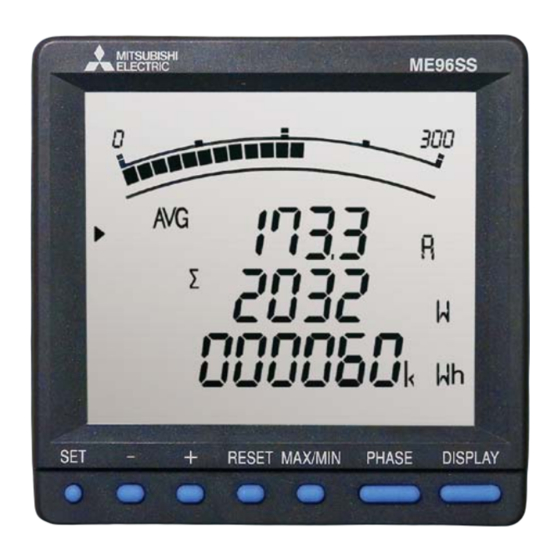

MITSUBISHI ELECTRONIC MULTI-MEASURING INSTRUMENT
MODEL
ME96SS

Advertisement

loading

Related Manuals for Mitsubishi Electric SS Series

Summary of Contents for Mitsubishi Electric SS Series

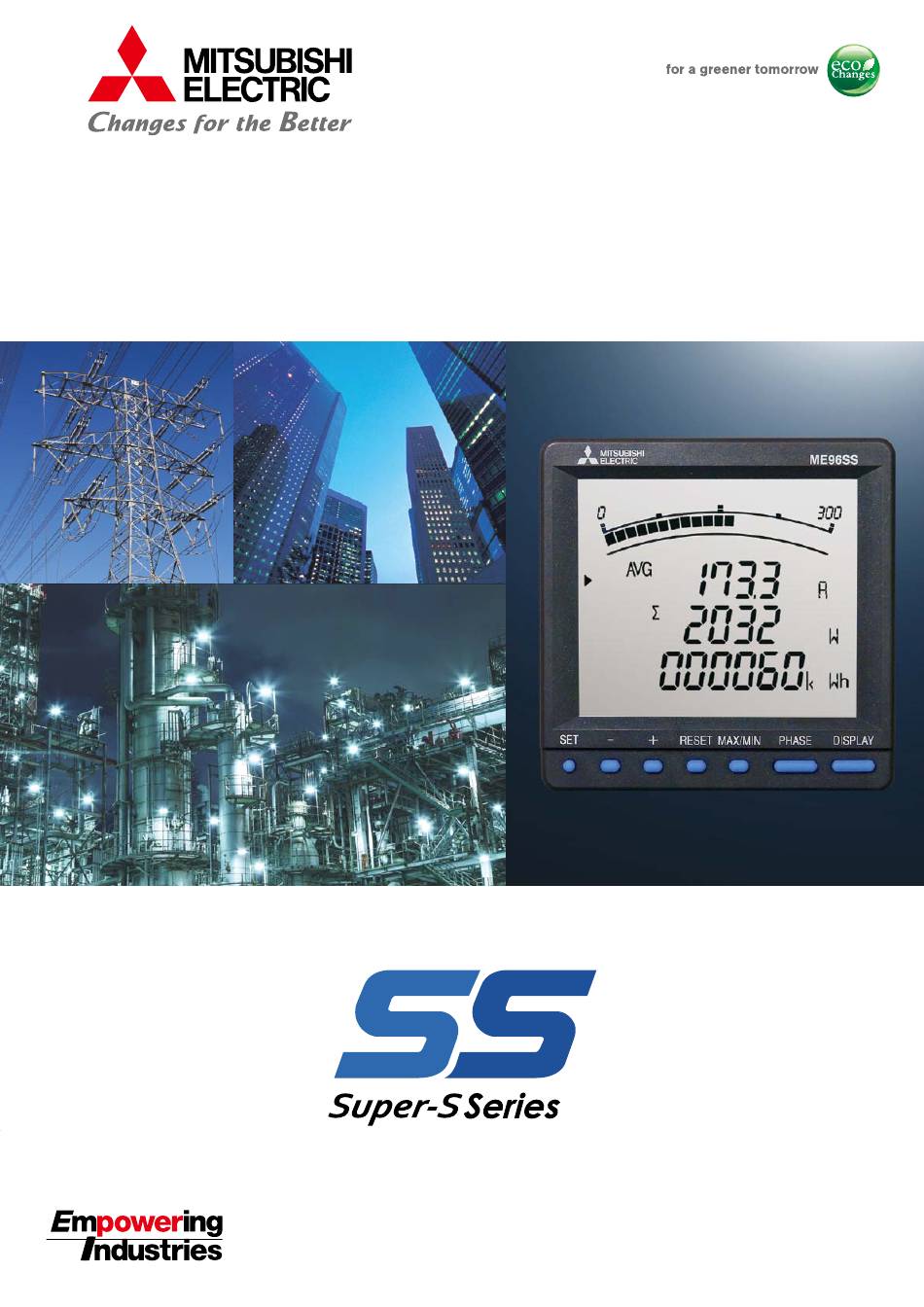

  • Page 1 MITSUBISHI ELECTRONIC MULTI-MEASURING INSTRUMENT MODEL ME96SS...

  • Page 2: Table Of Contents

    MITSUBISHI Electric Multi-Measuring Instrument SS Series features high performance and crystal clear display. With simple operating functions, SS Series is the best support your measuring and monitoring systems. Enhanced Measuring Functions Expand Line-up »Improved Measuring Accuracy »Three model line-up »High-spec class »Standard class...
  • Page 3 »Password function Variety of »Special primary voltage/current and Complementary special secondary voltage are settable Features »Periodic monitoring function Impressive »Advanced alarm display Monitoring »Motor starting current mask Functions Succeeded »Large bar-graph display »Special display Display »High-brightness backlight Functions...

  • Page 4: Outline

    Outline MODBUS RTU System (ME96SSH-MB/ME96SSR-MB with ME-0052-SS96 (optional plug-in module)) ® »MODBUS RTU communication system optimizes computer monitoring operations ® »Attachment of ME-0052-SS96 (optional) enables remote monitoring of the contact input signal Central monitor and on/off control of the contact output signal »Digital input signals can be latched for over 30ms, and there is no need for external latch circuits RS485/USB...

  • Page 5: Me96 Super-S Series Features

    ME96 Super-S Series Features Expand Line-up Three Model Line-up Model name Transmission/Option specifications Main measurement items MODBUS ® RTU communication A, DA, V = ±0.1% W, var, VA, Hz = ±0.2% Plug-in module (options) PF = 1.0% ME96SSH-MB • Analog/Pulse/Contact output/input Wh = class 0.5s (IEC 62053-22) (High-spec class) •...
  • Page 6 ME96 Super-S Series Features Succeeded Display Functions Large Bar Graph Display »Bar Graph Display Each measuring items can be displayed by a bar graph. With bar graph display, one can grasps the rated value and percentage against the alarm value instantly. (1) Bar Graph Fixed Display Measuring items can be displayed by bar graph.
  • Page 7 Impressive Monitoring Functions Advanced Alarm Display (1) Backlight blinks when an alarm occur. (2) Automatic or manual alarm cancel can be selected. (3) Upper/lower limits of up to four points can be monitored. (4) Alarm output delay time can be set. Time of alarm output after the maximum value and minimum value is reached can be set.
  • Page 8 ME96 Super-S Series Features Variety of Complementary Features Password Function With the password function, the following items can be protected from an accidental execution. Password-protected item Password-protected item shift to the setting mode Adjust the time limit of rolling demand Reset the max./min.
  • Page 9 Test Function »Even during a setup of a facility, where no current/voltage input is found, analog output, pulse output, alarm output, contact output, and communication data is replied. This allows for checkup of wiring and monitoring program system. *Depending on the optional unit and settings, the test function may not be available (may not be displayed). (1) Communications Test qDisplay »The same as for the operating mode, display patterns and other data are shown as set.

  • Page 10: Specifications

    Specifications ■ME96SSH-MB Model name ME96SSH-MB Three phase 4-wire, Three phase 3-wire (3CT, 2CT), Single phase 3-wire, Single phase 2-wire Phase wire (common use) Current 5AAC, 1AAC (common use) Three phase 4-wire: 277/480VAC (max) Three phase 3-wire: Delta connections: 220VAC (max), Star connections: 440VAC (max) Rating Voltage Single phase 3-wire: 220/440VAC (max)
  • Page 11 ■ME96SSR-MB Model name ME96SSR-MB Three phase 4-wire, Three phase 3-wire (3CT, 2CT), Single phase 3-wire, Single phase 2-wire Phase wire (common use) Current 5AAC, 1AAC (common use) Three phase 4-wire: 277/480VAC (max) Three phase 3-wire: Delta connections: 220VAC (max), Star connections: 440VAC (max) Rating Voltage Single phase 3-wire: 220/440VAC (max)
  • Page 12 Specifications ■ME96SSE-MB Model name ME96SSE-MB Three phase 4-wire, Three phase 3-wire (3CT, 2CT), Single phase 3-wire, Single phase 2-wire Phase wire (common use) Current 5AAC, 1AAC (common use) Three phase 4-wire: 277/480VAC (max) Three phase 3-wire: Delta connections: 220VAC (max), Star connections: 440VAC (max) Rating Voltage Single phase 3-wire: 220/440VAC (max)
  • Page 13 ■Standards Compliance Electromagnetic Compatibility Emissions EN61326-1/CISPR 11， Radiated Emission FCC Part15 Subpart B Class A EN61326-1/CISPR 11 Conducted Emission FCC Part15 Subpart B Class A Harmonics Measurement EN61000-3-2 Flicker Meter Measurement EN61000-3-3 Immunity Electrostatic discharge Immunity EN61326-1/EN61000-4-2 Radio Frequency Electromagnetic field Immunity EN61326-1/EN61000-4-3 Electrical Fast Transient/Burst Immunity EN61326-1/EN61000-4-4...

  • Page 14: Operating Instructions

    Operating Instructions ■Functions Segment name Description »LCD Functions Lead Status Power factor status is lead Lag status Power factor status is lag Scale of the bar graph The scale of the bar graph Outside range Measurement value is outside range of scale of the bar graph Alarm indicator The setting value of the upper or lower limit Bar graph status...
  • Page 15 Basic Set-up Operations ● To access setting mode, press and hold the buttons down at the same time RESET The underlined setting parameter are for 2s. Press the button to display the items to be set, and the buttons to set the initial value.
  • Page 16 Operating Instructions <Continued from previous page> e(2) (2) In the case of using with VT eVT/Direct voltage <Secondary voltage settings>   (a) Three phase 4-wire setting (phase voltage) 63.5V 100V 110V 115V 120V   (b) Three phase 3-wire (2CT, 3CT) or Single phase 2-wire setting (line voltage) 100V 110V 220V...
  • Page 17 • Set-up menu 2 screens e~t will not be displayed if CC-Link communication is selected using qCommunication system selection . • Set-up menu 2 screens y~o will not be displayed if ME-0040C-SS96 (optional) is not attached or if CC-Link communication is selected using qCommunication system selection .
  • Page 18 Operating Instructions e(1) eSet the maximum power/rolling demand scale value on the bar graph, and select positive-only scale ePower scale or positive/negative scale (rolling demand is only for ME96SSH-MB). (1) Maximum scale value +3 steps (approx. 120%) ±0 steps (100%: instrument rating) DISPLAY −18 steps (approx.
  • Page 19 Set-up menu 6: Analog output setting (ME96SSH-MB, ME96SSR-MB only) This menu will not appear if ME-4210-SS96 (optional) is not installed. Adjust settings to match set-up menu No. 6. Set-up menu qSet the output items for “analog output CH1.” Select the measured items to be output from the table below. Three phase 4-wire Three phase 4-wire DISPLAY...
  • Page 20 Operating Instructions ‡Operation (for ME96SSH-MB) »Display Change »Changing Phases Press , the measurement display switches over. Press , the current phase and the voltage phase switches over. DISPLAY PHASE Example of changing display (Three phase 4-wire system; display pattern: P01; no additional screens) Example of changing phases (Three phase 4-wire system) DISPLAY PHASE...
  • Page 21 »Changing Upper/Lower Limits for Alarm Activation and Cancellation When measurement values exceed the upper/lower limit values that have been set, an alarm activates and the screen begins to blink. The blinking mark on the bar graph indicates the current upper/lower limit value settings. During Alarm Generation »...
  • Page 22 Operating Instructions ■Display Pattern Contents The items set in display patterns and additional settings will be displayed as explained in the following table. »ME96SSH-MB Screen Display (Three phase 4-wire) Screen set based on display pattern Additional screens (set in set-up menu Nos. 3, 7 and 8) No.10 No.11 No.12 No.13 No.14 No.15 No.16 No.17 No.18 No.19 No.20 No.21 No.22 No.23 No.24 No.25 No.26...
  • Page 23 »ME96SSR-MB Screen Display (Three phase 4-wire) Screen set based on display pattern Additional screens (set in set-up menu Nos. 3, 7 and 8) No.10 No.11 No.12 No.13 No.14 No.15 No.16 No.17 No.18 No.19 No.20 No.21 No.22 No.23 No.24 Display pattern varh varh varh...
  • Page 24 Operating Instructions ■Display Pattern Contents The items set in display patterns and additional settings will be displayed as explained in the following table. »ME96SSE-MB Screen Display (Three phase 4-wire) Additional screens (set in Screen set based on display pattern set-up menu No. 8) No.6 No.7 No.8...
  • Page 25 ■MEMO...

  • Page 26: External Dimensions/Installation/Connections

    External Dimensions/Installation/Connections Dimensions ME96SSH-MB, ME96SSR-MB 91.6 （PANEL CUT） 91.6 （PANEL CUT） (when optional unit is attached) ME96SSE-MB 91.6 （PANEL CUT） Optional cover 95.8 （COVER） Optional Plug-in Module 88.8 81.2 25.2 46.8 17.1 95.8 （COVER） Mounting 1 Dimension of panel 2 View Angle Panel hole dimensions are as shown in the following figure.
  • Page 27 Wiring 1 Applicable Cable Size The table on the right describes Part Screw type Wire specifications the applicable wire size. Auxiliary power supply, voltage • Single-line, stranded-line: AWG24~14 (combined use of rod terminals possible for stranded-line applications) input, MODBUS ® Screwless Notes 1.
  • Page 28 External Dimensions/Installation/Connections Wiring (Continued) Single phase 3-wire system Single phase 2-wire system: With VT ＋ Ｃ １ T/R＋ ＋ Ｃ １ T/R＋ MODBUS ® MODBUS ® Ｃ １ T/R− Ｃ １ T/R− Communication Communication ＋ Ｃ ２ Ｔ ｅ ｒ ＋ Ｃ ２ Ｔ...
  • Page 29 Wiring (Continued) 1. Pulse output, alarm output, and contact input/output cables must not be in close proximity or bundled with power cables or high-voltage cables. When laid parallel, separate by the distance shown in the following table. Condition Distance Power lines under 600V/600A More than 30cm Other power lines More than 60cm...

  • Page 30: Related Products

    (e.g., head office). ‡ME110SS ME110 Super-S Series Electronic Multi-measuring Instruments The innovative design of the SS Series is supporting the realization of energy-saving measurement monitoring systems that are easy to use and read Common-use Models Two phase wiring system (Three phase 3-wire and Three phase 4-wire systems) were required previously, but user needs can now be met with a single unit.

  • Page 31: Safety Precautions

    Mitsubishi Electric shall not be liable for: Damage that cannot be attributed to Mitsubishi Electric; lost opportunity or earnings resulting from failure of a Mitsubishi Electric product;...
  • Page 32 Precautions Before Use • Please consult with a Mitsubishi Electric representative when considering the application of products presented in this catalogue with machinery or systems designed for specialized use such as nuclear power, electrical power, aerospace/outer space, medical, or passenger transportation vehicles.
