USER MANUAL
EN
MANUALE D'USO
IT
NANO DC
ULTRAFLEX CONTROL SYSTEMS s.r.l.
SYNCHRO NANO DC
Via XXV Aprile 45
16012 BUSALLA (GE)
SYNCHRO NANO DC F-SIGNAL
ITALY
Tel. +39 010 9768232
Fax +39 010 9768233
e-mail:ucs@ultraflexgroup.it
www.ultraflexgroup.it/ucs

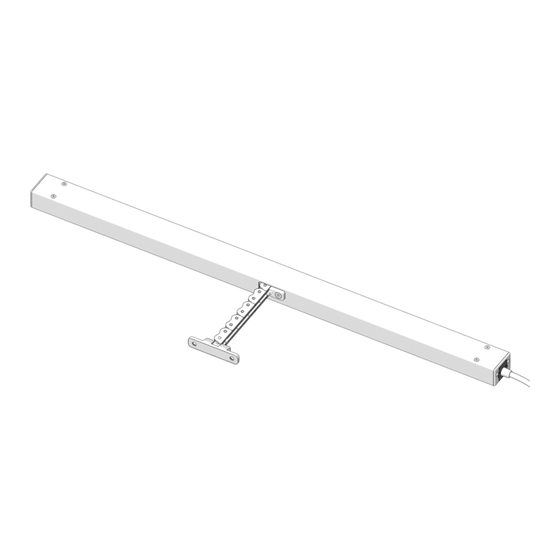

CHAIN ACTUATOR / ATTUATORE A CATENA
www.ultraflexcontrolsystems.com
Doc. ... - Rev. 07/09/2018
Drw. / Dis. ....
Advertisement
Table of Contents
Related Manuals for UCS NANO DC
Summary of Contents for UCS NANO DC
- Page 1 USER MANUAL MANUALE D’USO NANO DC ULTRAFLEX CONTROL SYSTEMS s.r.l. SYNCHRO NANO DC Via XXV Aprile 45 16012 BUSALLA (GE) SYNCHRO NANO DC F-SIGNAL ITALY Tel. +39 010 9768232 Fax +39 010 9768233 e-mail:ucs@ultraflexgroup.it www.ultraflexgroup.it/ucs CHAIN ACTUATOR / ATTUATORE A CATENA www.ultraflexcontrolsystems.com...
-
Page 3: Table Of Contents
PRODUCT DESCRIPTION .......9 TECHNICAL FEATURES ........11 6.1 Models ..........13 DIMENSIONS ..........14 WIRING ............15 8.1 NANO DC connection ......15 8.1.1 NANO DC wiring diagram .....15 8.2 SYNCHRO NANO - SYNCHRO NANO F-SIGNAL connection ......16 8.2.1 SYNCHRO NANO wiring diagram (single actuator connection) ..16 8.2.2 SYNCHRO NANO F-SIGNAL wiring d i a g r a m ( s i n g l e a c t u a t o r connection) ........16... -
Page 4: Introduction
USER MANUAL MANUALE D’ISTRUZIONI 1 INTRODUCTION ..1.1 Symbols used ..The operations which can be dangerous if they are not carried out correctly are indicated with this symbol. Danger to persons due to electricity. The operations whose execution requires qualified or specialized staff to avoid any danger are indicated with this symbol. - Page 5 Systems srl” In case of installation with automatic systems, please contact UCS Technical Support. If the automatic system enables the actuators continuously, the mechanic and electronic components could wear prematurely. Pay attention when closing the window: danger of crushing.
-
Page 6: Informative Letter
Nothing contained in this manual can be interpreted as a modification or confirmation of the terms of any purchase contract. The UCS products have not been conceived to work in areas at risk of explosions. In case of damage or malfunction, do not use the actuators and contact the Customer Care Technical Service. -
Page 7: Packing Contents
2. PACKING CONTENTS ..The actuator is packed in a box with the following components: • model NANO DC is supplied with a wired feeding cable • models SYNCHRO NANO DC and SYNCHRO NANO DC F-SIGNAL are equipped with a... -
Page 8: Cable Kits
USER MANUAL MANUALE D’ISTRUZIONI 2.1.2 Cable kits ..To connect models SYNCHRO NANO DC and SYN- CHRO NANO DC F-SIGNAL, use the available cables supplied in separate kits. The cable features are shown in the tables below. Please, refer to paragraph 8 for connections. DESCRIPTION LENGTH CODE DESCRIPTION LENGTH CODE DESCRIZIONE LUNGHEZZA CODICE... -
Page 9: Data Plate
The actuator is intended for the electromotive opening and closing of windows. It is suitable for indoor use, only. • NANO DC is provided with 1.5 m cable without selectable features (Synchronization, feedback signal and speed selection). The quiet operation is ensured by the slow speed (4 mm/s) for natural ventilation. NANO DC actuators with maximum speed are available as standard; quite operation is available on request. - Page 10 (max 4 actuators), avoiding any external control panel. The quiet operation is activated by UCS C-SV Control Panels; normally, window opens in 60 seconds at maximum speed. SYNCHRO NANO versions provide also open/ close feedback. Cable connection possible on both sides.
-
Page 11: Technical Features
USER MANUAL MANUALE D’ISTRUZIONI 6 TECHNICAL FEATURES ..The tables below show the technical features for NANO models: NANO DC / SYNCHRO NANO DC/ SYNCHRO NANO DC F-SIGNAL MAIN FEATURES/ CARATTERISTICHE PRINCIPALI VOLTAGE SUPPLY 24 Vdc ± 15% ALIMENTAZIONE CURRENT ABSORPTION (with max load) 1.2 A... - Page 12 CORSA (mm) VELOCITÁ EFC (mm/s) VELOCITÁ SILENT VENTILATION (mm/s) 4 (non standard version - upon request only) 4 (versione fuori standard - solo su richiesta) NANO DC Synchro Nano DC / Synchro Nano DC F-Signal STROKE/FORCE - CORSA/FORZA Stroke/Corsa (mm) PULL FORCE - FORZA IN TRAZIONE PUSH FORCE - FORZA IN SPINTA Doc.
-
Page 13: Models
USER MANUAL MANUALE D’ISTRUZIONI 6.1 Models 6.1 Versioni As described in paragraph 5, each NANO model may have different functional features which are shown in the table below: MODELS SYNCHRO NANO NANO DC SYNCHRO NANO VERSIONI F-SIGNAL Fast connector both sides Fast connector both sides Silicon cable (1 cable - 5 poles) (1 cable - 8 poles) ELECTRIC CONNECTION Cavo in silicone Connettore rapido su... -
Page 14: Dimensions
USER MANUAL MANUALE D’ISTRUZIONI 7 DIMENSIONS ..STROKE (C) ACTUATOR CORSA (C) ATTUATORE 254,5 304,5 404,5 604,5 1000 SIDE BRACKET KIT CONNECTOR KIT STAFFE FISSE LATERALI CONNETTORE BACK BRACKET KIT KIT STAFFE POSTERIORI FRONT BRACKET KIT KIT STAFFE FRONTALI BRACKET FOR BOTTOM HINGED WINDOWS STAFFA PER FINESTRA WASITAS Doc. -
Page 15: Wiring
UCS recommends using Dead man push buttons to control the actuators. 8.1 NANO DC connection ..The NANO DC model is provided with 1.5 m cable. Please, refer to the diagram below for connections. 8.1.1 NANO DC wiring diagram ..FEEDER ALIMENTATORE... -
Page 16: Synchro Nano - Synchro Nano F-Signal Connection
COM = COMMON-COMUNE FEEDER ALIMENTATORE BLUE-BLU BROWN-MARRONE EXAMPLE-ESEMPIO GREY-GRIGIO BLACK-NERO WHITE-BIANCO SIGNAL SEGNALAZIONE *PURCHASABLE “UCS” ACCESSORIES/ACCESSORI “UCS” ACQUISTABILI ..8.2.2 SYNCHRO NANO F-SIGNAL wiring diagram (single actuator connection) A = OPEN-APRE PUSH BUTTON (DPOT) C = CLOSE-CHIUDE PULSANTE (DPOT) COM = COMMON-COMUNE FEEDER... -
Page 17: Connection Example
USER MANUAL MANUALE D’ISTRUZIONI 8.2.3 Connection example (SYNCHRO ..NANO DC - SYNCHRO NANO DC F-SIGNAL) EXAMPLE OF CONNEC TION OF SEVERAL SYNCHRONIZED ACTUATORS USING CABLES SUPPLIED BY UCS CONNECT BLUE, BROWN, WHITE, B L A C K A N D G R E Y C A B L E S ACCORDING TO THE ELECTRIC DIAGRAMS 8.2.1 AND 8.2.2... -
Page 18: Voltage Drop For Actuator Chain
(20.4) for the last actuator of the chain are not exceeded. The diagram shows the typical voltage drop of actuators with stroke of 1000 mm operating at maximum load and cables supplied by UCS. WARNING If the data used for calculations change, a check by UCS is needed. -
Page 19: Cable Connection
USER MANUAL MANUALE D’ISTRUZIONI 8.2.5 Cable connection ..Insert the connector “1” into the proper space on the actuator and make sure it is locked. To carry out the main connection, use a 5-pole cable “2”; for the connection between two actuators, use a 5-pole cable “3” (see the picture below). Insert the supplied rubber plug “4” into the actuator end which is not used. -
Page 20: Customized Cable Wiring
1 minute (see table in chapter 6) so that the actuator can be used for smoke exhaust according to standard EN12101-2. • If the input is powered at 24V, the actuator works in “silent ventilation” (SV) mode, always working at the minimum speed (4mm/s). The C-SV units made by UCS can manage the automatic commutation between the two modes mentioned above: just connect the actuator SV input to terminal “+” of output 24V_AUX. Upon previous request by the customer, UCS can permanently enable the SV function during production. In such a case, the actuator always opens and closes at minimum speed, regardless of the SV input condition. Doc. _____ - Rev. __/__/____ 20/45 Drw. / Dis..____... - Page 21 the previous state. To carry out the wiring, it is possible to use the complete cables supplied by UCS as kits. Alternatively, the customer may choose a wired cable provided that it matches the pin positions shown in this paragraph and the dimensions NANO electric connector kit 42021Y indicated in the drawing below.
- Page 22 USER MANUAL MANUALE D’ISTRUZIONI In base alle funzioni che si desidera attivare, According to the functions to be enabled, the occorre cablare il connettore come indicato di connector must be wired as shown in the table seguito: below: SCHEMA FUNCTIONS PATTERN FUNZIONI POWER SUPPLY...
-
Page 23: Special Applications
CONTROL UNIT/ +24V for SV function CENTRALE C-SV +24V per funzione EFC EXAMPLE-ESEMPIO C-SV UCS CONTROL UNIT The C-SV UCS control units command the smoke and the heat extraction in case of fire and also they allow daily ventilation by opening a single or several windows. The control units are equipped with buffer batteries and they command 24 Vdc actuators. -
Page 24: Installation
USER MANUAL MANUALE D’ISTRUZIONI 9 INSTALLATION 9 ... B E F O R E P R O C E E D I N G W I T H T H E MECHANICAL MOUNTING OF THE ACTUATOR ON THE WINDOW, CARRY OUT THE WIRING OPERATIONS DESCRIBED IN PARAGRAPH 8. -
Page 25: Top Hung Window Open Outwards - Side Bracket With Sill
USER MANUAL MANUALE D’ISTRUZIONI Top hung window open outwards - side bracket with sill Necessary Components: • NANO actuator • Side bracket kit Note Only for windows that are three times higher with respect to the chain length. Stroke/corsa 261.5 261.5 311.5 411.5 411.5... - Page 26 USER MANUAL MANUALE D’ISTRUZIONI 1. Insert the connector with cable (refer to instructions in paragraph 8). 2. Power the actuator to extend the chain, then follow the sequence shown by the drawings below: WARNING When the chain actuator is not mounted, pay great attention not to retract the chain into the actuator completely: the chain could get stuck irreparably.
-
Page 27: Top Hung Window Open Outwards - Concealed Installation
USER MANUAL MANUALE D’ISTRUZIONI Top hung window open outwards - concealed installation Necessary Components: • NANO actuator • Side bracket kit Note Only for windows that are three times higher with respect to the chain length. Stroke/corsa 261.5 261.5 311.5 411.5 411.5 611.5 1000... - Page 28 USER MANUAL MANUALE D’ISTRUZIONI 1. Insert the connector with cable (refer to instructions in paragraph 8). 2. Power the actuator to extend the chain, then follow the sequence shown by the drawings below: WARNING When the chain actuator is not mounted, pay great attention not to retract the chain into the actuator completely: the chain could get stuck irreparably.
-
Page 29: Top Hung Window Open Outwards- Concealed Wing With Front Bracket
USER MANUAL MANUALE D’ISTRUZIONI Top hung window open ..outwards- concealed wing with front bracket Necessary Components: • NANO actuator • Front bracket kit Note Only for windows that are three times higher with respect to the chain length. Stroke/corsa 247.7 536.4 247.7 536.4... - Page 30 USER MANUAL MANUALE D’ISTRUZIONI 1. Insert the connector with cable (refer to instructions in paragraph 8). 2. Power the actuator to extend the chain, then follow the sequence shown by the drawings below: WARNING When the chain actuator is not mounted, pay great attention not to retract the chain into the actuator completely: the chain could get stuck irreparably.
-
Page 31: Top Hung Window Open Outwards- With Front Bracket
USER MANUAL MANUALE D’ISTRUZIONI Top hung window open ..outwards- with front bracket Necessary Components: • NANO actuator • Front bracket kit Note Only for windows that are three times higher with respect to the chain length. Stroke/corsa 247.7 536.4 247.7 536.4 297.7 586.4... - Page 32 USER MANUAL MANUALE D’ISTRUZIONI 1. Insert the connector with cable (refer to instructions in paragraph 8). 2.Power the actuator to extend the chain, then fol- low the sequence shown by the drawings below: WARNING When the chain actuator is not mounted, pay great attention not to retract the chain into the actuator completely: the chain could get stuck irreparably.
-
Page 33: Bottom Hung Window Open Inwards (Z Bracket + Pivoting Bracket)
USER MANUAL MANUALE D’ISTRUZIONI Bottom hung window open inwards (Z bracket + pivoting bracket) Necessary Components: • NANO actuator • Back bracket kit • Aluminium bracket for bottom hinged windows Stroke/corsa 1000 Doc. _____ - Rev. __/__/____ 33/45 Drw. / Dis..____... - Page 34 USER MANUAL MANUALE D’ISTRUZIONI 1. Insert the connector with cable (refer to instructions in paragraph 8). 2. Power the actuator to extend the chain, then follow the sequence shown by the drawings below: WARNING When the chain actuator is not mounted, pay great attention not to retract the chain into the actuator completely: the chain could get stuck irreparably.
- Page 35 USER MANUAL MANUALE D’ISTRUZIONI 12. Connect the system to the mains according to the electric diagrams Doc. _____ - Rev. __/__/____ 35/45 Drw. / Dis..____...
-
Page 36: Bottom Hung Window Open Inwards - Actuator On Wing
USER MANUAL MANUALE D’ISTRUZIONI Bottom hung window open Bottom hung window open ..inwards- actuator on wing outwards Necessary Components: • NANO actuator • Front bracket kit Stroke/corsa 247.7 536.4 247.7 536.4 297.7 586.4 397.7 686.4 397.7 686.4 597.7 886.4 1000 597.7 886.4 Doc. - Page 37 USER MANUAL MANUALE D’ISTRUZIONI 1. Insert the connector with cable (refer to instructions in paragraph 8). 2. Power the actuator to extend the chain, then follow the sequence shown by the drawings below: WARNING When the chain actuator is not mounted, pay great attention not to retract the chain into the actuator completely: the chain could get stuck irreparably.
- Page 38 USER MANUAL MANUALE D’ISTRUZIONI 12. Connect the system to the mains according to the electric diagrams Doc. _____ - Rev. __/__/____ 38/45 Drw. / Dis..____...
-
Page 39: Bottom Hung Window Open Outwards - Concealed Installation
USER MANUAL MANUALE D’ISTRUZIONI Bottom hung window open outwards - concealed installation Necessary Components: • NANO actuator • Side bracket kit Note Only for windows that are three times higher with respect to the chain length. Stroke/corsa 261.5 261.5 311.5 411.5 411.5 611.5 1000... - Page 40 USER MANUAL MANUALE D’ISTRUZIONI 1. Insert the connector with cable (refer to instructions in paragraph 8). 2. Power the actuator to extend the chain, then follow the sequence shown by the drawings below: WARNING When the chain actuator is not mounted, pay great attention not to retract the chain into the actuator completely: the chain could get stuck irreparably.
- Page 41 USER MANUAL MANUALE D’ISTRUZIONI 12. Connect the system to the mains according to the electric diagrams Doc. _____ - Rev. __/__/____ 41/45 Drw. / Dis..____...
-
Page 42: Maintenance
USER MANUAL MANUALE D’ISTRUZIONI 10 MAINTENANCE ..In oder to ensure the correct operation of the actuator in safety conditions, it must be revised by skilled staff at least once a year. Always check the tightness of fastenings and clamping screws and replace worn or damaged parts and cables using original spare parts, only. At the end of the maintenance operations, check the proper opening and closing of the window. -
Page 43: Warranty
USER MANUAL MANUALE D’ISTRUZIONI 13 WARRANTY ..The Ultraflex Control Systems S.r.l. Company guarantees that its products are made in a workmanlike manner and are free of factory and material defects. This guarantee is valid for a period of two years, from the date of manufacture of the product, and is limited to replacement or repair free of charge of the item that, within such period, is returned, delivery paid, and found by us to be defective in terms of its materials and/or manufacture. - Page 44 Via XXV Aprile 45 16012 BUSALLA (GE) ITALY Tel. +39 010 9768232 Fax +39 010 9768233 e-mail:ucs@ultraflexgroup.it ULTRAFLEX CONTROL SYSTEMS s.r.l. www.ultraflexgroup.it/ucs www.ultraflexcontrolsystems.com...
