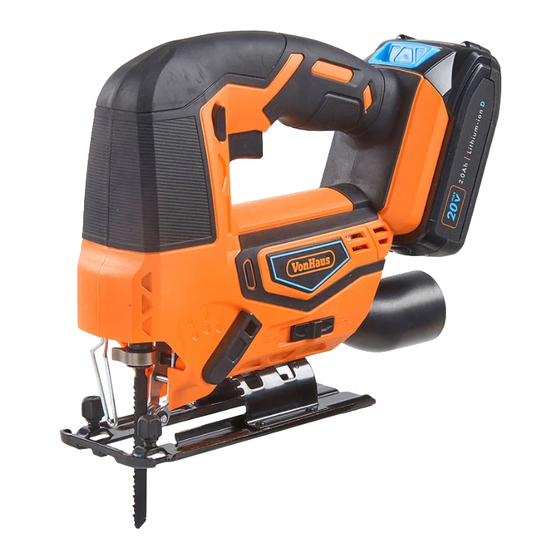

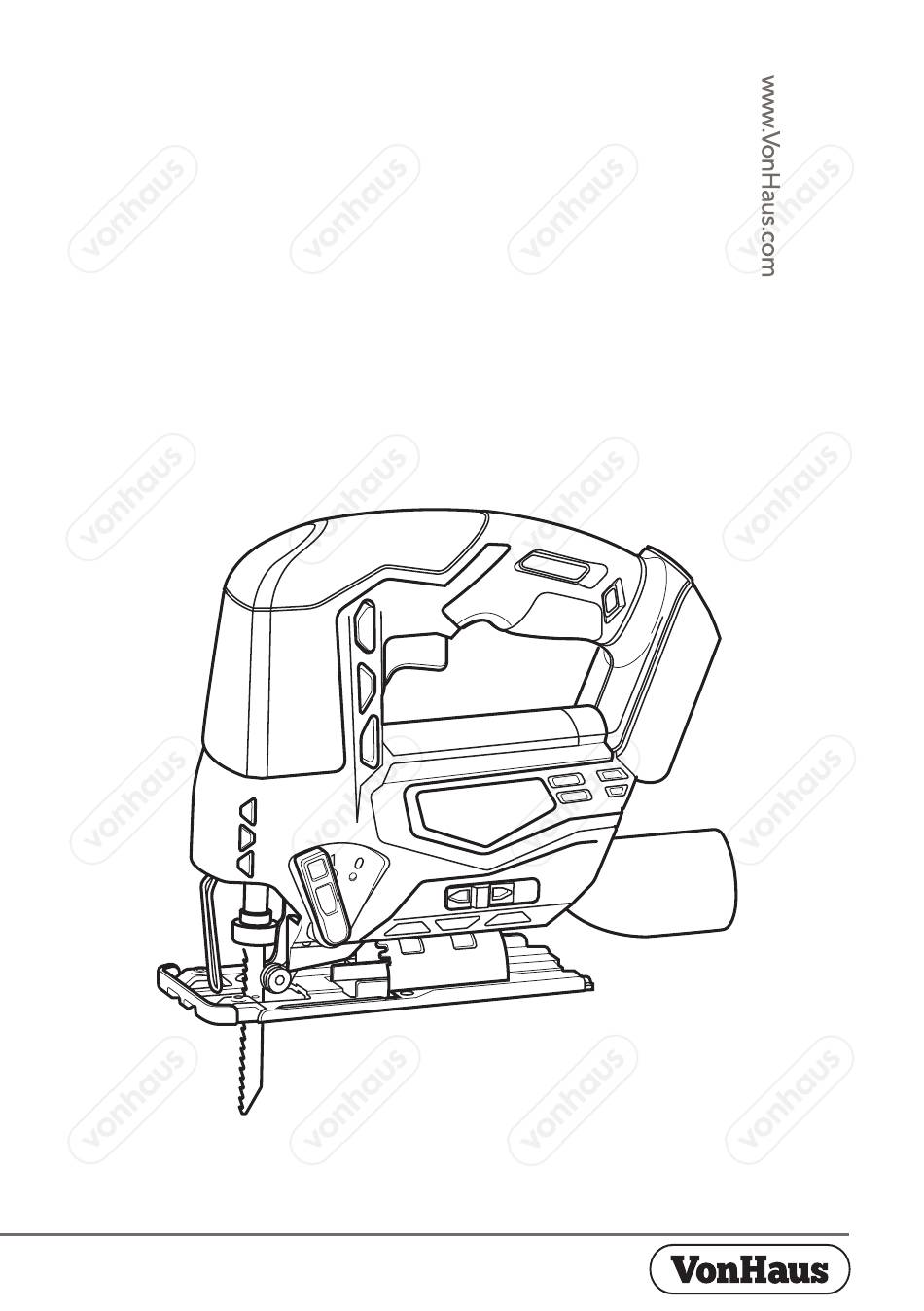

- Page 1 20V MAX JIGSAW 3500010 - Instruction Manual...
- Page 2 CONTENTS Safety Instructions Safety Instructions Safety Instructions Safety Instructions Safety Symbols Specification Battery Capacity Indicator/Charging Lights Battery Capacity Indicator/Battery Insertion/Removal...
- Page 3 Fitting the Blade Orbital Action Angle Adjustment Dust Extraction/Repelling Operation Maintenance/Troubleshooting Disposal Information Warranty...
- Page 4 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE GENERAL SAFETY INFORMATION. Keep the cord away from heat, oil, sharp edges and moving parts. Damaged or WARNING! Read all safety warnings entangled cords increase risk of electric and all instructions. Failure to follow the shock.
- Page 5 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE result in serious personal injury. Secure your workpiece. Use clamps or a vice to hold the workpiece as this is Prevent unintentional starting. Ensure safer than using your hand and frees both the switch is in the off position before hands to operate the tool.
- Page 6 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE putting the tool down. Keep blades sharp. Dull or damaged blades may cause the saw to swerve Do not touch the workpiece or the blade or stall under pressure. Always use the immediately after operating the tool.
- Page 7 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE Do not stare at the tool with the blade may result. touching any surface. The blade action Under extreme conditions, battery will bounce the tool and may cause bodily leakage may occur.
- Page 8 SAFETY SYMBOLS The following safety symbols may appear on this product. Please ensure you understand their meanings before operating this tool in order to prevent personal injury and avoid damage to the tool. USE PRECAUTION INSTRUCTION EAR PROTECTION EYE PROTECTION For your safety MANUAL Must be worn...
- Page 9 SPECIFICATION ADAPTOR VOLTAGE SPEED OUTPUT 800-2500 20V MAX 21VDC, 2.4A 1. ON/OFF Trigger 7. Blade Release Lever (see page 9) 2. Safety Switch 8. Dust Extraction Port 3. Blade Guard 9. Charger 4. Roller Support 10. Battery Pack 5. Shoe 11.
- Page 10 BATTERY CAPACITY INDICATOR When in use you can check the status of the 20V Max Battery by pressing the BATTERY LEVEL INDICATION (12). Pressing this will illuminate the 20V Max Battery’s level of charge. 0-10% Charged 10-25% Charged 25-50% Charged 50-75% Charged 100% Charged CHARGING LIGHTS...
- Page 11 BATTERY CAPACITY INDICATOR BATTERY INSERTION/REMOVAL Hold the appliance with one hand and the BATTERY PACK (10) with the other. To install, push and slide BATTERY PACK (10) into battery port, make sure the BATTERY RELEASE BUTTON (11) on the rear side of the BATTERY PACK (10) snaps into place and is secure before beginning operation. To remove, press the BATTERY RELEASE BUTTON (11) and pull the BATTERY PACK (10) out at the same time.
- Page 12 FITTING THE BLADE WARNING! Never attempt to fit the blade to the Jigsaw when it is connected to the Battery. Always ensure the Jigsaw is disconnected from the battery before performing repair, maintenance and cleaning. To fit the blade, pull up the BLADE RELEASE LEVER (7) with your index finger. Fully insert the Blade into the Blade Holder slot with the teeth of the blade facing forward and release the BLADE RELEASE LEVER (7).
- Page 13 ORBITAL ACTION Adjust the Orbital Control accordingly with the ORBITAL SWITCH (6). NOTE: Orbital actions on the Jigsaw will vibrate and increase in intensity with a higher Orbital setting. It is recommended to keep to a low setting when cutting Metal & Aluminium. Jigsaws with orbital action are most useful when cutting through softwoods.
- Page 14 ANGLE ADJUSTMENT WARNING! Never attempt to fit the blade to the Jigsaw when it is connected to the Battery. Always ensure the Jigsaw is disconnected from the battery before performing repair, maintenance and cleaning. To adjust the angle of inclination, loosen the 2 Hex Bolts on the underside of Jigsaw. Move the base plate backwards so it releases the base plates teeth from the catch.
- Page 15 DUST EXTRACTION/REPELLING CAUTION! Always use the appropriate breathing protection when using a powertool that creates dust. Dust extraction/repellent systems must be used when cutting any appropriate material. The Jigsaw comes with a DUST EXTRACT/REPEL SWITCH (13). Moving the DUST EXTRACT/REPEL SWITCH (13) to the left will function as a vacuum and extract the dust into the DUST EXTRACTION PORT (8).
- Page 16 OPERATION Depress the SAFETY SWITCH (2). While still holding theSAFETY SWITCH (2), press the ON/OFF TRIGGER (1) to operate the Jigsaw. NOTE As soon as you release the ON/OFF TRIGGER (1), the Jigsaw will stop. To restart, depress the safety switch again, and whilst maintaing the hold - press the ON/OFF TRIGGER (1) to activate the Jigsaw.
- Page 17 MAINTENANCE CAUTION Ensure the 20V MAX Jigsaw is disconnected from the battery before attempting any maintenance. Keep the tool’s ventilation slots clean and free from obstructions. If available, blow compressed air into the vents to clear any internal dust. IMPORTANT Safety goggles must be worn when undertaking this task. Keep the outer casing of the appliance clean and free from grease.
- Page 18 DISPOSAL INFORMATION For electrical products sold within the European Community, at the end of the electrical product’s useful life, it should not be disposed of with household waste. Please recycle where facilities exist. Contact your local authority for details of collection schemes in your area. In all circumstances: •...
- Page 19 WARRANTY Returned goods will not be accepted unless re- This new VonHaus product has a warranty period of packaged in its original colour box and accompanied 12 months beginning at the date of purchase. Please by a relevant and completed returns form. This does retain a proof of purchase receipt or statement as not affect your statutory rights.
- Page 20 Thank you for purchasing the 20V Max Jigsaw. VonHaus is a registered trademark of DOMU Brands Ltd Made in China for DOMU Brands Ltd M24 2RW...
