Summary of Contents for VonHaus 3500087

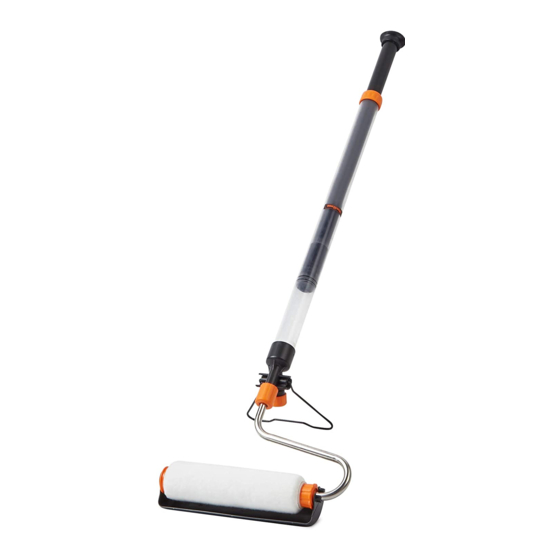

- Page 1 LONG REACH PAINT ROLLER 3500087 - Instruction Manual 0818...
- Page 2 CONTENTS Safety Instructions Specification Assembly Assembly Usage...
- Page 3 Cleaning & Maintenance Cleaning & Maintenance Hints & Tips, Surface Preparation Troubleshooting Warranty...
- Page 4 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE INTENDED USE. STORAGE & MAINTENANCE. Only use the Paint Roller as described in this instruction manual. Store the product out of reach of children This Paint Roller it is not suitable for and do not allow persons unfamiliar industrial or commercial use.
- Page 5 SPECIFICATION ROLLER BARREL IS SUPPLIED ALREADY ASSEMBLED. FILL TUBE CONNECTOR. ROLLER FRAME & COLLAR. FLOOR STAND. BARREL COLLAR. PAINT CAN CLIP. ROLLER BARREL. FILL TUBE. SPLATTER SHIELD. TUBE EXTENSION RIBS. PLUNGER. DUCK VALVE. PAINT TUBE/HANDLE. FILL TUBE COLLAR. FRAME CONNECTOR. PETROLEUM JELLY (not pictured).
- Page 6 ASSEMBLY Connect the ROLLER BARREL to the Clip the SPLATTER SHIELD into the end of ROLLER FRAME and secure with the the ROLLER BARREL and onto the ROLLER BARREL COLLAR by turning clockwise. FRAME. Secure the FLOOR STAND into the small Insert the ROLLER FRAME into the end openings at the base of the PAINT TUBE/ of the PAINT TUBE as shown.
- Page 7 ASSEMBLY Insert the DUCK VALVE into the centre of Screw the FILL TUBE COLLAR and DUCK the FILL TUBE COLLAR as shown. VALVE to the base of the PAINT TUBE. Clip the FILL TUBE to the PAINT CAN CLIP With the PAINT CAN CLIP and FILL TUBE ensuring the ring (circled) sits behind the assembled, this can now be inserted and arm.
- Page 8 USAGE IMPORTANT: Before use, it is important that both the FILL TUBE nozzle and DUCK VALVE are lubricated with the PETROLEUM JELLY. This will prevent any air being withdrawn into the paint tube. ENSURE FILL TUBE AND UNIT ARE COMPLETELY STRAIGHT.
- Page 9 CLEANING & MAINTENANCE With the ROLLER BARREL removed, fill a Remove the ROLLER FRAME and immerse the PAINT TUBE in a fresh bucket of warm, bucket or large container with warm, soapy water. soapy water. Attach the PAINT CAN CLIP/FILL TUBE to the bucket or container and insert the nozzle As in the previous step, pull back the into the PAINT TUBE.
- Page 10 CLEANING & MAINTENANCE Using a pair of pliers (not supplied) pull out the centre of the ROLLER BARREL and end cap. Wash all of these components in warm soapy water until they are completely clear of any paint residue. Soak up any moisture using a towel and leave the Paint Roller sponge to completely dry before reassembling.
- Page 11 HINTS & TIPS • Only use the perforated Paint Roller (spares available online). Standard Rollers will not work. • Inspect the Paint roller for lint before painting, if needed, wash and dry before use. • When using the Long Reach Paint Roller for the first application, it will take most of the paint in the PAINT TUBE to saturate the Roller.
- Page 12 TROUBLESHOOTING PROBLEM SOLUTION • The PAINT TUBE may require a second fill with paint. The ROLLER BARREL takes time to PAINT TAKES TOO LONG TO saturate. • APPEAR ON THE SURFACE. Ensure the FILL TUBE and PAINT TUBE are clear or any blockages that may prevent any paint being withdrawn and dispensed.
- Page 13 WARRANTY To register your product and find out if you qualify for a free extended warranty please go to www.Vonhaus.com/Warranty. Please retain a proof of purchase receipt or statement as proof of the purchase date. The warranty only applies if the product is used solely in the manner indicated in the Warnings page of this manual, and all other instructions have been followed accurately.
- Page 14 Thank you for purchasing the Long Reach Paint Roller. VonHaus is a registered trademark of DOMU Brands Ltd ® Made in China for DOMU Brands Ltd M24 2RW...
