Pro Audio Delay Box
AD-300

Advertisement

Table of Contents
loading

Related Manuals for Datavideo AD-300

Summary of Contents for Datavideo AD-300

  • Page 1 Pro Audio Delay Box AD-300...

  • Page 2: Table Of Contents

    Table of Contents FCC COMPLIANCE ...................... 4 WARNINGS AND PRECAUTIONS ................4 WARRANTY ....................... 5 ..................... 5 TANDARD ARRANTY ....................5 HREE ARRANTY DISPOSAL ........................6 PRODUCT INTRODUCTION ................7 ........................7 EATURES ......................8 XAMPLE ETUP CONNECTIONS AND CONTROLS ................ 9 .........................
  • Page 3 SERVICE & SUPPORT ....................32 Disclaimer of Product and Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete.

  • Page 4: Fcc Compliance

    AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.

  • Page 5: Warranty

     The product warranty period begins on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office. ...

  • Page 6: Disposal

    Disposal For EU Customers only - WEEE Marking This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 7: Product Introduction

    Housed in a rugged metal enclosure, the AD-300 is perfect for use in the studio or in the field. Features ...

  • Page 8: Example Setup

    Example Setup...

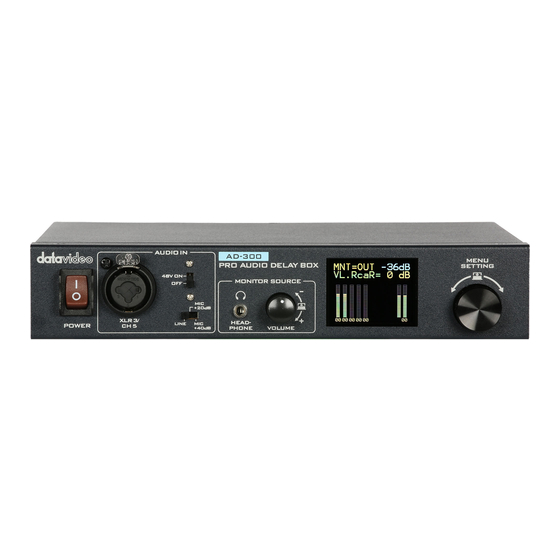

  • Page 9: Connections And Controls

    2. Connections and Controls Front Panel Power On/Off Switch Switches the power On / Off MENU Navigation Knob Press the knob to activate the OSD menu on the LCD screen. Rotate to navigate the menu and press to select a menu option. Menu Functions for more information.

  • Page 10: Rear Panel

    AUDIO IN (XLR 3/CH 5) The XLR balanced audio input channel allows you to connect an audio device or a condenser or dynamic microphone. There are two types of switches for configuring AUDIO The LINE/MIC+20dB/MIC+40dB switch is used to set the AUDIO IN to LINE IN, MIC IN with a 20dB preamp or MIC IN with a 40dB preamp.
  • Page 11 Audio Out CH1/L and CH2/R ports are two XLR balanced audio output channels delivering a mixed or delayed audio output to a switcher. L and R ports are two RCA unbalanced audio output channels delivering a mixed or delayed audio output to a display device.
  • Page 12 F/W Upgrade The F/W Upgrade port allows you to connect an external USB drive for firmware upgrade. Firmware Update for more information. DVIP...

  • Page 13: Menu Functions

    3. MENU Functions Main Parameters Parameters RCA-L -80 – 12 dB RCA-R -80 – 12 dB Max volume can XLR-1 -80 – 12 dB be set to 6 or 12 XLR-2 -80 – 12 dB dB in Gain Limit. XLR-3 -80 –...
  • Page 14 RCA-R 0 – 3000 msec XLR-1 0 – 3000 msec XLR-2 0 – 3000 msec XLR-3 0 – 3000 msec ESCAPE FREQ 20 – 20,000 Hz LEVEL -64 – +24 dBu -78 – +10 dBV TONE MODE ESCAPE 125 Hz -10 –...
  • Page 15 ESCAPE 125 Hz -10 – +10 dB 250 Hz -10 – +10 dB 500 Hz -10 – +10 dB 1 kHz -10 – +10 dB XLR-2-equalizer 2 kHz -10 – +10 dB 4 kHz -10 – +10 dB 8 kHz -10 –...
  • Page 16 16:1 32:1 64:1 100:1 Attack Time 50 – 500 mS Decay Time 300 – 2000 mS ESCAPE -6 – +24 dBu Threshold Limiter (RCA-L/RCA- Attack Time 50 – 500 mS R/XLR-1/XLR-2/ Decay Time 300 – 2000 mS XLR-3) ESCAPE -28 – -88 dBu Threshold Gate (RCA-L/RCA-...

  • Page 17: Volume

    Volume VOLUME sets the audio I/O volumes. Follow the steps outlined below to adjust the volume of the respective audio channels.  Press the MENU SETTING knob to access the system configuration menu.  Because VOLUME is the first item of the main menu, so press the MENU SETTING knob again to access the VOLUME sub menu which allows you to set the volumes of five audio inputs and the audio output listed as follows: RCA-L...

  • Page 18: Mixer

    Select ESCAPE to exit and return to the VOLUME sub menu. Mixer AD-300 can also be used as a mixer which combines one or more input channels into a single output channel. You can mix different combinations of input channels onto the output channels L and R.

  • Page 19: Tone Mode

    Select ESCAPE to exit and return to main menu. NB: The AD-300 is an Audio Delay device and it can also be used as a Tone Generator. Please DO NOT connect the AD-300 directly to a headset or set of speakers as it should not be used like an Audio AMP.
  • Page 20 Bass 60 – 250 Hz Normal speaking vocal range Lower Midrange 250 – 500 Hz Typical brass instruments and mid woodwinds such as the alto saxophone Midrange 500 Hz – 2 kHz Instruments such as the violin and piccolo Higher Midrange 2 –...

  • Page 21: Effect

    The audio signal will not be compressed if it stays below the threshold level. The audio signal will be compressed by the compression ratio (see Ratio for more information) if it rises above the threshold. AD-300 offers a threshold range of 0 to +21 dBu. Setting it to OFF disables the compressor.

  • Page 22: Expander

    The audio signal will be gain reduced by a ratio (see Ratio for more information) if it falls below the threshold. AD-300 offers a threshold range of -66 to -48 dBu. Setting it to OFF disables the expander.

  • Page 23: Limiter

    For example, a ratio of 4:1 means that if the input signal falls below the threshold by 1 dB, the output signal from the expander will be 4 dB lower than the threshold. The available ratios on AD-300 are listed as follows:  ...

  • Page 24: Gate

    ∞:1 Threshold (-6 – +24 dBu) is the signal level at which the limiter will be activated. Setting it to OFF disables the limiter. Attack Time (50 – 500 msec) is the reaction time of the limiter. The limiter has a much faster attack time than a typical compressor.

  • Page 25: Filter

    Filter Other than the dynamic effects, AD-300 also offers audio filters to allow either high or low frequencies to pass through. A low-pass filter attenuates content above a cutoff frequency (threshold frequency), allowing lower frequencies to pass through the filter.

  • Page 26: Firmware Update

    4. Firmware Update Datavideo usually releases new firmware containing new features or reported bug fixes from time to time. Customers can either download the AD-300 firmware as they wish or contact their local dealer or reseller for assistance. This section outlines the firmware upgrade process which should take approximately few minutes to complete.
  • Page 27 6. After the firmware has been successfully upgraded, you should see the following on the LCD screen. Remove the OTG cable and reboot the device. 7. Finally, check the firmware version.
  • Page 28 5. Dimensions All measurements in millimeters (mm)
  • Page 29 6. Specifications Interfaces 3 x balanced stereo audio / Microphone Audio Input (3 Pin XLR / 1/4” (6.3mm) Socket) 2 x unbalanced stereo audio, RCA sockets 2 x balanced stereo audio, XLR connectors Audio Output 2 x unbalanced stereo audio, RCA sockets 1 x 3.5mm Stereo headphone with volume Headphone control...
  • Page 30 Bandwidth 20Hz~20KHz < +/- 3dB > 75 dB @1KHz, +20dB gain S/N Ratio > 70 dB @1KHz, +40dB gain Microphone < 0.03% @1KHz, +20dB gain Input (XLR) T.H.D. < 0.5% @1KHz, +40dB gain > 75dB @+20dB gain Isolation > 70dB @+40dB gain Audio Processors Compressor Limiter...
  • Page 31 Notes...
  • Page 32 Service & Support www.datavideo.com/product/AD-300 Datavideo Technologies Co., Ltd. All rights reserved 2020 Nov-23.2021 Ver:E1...
