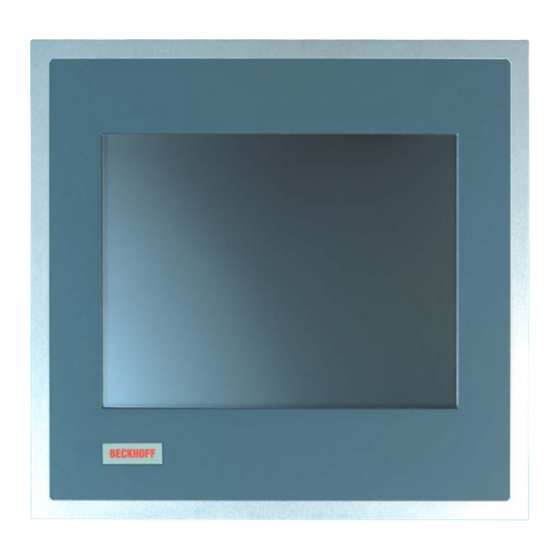

Built-in control panel

Advertisement

Quick Links

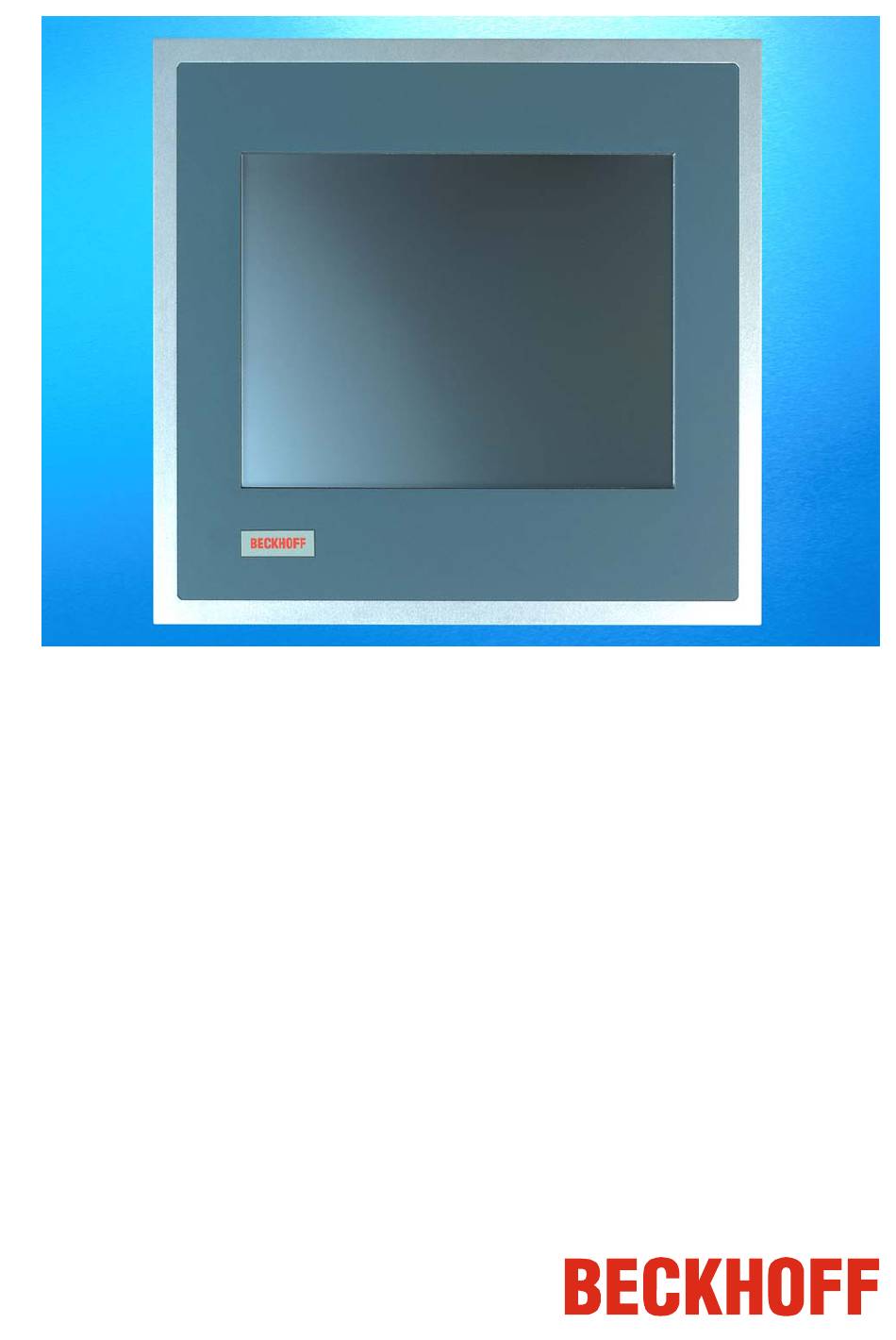

Installation and Operating instructions for
Built-in Control Panel CP60xx
Version: 1.4
Date:
2007-10-19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP60 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Beckhoff CP60 Series

  • Page 1 Installation and Operating instructions for Built-in Control Panel CP60xx Version: 1.4 Date: 2007-10-19...
  • Page 3: Table Of Contents

    Replacing the fluorescent lamps in the display Lamp sets Emergency procedures Shutting down Disposal Troubleshooting Fault correction Service and Support Beckhoff's branch offices and representatives Beckhoff headquarters Beckhoff Support Beckhoff Service Appendix Technical data Approvals FCC: Federal Communications Commission Radio Frequency Interference...
  • Page 4: General Notes

    © This documentation is protected by copyright. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions.
  • Page 5: Basic Safety Measures

    General Notes Basic safety measures Before opening the control panel housing, and whenever the control panel is not being used for control purposes (such as during Warning functional checks after a repair), all parts of the equipment must first be switched off, after which the control panel is to be disconnected from the equipment.
  • Page 6: Operator's Obligation To Exercise Diligence

    General Notes Operator's obligation to exercise diligence The operator must ensure that • the Control Panel is only used for its intended purpose (see Product Description section); • the Control Panel is only operated in a sound condition and in working order;...
  • Page 7: Product Description

    Product Description Product Description Appropriate Use The CP60xx Control Panel is designed for industrial application in machine and plant engineering. An aluminium housing contains a TFT display, touch screen/pad (optional) and a PC keyboard (optional). The Control Panel is installed in the front of control cabinets. Do not use the Control The Control Panel must not be used where there is a risk of Panel in areas of explosive...
  • Page 8: Cp-Link Cable Sets

    Product Description CP-Link cable sets Coaxial CP-Link cable with BNC-connectors cable C9900-K114 - Length 3 m (cable type Belden H155, bend radius 35 mm) C9900-K115 - Length 5 m (cable type Belden H155, bend radius 35 mm) C9900-K116 - Length 10 m (cable type Belden H155, bend radius 35 mm) C9900-K117 - Length 15 m (cable type Belden H155, bend radius 35 mm) C9900-K118...
  • Page 9: Installation Instructions

    4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CP60xx...
  • Page 10: Assembly

    Installation Instructions Assembly Assembly dimensions The illustration shows the measurements of the Control Panel. Please refer to the tables for cutout dimensions. All dimensions are in mm. Wall thickness 2-5 Control Panel CP600x Dimensions CP6009 6,5“ Display 272,3 258,3 CP6000 10“...
  • Page 11: Mounting Of The Control Panel

    Installation Instructions Mounting of the Control Panel Please refer to the tables for Control Panel cutout dimensions. Mounting of the Control Panel Release clamping levers Insert the Control Panel into the cutout. Release the clamping levers with a No. 2.5 Allen key. Folding them out Turn the clamping levers to the side through 90°...
  • Page 12: Connecting The Control Panel

    Installation Instructions Connecting the Control Panel The Control Panel must never be connected or disconnected in an area that is subject to explosion hazard! Risk of explosion! Danger The mains plug of the Control Panel must be disconnected! Warning Please read the documentation for the external devices prior to connecting them.
  • Page 13: Operating Instructions

    Operating Instructions Operating Instructions Please also refer to chapter General Notes. Functional description Switch on The Control Panel does not have its own mains power switch. As soon as the power supply is switched on the control panel is activated. Switching off Control software, as typically applied in Control Panels, enables the assignment of different rights to all users.
  • Page 14 Operating Instructions Print-Screen prints a hard copy of a text screen on the printer. Print The Pause key stops the computer until another key is pressed (only under Pause MS-DOS). Your input is confirmed with the Enter key. Enter Backspace deletes the character to the left of the cursor. If the Shift key is pressed at the same time as another key, then instead of Shift the numbers you obtain the character printed above the number, and you...
  • Page 15: Servicing And Maintenance

    Operating Instructions Servicing and maintenance Please also refer to chapter General Notes. Cleaning the Control Panel First switch off the Control Switch off the Control Panel and all devices connected to it, so that keys cannot be unintentionally actuated. Panel The front of the Control Panel can be cleaned with a soft, damp cleaning cloth.
  • Page 16: Lamp Sets

    Operating Instructions Replacement for the First release the two screws 15 inch display (1) and (2) with a small Philips screwdriver, then carefully pull out the fluorescent lamps in direction of the arrows. After the exchange of the fluorescent lamps the installation takes place in reverse order.
  • Page 17: Troubleshooting

    1. Correctly connect CP- exchanged Link-cable: Put the plug with the red marking into the socket with the red point. 2. Call Beckhoff Service The Industrial PC does not boot Floppy disk in the drive Remove floppy disk and fully press any key Hard disk damaged (e.g.
  • Page 18: Service And Support

    Fax: +49(0)5246/963-198 e-mail: info@beckhoff.com Beckhoff Support Support offers you comprehensive technical assistance, helping you no only with the application of individual Beckhoff products, but also with other, wide-ranging services: • world-wide support • design, programming and commissioning of complex automation systems •...
  • Page 19: Appendix

    Appendix Appendix Technical data Dimensions Dimensions (W x H x D): see section Assembly dimensions Operation in areas that are The Control Panel must not be used where there is a risk of subject to explosion hazard explosion. The following conditions must be observed during operation: Environmental conditions Ambient temperature: 0 to 55°C...
