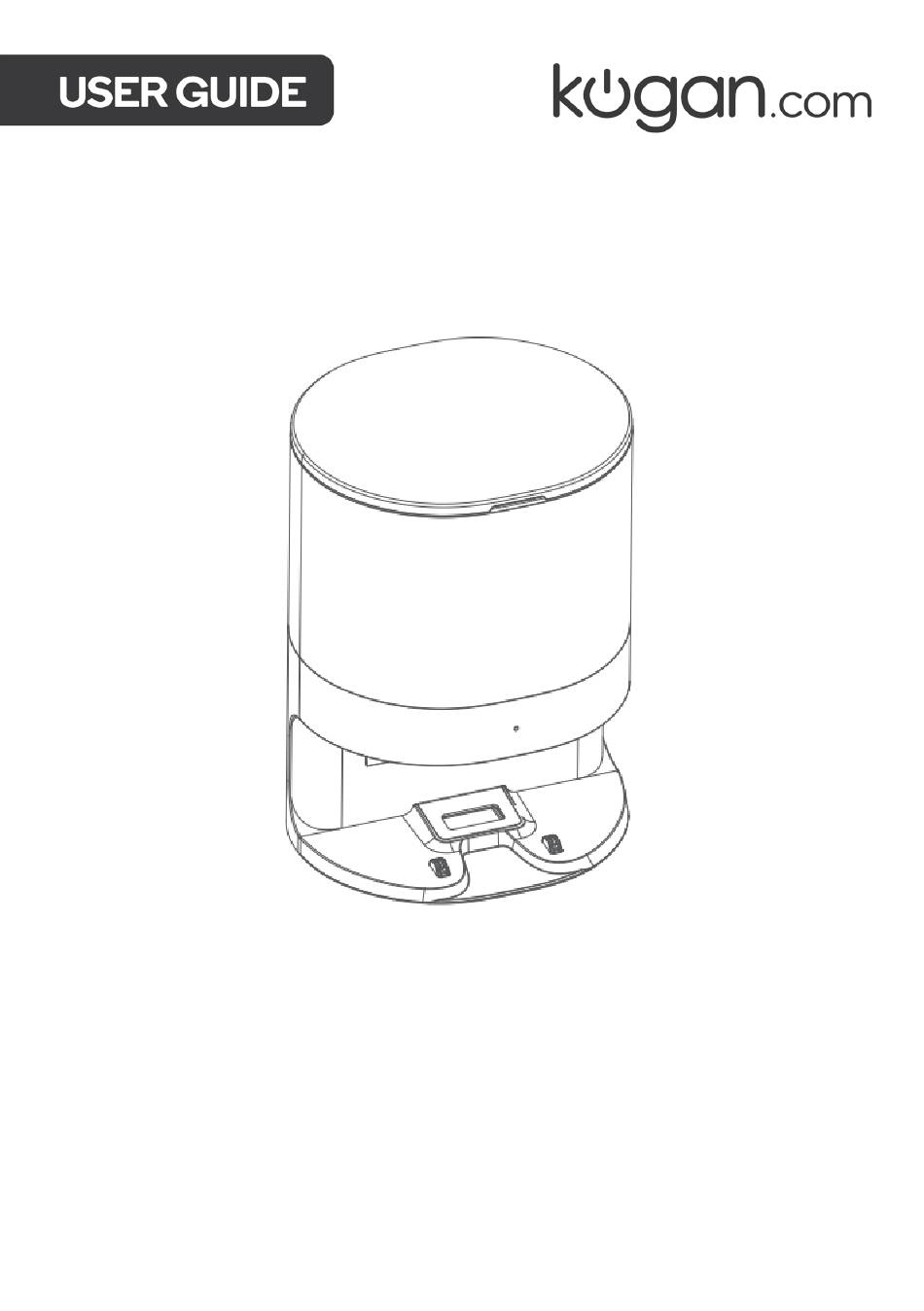

- Page 1 KOGAN SMARTERHOME™ LX12 ROBOT VACUUM CLEANER DOCK KAVACRBL12D...
-
Page 3: Safety And Warnings
Please do not use this unit outdoors or in wet environment. • Please do not use this unit when its cable or plug is damaged. In case of any operational failure, cease use immediately and contact help.kogan.com before further use. - Page 4 OVERVIEW Dock x1 Cover Dust bin Charge / Dust collection indicator light IR lens Suction inlet Charging contact pins Front Air Outlet Back...
- Page 5 Seal ring for cover Fan filter support Uncovered Transparent cover for dust passage Beneath view...
- Page 6 Other Parts Handle of dust bag Please remove the dust bag coming with the unit from here Dust bag Dust Bags Note: A new dust bag has already installed in the dust bin of the dock.
-
Page 7: Installation
INSTALLATION 1. Please install this unit on a flat ground, ≥ 6cm away from side wall. 6cm away from the side wall 2. Please keep open the space ≥ 1.2m ahead and ≥ 0.5m on both sides of the unit. The dock covers both dust collection/disposal and vacuum charging functions, and comes pre-installed with a new dust bag. -
Page 8: Cleaning And Care
CLEANING & CARE Replacement of dust bag: The quick-flashing orange indicator on the unit denotes full dust bag or you may change the dust bag as required by the mobile app. It is recommended to replace the dust bag once every 6-8 weeks. - Page 9 IR lens and charge/dust collection shrapnel cleaning Check if IR lens and charge/dust collection shrapnel are contaminated. If so, remove any dirt with a clean and dry cloth and make sure they are fully cleaned away. Cleaning once every month is recommended. IR lens Charging Contact Pins Fan filter support cleaning...
-
Page 10: Specifications
SPECIFICATIONS Dimensions 255 x 225 x 340mm Rated power 1050 W Rated input 220-240V ~ 50/60Hz Rated output DC24V 1.2A TROUBLESHOOTING The status of this product is shown by the LED indicator on the front of the unit and the app: Common Solution indicator... - Page 11 NOTES...
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
