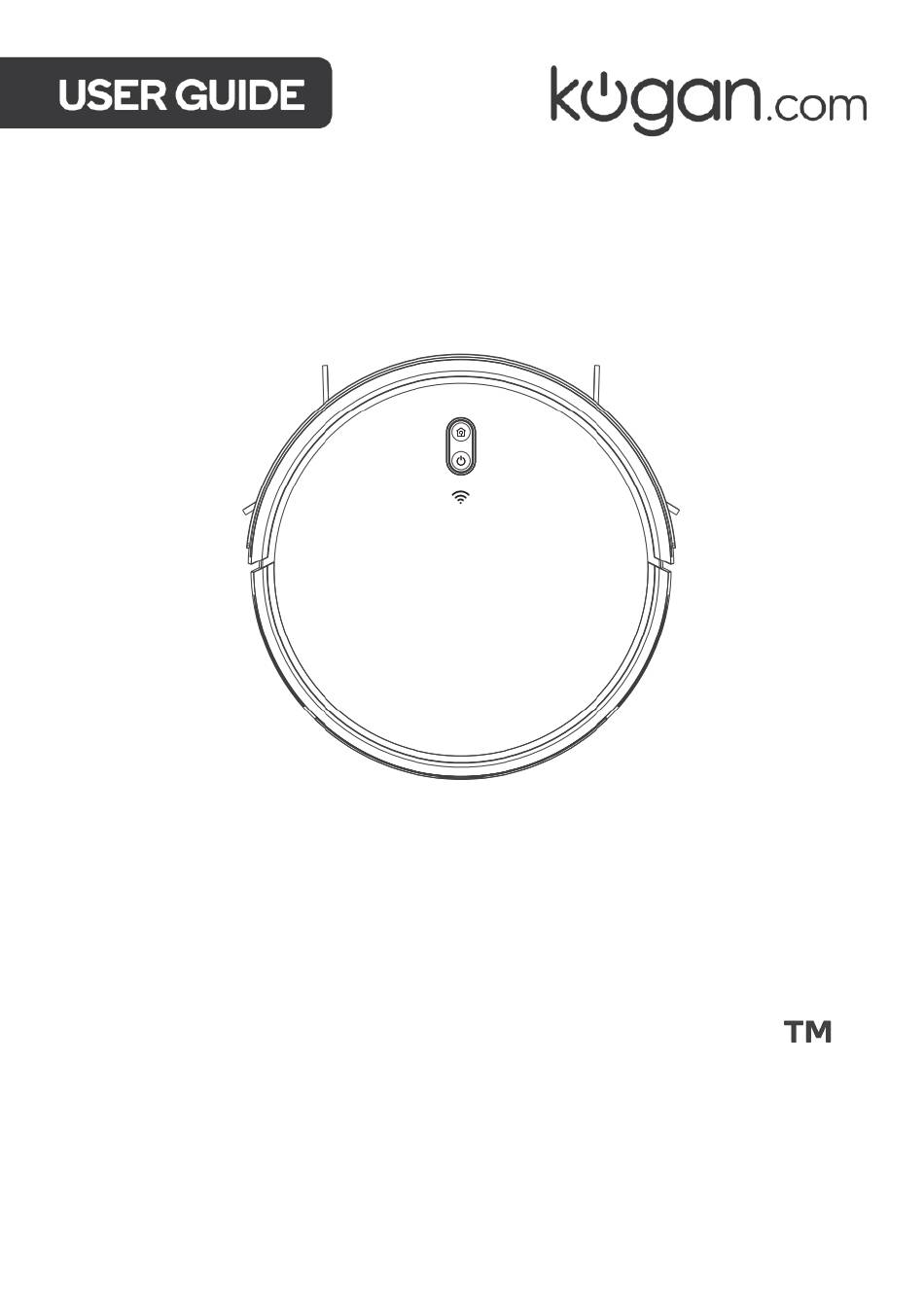

- Page 1 KOGAN SMARTERHOME POINT LASER ROBOT VACUUM CLEANER AND MOP KAVACRBL14W & KAVACRBL14A...
- Page 2 Safety & Warnings Components Overview Installation Connect to SmarterHome Google Home Control Amazon Alexa Control Operation Cleaning & Care Specifications Troubleshooting Notes...
- Page 3 SAFETY & WARNINGS Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference. • • Do not allow children to use this appliance as a toy. • Children must be supervised to ensure they do not play with the appliance. •...
- Page 4 • Dispose of used batteries properly and send them to professional recycling agencies. • If the power cord is damaged or broken, cease use immediately and contact help.Kogan.com for support. • When transporting the vacuum, ensure that the appliance is turned off and the original packaging box is used for packaging.
- Page 5 COMPONENTS Vacuum Cleaner Charging dock Power adapter 2-in-1 Dustbin/Water tank Mopping module Mop cloth (preassembled) (preassembled) (preassembled) Cleaning brush HEPA & sponge filter L & R side brushes (x2) (preassembled) User guide...
- Page 6 OVERVIEW Home button Power button Wi-Fi indicator Short press to recharge/pause. Home button Long press to start local cleaning Press and hold the button for 3 seconds to power on/off Short press to start Sweep/Pause Power button Long press for 15s for forced shutdown under normal circumstances Blue: Normal operation or charging Indicator...
- Page 7 Charging Dock Cover groove Cover plate Power indicator Signal transmitter Charging contacts Cord slots Power input port Cord management post...
- Page 8 Wall sensor Filter cover Dustbin button Dock sensor Air vent Infrared obstacle Collision detection sensor sensor Cliff sensor Charging contacts Drive wheel Right side brush Left side brush Battery cover Left wheel Right wheel Rolling brush Roller cover buckle Master power switch...
- Page 9 INSTALLATION Connect the power adapter to the power input port on the underside of the charging dock. Connect the power adapter to an electrical outlet. Wrap any excess cord around the cord management posts. Place the charging docks against a wall on a flat surface and then turn the outlet on. >50cm >50cm >150cm...
- Page 10 Attach the left and right side brushes (L, R) to the corresponding letter on the underside of the vacuum. There should be a clicking sound when each side brush is secured. Place the vacuum on the charging contacts on the dock to charge. 0~2cm Notes: •...
- Page 11 Install 2-in-1 Dustbin/Water tank Attach the mop to the bottom of the mop module. When using the mopping function, open the water plug and fill the dustbin/water tank with water. Replace the water plug securely. Do not add detergent to the dustbin/water tank.
- Page 12 Put the dustbin back into the water tank, lay the handle flat, and install the water tank. Press and hold the button in the 2-in-1 dustin/water tank and push it until you hear a click indicating it is securely in place. Press and hold the 2 buttons in the middle of the mop module and attach it to main unit.
- Page 13 Removing the 2-in-1 Dustbin/Water Tank After the cleaning, press and hold the 2 buttons in the middle of the moping module. Slide the moping module backward and remove it, then take out the mop cloth. (Do not move or flip the main unit while it is in operation.) After removing the moping module, press and hold the button in the middle of the water tank and pull it out horizontally from the rear of the main unit.
- Page 14 BEFORE FIRST USE Checks to the area • Ensure there are no loose wires or cables scattered on the ground. This is to prevent the vacuum becoming entangled or dragged along. • Ensure all fragile items, those easy to topple, dangerous items, and valuables are removed.
- Page 15 CONNECT TO SMARTERHOME Install App p from the Play Store (Android) or App Store (iOS). Play Store (Android) App Store (iOS) To register: If you already have a SmarterHome The system will automatically recognise your country. If needed, you can manually select your country from the drop-down box Verification Code to continue.
- Page 16 Set device in pairing mode When the device is first turned on, it may automatically enter pairing mode (both buttons are slowly flashing purple). WIFI resetting lue. Add device through network Once registered, tap Add Device , or the + right corner, to add a new device through the network.
- Page 17 Adjust your connection method by tapping on the mode type in the top-right corner of the screen. Select AP Mode for the set-up type. Ensure that the device is in pairing mode, with the power and home buttons are slowly flashing Blue, select Confirm indicator is slowly blink and tap Next . Follow the in-app prompts to continue AP Mode connection, which will pair your -Fi hotspot to ensure a connection.
- Page 18 The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome device are kept close until connection is complete. After successfully being added, you will have the option to rename the device and listing to enter its control page.
- Page 19 GOOGLE HOME CONTROL You will need to have set up a Google Home account prior to linking your Kogan SmarterHome device. Google Home app (top left corner, see arrow in the below screenshot) select Works with Google...
- Page 20 service. From here, you will be prompted to sign into your SmarterHome account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 21 app and your devices. Once connected, the app will display any compatible devices linked to your SmarterHome account. From here you can assign them to rooms and set up any routines. Tap on any of the devices to view a list of available commands. Please note that Google Home can only control the base/core functions of any compatible SmarterHome devices.
- Page 22 AMAZON ALEXA CONTROL -right and skill.
- Page 23 skill to Alexa. From here, you will be prompted to sign into your SmarterHome account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 24 OPERATION Powering On/Off: • Power On: Press the power button. The vacuum indicator will flash Blue and voice POWER ON indicating it is ready to work. • Power Off: Press and hold the power button for 3 seconds. The vacuum indicator will flash White and voice prompt POWER OFF indicating the shutdown is complete.
- Page 25 Silent Mode To enable Silent Mode, use the SmarterHome app. In Silent Mode, the device will not play any voice prompts. You can turn this mode on or off via the app. Reset Wi-Fi If the App fails to connect to the vacuum due to router settings, password changes, or other reasons: Press and hold the Home and Power buttons for 3 seconds until you hear Wi-Fi resetting The Wi-Fi light will turn on and...
- Page 26 Note: Avoid moving the vacuum frequently while it is cleaning. If the vacuum is moved, place it back near its original position. When restarted, it will attempt to reposition itself. If successful, it will follow the planned cleaning path and resume work. If positioning fails, the vacuum will cancel the previous task, create a new map, and start cleaning again.
- Page 27 CLEANING & CARE Roller brush Turn the vacuum over and press the latch on the brush cover to remove the roller brush. Use the included cleaning tool to remove dust from the roller brush and its cavity. Clean any debris or hair tangled on the roller brush. Reinstall the roller brush and secure it by pressing the brush cover latch.
- Page 28 Dustbin Press and hold the dustbin button and remove the dustbin by pulling backwards. Open the dustbin and empty the debris into the garbage. Filter Filter gauze After extended use, remove the filter gauze, filter sponge, and HEPA Dustbin filter. button Rinse the filter gauze, filter sponge, HEPA filter, and dustbin under...
- Page 29 2-in-1 Dustbin/Water Tank Remove the mop cloth and drain the water from the tank. Clean the mop cloth, then dry both the water tank and cloth before the next use. Lift the handle, remove the dustbin from the tank, pour out any remaining water, and dry the tank.
- Page 30 Battery • The vacuum is equipped with a built-in high-performance rechargeable lithium-ion battery. To maintain optimal battery performance, keep the vacuum charged during regular use. • If not in use for an extended period, turn off the vacuum, store it properly, and recharge it at least once every three months to prevent battery damage from excessive discharge.
- Page 31 Product hazardous Substance Content and Name Harmful substances Name (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) Circuit board assembly Battery Charger Power Cable Metallic parts Motor Shell Other accessories This form is prepared according to the provisions of SJ/T 11364 •...
- Page 32 SPECIFICATIONS Vacuum Dimension 327 x 325 x 76mm Weight 2.8kg Battery 2600mAh-Lin Rated Voltage 14.4V Raed Power Charging base Dimension 160 x 145 x 90mm Rated Voltage Rated Power TROUBLESHOOTING Questions Solution • The battery is low. Place the vacuum on the charging dock and align the charging pads.
- Page 33 • The dustbin is full; clean the dustbin. • The filter is clogged; clean or replace the filter. Abnormal noise when cleaning • The roller brush is entangled with foreign objects; clean the roller brush. • The Wi-Fi signal is weak; ensure the vacuum is in a good coverage area.
- Page 34 Reinsert the dustbin and clean the filter if Error 10: Dustbin out, clean filter necessary. Error 11: Robot blocked Move the vacuum to a flat surface and restart. Check the main wheel for foreign objects and Error 12: Main wheel stuck clean if necessary.
- Page 35 NOTES...
