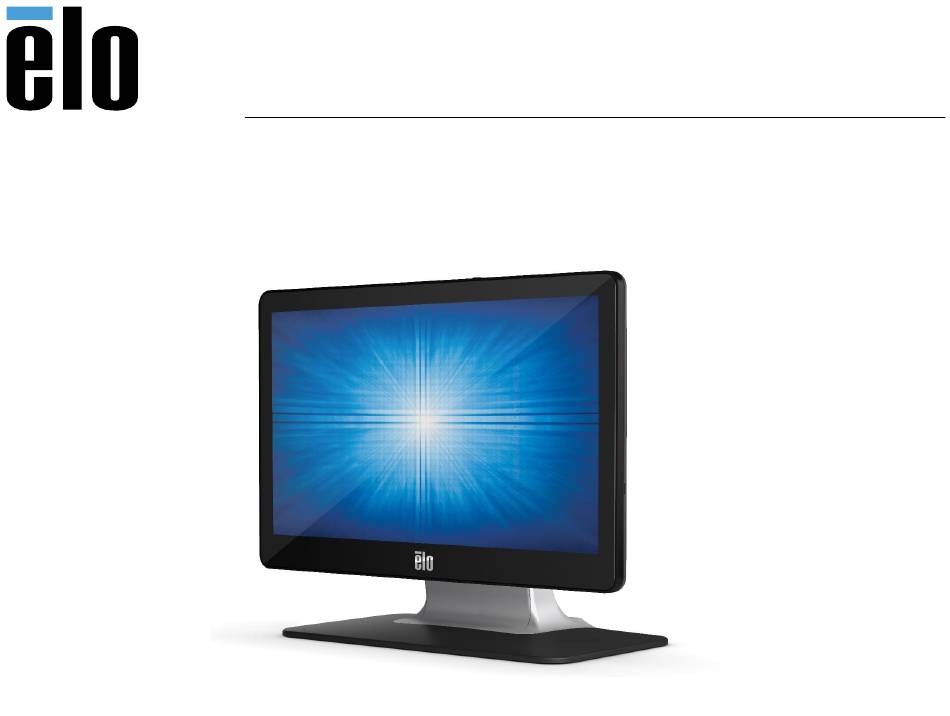

- Page 1 USER MANUAL Elo Touch Solutions ET1302L UM600243 Rev B...
- Page 2 Elo to notify any person of such revisions or changes. Trademark Acknowledgments Elo, Elo (logo), Elo Touch, Elo Touch Solutions and TouchPro are trademarks of Elo and its Affiliates. Windows is a trademark of Microsoft Corporation. User Manual ET1302L...
-
Page 3: Table Of Contents
Section 2: Installation ..............................................5 Section 3: Mounting ..............................................9 Section 4: Operation ..............................................12 Section 5: Technical Support ........................................... 15 Section 6: Safety & Maintenance ..........................................17 Section 7: Regulatory Information ..........................................18 Section 8: Warranty Information..........................................25 User Manual ET1302L... -
Page 4: Section 1: Introduction
This manual contains information that is important for the proper setup and maintenance of the unit. Before setting up and powering on your new touch monitor, read through this manual, especially the Installation, Mounting, and Operation Sections. User Manual ET1302L... -
Page 5: Section 2: Installation
• HDMI cable • Touch USB Cable (USB Type-A to Type-C) • Power brick • Europe power cord • North America power cord • EEI Label • 3 x tie wraps • 2 x cable cover screws User Manual ET1302L... - Page 6 USB Type-C for everything - Source with USB Type-C (w/ Power Delivery function 15V 1.8A / 20V 1.35A): Connect the USB Type-C to Type-C cable (sold separately Elo P/N: E710364) between the monitor’s USB-C connector and your PC’s USB Type-C port. User Manual ET1302L...
- Page 7 *Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues. This USB type C monitor is powered by USB port which complies with LPS and SELV circuit according to IEC 60950-1:2005, or complies with ES1 and PS2 circuit according to IEC 62368-1:2014. User Manual ET1302L...
- Page 8 Windows XP touch driver. To download the latest touch drivers: Visit www.elotouch.com/Support/Downloads/Driver/DriverDownload/Default.aspx Select the “Touch Drivers” from “Product Category” dropdown menu. Select the operating system from “Operating System” dropdown menu. Click on the driver version required for your touchscreen display. User Manual ET1302L...
-
Page 9: Section 3: Mounting
A four-hole 75 x 75 mm mounting interface for M4 screws is provided on the rear of the monitor. Remove the stand using a Phillips screwdriver to access the mounting interface. The VESA FDMI-compliant counting is coded VESA MIS-D, 75, C. User Manual ET1302L... - Page 10 Base Mount ET1302L base mounting options are shown below. User Manual ET1302L...
- Page 11 Your monitor comes with four peripheral ports (located at the top, bottom, left and right sides of the monitor). To mount an MSR, remove one of the peripheral port covers and install the MSR as shown below. Please refer to the MSR Quick Install Guide (QIG) for set-up details. User Manual ET1302L...
-
Page 12: Section 4: Operation
Please purchase the approved power source that is certified by an IEC or UL through the specified dealer Touch No calibration is required for projected capacitive touch technology. Your touch monitor can support up to 10 touches at once. User Manual ET1302L... - Page 13 When connected to Windows XP computers, the touch monitor detects only a single touch. Refer to Section 2, “Installing the Touch Technology Software Drivers,” for instructions on downloading touch drivers for Windows XP. No calibration is required for this technology. User Manual ET1302L...
- Page 14 Display OSD Audio submenu Decrease value of selected parameter/select previous menu item Display OSD Luminance submenu Increase value of selected parameter/select next menu item Display Video Priority submenu Select parameter for adjustment/select submenu to enter Power key Power on/off display User Manual ET1302L...
- Page 15 Defined option is selected, the user can change the color temperature by changing individual R, G, and B gains on a scale from 0 to 100. Default: User Defined with R, G, and B all set to 100. User Manual ET1302L...
- Page 16 Use this feature to avoid image sticking. Your Elo monitor will automatically display a pattern every 2 hours for 2 seconds to prevent image sticking. Panel Saver Default: Disabled If there is no touch activity on your Elo monitor for the time specified below, the brightness will reduce automatically (it will recover with any touch activity). Energy Saver Default: None User Manual ET1302L...
- Page 17 Menu, Up, Down or Select keys will have no effect. Press and hold the “Menu” and “ ” buttons simultaneously for two seconds to enable/disable the Power Locking feature. When Power Locking is enabled, pressing the power switch will have no effect. User Manual ET1302L...
-
Page 18: Section 5: Technical Support
Suggest using Elo USB type-C to type-C cable PN: P/N: E710364 Monitor sometimes displays black out when video is via USB type-C to type-C cable “No Signal Detected” message is stuck and Suggest using Elo USB type-C to type-C cable PN: P/N: E710364 keep showing User Manual ET1302L... - Page 19 It takes long time to boot or wake up the monitor Technical Assistance Technical Specifications Technical Support Visit https://www.elotouch.com/support visit www.elotouch.com/products for technical support for technical specifications for this device See this user manual’s last page for worldwide technical support phone numbers. User Manual ET1302L...
-
Page 20: Section 6: Safety & Maintenance
Ensure the environmental temperature and humidity are maintained within specification, and do no block the ventilation slots. • Monitors are not designed for outdoors. Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. User Manual ET1302L... -
Page 21: Section 7: Regulatory Information
Notice to Users in Canada: This equipment complies with the Class B limits for radio noise emissions from a digital apparatus as established by the Radio Interference Regulations of Industrial Canada. User Manual ET1302L... - Page 22 Plug the digital device into a different AC outlet so the digital device and the receiver are on different branch circuits. v. Disconnect and remove any I/O cables the digital device is not using. (Unterminated I/O cables are a potential source of high RF emission levels.) User Manual ET1302L...
- Page 23 (Removing or cutting the line cord ground may increase RF emission levels and may also present a lethal shock hazard to the user.) If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician. User Manual ET1302L...
- Page 24 The following certifications and marks have been issued or declared for this monitor: • Australia RCM • Canada cUL, IC • China CCC • Europe CE, • Japan VCCI • Korea KCC • Mexico • Taiwan BSMI • United States UL, FCC • International CB User Manual ET1302L...
- Page 25 Indicates that the amount of this toxic or hazardous substance contained in at least one of the homogeneous materials used for this component is above the limit requirement in SJ/T11363-2006. For items marked with an X, exemptions were taken according to EU RoHS. User Manual ET1302L...
- Page 26 2. It is encouraged and recommended that this product be recycled and reused according to local laws. The product should not be thrown away casually. Power Adapter Specifications Electrical Ratings 100 - 240VAC, 50/60Hz, 1A Input 12.0 VDC, 3 A, LPS Output (Power adapter needs to be UL approved) User Manual ET1302L...
- Page 27 VDC, 3 A Operating Conditions Temperature 0-40°C Humidity 20-80% (non-condensing) Altitude 0-3,048 m Storage Conditions Temperature -20-60°C Humidity 10-95% with 38.7℃ max wet bulb temperature (non-condensing) Altitude 0-12,192 m Ingress Protection IP Rating IPX1 (Front of the monitor only) User Manual ET1302L...
-
Page 28: Section 8: Warranty Information
Products made or authorized by Buyer. Buyer will indemnify Seller and hold Seller harmless from any liability, claims, loss, cost, or expenses (including reasonable attorney’s fees) attributable to Buyer’s products or representations or warranties concerning same. User Manual ET1302L... - Page 29 Notes User Manual ET1302L...
- Page 30 www.elotouch.com Visit our website for the latest • Product Information • Specifications • Upcoming Events • Press Releases • Software Drivers • Touch Monitor Newsletter To find out more about our extensive range of Elo touch solutions, go to www.elotouch.com, or call the office nearest you. North America Europe Asia-Pacific...
