5. Types of Units

Each lane consists of two (2) units, each of which includes a retractable glass obstacle that blocks the
passageway.

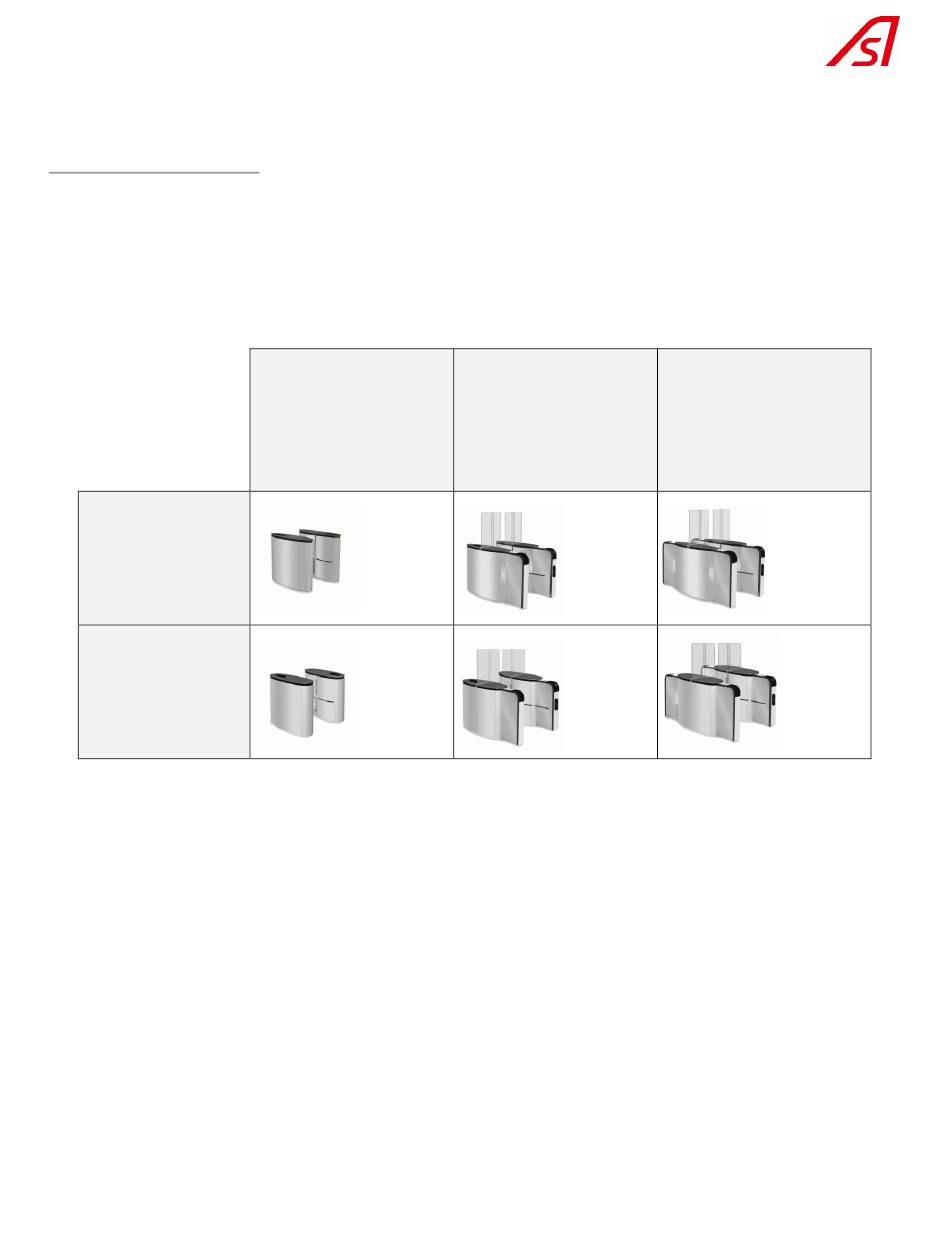

There are six (6) different types of units.
Narrow obstacle,
23-in width
(SL 90x)
Passage for users with normal
mobility
Wide obstacle,
36-in width
(SL 91x)
Passage for users with reduced
mobility
The difference between the SL 90X and the SL 91X is the width of the passageway.
• The SL 90X has a 23-in passage width.
• The SL 91X has a 36-in passage width.
• The glass obstacles of an SL 91X lane are wider than those of an SL 90X to cover the wider
passageway. This means that the body of an SL 91X will be wider as well to accommodate the wider
glass obstacle.
With a constant view to adopting the latest technological developments, Automatic Systems reserves the right to amend the above information at any time
Without extension
(SL 9x0)
Standard detection in both
directions of passage
SL 900
SL 910
www.automatic-systems.com
1 extension
(SL 9x1)
Standard detection in one
direction of passage, enhanced
detection in the other
SL 901
SL 911
2 extension
(SL 9x2)
Enhanced detection in both
directions of passage
SL 902
SL 912
