FIELDVISION
OCM-101-4KH

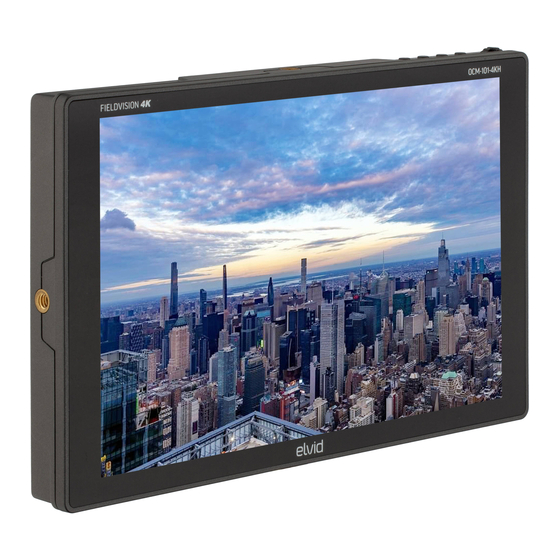

10.1" 4K On-Camera Monitor
USER
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OCM-101-4KH and is the answer not in the manual?

Questions and answers

Related Manuals for Elvid OCM-101-4KH

Summary of Contents for Elvid OCM-101-4KH

  • Page 1 FIELDVISION OCM-101-4KH 10.1" 4K On-Camera Monitor USER MANUAL...
  • Page 3 The FieldVision OCM-101-4KH can display signals up to UHD 4K (3840 × 2160) and DCI 4K (4096 × 2160). The LCD panel’s native resolution of 1920 ×...
  • Page 4 PRECAUTIONS • Exposure to high sound levels • Handle this product with care. Avoid any impacts to this can cause permanent hearing loss. Avoid listening at high product. volumes for extended periods • Disconnect this product from of time. its power source before storage •...
  • Page 5 CONTENTS • Monitor • Screws (×4) • Sun hood • 1/4-20 setscrew • Sun hood bracket • Hex key • Mini HDMI to HDMI cable • 12 V DC power supply (C-A) • Shoe-mount ballhead • NP-F battery plate...
  • Page 6 OVERVIEW BACK Speakers Battery plate/VESA mounting sockets UPGRADE HDMI OUT HDMI IN DC 12V VGA input HDMI input USB port HDMI output Headphone output 12 V DC power socket 1/4-20 threaded mounting sockets...
  • Page 7 Menu dial Exit button 1/4-20 threaded F1 / F2 buttosn mounting socket Power button MENU /INPUT EXIT Power indicator...

  • Page 8: Powering Options

    POWERING OPTIONS There are two ways to power the FieldVision monitor: AC power or NP-F battery (not included). NP-F BATTERY 1. Align the battery plate with the mounting sockets on the back of the monitor. Make sure the battery plate’s power cable is on the same side as the monitor’s power input.
  • Page 9 Important! The battery should easily slide into the battery slot. Don’t use force to attach the battery. Doing so could damage the battery or the contacts. Remove the battery by pressing the battery release button and sliding the battery out. AC POWER Plug the 12 V power supply into the monitor’s power...

  • Page 10: Attaching The Sun Hood

    ATTACHING THE SUN HOOD The sun hood prevents glare on the monitor’s screen by blocking out stray light, and it is useful when shooting outdoors. 1. Snap the sun hood bracket onto the front of the monitor. 2. Attach the long side of the sun hood to the touch- connect strip at the top of the bracket.

  • Page 11: Mounting Options

    MOUNTING OPTIONS MOUNTING THE MONITOR ONTO A CAMERA 1. Screw the ballhead into one of the monitor’s 1/4-20 threaded sockets until it’s tight. 2. Loosen the mounting shoe by turning the locking wheel counterclockwise. Make sure the locking knob is tight, and the ballhead is locked into place.
  • Page 12 OTHER MOUNTING OPTIONS Unscrew the ballhead’s mounting foot to expose the 1/4-20 threaded socket for more mounting options. Mounting the Monitor onto a Tripod, Light Stand, or Accessory Arm: Screw the ballhead onto a tripod, light stand, or accessory arm with a 1/4-20 mounting stud. Mounting the Monitor to a Camera Cage or Rig: Screw the included hex setscrew...

  • Page 13: Connecting Video Inputs

    CONNECTING VIDEO INPUTS HDMI: Connect the monitor’s HDMI input to a camera with an HDMI output. VGA: Use a VGA cable to connect the monitor to the VGA output of a computer.

  • Page 14: Connecting Video Outputs

    CONNECTING VIDEO OUTPUTS Use the FieldVision’s HDMI loop output to send the unmodified input signal to a recorder or external monitor.

  • Page 15: Powering On/Off

    POWERING ON/OFF 1. Attach a battery, or plug the monitor into an AC outlet. 2. Press the power button. To turn the monitor off, press and hold the power button until the monitor powers down.

  • Page 16: User Interface

    USER INTERFACE ACCESSING THE MENUS All setting configurations are made in the six main menus: Picture, Marker, Function, Assistant, Audio, and System. MENU NAVIGATION Press the menu dial to call up the main menu, and turn the dial to scroll through the menu items. Press the menu dial to enter a submenu and to select the highlighted menu selection.

  • Page 17: Quick Adjustments

    QUICK ADJUSTMENTS Function Buttons There are two user-definable function buttons, F1 and F2, which allow you to toggle a function on or off. By default, F1 is set to Peaking, and F2 is set to Level Meter. To change the function button settings, see Function Menu below.

  • Page 18: Input Signal

    Volume (default), Brightness, Contrast, Saturation, Tint, and Sharpness. INPUT SIGNAL The OCM-101-4KH accepts HDMI and VGA input signals. Once the monitor is powered on, press the power button to select between HDMI and VGA signals.

  • Page 19: Picture Menu

    PICTURE MENU BRIGHTNESS Adjusts the monitor’s brightness value from 0 to 100. The default setting is 50. CONTRAST Adjusts the contrast value of the on-screen image from 0 to 100. The default setting is 50. SATURATION Adjusts the value of screen color saturation from 0 to 100. The default setting is 50.

  • Page 20: Color Temperature

    COLOR TEMPERATURE Adjusts the color temperature of the on-screen image. Presets are 6500 (default), 7500, and 9300 K, and User. When User mode is selected, additional menus for red, green, and blue gain and offset become active, and can be accessed by scrolling past the Color Temp menu.

  • Page 21: Marker Menu

    MARKER MENU CENTER MARKER Turning the center marker option on places a crosshair at the center of the screen. The preset is set to off. ASPECT MARKER Sets the aspect marker on-screen display. Select from 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 2.0X, 2.0X MAG, and off (default). SAFETY MARKER Displays an on-screen safety frame marker.
  • Page 22 ASPECT MAT Available only when an aspect ratio is selected from the Aspect Marker menu. Adjust the darkness of the area of the screen that’s outside the aspect marker. Choose from 1 to 7 (lightest to darkest) and off (default). THICKNESS Adjusts the thickness of the center marker, aspect marker, and grid.

  • Page 23: Function Menu

    FUNCTION MENU SCAN Determines how the image is displayed based on the settings in the Aspect and Zoom menus below. Selecting Aspect (default) or Zoom activates the Aspect or Zoom menus. Selecting Pixel-to-Pixel turns off scaling and displays the incoming video signal in its native resolution and aspect ratio with 1:1 pixel mapping.

  • Page 24: Check Field

    extra blanking area. For example, when Fullscan is selected, a 1920 × 1080 signal will display the full 1920 × 1080 area. CHECK FIELD When Check Field is on, only the selected color information from the incoming video signal will appear on-screen. Check Field mode is useful for calibrating the monitor.

  • Page 25: Assistant Menu

    ASSISTANT MENU PEAKING Turning the peaking feature on adds a color outline to high- contrast areas of the image, highlighting areas that are in focus. The default is set to off. PEAKING COLOR Selects the color of the peaking feature’s outline. Choose red (default), green, blue, white, or black.

  • Page 26: Exposure Level

    EXPOSURE Displays diagonal stripes through areas of the image that exceed the exposure level setting in the Exposure Level menu. EXPOSURE LEVEL Adjusts the exposure level intensity from 0 to 100. The default value is set to 85. HISTOGRAM Histogram places a meter in the lower right corner of the screen that indicates the overall level of exposure from light to dark.
  • Page 27 VGA MENU This menu is available only with VGA input. AUTO This is the recommended setting. It automatically adjusts and calibrates the monitor to the analog signal. PHASE Adjust this setting from 0 to 100 to remove any vertical banding effects. The default value is 19. CLOCK Adjusts settings to match the source’s clock rate from 0 to 100.
  • Page 28 H-POSITION Adjusts the horizontal position of the monitor’s display from 0 to 100. The default value is 50. V-POSITION Adjusts the horizontal position of the monitor’s display from 0 to 100. The default value is 50.

  • Page 29: Audio Menu

    AUDIO MENU VOLUME Adjust the level of the audio output from 1 to 100. The default volume is set to 0. LEVEL METER Activating the level meter puts a meter on-screen that can monitor embedded stereo audio. The default setting is on. MUTE Selecting on instantly mutes the audio.

  • Page 30: System Menu

    SYSTEM MENU LANGUAGE Sets the language of the on-screen display to English (default) or Chinese. OSD TIMER Set the length of time the on-screen menu is displayed. Select 10 (default), 20, or 30 seconds. IMAGE FLIP Controls the orientation of the on-screen image. Flip the screen horizontally (H), vertically (V), or both (H/V).
  • Page 31 F1 CONFIGURE / F2 CONFIGURE MENUS Assigns functions to the F1 and F2 buttons. Choose Peaking (F1 default), False Color, Exposure, Histogram, Mute, Level Meter (F2 default), Center Marker, Aspect Marker, Grid, Check Field, Display Scan, Scan, Aspect, DSLR, Freeze, and Image Flip. When the function is assigned, press the function buttons repeatedly to scroll through the available options for that function.

  • Page 32: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION The FieldVision • If you are powering the FieldVision with OCM-101-4KH a battery, make sure the battery is fully will not turn on. charged and properly seated in the battery plate. • Make sure the 12 V DC adapter is fully plugged in, and your AC power source is reliable.
  • Page 33 • Check the audio settings of your video source or camera. • Check to see if headphones are plugged in. The FieldVision • Turn the monitor’s volume all the way down OCM-101-4KH is or plug headphones into the headphone emitting a high- jack. pitched feedback.

  • Page 34: Specifications

    SPECIFICATIONS Panel Size 10.1 in. (25.7 cm) Panel Type IPS LCD Backlight Resolution 1920 × 1200 Bit Depth 8 bit Max Brightness 350 nit Contrast Ratio 1000:1 Viewing Angle L/R: 170° U/D: 170° Aspect Ratio 16:10 Inputs HDMI Outputs HDMI Headphone Supported Formats HDMI: Up to 4096 ×...

  • Page 35: Fcc Statement

    STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

  • Page 36: One-Year Limited Warranty

    ONE-YEAR LIMITED WARRANTY This Elvid product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later.
