Elvid WCM-758G SkyVision User Manual

Wireless 7"
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
sKYVIsION
WCM-758G
WIreLess 7" MONITOr
user
MANuAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WCM-758G SkyVision and is the answer not in the manual?

Questions and answers

Related Manuals for Elvid WCM-758G SkyVision

Summary of Contents for Elvid WCM-758G SkyVision

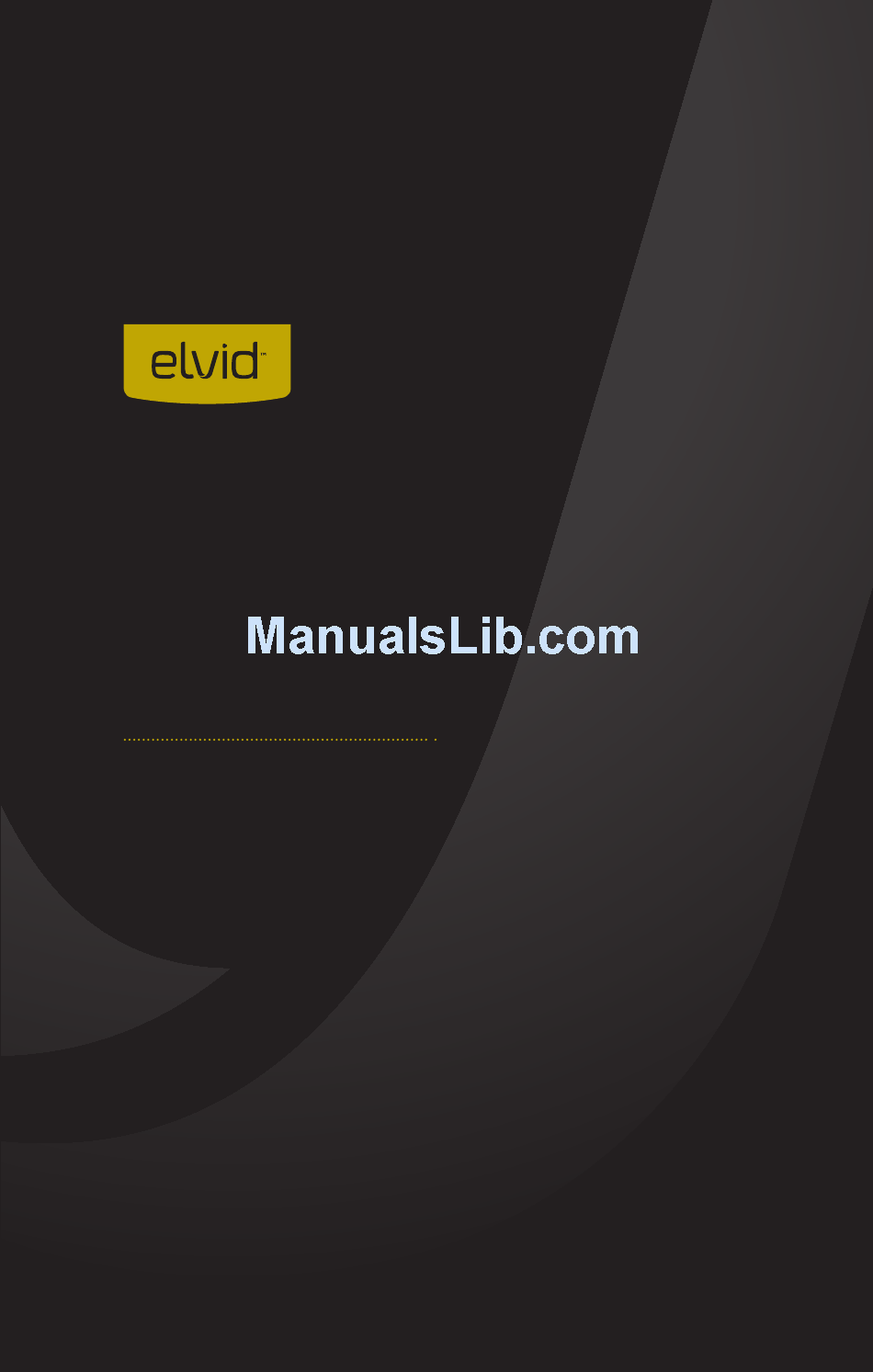

  • Page 1 sKYVIsION WCM-758G WIreLess 7" MONITOr user MANuAL...
  • Page 3 INTrODuCTION Thank you for choosing Elvid. The Elvid WCM-758G SkyVision is a wireless monitor designed to receive signal from your 5.8 GHz composite video transmitter. Equipped with composite video loop-through, the SkyVision can also be used for wired monitoring via its HDMI and composite video inputs.
  • Page 4 PreCAuTIONs • Please read and follow these • Disconnect this product from its instructions and keep this manual in a power source before storage and safe place. during electrical storms. • Exposure to high sound levels can • Do not use chemical solutions to clean cause permanent hearing loss.

  • Page 5: Table Of Contents

    TABLe OF CONTeNTs Product Contents ..............6 Overview ................7-8 Powering On and Off ............9-10 Using the WCM-758G ............11 Wired Input And Loop-Through ........12-13 Monitoring Sound ..............14 The Sunshade .................15 The Menu ................16 Color Menu ................17 OSD Menu ................18 Function Menu ...............19 Sound Menu................20 Using the Buttons ..............21...

  • Page 6: Product Contents

    PrODuCT CONTeNTs · 7" Wireless Monitor · 12 V DC adapter · Antenna · Dip Switch Quick Reference Card · Sunshade · User manual · Mini HDMI to HDMI cable NOTE: Additional battery plates and/or battery adapters compatible with other popular brands can be purchased by visiting www.elvidcinema.com...

  • Page 7: Overview

    OVerVIeW Sunshade slots SKYVISION Power button Headphone jack Status LED Screen Power indicator Input button light F3 (Histogram) Scale button Left Nav (Brightness down) F2 (Exposure) F1 (Peaking) Menu button Right Nav (Brightness Up)
  • Page 8 SKYVISION Speaker Dip-Switch Chart Battery mounting plate 1/4″-20 Threaded socket Power switch Composite video output HDMI input Power Switch Composite video input Audio input Dip switches Antenna terminal...

  • Page 9: Powering On And Off

    POWerING ON & OFF There are two ways to power the SkyVision: AC or a Sony L-series battery. AC POWER To run the SkyVision via AC power, use the included 12 V DC adapter to connect the SkyVision’s DC power input to your AC power source.
  • Page 10 To install a compatible battery, slide the battery forward until it locks into place. To turn on the SkyVision, press the power switch to the On position. The SkyVision will turn on and enter standby mode, and the power indicator LED will glow red.

  • Page 11: Using The Wcm-758G

    usING THe WCM-758-G MOUNTING THE SKYVISION Use the SkyVision’s 1/4″-20 threaded socket to attach the monitor to your mounting system. Make sure your bracket can support the monitor. SETTING THE SIGNAL Before setting the signal, screw the antenna into the antenna terminal.

  • Page 12: Wired Input And Loop-Through

    WIreD INPuT & LOOP-THOruGH HDMI INPUT The SkyVision is equipped with HDMI input for use as a wired high-definition video monitor. Use the included HDMI cable to connect your HDMI video source to the SkyVision’s HDMI input, and then press the Mode button to cycle through the input modes until HDMI appears on the monitor.
  • Page 13 Note: Your composite audio cable must be plugged into the SkyVision’s composite audio input in order to monitor the sound. Loop Through: The SkyVision offers composite video loop- through, also known as pass-through. To loop the video signal through the monitor, make sure the SkyVision is receiving a video signal from your composite video source, and then connect a compatible composite video output cable to the output connection on the monitor.

  • Page 14: Monitoring Sound

    MONITOrING sOuND You can monitor sound via the integrated speaker or the 3.5 mm stereo headphone jack. To monitor via the headphone jack, plug in a pair of compatible headphones. For more information on volume control, refer to Volume under the Sound Menu section on page 20 and Right Button under the Using the Buttons section on page 21 .

  • Page 15: The Sunshade

    suNsHADe The sunshade prevents glare on the monitor’s screen by blocking out stray light, and is useful when shooting outdoors. 1. Insert the sunshade’s pegs into the monitor’s sunshade slots. 2. Slide the sunshade down until it locks into place. To deploy the sunshade, fully open its lid and wings.

  • Page 16: The Menu

    THe MeNu Before using the SkyVision, make sure the monitor’s settings are properly configured. All of the setting configurations are located in the main menu, which has four submenus: Color, Onscreen Display (OSD), Function, and Sound. The submenus are located in the left column of the main menu window Note: The menu is accessible only when the SkyVision is receiving a video signal.

  • Page 17: Color Menu

    COLOr MeNu In the Color menu, you can adjust brightness, contrast, hue, and saturation of the monitor from 0 (least) to 100 (brightest). Check Field: In Check Field mode, only the selected color will appear onscreen. You can select red, green, blue, or mono. In mono, a grayscale image will appear onscreen.

  • Page 18: Osd Menu

    OsD MeNu Language: You can set the onscreen language to English (default), Simplified Chinese, French, Italian, German, Spanish, Japanese, Korean, Russian, and Portuguese. H Position: Adjust the horizontal position of the onscreen menu. V Position: Adjust the vertical position of the onscreen menu. OSD Timeout: Use this setting to set the length of time the onscreen menu is displayed.

  • Page 19: Function Menu

    FuNCTION MeNu Reset: Restore the SkyVision’s menu to the factory default settings. System: Select the transmission display format. You can choose NTSC M (default), PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I, or SECAM BG. Display Ratio: You can set the aspect ratio for the onscreen image.

  • Page 20: Sound Menu

    sOuND MeNu Volume: Adjust the monitoring volume of the SkyVision from 0 to 100. Focus: Use this setting to check the areas of the image that are in focus. Activating this setting increases the sharpness and contrast of the monitor and exaggerates in-focus areas.

  • Page 21: Using The Buttons

    usING THe BuTTONs For greater efficiency while using the SkyVision, you can use the buttons on the front of the monitor as shortcuts to various functions instead of cycling through the onscreen menus. Camera Button: Press this button to enable or disable Camera mode.

  • Page 22: Specifications

    sPeCIFICATIONs MONITOr Panel Size 7" Panel Type Backlight Resolution 1024 × 600 Brightness 250 cd/m² Contrast ratio 700:1 Viewing angle L/R: 75°/75° U/D: 70°/75° Dot pitch (W × H) 0.05 × 0.15 Display ratio 16:9 Input RF, HDMI, composite video, mono audio Output Composite video, headphone (3.5 mm...
  • Page 23 MONITOr (CONTINueD) Supported formats 480i, 480p, 576i, 576p, (50/60 Hz) 720p, 1080i, 1080p Threaded socket 1/4″-20 Input voltage 6 to 24 V DC Power consumption ≤8 W Battery type Sony L-series RF receiving 5.8 GHz broadband FM frequency A/V synchronization, 32 channels RF wireless receiving -90 dBm typical value...

  • Page 24: Troubleshooting

    PrOBLeM sOLuTION The SkyVision will not • If you are powering the turn on. SkyVision with a battery, make sure the battery is fully charged and properly seated in the battery plate. • Make sure that the 12 V DC adapter is fully plugged in, and that your AC power source is reliable.
  • Page 25 PrOBLeM sOLuTION The SkyVision is • If you are using the SkyVision as a wired monitor, make sure turned on but there is the HDMI or composite video no onscreen image or cable is securely plugged into the image is weak. the proper input connection on the SkyVision, and that the input mode is set correctly.
  • Page 26 PrOBLeM sOLuTION The images are not • NTSC and PAL settings may not be correctly set. Make sure the synchronized. monitor’s display format matches that of the input. Refer to System under the Function Menu section on page 19 for further reference. •...

  • Page 27: Dip-Switch Chart

    5760 5780 5800 DIP-sWITCH CHArT 5860 5880 5865 5845 5825 5805 5785 5765 5745 5725 5733 5752 5771 5790 5809 5828 5847 5866 5705 5685 5665 5645 5885 5905 5925 5945 5740 5760 5780 5800 5820 5840 5860 5880...

  • Page 28: Warranty

    ONe-YeAr LIMITeD WArrANTY This Elvid product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later.
