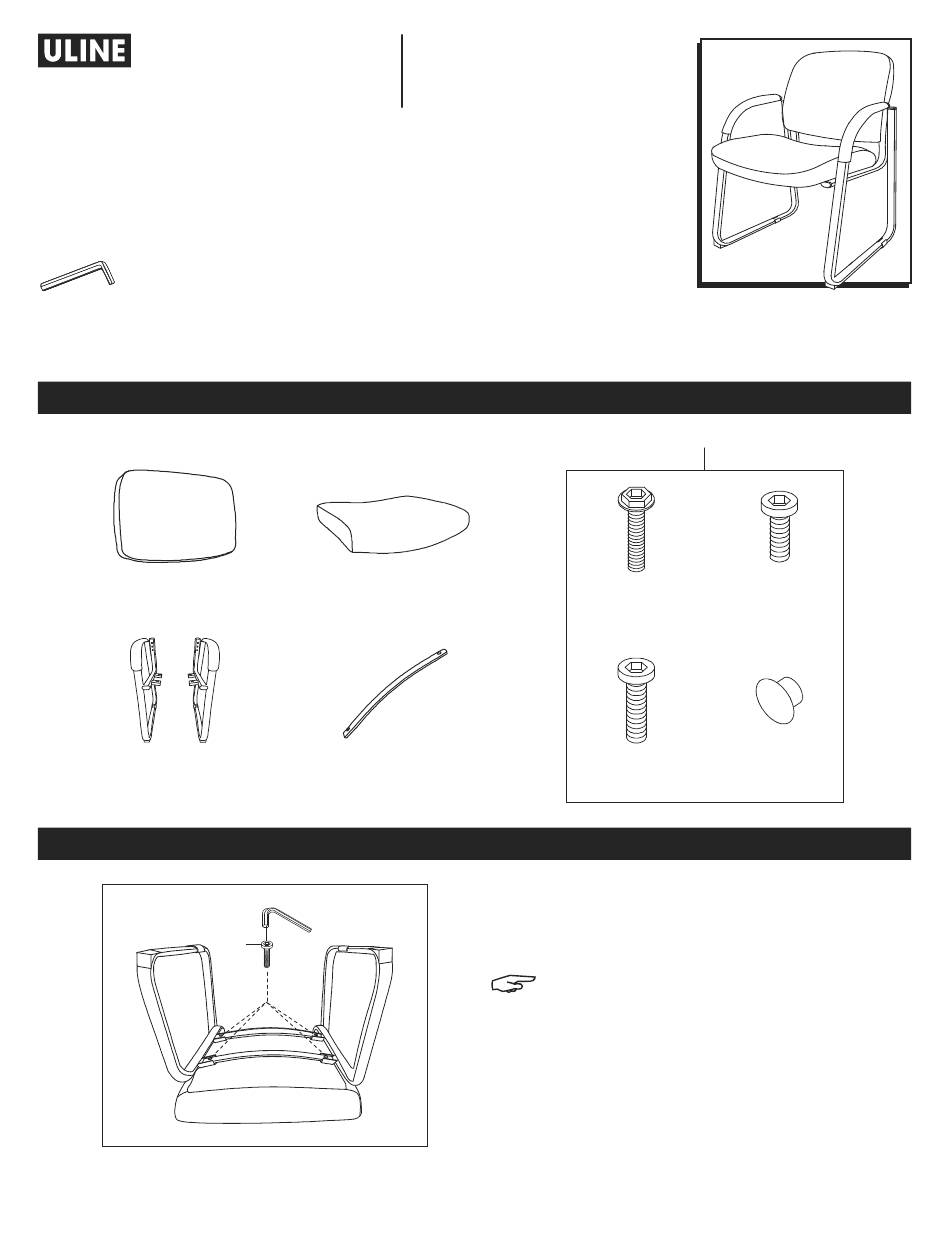

H-7820, H-9128
SLED BASE CHAIR WITH
ARMRESTS – BIG AND TALL
TOOL NEEDED
Allen Wrench
(included)
Back Cushion x 1
Leg with Armrest x 2
Figure 1
PAGE 1 OF 6
Seat Cushion x 1
Support Bar x 2
5
1-800-295-5510
uline.com
PARTS
5
7
ASSEMBLY
1. Align leg mounting brackets with holes on bottom
of seat cushion. Insert support bars into mounting
brackets and use two 5/16 x 1⁄" screws (5) to loosely
secure. Repeat on opposite side. (See Figure 1)
NOTE: Do not tighten screws until assembly is
complete.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Hardware Kit
6
Screw x 2
Screw x 4
5/16 x 1"
5/16 x 1⁄"
8
Screw x 2
Plastic Cap x 4
5/16 x 1⁄"
0721 IH-7820
Advertisement
Related Manuals for U-Line H-7820
Summary of Contents for U-Line H-7820
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-7820, H-9128 1-800-295-5510 uline.com SLED BASE CHAIR WITH ARMRESTS – BIG AND TALL TOOL NEEDED Allen Wrench (included) PARTS Hardware Kit Back Cushion x 1 Seat Cushion x 1...
- Page 2 ASSEMBLY CONTINUED 2. Align back cushion with mounting holes. Use one Figure 2 5/16 x 1" screw (6) in top hole and one 5/16 x 1⁄" screw (7) in bottom hole to loosely secure. Repeat on opposite side. (See Figure 2) NOTE: Use Allen wrench to tighten all screws.
- Page 3 H-7820, H-9128 800-295-5510 uline.mx SILLA CON ARMAZÓN TIPO TRINEO CON DESCANSABRAZOS – GRANDE Y ALTA HERRAMIENTA NECESARIA Llave Allen (incluida) PARTES Kit de Tornillería 1 Respaldo 1 Asiento 2 Tornillos 4 Tornillos 5/16 x 1" 5/16 x 1⁄" 2 Tornillos...
- Page 4 CONTINUACIÓN DEL ENSAMBLE 2. Alinee el respaldo con los orificios de instalación. Diagrama 2 Utilice un tornillo de 5/16 x 1" (6) en el orificio superior y un tornillo de 5/16 x 1¼" (7) en el orificio inferior para asegurarlo sin apretar. Repita la operación con el lado opuesto.
- Page 5 H-7820, H-9128 1-800-295-5510 uline.ca CHAISE À BASE TRAÎNEAU POUR TAILLES FORTES ET ÉLANCÉES AVEC ACCOUDOIRS OUTIL REQUIS Clé Allen (inclus) PIÈCES Matériel de fixation Dossier x 1 Siège x 1 Vis x 2 Vis x 4 5/16 x 1 po 5/16 x 1 ⁄...
- Page 6 ASSEMBLAGE SUITE 2. Alignez le dossier sur les trous de fixation. Utilisez une Figure 2 vis de 5/16 x 1 po (6) dans le trou supérieur et une vis de 5/16 x 1⁄ po (7) dans le trou inférieur et fixez sans serrer.
