Wyrestorm MX-0606-HDBT-H2 v2 Quick Start Manual

6x6/8x8 HDBaseT 4K Matrix
with ARC and HDCP 2.2 support (70m/230ft)
MX-0606-HDBT-H2 v2 | MX-0808-HDBT-H2 v2

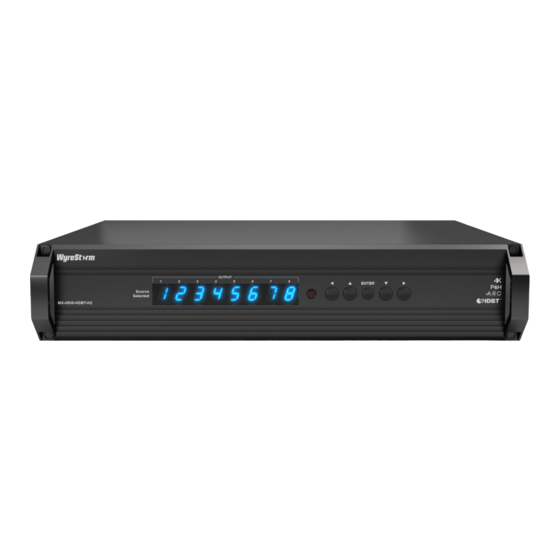

A 6x6 or 8x8 Class A HDBaseT 4K Matrix Switcher with support for 2 or 3 ARC zones, using the latest in HDCP 2.2 encryption technology.
Note: The following information applies to version 2 of this product as identified by v2 after the model number on the product label.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
In the Box
1x MX-0606-HDBT-H2 or MX-0808-HDBT-H2 Matrix Switcher
1x IR Remote Handset
1x IR Receiver (38Khz)
6/8x Wide-band IR Receivers (30-50KHz)
6/8x IR Emitters
1x USB to DB9 RS-232 Cable
1x 100~240V AC 50/60Hz Power Cord with US Plug
1x 100~240V AC 50/60Hz Power Cord with UK Plug
1x 100~240V AC 50/60Hz Power Cord with EU Plug
2x Mounting Brackets
1x Quickstart Guide (this document)
Basic Wiring Diagram
AV Receiver
5.1ch Audio from
Remote Zone
MX-0808-HDBT-H2
Key
HDMI/Digital Video
HDBaseT/Ethernet
Digital Audio
IR
RS-232
IMPORTANT!
Disconnecting and connecting (hot plugging) HDMI or HDBaseT while devices
are powered on may cause damage. WyreStorm recommends powering off
devices before disconnecting these connections.
Recommended Products
To take full advantage of the features of this matrix, WyreStorm recommends
the following products be used within the system.
• RX-70-4K-ARC HDBaseT Receiver – Use this receiver when support for
ARC functions of outputs 5-6 (6x6) and 6-8 (8x8) is required.
• RX-70-4K HDBaseT Receiver – Use this receiver for outputs 1-4 (6x6) and
1-5 (8x8) or when ARC is not required.
• CAB-IR-LINK – Use this cable when using an IR control system for matrix
control of HDBaseT pass-through.
Copyright © 2016 WyreStorm Technologies |
MX-0606-HDBT-H2 v2 | MX-0808-HDBT-H2 v2 Quickstart Guide | 160913
UHD Source
Router
CAB-IR-LINK (Sold
Control System
Separately)
RX-70-4K-ARC
wyrestorm.com
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Detailed installation and configuration information may be found in
the download tab located on the product page.
• WebUI Reference Guide - Setup for advanced Matrix features such as IP
and testing of connections
• H2 Matrix Operation User Guide - Single page document showing the
operation via front panel and included IR remote.
• Drivers and API - Preconfigured drivers for popular control systems and
API document.
Before Beginning
• WyreStorm recommends visiting the product page before installing this
product for updates to this Quickstart Guide as well as other information
about the product.
• Verify that all items are included in the packaging per the
Pre Wire
1. Run a Cat5e/6/6a cable from the transmitter location to the receiver
location. See Supported Video Resolutions
restrictions. Terminate the cable per the
2. (Optional) If using IR emitters or connecting blocks, run the wire and
terminate per the IR TX (Emitter) Wiring
3. (Optional) If using IR receivers, run the wire and terminate per the
Ext (Receiver) Wiring
4. (Optional) If using RS-232 pass-through, run the wire and terminate per
the RS-232 Wiring section.
Installation
1. Connect the output of an HDMI source to an HDMI In on the matrix
using a cable from a high quality brand such as
Repeat for additional sources.
2. Using the cable created in
female plug to the HDBT Out jack on the matrix. Repeat for additional
HDBaseT receivers.
3. (Optional) Using the included IR emitter or the cable created in Pre Wire
step 2, place an IR emitter onto a source device near the device's IR
sensor. Connect the 3.5mm (1/8in) Mono Plug to an IR TX port. Repeat
for additional sources.
4. (Optional) Using the included IR receiver, connect the 3.5mm (1/8in)
Stereo Plug to an IR RX (IR to Zone) port. If using a control system, use
the WyreStorm CAB-IR-LINK
Repeat for additional zones.
5. (Optional) Using an included IR receiver, connect the 3.5mm (1/8in)
Stereo Plug to an IR Ext port. If using a control system, use the
WyreStorm CAB-IR-LINK
6. (Optional) Using the cable created in
DB9 male jack to the RS-232 port on the matrix and the opposite end to
an RS-232 control system.
7. (Optional) Connect the ARC Out of cards 5-6 (6x6) or 6-8 (8x8) to
a digital audio input of a device such as an AV Receiver. Repeat for
additional ARC Out connections.
8. Install HDBaseT receivers (RX-70-4K-ARC recommended) following the
instructions provided with the model being installed.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
for resolution distance
HDMI/HDBaseT Wiring
section.
section.
WyreStorm
Pre Wire step 1, connect the 8-pin RJ-45
or the cable created in Pre Wire
or the cable created in Pre Wire
Pre Wire step 4, connect the 9-pin
support@wyrestorm.com
In the Box list.
section.
IR RX/
Express.
step 3.
step 3.
