Wyrestorm MX-0404-H2 v2 Quick Start Manual

4x4 or 6x6 4K HDMI Matrix Switcher
with HDCP 2.2 Encryption
MX-0404-H2 v2 | MX-0606-H2 v2
Pure HDMI 4x4 or 6x6 matrix switch with support for full 4K resolutions and HDCP 2.2.
Note: The following information applies to version 2 of this product as identified by v2 after the model number on the product label.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting
the installation process.
In the Box
1x MX-0404-H2 or MX-0606-H2 Matrix Switcher
1x Handheld IR Remote
1x IR Receiver (38kHz)
1x AC Power Cord with EU Plug
1x AC Power Cord with US Plug
1x AC Power Cord with UK Plug
1x USB to DB9 RS-232 Cable
2x Mounting Brackets
1x Quickstart Guide

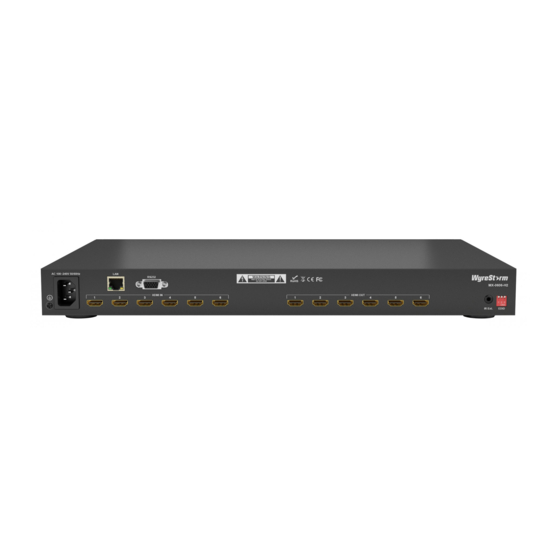

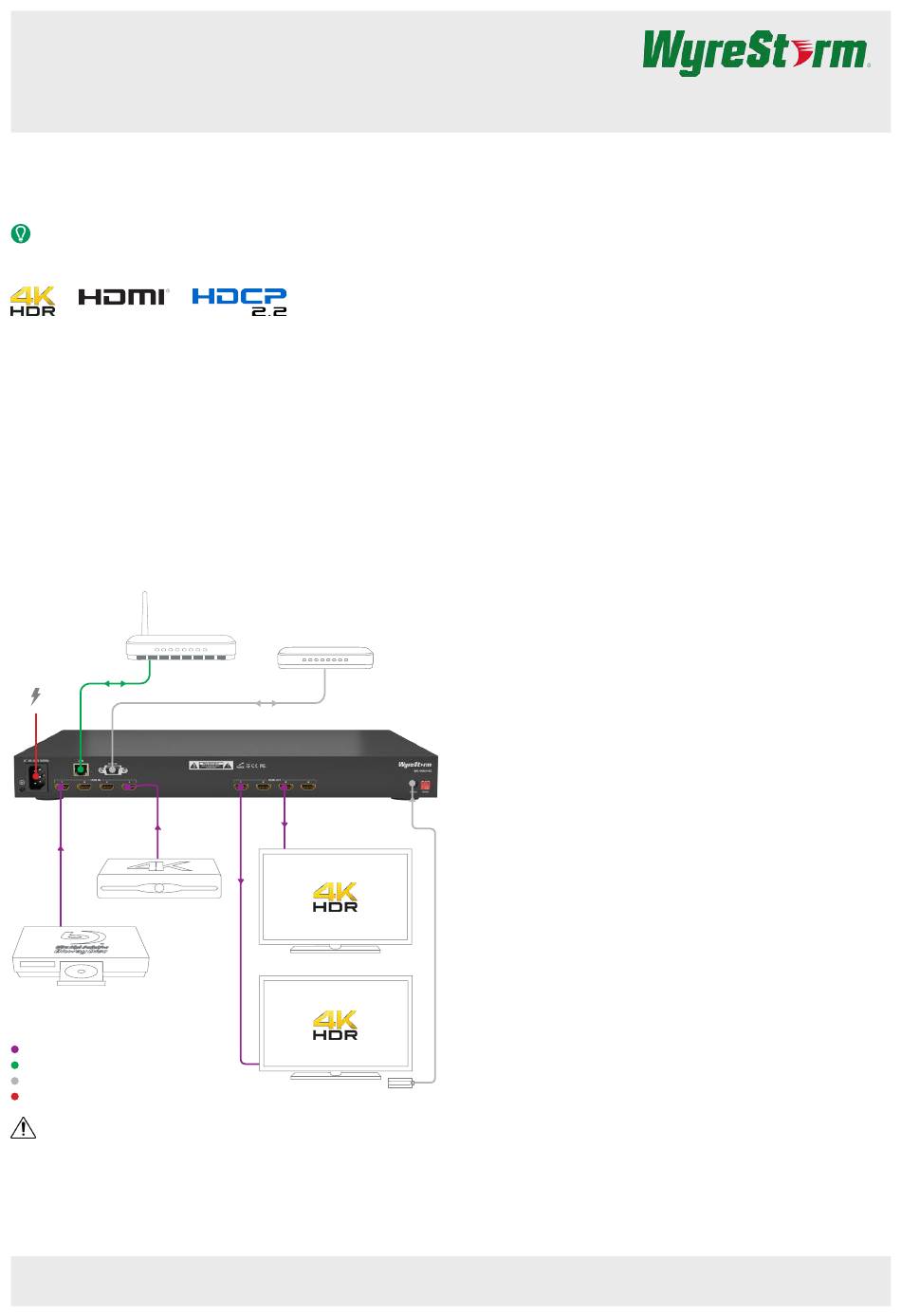

Basic Wiring Diagram
LAN
Cat5/5e/6
AC Mains
HDMI from
source
HDMI from
source
UHD Source
UHD Source
KEY
HDMI
HDBaseT / Ethernet
IR / RS-232
Power
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI connections while the
matrix is powered on. Doing so may cause damage to the units or connected
devices.
Copyright © 2016 WyreStorm Technologies |
MX-0404-H2 v2 | MX-0606-H2 v2 Quickstart Guide | 160815
RS-232 to Control System
HDMI to
display
UHD Display
HDMI to
display
UHD Display
wyrestorm.com
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Detailed installation and configuration information may be found in
the download tab located on the product page.
• WebUI Reference Guide - Setup for advanced Matrix features such as IP
and testing of connections
• H2 Matrix Operation User Guide - Single page document showing the
operation via front panel and included IR remote.
• Drivers and API - Preconfigured drivers for popular control systems and
API document.
Before Beginning
• WyreStorm recommends visiting the product page before installing this
product for updates to this Quickstart Guide as well as other information
about the product.
• Verify that all items are included in the packaging per the
Pre Wire
1. (Optional) If using IR receivers or an IR control system, run the wire and
terminate per the
2. (Optional) If using RS-232 to control the matrix, run the wire and
terminate per the
Installation
Connect an HDMI source to the HDMI In on the Matrix using an HDMI
1.
cable from a high quality brand such as
additional HDMI sources.
2. Connect a display device to Output 1 using an HDMI cable from a
high quality brand such as
displays.
3. (Optional) Using the included IR receiver, connect the 3.5mm (1/8in)
stereo plug to the matrix IR Ext port. If using a control system, connect
an IR out port on the control system to the IR Ext port on the matrix
using the WyreStorm CAB-IR-LINK
1.
4. (Optional) Using the cable created in
9-pin DB9 Female connector to the RS-232 port on the matrix and the
opposite end to a port on a control system.
5. Connect the supplied AC power cord and power on the matrix.
6. Configure EDIDs per the
IR Receiver
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
IR Ext (Receiver) Wiring section.
RS-232 Wiring section.
WyreStorm
WyreStorm Express. Repeat for additional
or the cable created in
Pre Wire step 2, connect the
EDID Settings section.
support@wyrestorm.com
In the Box list.
Express. Repeat for
Pre Wire step
