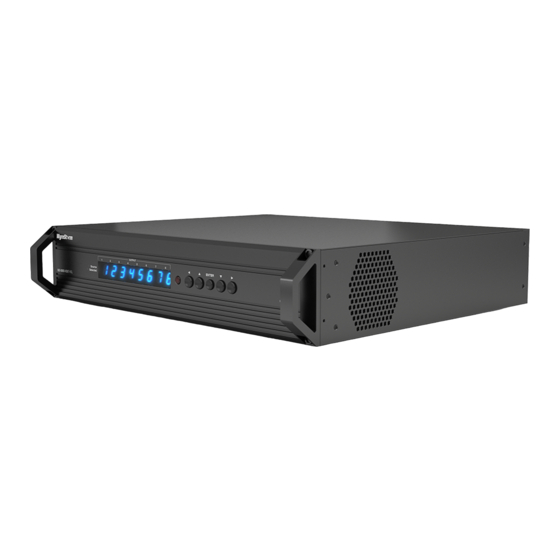

6x6/8x8 HDBaseT 4K Matrix
with ARC and HDCP 2.2 support (70m/230ft)
MX-0606-HDBT-H2L v2 | MX-0808-HDBT-H2L v2
A 6x6 or 8x8 Class A HDBaseT 4K Matrix Switcher with support for 2 or 3 ARC zones, using the latest in HDCP 2.2 encryption technology.
Note: The following information applies to version 2 of this product as identified by v2 after the model number on the product label.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Install the latest firmware to ensure that all features described in this
document are available during and after installation.
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
Recommended Products
To take full advantage of the features of this matrix, WyreStorm recommends
the following products be used within the system.
• RX-70-4K-ARC HDBaseT Receiver – Use this receiver when support for
ARC functions of outputs 5-6 (6x6) and 6-8 (8x8) is required.
• RX-70-4K HDBaseT Receiver – Use this receiver for outputs 1-4 (6x6) and
1-5 (8x8) or when ARC is not required.
• CAB-IR-LINK – Use this cable when using an IR control system for matrix
control of HDBaseT pass-through.

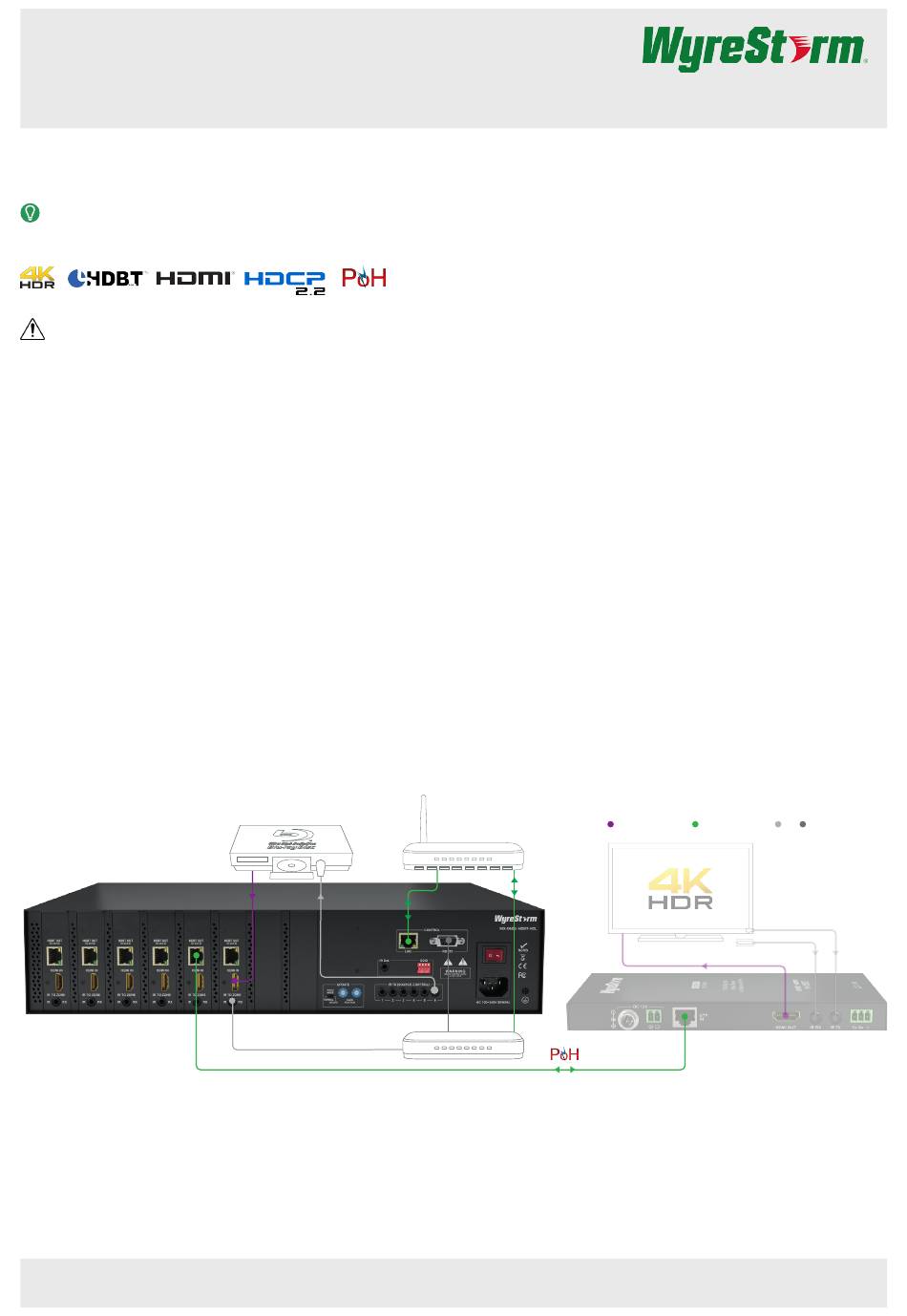

Basic Wiring Diagram
MX-0606-HDBT-H2L
Copyright © 2015 WyreStorm Technologies |
MX-0606-HDBT-H2L/MX-0808-HDBT-H2L Quickstart Guide | 170516
section for important wiring
UHD Source
Control System
CAB-IR-LINK (Sold Separately)
wyrestorm.com
In The Box
1x MX-0606-HDBT-H2L or MX-0808-HDBT-H2L Matrix Switcher
1x IR Remote Handset
1x IR Receiver (38Khz)
6/8x Wide-band IR Receivers (30-50KHz)
6/8x IR Emitters
1x USB to DB9 RS-232 Cable
1x 100~240V AC 50/60Hz Power Cord with US Plug
1x 100~240V AC 50/60Hz Power Cord with UK Plug
1x 100~240V AC 50/60Hz Power Cord with EU Plug
2x Mounting Brackets
1x Quickstart Guide (this document)
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Detailed installation and configuration information may be found in
the download tab located on the product page.
• WebUI Reference Guide – Setup for advanced Matrix features such as IP
and testing of connections
• H2L Matrix Operation User Guide – Single page document showing the
operation via front panel and included IR remote.
• Drivers and API – Preconfigured drivers for popular control systems and
API document.
Key
Router
RX-70-POH
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
HDMI/Digital Video
HDBaseT/Ethernet
IR
HDMI to display
support@wyrestorm.com
RS-232
IR RX
IR TX
